Zircon U-Pb dating and petrogenesis of the Early Jurassic rhyolite in Badaguan area, northern Da Hinggan Mountains
-
摘要:
大兴安岭北段八大关地区首次发现早侏罗世火山岩，该类岩石主要由流纹岩组成，含少量英安岩和流纹质凝灰岩，LA-ICPMS锆石U-Pb定年结果显示其形成于185~190 Ma，岩石地球化学研究表明，流纹岩具有高硅富碱，贫镁钙和高FeOT/MgO比值的特征，属于高钾钙碱性系列；稀土总量不高（ΣREE=103.80×10-6~194.31×10-6），轻重稀土分馏较明显（（La/Yb）N=7.12~10.22），中等负Eu异常（δEu=0.34~0.74），微量元素以富集Rb、Ba、Th、U、K和LREE，强烈亏损Sr、P、Ti，相对亏损Nb、Ta为特征，显示地壳来源，结合较低的Ga/Al比值，该区流纹岩具有Ⅰ型花岗岩特点，在（Y+Nb）-Rb和（Yb+Ta）-Rb判别图解上显示其形成于活动大陆边缘环境。综合研究表明，八大关地区早侏罗世之前为活动陆缘环境，蒙古—鄂霍茨克大洋板块向额尔古纳地块之下俯冲。
Abstract:The newly-discovered Early Jurassic rhyolite in Badaguan area of Da Hinggan Mountains is of great significance in investigating the tectonic evolution history of Northeast China. The rocks are mainly composed of rhyolites, with a small amount of dacitic and rhyolitic tuffs. LA-ICPMS shows the rhyolites were formed in Early Jurassic, and their formation ages range from 185 Ma to 190 Ma. Geochemical studies show that the rhyolites are characterized by rich silicon and alkalis, poor calcium and magnesium and high FeOT/MgO ratios. Hence the rhyolites belong to high-potassium calc-alkaline rocks. All samples have the similar characteristics of REE patterns, which are characterized by relatively poor total REE content (∑REE=103.80×10-6-194.31×10-6), significant fractionation of HREE and REE[(La/Yb)]N=7.12-10.22) and moderate Eu negative anomalies (δEu=0.34-0.74). The rhyolites are characterized by enrichment of Rb, Th, U, K and LREE, strong depletion of Ba, Sr and HFSE (e.g., Nb, Ta, P and Ti), and relative loss of Nb, Ta. The relatively low Ga/Al ratios indicate that the rhyolites are Ⅰ-type granites of high differentiation. The discrimination diagrams of (Y+Nb)-Rb and (Yb+Ta)-Rb show that the rhyolites were formed on the active continental margin. The comprehensive studies show that the Badaguan area was located on an active continental margin before Early Jurassic, which was affected by the subduction of Mongol-Okhotsk plate towards metamorphic rocks in the Erguna Block.
-
Key words:
- Early Jurassic /
- rhyolite /
- zircon U-Pb dating /
- petrogenesis /
- tectonic setting
-
-
图 10 八大关地区早侏罗世流纹岩构造环境判别图解(据Pearce et al., 1984)
Figure 10.

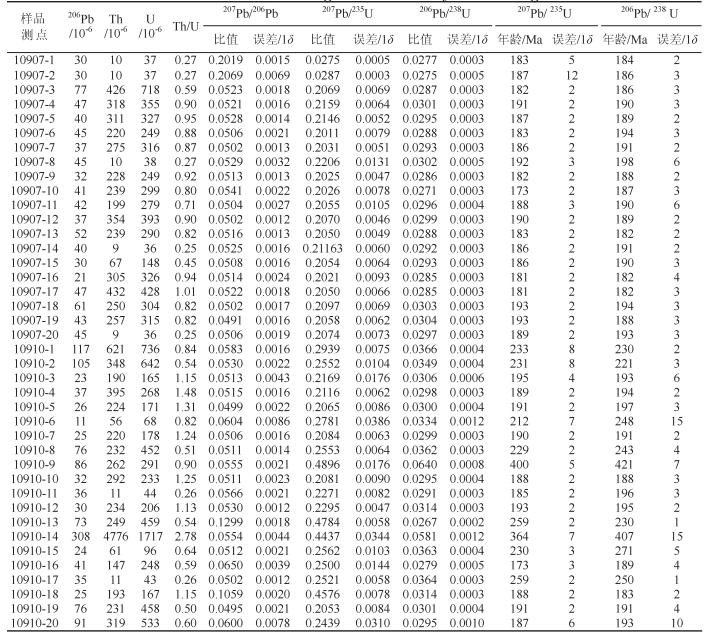

表 1 八大关地区流纹岩锆石U-Pb同位素分析结果
Table 1. Zircon U-Pb dating results for the rhyolite in Badaguan
下载: 导出CSV

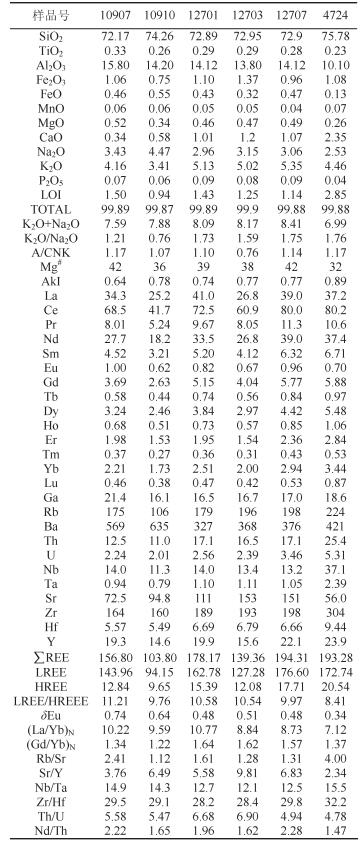

表 2 八大关地区流纹岩主量、微量元素分析结果(主量元素%; 微量元素10-6)
Table 2. Abundances of major and trace elements for the granites in Badaguan area (major elements: %; trace elements: 10-6)
下载: 导出CSV
-
Chen Zhiguang, Zhang Lianchang, Zhou Xinhua, Wan Bo, Ying Jifeng, Wang Fei. 2006. Geochronogy and geochemical characteristics of vocanic section rocks in Manzhouli Xinyouqi, Inner Monogolia[J]. Acta Petrologia Sinica, 22(12):2971-2986(in Chinese with English abstract). http://www.oalib.com/paper/1473596
Chen Zhiguang, Zhang Lianchang, Lu Baizhi, Li Zhanhua, Wu Yinghua, Xiang Peng, Huang Shiwu. 2010. Geochronology and geochemistry of theTaipingchuan copper-molybdenum deposit in Inner Mongolia, and its geological significances[J]. Acta Petrologica Sinica, 26(5):1437-1449 (in Chinese with English abstract). https://www.researchgate.net/publication/279584051_Geochronology_and_geochemistry_of_the_Taipingchuan_copper-molybdenum_deposit_in_Inner_Mongolia_and_its_geological_significances
Chen Lili, Cheng Zhiguo. 2015. Petrology and zircon chronology of the Dorolj in Hinggan League, Inner Mongolia[J]. Geology in China, 42(4):891-908 (in Chinese with English abstract). https://www.researchgate.net/publication/285219384_Petrology_and_zircon_chronology_of_the_Dorolj_granite_in_Hinggan_League_Inner_Mongolia
Chappell B W. 1999. Aluminium saturation in I and S-type granites and the characterization of fractionated haplogranites[J]. Lithos, 46:535-551. doi: 10.1016/S0024-4937(98)00086-3
Ge Wenchun. 1997. Geochemistry of Mesozoic Volcanic Rocks and Teconic Setting in Daxing'Anling[D]. Changchun:Changchun University of science and technology, 1-77 (in Chinese with English abstract).
Ge Wenchun, Lin Qiang, Sun Deyou, Wu Fuyuan, Li Xianhua. 2000b. Geochemical research into origins of two types of mesozoic rhyolites in Daxing' Anling[J]. Earth Science-Journal of China University of Geosciences. 25(2):172-178 (in Chinese). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQKX200002012.htm
Ge Wenchun, Li Xianhua, Lin Qiang, Sun Deyou, Wu Fuyuan, Yin Chengxiao. 2001. Geochemistry of early cretaceous alkaline rhyolites from Hulun Lake, Daxing'Anling and its tectonic implications[J]. Chinese Journal of Geology, 36(2):176-183(in Chinese with English abstract). https://www.researchgate.net/publication/279595502_Geochemistry_of_early_cretaceous_alkaline_rhyolites_from_Hulun_Lake_Daxing%27anling_and_its_tectonic_implications
Hou Zhaoshuo, Ren Yunsheng, Wangxi, Sun Deyou, Gou Jun, Wang Tianhao. 2013, Geologic feature and fluid inclusion of NO. 431urauium deposit in Erguna Area, Inner Mongolia[J]. Geology and Resources, 22:180-184(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-GJSD201303004.htm
Jiang Guoyuan, Quan Huan. 1988. Mesozoic vocanic rocks of Genhe and Hailaer Basins in Da Xing' an Range[J]. Shenyang Insititate of Geology and Minral Resovers, 17:23-100(in Chinese).
Lin Qiang, Ge Wenchun, Cao Lin, Sun Deyou, Lin Jingguo. 2003.Geochemistry of Mesozoic volcanic rocks in Daxing'Anling:Thebimodal vocanic rocks[J]. Geochimic, 32(3):208-222(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQHX200303001.htm
Liang Yuwei, Yu Cunlin, Shen Zhenguo, Sun Qingru, Li Jinwen. 2013.Geochemical characteristics of granites in the Suonaga Pb-Zn-Ag deposit of Dong Ujimqin Banner, Inner Mongolia, and their tectonic and ore-forming implications[J]. Geology in China, 40(3):767-779(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DIZI201303010.htm
Liu Jingdang, Liang Shuai, Xiao Rongge, Zhang Yanfei. 2015.Geochemistry, geochronology and petrogenesis of the ore -forming intrusive body in the Baoyintumolybdenum deposit, Inner Mongolia[J]. Geology in China, 42(1):149-168(in Chinese with English abstract).
Meng Q R. 2003. What drove Late Mesozoic extension of the northern China-Mongolia tract[J]. Tectonophysics, 369:155-174. doi: 10.1016/S0040-1951(03)00195-1
Pearce J A, Harris N B L and Tindle A G. 1984. Trace element discrimination diagrams for the tectonic interpretation of granitic rocks[J]. Journal of Petrology, 25:956-983. doi: 10.1093/petrology/25.4.956
Sun S S and McDonough W F. 989. Chemical and isotopic systematics of oceanic basalts:Implications for mantle composition and process.[C]//Sauders A D, Norry M J (eds). Magmatism in the Ocean Basins[J]. Geological Society Special Publication, 42:313-326.
Sorokin Andrey A, Kudryashov N M. and Kotov, A B. 2007. Age and geochemistry ofthe Early Mesozoic granitoid massifs of the southern Bureya terrane of the RussianFar East[J]. Russian Journal of Pacific Geology 1(5):454-463. doi: 10.1134/S1819714007050053
Sui Zhenmin, Ge Wenchun, Wu Fuyuan, Zhangjiheng, Xu Xuechun, Cheng Ruyu. 2007. Zircon U-Pb ages, geochemistry and its petrogenests of Jurassic granites in northeastern part of the Da Higgans Mts[J]. Acta Petrologica Sinica. 23(2):461-480(in Chinese with English abstract). http://en.cnki.com.cn/article_en/cjfdtotal-ysxb200702024.htm
Sorokin Andrey A, Kotov Alexander B, Sal'nikova, Ekaterina. 2010.Granitoids of the Tyrma-Bureyacomplex in the northern BureyaJiamusi superterrane of the Central Asian fold belt:Age and geodynamic setting[J]. Russian Geology and Geophysics, 51(5):563-571. doi: 10.1016/j.rgg.2010.04.011
Sun Deyou, Gou Jun, Ren Yunsheng, Fu Changliang, Wang Xi, Liu Xiaoming. 2011. Zircon U-Pb dating and study on geochemistry of volcanicrocks in Manitu Formation from southern Manchuria, Inner Mongolia[J]. Acta Petrologica Sinica, 10:3083-3094(in Chinese with English abstract). https://www.researchgate.net/publication/279714834_Zircon_U-Pb_dating_and_study_on_geochemistry_of_volcanic_rocks_in_Manitu_Formation_from_southern_Manchuria_Inner_Mongolia
Sun Deyou, GouJun, Wang Tianhao, Ren Yunsheng, LiuYongjiang, Guo Hongyu. Liu Xiaoming, Hu Zhaochun. 2013. Geochronological and geochemical constraints on the Erguna massif basement, NE Chinasubduction history of the Mongol-Okhotsk oceanic crust[J]. International Geology Review 55(14):1-16. http://www.tandfonline.com/doi/abs/10.1080/00206814.2013.804664
Sun Chongbo, Li Zhongquan, Wang Daoyong, Xu Yuanping, Li Youyu. 2016. Petrogeochemistry and zircon U-Pb chronology of the Niuzhi monzonitic porphyry in southern segment of Ailao Mountain tectonic belt[J]. Geology in China, 43(1):111-119(in Chinese with English abstract). http://www.en.cnki.com.cn/Article_en/CJFDTotal-DIZI201601008.htm
Tischendorf G, Paelchen W. 1985. Zur Klassifikation von Granitoiden[J]. Classification of Granitoids Zeitschrift Fuer Geologische Wissenschaften, 13(5):615-627. https://www.researchgate.net/publication/294693677_Zur_Klassifikation_von_Granitoiden
Wu Fuyuan, Jahn Bor-ming, Wilde Simon A, Lo Chinghua, Lin Qiang, Ge Wenchun, Sun Deyou. 2003. Highly Fractionated Ⅰ-type Granites in NE China (I):Geochronology and Petrogenesis[J]. Lithos, 66(3):241-273. https://www.researchgate.net/profile/Simon_Wilde2/publication/222062598_Highly_fractionated_I-type_granites_in_NE_China_I_Geochronology_and_petrogenesis/links/00463533e55faed1cf000000/Highly-fractionated-I-type-granites-in-NE-China-I-Geochronology-and-petrogenesis.pdf
Wang P J, Chen F K, Shen S M. 2006. Geochemical and Nd-SrPbisotopic composition of Mesozoic volcanic rocks in the Songliaobasin, NE China[J]. Geochemical Journal, 40:149-159. doi: 10.2343/geochemj.40.149
Wang Fei, Zhou Xinhua, Zhang Lianchang, Yang Jinhui, Wilde Simon A, Li Ming. 2006. Late Mesozoic volcanism inthe Great Xing'an Range (NE China):Timing and implications for the dynamic setting of NE Asia[J]. Earth and Planetary Science Letters, 251:179-198. doi: 10.1016/j.epsl.2006.09.007
Wu Fuyuan, Sun Deyou, Ge Wenchun, Zhang Yanbin, Grant Matthew L, Wilde Simon A, Jahn Bor-ming, Hu Zhaochun. 2011.Geochronology of the Phanerozoic granitoids in northeastern China[J]. Journal of Asian Earth Sciences 41, 1-30. doi: 10.1016/j.jseaes.2010.11.014
Wu Pengfei, Sun Deyou, Wang Tianhao, Gou Jun, Li Rong, Liu Wei, Liu Xiaoming. 2013. Chronology, geochemical characteristic and petrogenesis analysis of dioritein Helong of Yanbian area, NE China[J]. Geological Journal of China Universities, 19(4):600-610 (in Chinese with English abstract). https://www.researchgate.net/publication/309118557_Chronology_geochemical_characteristics_of_granodiorite-quartz_diorite_pluton_in_Kaishantun_Yanbian_area_and_its_constrains_to_the_beginning_of_Paleo-Pacific_Plate_subduction
Wang Wei. 2014. Geochronology and Geochemistry of the Early Jurassic Volcanic Rocks in the Manzhouli-Erguna Area, NE China. Inner Mongolia[D]. Changchun:Jilin University (in Chinese with English abstract).
Xiao W J, Windley B F, Huang B C. 2009. End Permian to midTriassic termination of the southern Central Asian Orogenic Belt[J]. International Journal of Earth Sciences, 98, 1189-1217. doi: 10.1007/s00531-008-0407-z
Ying Jifeng, Zhou Xinhua, Zhang Lianchang. 2010. Geochronological frameworkof Mesozoic volcanic rocks in the Great Xing'an Range, NE China, and their geodynamic implications[J]. Journal of Asian Earth Sciences, 39(6):786-793. doi: 10.1016/j.jseaes.2010.04.035
Zhao Guolong, Yang Guilin, Wang Zhong. 1989. Mesozoic Volcanic Rocks in South Central[M]. Beijing:Science Press, 1-35 (in Chinese).
Zhang Jiheng, Ge Wenchun, Wu Fuyuan, Liu Xiaoming. 2006.Mesozoic bimodal volcanic suitein Zhalantun of the Da Hinggan Range and its geologicalsignificance:Zircon U-Pb age and Hf isotopic constraints[J]. Acta Geologica Sinica, 80(1):58-69. doi: 10.1111/acgs.2006.80.issue-1
Zhang Lianchang, Chen Zhiguang, Zhou Xinhua, Ying Jifeng, Zhang Yutao. 2007. Characteristics of deep sources andtectonicmagmatic evolution of the earlyCretaceous voicanics in Genhearea.Da-Hinggan Mountains:Constraintsof Sr-Nd-Pb-Hf isotopic geochemistries[J]. Acta Petrologica Sinica, 23(11):2823-2835(in Chinese with English abstract). https://www.researchgate.net/publication/288606927_Characteristics_of_deep_sources_and_tectonic-magnetic_evolution_of_the_early_Cretaceous_volcanics_in_Genhe_area_Da-Hinggan_Mountains_Constraints_of_Sr-Nd-Pb-Hf_isotopic_geochemistries
Zhang Yutao, Zhang Lianchang, Ying Jifeng, Wang Fei, Hou Quanlin, Liu Qing. 2007. Geochemistry and source characteristics ofearly Cretaceous volcanic rockets in Tahe, north Da Hinggan Mountain[J]. Acta Petrologica Sinica, 23(11):2811-2822(in Chinese with English abstract). https://www.researchgate.net/publication/286972955_Geochemistry_and_source_characteristics_of_early_Cretaceous_volcanic_rocks_in_Tahe_north_Da_Hinggan_Mountain
Zhang Jiheng, Ge Wenchun, Wu Fuyuan, Wilde Simon A, Yang Huijin, Liu Xiaoming. 2008. Large-scale Early Cretaceousvolcanic events in the northern Great Xing'an Range, Northeastern China[J]. Lithos, 102:138-157. doi: 10.1016/j.lithos.2007.08.011
Zhang Jiheng, Gao Shan, Ge Wenchun. 2010. Geochronology of the Mesozoicvolcanic rocks in the Great Xing' an Range, northeastern China:Implications for subduction-induced delamination[J]. Chemical Geology, 276:144 -165. doi: 10.1016/j.chemgeo.2010.05.013
Zhang Qi, Jin Weijun, Li Chengdong, Wang Wenlong. 2011. Gra-nitic rocks and their formation depth in the crust[J]. Acta Petrologica Sinica, 35(2):259-269(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DGYK201102012.htm
Zhang Qi. 2014. Geochemistry of the Guangxi-type graniteand its tectonic implicatons[J]. Acta PetrologicaetMineralogica, 33 (1):199-210(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-YSKW201401018.htm
Zhu Xinyou, Zhang Zhihui, Fu Xu, Li Baiyang, Wang Yanli Jiao Shoutao, Sun Yalin. 2016. Geological and geochemical characteristics of the Weilasito Sn-Zn deposit, Inner Mongolia[J]. Geology in China, 43(1):188-208(in Chinese with English abstract). http://www.sciencedirect.com/science/article/pii/S016913681630395X
陈志广, 张连昌, 周新华, 万博, 英基丰, 王非. 2006.满洲里新右旗火山岩剖面年代学和地球化学特征[J].岩石学报, 22(12):2971-2986. doi: 10.3969/j.issn.1000-0569.2006.12.014
陈志广, 张连昌, 卢百志, 李占龙, 吴华英, 相鹏, 黄世武. 2010.内蒙古太平川铜钼矿成矿斑岩时代地球化学及地质意义[J].岩石学报, 26(5):1437-1449. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201005010.htm
陈丽丽, 程志国. 2015.内蒙古兴安盟杜尔基地区花岗岩岩石学及锆石U-Pb年龄[J].中国地质, 42(4):891-908. http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20150408&flag=1
葛文春. 1997. 大兴安岭中生代火山岩的地球化学特征及其大地构造背景[D]. 博士学位论文. 长春: 长春科技大学, 1-77.
http://d.wanfangdata.com.cn/Thesis/Y299448 葛文春, 林强, 孙德有, 吴福元, 李献华. 2000.大兴安岭中生代两类流纹岩成因的地球化学研究[J].地球科学, 25(2):172-178. http://www.cnki.com.cn/Article/CJFDTOTAL-DQKX200002012.htm
葛文春, 李献华, 林强, 孙德有, 吴福元, 尹成孝. 2001.呼伦湖早白垩世碱性流纹岩的地球化学特征及其意义[J].地质科学, 36 (2):176-183. http://www.cnki.com.cn/Article/CJFDTOTAL-DZKX200102005.htm
侯召硕, 任云生, 王晰, 孙德有, 苟军, 王天豪. 2013.内蒙古额尔古纳地区431铀矿床地质特征与流体包裹体研究[J].地质与资源, 22, 180-184. http://www.cnki.com.cn/Article/CJFDTOTAL-GJSD201303004.htm
蒋国源, 权恒. 1988.大兴安岭根河、海拉尔盆地中生代火山岩[J].中国地质科学院沈阳地质矿产研究所所刊. 17:23-100. http://cpfd.cnki.com.cn/Article/CPFDTOTAL-ZGDJ198800019003.htm
林强, 葛文春, 曹林, 孙德有, 林经国. 2003.大兴安岭中生代双峰式火山岩的地球化学特征[J].地球化学, 32(3):208-222. http://www.cnki.com.cn/Article/CJFDTOTAL-DQHX200303001.htm
隋振民, 葛文春, 吴福元, 张吉衡, 徐学纯, 程瑞玉. 2007.大兴安岭东北部侏罗纪花岗质岩石的锆石U-Pb年龄、地球化学特征及成因[J].岩石学报, 23(2):461-480. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200702024.htm
梁玉伟, 余存林, 沈国珍, 孙庆茹, 李进文. 2013.内蒙古东乌旗索纳嘠铅锌银矿区花岗岩地球化学特征及其构造与成矿意义[J], 中国地质, 40, 3, 767-779. doi: 10.3969/j.issn.1000-3657.2013.03.009 http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20130309&flag=1
刘敬党, 梁帅, 肖荣阁, 张艳飞. 2015.内蒙古宝音图钼矿成矿岩体地球化学、年代学及成因研究.中国地质, 242(1):149-168. http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20150111&flag=1
孙德有, 苟军, 任云生, 付长亮, 王晰, 柳小明. 2011.满洲里南部玛尼吐组火山岩锆石U-Pb年龄与地球化学研究[J].岩石学报, 10:3083-3094. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201110024.htm
孙崇波, 李忠权, 王道永, 许远平, 李友余. 2016.哀牢山构造带南段扭只二长花岗斑岩地球化学特征及其锆石U-Pb年代学研究[J].中国地质, 43(1):111-119. doi: 10.12029/gc20160108 http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20160108&flag=1
武鹏飞, 孙德有, 王天豪, 苟军, 李蓉, 刘纬, 刘小明. 2013.延边和龙地区闪长岩的年代学、地球化学特征及岩石成因研究[J].高校地质学报, 19(4):600-610. http://cdmd.cnki.com.cn/Article/CDMD-10183-1014296199.htm
王伟. 2014. 满洲里-额尔古纳地区早侏罗世火山岩的年代学与地球化学研究[D]. 硕士学位论文. 长春, 吉林大学, 1-57.
http://cdmd.cnki.com.cn/Article/CDMD-10183-1014297516.htm 赵国龙, 杨桂林, 王忠. 1989.中南部中生代火山岩[M].北京:北京科学技术出版社. 1-35.
张玉涛, 张连昌, 英基丰, 周新华, 王非, 侯泉林, 刘庆. 2007.大兴安岭北段塔河地区早白垩世火山岩地球化学及源区特征[J].岩石学报, 23(11):2811-2822. doi: 10.3969/j.issn.1000-0569.2007.11.012
张连昌, 陈志广, 周新华, 英基丰, 王非, 张玉涛. 2007.大兴安岭根河地区早白垩世火山岩深部源区与构造-岩浆演化:Sr-Nd-PbHf同位素地球化学制约[J].岩石学报, 23(11):2823-2835. doi: 10.3969/j.issn.1000-0569.2007.11.013
张旗, 金惟俊, 李承东, 王元龙. 2006.三论花岗岩按照Sr-Yb的分类:应用[J].岩石学报, 26(12):3431-3455. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201012002.htm
张旗. 2014.广西型花岗岩的地球化学特征及其构造意义[J].岩石矿物学杂志, 33 (1):199-210. http://www.cnki.com.cn/Article/CJFDTOTAL-YSKW201401018.htm
祝新友, 张志辉, 付旭, 李柏阳, 王艳丽, 焦守涛, 孙雅琳. 2016.内蒙古赤峰维拉斯托大型锡多金属矿的地质地球化学特征[J].中国地质, 43(1):188-208. doi: 10.12029/gc20160114 http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20160114&flag=1
-
