Geochemical characteristics and intraplate extension of Late Devonian bimodal volcanic rocks in Chifeng area of Inner Mongolia
-
摘要:
内蒙古赤峰敖汉旗一带的朝吐沟组火山岩由变玄武岩、变流纹岩组成，是一套典型的“双峰式”火山岩组合。采用LA-ICP-MS锆石U-Pb测年方法，获得了流纹岩的锆石206Pb/238U加权平均年龄分别为（359±1）Ma和（360±1）Ma，形成于晚泥盆世法门期。火山岩的SiO2含量分布在46.24%~56.6%和77.59%~85.75%，分别属于变玄武岩（玄武安山岩）和变流纹岩。变玄武岩（玄武安山岩）轻稀土元素弱富集而重稀土元素略亏损，（La/Yb）N=2.4~8.76，有弱Eu负异常，富集大离子亲石元素和高场强元素，Nb、Ta、Ti有明显负异常，87Sr/86Sr初始比值为0.705076~0.707770，具有高的正εNd（t）值（+0.51~+4.90）和年轻的模式年龄TDM（964~1090 Ma），推断其源于遭受地壳物质混染的亏损地幔；变流纹岩富硅、钾和钠，贫镁，具有轻稀土元素富集而重稀土元素略亏损，（La/Yb）N=7.07~11.07，有强烈的Eu负异常（δEu=0.12~0.43），Ti、P、Sr、Ba相对强烈亏损，Nb、Ta亏损，Rb、Th、U、K相对富集；其87Sr/86Sr初始比值为0.713757~0.739647，εNd（t）值为-1.75~+2.54），和年轻的模式年龄TDM（846~1156 Ma）；多数锆石的εHf（t）为-2.3~+6.9，年轻的模式年龄TDM（707~1074 Ma），具有A型花岗岩的特征，推测其来源为新元古代时新生的年轻陆壳。综合前人区域研究成果、地球化学特征，朝吐沟组“双峰式”火山岩形成于晚泥盆世板内伸展构造背景。
Abstract:The volcanic rocks of the Chaotugou Formation in Chifeng area of Inner Mongolia consist of meta-basalts and metarhyolites and exhibit typical "double peaks", with the SiO2 content being 46.24%-56.6% and 77.59%-85.75% respectively. Zircon LA-ICP-MS U-Pb dating of rhyolite yielded U-Pb ages of(359±1) Ma-(360±1) Ma, which represent the time of crystallization of the volcanic rocks. The volcanic rocks were formed in late Devonian Famennian age. Geochemically, meta-basalts (or basaltic andesites) are characterized by enriched LREE, depleted HREE, slightly negative Eu, Nb, Ta, Sr and Ti anomalies and high abundances of LILE and HFSE, with the (La/Yb)N ratios from 2.4 to 8.76, and the 87Sr/86Sr initial values from 0.705076 to 0.707770; in addition, they have relatively high positive εNd(t)values (+0.51 to +4.90) and relatively young TDM (964-1090 Ma) ages. The mafic rocks might have resulted from the mixture of depleted mantle with crustal source. Meta-rhyolites are generally characterized by rich silicon, alkali and poor magnesium. They are characterized by enriched LREE, depleted HREE, noticeable negative Eu (δEu 0.12-0.43), Nb, Ta, Sr, P and Ti anomalies, relatively high U, Th and rather low Ba, Sr, Ti and P; the (La/Yb)N ratios are from 7.07 to 11.07, 87Sr/86Sr initial values are high (0.713757-0.739647), negative εNd(t) values are low (-1.75 to +2.54), and TDM ages are relatively young (846-1156 Ma); besides, most zircons have the positive εHf(t) values (-2.3 to +6.9) and relatively young TDM ages (707-1074 Ma). The felsic rocks show an A-type affinity and might have come from a juvenile crustal source. According to their geochemistry and previous regional geological studies, the late Devonian volcanic rocks are basalts and rhyolites, suggesting a typical bimodal volcanic rock association and implying an extensional setting.
-
Key words:
- Late Devonian /
- bimodal volcanic rocks /
- extensional setting /
- Chifeng area
-
-
图 5 晚泥盆世朝吐沟组火山岩Nb/Y-Zr/TiO2分类图解（Winchester et al., 1977）
Figure 5.
图 8 朝吐沟组双峰式火山岩中玄武岩Zr-Zr/Y (a) (据Pearce et al., 1984, 1995)及流纹岩Nb-Y构造判别图解(b) (据Frster et al., 1997）
Figure 8.

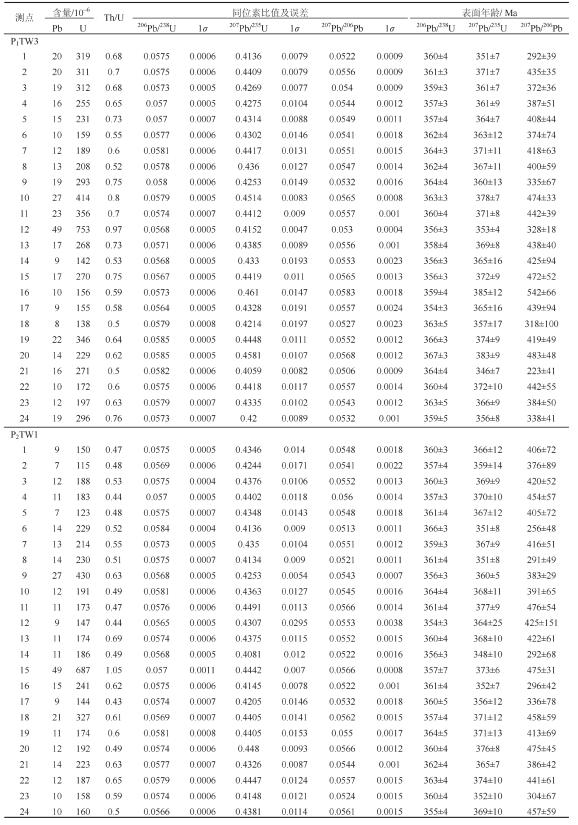

表 1 朝吐沟组流纹岩(P1TW3, P2TW1) LA-ICP-MS锆石U-Pb同位素测定结果
Table 1. LA-ICP-MS zircon U-Pb dating results for the rhyolites (P1TW3, P2TW1) of the Chaotugou Formation
下载: 导出CSV

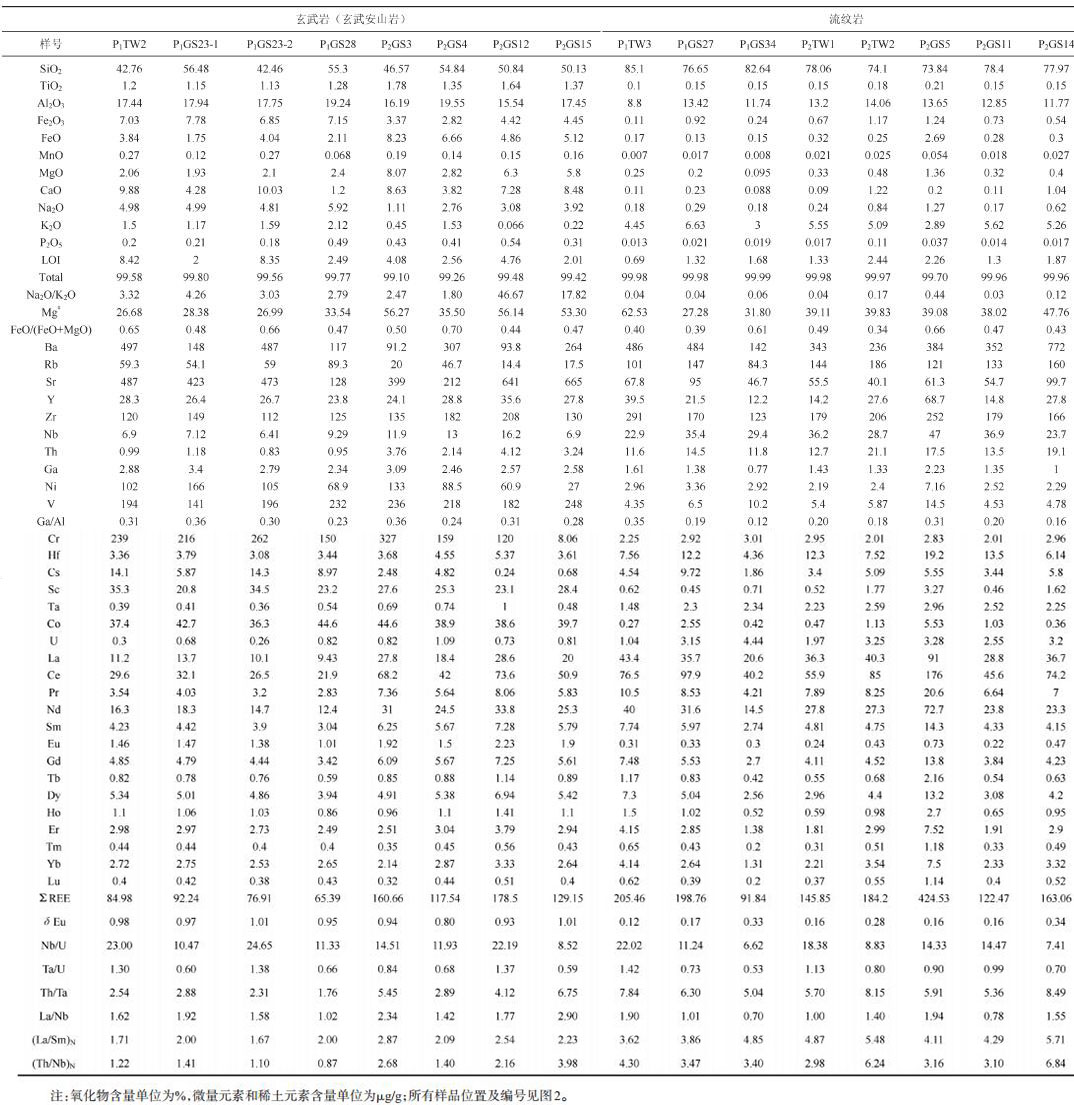

表 2 赤峰敖汉旗晚泥盆世朝吐沟组火山岩地球化学分析结果
Table 2. Geochemical compositions of Late Dovianvolcanonic rocks in Aohanqi area of Chifeng
下载: 导出CSV

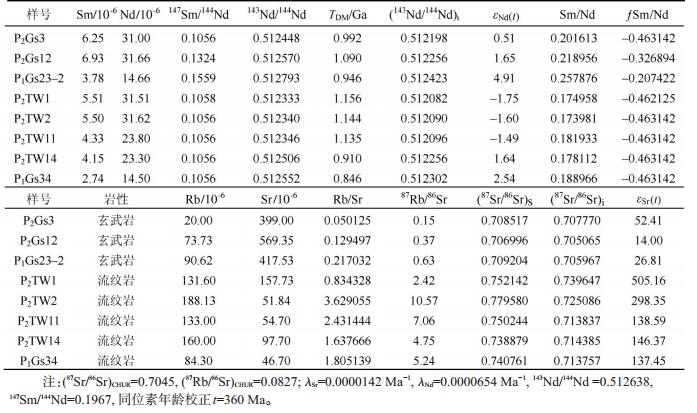

表 3 赤峰敖汉旗晚泥盆世火山岩Sr-Nd同位素组成
Table 3. Sr-Nd isotopic compositions of Late Devonian volcanic rocks in Aohan Banner area of Chifeng
下载: 导出CSV

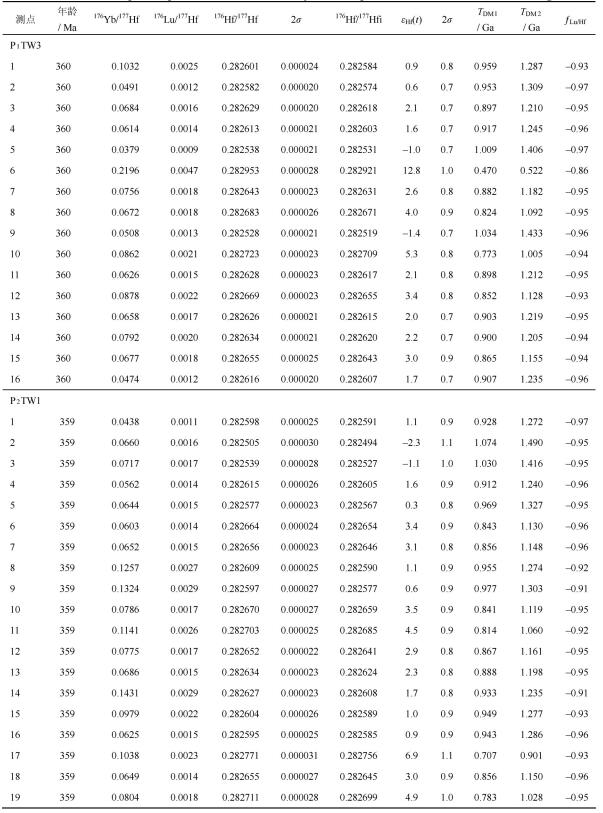

表 4 赤峰敖汉旗晚泥盆世朝吐沟组流纹岩锆石Hf同位素组成
Table 4. Hf isotopic compositions of zircon from rhyolites samples in Aohan Banner area of Chifeng
下载: 导出CSV
-
Brouxel M, Lapierre H, Michard A, Albrede F. 1987. The deep layers of a Paleozoic arc:geochemistry of the Copley Balaklala series, northern California[J]. Earth and Planetary Science Letters, 85:386-400. doi: 10.1016/0012-821X(87)90135-X
Bureau of Geology and Mineral Resources of Hebei Province. 1989.Regional Geology of Hebei Province, Beijing and Tianjing Municipality[M]. Beijing:Geological Publishing House, 1-654 (in Chinese with English abstract).
Bureau of Geology and Mineral Resources of Nei Mongol Autonomous Region. 1991. Regional Geology of Nei Mongol(Inner Mongolia) Autonomous Region[M]. Beijing:Geological Publishing House, 65-70 (in Chinese with English abstract).
Bureau of Geology and Mineral Resources of Nei Mongol Autonomous Region. 1996:Lithostratigraphic Units of of Inner Mongolia Autonomous Region[M]. Wuhan:China University of Geosciences Press, 15-16 (in Chinese with English abstract).
Chen Bin, Jahn Borming, Tian Wei. 2009. Evolution of the Solonker suture zone:Constraints from zircon U-Pb ages, Hf isotopic ratios and whole-rock Nd-Sr isotope compositions of subduction-and collision-related magmas and forearc sediments[J]. Journal of Asian Earth Sciences, 34:245-257. doi: 10.1016/j.jseaes.2008.05.007
Chen Bin, Jahn Borming, Wilde Simon A, Xu Bei. 2000. Two contrasting Paleozoic magmatic belts in northern Inner Mongolia, China:Petrogenesis and tectonic implications[J]. Tectonophysics, 2000, 328(1/2):157-182. https://www.researchgate.net/publication/222911045_Two_contrasting_Paleozoic_magmatic_belts_in_northern_Inner_Mongolia_China_Petrogenesis_and_tectonic_implications
Christian P, Paquette J L. 1997. A mantle derived bimodal suite in the Hercynian Belt:Nd isotope and trace element evidence for a subduction-related rift origin of the Late Devonian Brevenne metavolcanics, Massif Central (France)[J]. Contributions to Mineralogy and Petrology, 129:222-238. doi: 10.1007/s004100050334
Donnelly T W, Rogers J J W. 1980. Igneous series in island arcs:the northeastern Caribbean compared withworld-wide island-arc assemblages[J]. Bulletin Volcanologique, 43:347-382. doi: 10.1007/BF02598038
Frster H J, Tischendorf G, Trumbull R B. 1997. An evalution of the Rb vs.(Y+Nb) discrimination diagram to infer tectonic setting of silicic igneous rocks[J]. Lithos, 40(2/4):261-293. https://www.researchgate.net/profile/H-J_Foerster/publication/260096748_An_evaluation_of_the_Rb_vs_YNb_discrimination_diagram_to_infer_tectonic_setting_of_silicic_igneous_rocks/links/0f31753688fe89a22f000000/An-evaluation-of-the-Rb-vs-Y-Nb-discrimination-diagram-to-infer-tectonic-setting-of-silicic-igneous-rocks.pdf
Geist D, Howard K. A, Larson P. 1995. The generation of oceanic rhyolites by crystal fractionation:the basalt-rhyolite association at Volcan Alcedo, Galapagos Archipelago[J]. Journal of Petrology, 36:965-982. doi: 10.1093/petrology/36.4.965
Geng Jianzhen, Li Huaikun, Zhang Jian, Zhou Hongying, Li Huimin. 2011. Zircon Hf isotope analysis by means of LA-MC-ICPMS[J]. Geological Bulletin of China, 30(10):1508-1513 (in Chinese with English abstract). http://tdl.libra.titech.ac.jp/hkshi/xc/contents/pdf/11717140X/4
Gill J B, Stork A L. 1978. Miocene low-K dacites and trondhjemites of Fiji[C]//Barker F(ed.). Trondjemites, Dacites, and Related Rocks[M]. Elsevier, Amsterdam, 629-649.
Hildreth W, Halliday A N, Christiansen R L. 1991. Isotopic and chemical evidence concerning the genesis and contamination of basaltic and rhyolitic magma beneath the Yellowstone plateau volcanic field[J]. Journal of Petrology, 32(1):63-138. doi: 10.1093/petrology/32.1.63
Hochstaedter A G, Gill J B, Morris J. 1990. Volcanism in the Sumisu Rift.Ⅱ.Subduction and non-subduction related components[J]. Earth and Planetary Science Letters, 100:195-209. doi: 10.1016/0012-821X(90)90185-Z
Hofmann A W. 1997. Mantle geochemistry:The message from oceanic volcanism[J]. Nature, 385:219-229. doi: 10.1038/385219a0
Hong Dawei, Wang Shiguang, Xie Xilin, Zhang Jisheng, Wang Tao. 2003. Correlation between continental crustal growth and the Supercontinental cycle:Evidence from the Granites with positive εNd in the Central Asian Orogenic Belt[J]. Acta Geologica Sinica, 77(2):203-209 (in Chinese with English abstract). https://www.researchgate.net/publication/256681329_Juvenile_subcontinental_lithospheric_mantle_beneath_the_eastern_part_of_the_Central_Asian_Orogenic_Belt
Hong Dawei, Wang Shiguang, Xie Xilin, Zhang Jisheng. 2000. Genesis of positive ε(Nd, t) Granitoids in the Dahingan MtsMonglia Orogenic Belt and Growth continental crust[J]. Earth Science Forntiers, 7(2):441-456 (in Chinese with English abstract).
Rollison H R. 1993. Using Geochemical Data:Evaluation, Presentation, Interpretation[M]. Longman Group UK Ltd, 73-155.
International commission on Stratigraphy. 2014. International Stratigraphic Chart[S].WWW.Stratigraphy.org.
Jahn Borming, Wu Fuyuan, Hong Dawei. 2000. Important crustal growth in the Phanerozoic:Isotopic evidence of granitoids from east-central Asia[J]. Proc. Indian Acad. Sci. (Earth Planet. Sci.), 109:5-20. https://www.researchgate.net/profile/Bor_Ming_Jahn/publication/257163081_Important_crustal_growth_in_the_Phanerozoic_Isotopic_evidence_of_granitoids_from_East-central_Asia/links/55d537b508ae1e65166375a9.pdf
Jahn Borming. 2004. The Central Asian Orogenic Belt and growth of the continental crust in the Phanerozoic[J]. Geological Society, London, Special Publications, 2004, 226(1):73-100. https://www.researchgate.net/publication/249551250_The_Central_Asian_Orogenic_Belt_and_growth_of_the_continental_crust_in_the_Phanerozoic
Jiang Neng. 2005. Petrology and geochemistry of the Shuiquangou syenitic complex, northern margin of the North China Craton[J]. Journal of the Geological Society, 162 (1):203-215. doi: 10.1144/0016-764903-144
Jin Yugan, Fan Yingnian, Wang Xiangdong, Wang Rennuo. 1991.Stratigraphical Lexicon of China:Carboniferous System[M]. Beijing:Geological Publishing House, 33 (in Chinese with English abstract).
Kay R W, Kay S M. 1993. Delamination and delamination magmatism[J]. Tectonophys, 219:177-189. doi: 10.1016/0040-1951(93)90295-U
Li Chunyu, Wang Quan, Liu Xueya, Tang Yaoqing. 1982. Tectonic Map of Asia (1:8000000) and its Explanatory Notes[M]. Beijing:Sinomaps Press, 1-45 (in Chinese with English abstract).
Li Jianghai, Zhai Mingguo, Li Yonggang, Zhang Yigang. 1998. The Discovery of Neoarchean High pressure Granulites in Luanping Chengde Area, Northern Hebei, and Their Tectono geological Implication[J]. Acta Petrologica Sinica, 14(1):34-41 (in Chinese with English abstract). https://www.researchgate.net/profile/Mingguo_Zhai/citations?sorting=citationCount&page=7
Li Jinyi, Zhang Jin, Yang Tiannan, Li Yaping, Sun Guihua, Zhu Zhixin, Wang Lijia. 2009.Crustal Tectonic Division and Evolution of the southern part of the North Asian orogenic region and its adjacent areas[J]. Journal of Jilin University (Earth Science Edition), 39(4):584-605 (in Chinese with English abstract). https://www.researchgate.net/publication/279549647_Crust_Tectonic_Division_and_Evolution_of_the_Southern_Part_of_the_North_Asian_Orogenic_Region_and_its_adjacent_areas
Li J Y. 2006. Permian geodynamic setting of Northeast China and adjacent regions:closure of the Paleo-Asian Ocean and subduction of the Paleo-Pacific Plate[J]. Journal of Asian Earth Sciences, 26:207-224. doi: 10.1016/j.jseaes.2005.09.001
Liu J F, Li J Y, Chi X G, Feng Q W, Hu Z C, Zhou K. 2013. Early Devonian felsic volcanic rocks related to the arc-continent collision on the northern margin of North China Craton:Evidences of zircon U-Pb dating and geochemical characteristics[J]. Geological Bulletin of China, 32(2/3):267-278 (in Chinese with English abstract). https://www.researchgate.net/publication/285832868_Early_Devonian_felsic_volcanic_rocks_related_to_the_arc-continent_collision_on_the_northern_margin_of_north_China_craton-evidences_of_Zircon_U-Pb_dating_and_geochemical_characteristics
Liu S W, Lv Y J, Feng Y G, Liu Xiaoming, Yan Quanren, Zhang Chen. 2007. Zircon and monazite geochronology of the Hongqiyingzi complex, northern Hebei, China[J]. Geological Bulletin of China, 26(9):1086-1100 (in Chinese with English abstract). https://www.researchgate.net/publication/279674062_Zircon_and_monazite_geochronology_of_the_Hongqiyingzi_complex_nor_thern_Hebei
Liu Yongsheng, Hu Zhaochu, Zong Keqing, Gao Changgui, Gao Shan, Xu Juan, Chen Haihong. 2010. Reappraisement and refinement of zircon U-Pb isotope and trace element analyses by LA-ICPMS[J]. Chinese Science Bulletin, 55(15):1535-1546. doi: 10.1007/s11434-010-3052-4
Ludwig K R. 2003. Users Manual for Isoplot/EX (rsv.3.0):A Geochronological Toolkit for Microsoft Excel[M]. Berkeley:Berkeley Geochronology Center, Special Publication No.1, 1-55.
Luo diankuan, Miao Laicheng, Guan Kang, Qiu Youshou, Qin Y M, N J McNaughton, Groves D I. 2001. SHRIMP chronological study of Shuiquangou intrusive body in Zhangjiakou Area, Hebei Province and its geochemical significance[J]. Geochmistry, 30(2):116-122(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZKX403.005.htm
Mao Debao, Zhong Changting, Chen Zhihong, Lin Yuanxian, Li Huimin, Hu Xiaodie. 1999. The isotope ages and their geological implications of high-pressure basic granulites in north region to Chengde, Hebei province, China[J]. Acta Petrologica sinica, 15(4):524-531 (in Chinese with English abstract). https://www.researchgate.net/publication/279674239_The_isotope_ages_and_their_geological_implications_of_high-pressure_basic_granulites_in_north_region_to_Chengde_Hebei_Province_China
Miao Laicheng, Qiu Yumin, McNaughton N, Luo Zhenkuan, David Groves, Zhai Yusheng, Fan Weiming, Zhai Mingguo, Guan Kang.2002. SHRIMP U-Pb zircon geochronology of granitoids from Dongping area, Hebei Province, China:constraints on tectonic evolution and geodynamic setting for gold metallogeny[J]. Ore Geology Reviews, 19:187-204. doi: 10.1016/S0169-1368(01)00041-5
Pan Guitang, Xiao Qinghui, Lu Songnian, Deng Jinfu, Feng Yimin, Zhang Kexin, Zhang Zhiyong, Wang Fangguo, Xing Guangfu, Hao Guojie, Feng Yanfang. 2009. Subdivision of tectonic units in China[J].Geology in China, 36(1):1-28(in Chinese with English abstract).
Pearce J A, Harris N B W, Tindle A G. 1984. Trace element discrimination diagrams for the tectonic interpretation of granitic rocks[J]. Journal of Petrology, 25(4):956-983. doi: 10.1093/petrology/25.4.956
Pearce J A, . Peate D W. 1995. Tectonic implications of the composition of volcanic arc magmas[J]. Earth Planetary Science Letters, 23:251-285. doi: 10.1146/annurev.ea.23.050195.001343
Pin C, Paquctte J L. 1997. A mantle-derived bimodal suite in the Hercynian belt Nd isotope and trace element evidence for a subduction related rift origin of the Devonian Bevenne metavolcanics Massif Central(France)[J]. Contrib. Mincral Petrol., 129:222-238. doi: 10.1007/s004100050334
Qian Qing, Wang Yian. 1999 Geochemical characteristics of bimodal volcanic suites from different tectonic settings[J]. GeologyGeochemistry, 27(4), 29-32 (in Chinese with English abstract). https://www.researchgate.net/publication/230585284_Major_geochemical_characteristics_of_bimodal_volcanic_rocks_in_different_geochemical_environments
Ren Jishun, Jiang Chunfa, Zhang Zhengkun, Qin Deyu. The Geotectonic Evolution of China[M]. Beijing:Science Press, 1980:1-124 (in Chinese with English abstract).
Saunder A D, Storey M, Kent RW, Jnorry Venue M. 1992.Consequences of plume lithosphere interaction[C]//storey B C, Alabaster T, Pankhurst R J. Magmatism and the Causes of Contiental Break-up. Geol. Soc. Spec. Pub. London, 68:41-60.
Shao Ji'an. 1991. Crust Evolution in the Middle Part of the Northern Margin of Sino-Korean Plate[M]. Beijing:Peking University Press, 1-136 (in Chinese with English abstract).
Shenyang Institute of Geology and Mineral Resources. 1978.Northeast Regional Stratigraphic (Liaoning Section)[M]. Beijing:Geological publicing Huouse, 225-230 (in Chinese with English abstract).
Shi Yuruo, Liu Dunyi, Miao Laicheng, Zhang Fuqin, Jian Ping, Zhang Wei, Hou Kejun, Xu Junyu. 2010. Devonian A-type granitic magmatism on the northern margin of the North China Craton:SHRIMP U-Pb zircon dating and Hf-isotopes of the Hongshan granite at Chifeng, Inner Mongolia, China[J]. Gondwana Research, 17:632-641. doi: 10.1016/j.gr.2009.11.011
Sun Lixin, Ren Bangfang, Teng Fei, Gu Yongchang, Zhang Yong, Guo Hu. 2015. LA-ICP-MS zircon U-Pb age of the volcanoic rocks from the Chaotugou Formation in the Aohanqi area, Inner Mongolia[J]. Geological Bulletin of China, 34(8):1492-1511 (in Chinese with English abstract).
Sun S S, McDonough W F. 1989. Chemical and isotopic systematics of oceanic basalts:implications for mantle composition and processes[C]//Saunders A D, Norry M J(eds.). Magmatism in the Oceanic Basins. Geological Society Special publication, 42:313-346.
Tang Kedong. 1992. Tectonic Evolution and Metallogenic Regularity of the Fold Belt on the Northern Margin of Sino-Korea Platform[M]. Beijing:Peking University Press, 1-277 (in Chinese with English abstract).
Wang F, Chen F K, Hou Z H, Peng P, Zhai M G. 2009. Zircon ages and Sr-Nd-Hf isotopic composition of late Paleozoic granitoids in the Chongli-Chicheng area, northern margin of the North China block[J]. Acta Petrologica Sinica, 25(11):3057-3074 (in Chinese with English abstract).
Wang Huichu, Zhao Fengqing, Li Huimin, Sun Lixin, Miao Laicheng, Ji Shiping. 2007. Zircon SHRIMP-U-Pb age of the dioritic rocks from northern Heibei:the geological records of Late Paleozoic magmatic arc[J]. Acta Petrologica Sinica, 23(3):597-604 (in Chinese with English abstract).
Wang Q, Liu X, Li J. 1991. Paleoplate tectonics in Neimonggol of China[J]. Journal of the Institute of Geology, Chinese Academy of Geological Sciences, 22:1-15. https://www.researchgate.net/publication/248816090_Paleoplate_Tectonics_Between_Cathaysia_and_Angaraland_in_Inner_Mongolia_of_China
Whalen J B, Currie K L, Chaooell B W. 1987. A-type granites:geochemical characteristics, discrimination and Petrogensis[J]. Contributions to Mineral Peteology, 95:407-419. doi: 10.1007/BF00402202
Wilson M. 1989. Igneous Petrogenesis[M]. London:Unwin Hyman, 1-466.
Winchester J A, Floyd P A. 1977. Geochemical discrimination of different magma series and their differentiation products using immobile elements[J]. Chemical Geology, 20:325-343. doi: 10.1016/0009-2541(77)90057-2
Wu Fuyuan, Jahn Borming, Wilde Simon A, Sun Deyou. 2000.Phanerozoic crustal growth:U-Pb and Sr-Nd isotopic evidence from the granites in northeastern China[J]. Tectonophysics, 328:89-113. doi: 10.1016/S0040-1951(00)00179-7
Xia Linqi, Xia Zuchun, Xu Xueyi, Li Xiangmin, Ma Zhongping. 2007.The discrimination between continental basalt and island arc basalt based on geological method[J]. Acta Petrologica et Mineralogica, 26(1):77-89 (in Chinese with English abstract). https://www.researchgate.net/publication/284571545_The_discrimination_between_continental_basalt_and_island_arc_basalt_based_on_geochemical_method
Ye Hao, Zhang ShuanHong, Zhao Yue, Liu Jianmin, He Zhefeng. 2014.Recognition of the lastest Devotion volcanic rocks of Chifeng area, northern North China Block, and its implications[J].Geological Bulletin of China, 33(9):1274-1284 (in Chinese with English abstract). http://www.environment.msu.edu/news/news.php?Keyword=business_env
Zhang Shuanhong, Zhao Yue, Alfred Kröner, Chen Fukun. 2009. Early Permian plutons from the northern North China Block:constraints on continental arc evolution and convergent margin magmatism related to the Central Asian Orogenic Belt[J]. International Journal of Earth Sciences, 98(6):1441-1467. doi: 10.1007/s00531-008-0368-2
Zhang Shuanhong, Zhao Yue, Liu Jianmin, Hu Jianmin, Song Biao, Liu Jian, Wu Hai. 2010. Geochronology, geochemistry and tectonic setting of the Late Paleozoic-Early mesozoic Magmatism in the northern margin of the North China Block:A preliminary review[J]. Acta Petrologica et Mineralogica, 2010, 29(6):824-842(in Chinese with English abstract). https://www.researchgate.net/publication/281629857_Geochronology_geochemistry_and_tectonic_setting_of_the_Late_Paleozoic-Early_Mesozoic_magmatism_in_the_northern_margin_of_the_North_China_block_A_preliminary_review
Zhang Shuanhong, Zhao Yue, Song Biao, Hu Jianmin, Liu Shuwen, Chen Fukun, Liu Xiaoming, Liu Jian. 2009. Contrasting Late Carboniferous and Late Permian-Middle Triassic intrusive suites from the northern margin of the North China craton:Geochronology, petrogenesis, and tectonic implications[J]. Bulletin of the Geological Society of America, 121(1/2):181-200. https://www.researchgate.net/publication/260094388_Contrasting_Late_Carboniferous_and_Late_Permian-Middle_Triassic_intrusive_suites_from_the_northern_margin_of_the_North_China_craton_Geochronology_petrogenesis_and_tectonic_implications
Zhang Shuanhong, Zhao Yue, Song Biao, Yang Yueheng. 2007.Carboniferous granitic plutons from the northern margin of the North China block:implications for a late Palaeozoic active continental margin[J]. Journal of the Geological Society, 164:451-463. doi: 10.1144/0016-76492005-190
Zhang Wei, Jian Ping. 2012. SHRIMP dating of the Permian Guyang diorite-quartz diorite-tonalite suite in the northern margin of the North China Craton[J]. Geology in China, 39(6):1593-1604(in Chinese with English abstract). https://www.researchgate.net/publication/285753115_SHRIMP_dating_of_the_Permian_Guyang_diorite-quartz_diorite-tonalite_suite_in_the_northern_margin_of_the_North_China_craton
Zhang YunPing, Li JingChun. 2010. Tectonic framework and main characteristics of North China and its northward areas in Late Paleozoic-Early Mesozoic period[J]. Geology in China, 2010, 37(4):916-931(in Chinese with English abstract). https://www.researchgate.net/publication/287613096_Geochemical_characteristics_of_the_Dushan_complex_and_their_geological_significance
Zhang Yunping, Su Yangzheng, Li Yingchun. 2010. Regional tectonics significance of the Late Silurian Xibiehe Formation in central Inner Mongolia, China[J]. Geological Bulletin of China, 2010, 29(10):1599-1605 (in Chinese with English abstract). https://www.researchgate.net/publication/240450260_Late_Silurian_brachiopods_from_Darhan_Mumingan_Joint_Banner_Inner_Mongolia
Zhang Zhenfa, Jing Jianli, Qin Zhenggang, Guo Lixia, Xie Yuelan. 2001. Accoding to information of geology and geophysics, redetermaintion of the boundary between Northern China plateform and Da Hingganling Mongolian paleoiozic geosynclinals folded belt[J]. Geology in China, 28(9):1-12(in Chinese with English abstract).
耿建珍, 李怀坤, 张健, 周红英, 李惠民.2011.锆石Hf同位素组成的LA-MC-ICP-MS测定[J].地质通报, 30(10):1508-1513. doi: 10.3969/j.issn.1671-2552.2011.10.004
河北省地质矿产局.1989.河北省、北京市、天津市区域地质志[M].北京:地质出版社, 1-654.
洪大卫, 王式洸, 谢锡林, 张季生, 王涛. 2003.从中亚正εNd值花岗岩看超大陆演化和大陆地壳生长的关系[J].地质学报, 2003, 77(2):203-209. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=dzxe200302015&dbname=CJFD&dbcode=CJFQ
洪大卫, 王式洸, 谢锡林, 张季生. 2000.兴蒙造山带正εNd(t)值花岗岩的成因和大陆地壳生长[J].地学前缘, 7(2):441-456. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=dxqy200002016&dbname=CJFD&dbcode=CJFQ
金玉玕, 范影年, 王向东, 王仁农.1991.中国地层典石炭系[M].北京:地质出版社, 33.
李春显, 王荃, 刘雪亚, 汤耀庆.1982.亚洲大地构造图(1:8 000 000) 及其说明书[M].北京:地图出版社, 1-45.
李江海, 翟明国, 李永刚, 张毅刚. 1998.冀北滦平-承德一带晚太古代高压麻粒岩的发现及其构造地质意义[J].岩石学报, 14(1):34-41. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB801.003.htm
李锦轶, 张进, 杨天南, 李亚萍, 孙桂华, 朱志新, 王励嘉. 2009.北亚造山区南部及其毗邻地区地壳构造分区与构造演化[J].吉林大学学报:地球科学版, 39(4):584-605. http://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ200904002.htm
刘建峰, 李锦轶, 迟效国, 冯乾文, 胡兆初, 周坤.华北克拉通北缘与弧-陆碰撞相关的早泥盆世长英质火山岩-锆石U-Pb定年及地球化学证据[J].地质通报, 2013, 32(2/3):267-278. http://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD2013Z1005.htm
刘树文, 吕勇军, 凤永刚, 柳小明, 闫全人, 张臣. 2007.冀北红旗营子杂岩的锆石, 独居石年代学及地质意义[J].地质通报, 26(9):1086-1100. http://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD200709013.htm
罗镇宽, 苗来成, 关康, 裘有守, Qin Y M, McNaughton N J, Groves D I. 2001.河北张家口水泉沟岩体SHRIMP年代学研究及其意义[J].地球化学, 30(2):116-122. http://www.cnki.com.cn/Article/CJFDTOTAL-DQHX200102001.htm
毛德宝, 钟长汀, 陈志宏, 林源贤, 李惠民, 胡小碟. 1999.承德北部高压基性麻粒岩的同位素年龄及其地质意义[J].岩石学报, 15(4):524-531. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB199904003.htm
内蒙古自治区地质矿产局. 1991.内蒙古自治区区域地质志[M].北京:地质出版社, 1-725.
内蒙古自治区地质矿产局. 1996.内蒙古自治区岩石地层[M].武汉:中国地质大学出版社, 190-198.
潘桂棠, 肖庆辉, 陆松年, 邓晋福, 冯益民, 张克信, 张智勇, 王方国, 邢光福, 郝国杰, 冯艳芳. 2009.中国大地构造单元划分[J].中国地质, 36(1):1-28. http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20090101&flag=1
钱青, 王焰. 1999.不同构造环境中双峰式火山岩的地球化学特征[J].地质地球化学, 27(4), 29-32. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDQ199904004.htm
任纪舜, 姜春发, 张正坤, 秦德余. 1980.中国大地构造及其演化[M]. 1-124.
邵济安.1991.中朝板块北缘中段地壳演化[M].北京:北京大学出版社, 1-136.
沈阳地质矿产研究所. 1978.东北区域地层表(辽宁省分册)[M].北京:地质出版社, 225-230.
孙立新, 任邦方, 滕飞, 张永, 谷永昌, 郭虎.2015.内蒙古敖汉旗朝吐沟组火山岩LA-ICP-MS锆石U-Pb年龄[J].地质通报, 34(8):1492-1511. http://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD201508009.htm
唐克东.1992.中朝板块北侧褶皱带构造演化及成矿规律[M].北京:北京大学出版社, 1992, 1-277.
王芳, 陈福坤, 侯振辉, 彭澎, 翟明国. 2009.华北陆块北缘崇礼-赤城地区晚古生代花岗岩类的锆石年龄和Sr-Nd-Hf同位素组成[J].岩石学报, 2009, 25(11):3057-3074. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200911035.htm
王惠初, 赵凤清, 李惠民, 孙立新, 苗来成, 冀世平. 2007.冀北闪长质岩石的锆石SHRIMP U-Pb年龄:晚古代岩浆弧的地质记录[J].岩石学报, 23(3):597-604. http://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200703009.htm
王荃, 刘雪亚, 李锦轶. 1991.中国内蒙古中部的古板块构造[J].中国地质科学院院报, 22:1-15. http://www.cnki.com.cn/Article/CJFDTOTAL-DQXB199101000.htm
夏林圻, 夏祖春, 徐学义, 李向民, 马中平.2007.利用地球化学方法判别大陆玄武岩和岛弧玄武岩[J].岩石矿物学杂志, 26(1):77-89. http://www.cnki.com.cn/Article/CJFDTOTAL-YSKW200701010.htm
叶浩, 张拴宏, 赵越, 刘建民, 何哲峰.2014.内蒙古赤峰地区泥盆纪晚期火山岩的发现及其地质意义[J].地质通报, 33(9):1274-1284. http://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD201409002.htm
张拴宏, 赵越, 刘建民, 胡建民, 宋彪, 刘健, 吴海.2010.华北地块北缘晚古生代-早中生代岩浆活动期次、特征及构造背景[J].岩石矿物学杂志, 29(6):824-842. http://www.cnki.com.cn/Article/CJFDTOTAL-YSKW201006017.htm
张维, 简平.2012.华北北缘固阳二叠纪闪长岩一石英闪长岩一英云闪长岩套SHRIMP年代学[J].中国地质, 39(6):1593-1604. http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20120609&flag=1
张允平, 苏养正, 李景春. 2010.内蒙古中部地区晚志留世西别河组的区域构造学意义[J].地质通报, 29(11):1599-1605. doi: 10.3969/j.issn.1671-2552.2010.11.001
张允平, 李景春.2010.华北及其以北地区晚古生代一早中生代构造格架主体特点[J].中国地质, 37(4):916-931. http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20100407&flag=1
张振法, 姜建利, 秦增刚, 郭立霞, 解月岚.2001.根据地质和地球物理资料重新厘定槽台界线-关于华北地兴蒙古生代地槽褶皱系界线的划分[J].中国地质, 28(9):1-12. http://www.cnki.com.cn/Article/CJFDTOTAL-DIZI200109000.htm
-
