1:500万非洲地区遥感地质解译数据集

,  ,

文章导航 > 中国地质 > 2017 > 44(S1): 42-48

上一篇

下一篇

付长亮, 杨清华, 姜琦刚. 2017. 1:500万非洲地区遥感地质解译数据集[J]. 中国地质, 44(S1): 42-48. doi: 10.12029/gc2017Z105
引用本文: 付长亮, 杨清华, 姜琦刚. 2017. 1:500万非洲地区遥感地质解译数据集[J]. 中国地质, 44(S1): 42-48. doi: 10.12029/gc2017Z105
shu
FU Changliang, YANG Qinghua, JIANG Qigang. 2017. 1:5000000 Remote Sensing Geological Interpretation Datasets in African Regions[J]. Geology in China, 44(S1): 42-48. doi: 10.12029/gc2017Z105
Citation: FU Changliang, YANG Qinghua, JIANG Qigang. 2017. 1:5000000 Remote Sensing Geological Interpretation Datasets in African Regions[J]. Geology in China, 44(S1): 42-48. doi: 10.12029/gc2017Z105
shu

1:500万非洲地区遥感地质解译数据集

  • 1.

    中国国土资源航空物探遥感中心, 北京 100083

  • 2.

    吉林大学地球探测科学与技术学院, 吉林 长春 130026

  • 基金项目:
    中国地质调查局地质调查“非洲与拉丁美洲重要成矿带遥感地质解译与战略选区研究”项目（1212010913005）资助
详细信息
    作者简介: 付长亮, 男, 1983年生, 高级工程师, 主要从事遥感地质研究与应用工作; E-mail:fu_chliang@sina.com
    通讯作者: 杨清华, 男, 1964年生, 教授级高级工程师, 主要从事遥感技术研究与应用工作; E-mail:466064295@qq.com

1:5000000 Remote Sensing Geological Interpretation Datasets in African Regions

  • 1.

    China Aero Geophysical Survey & Remote Sensing Center for Land & Resources, Beijing 100083, China

  • 2.

    College of Geo-exploration Science and Technology, Jilin University, Changchun 130026, Jilin, China

  • Fund Project: Geological Survey Project of China Geological Survey, remote sensing geological interpretation and strategic constituency study of important metallogenic belts in Africa and Latin America (1212010913005)
More Information
    Author Bio: FU Changliang, male, born in 1983, senior engineer, mainly engages in research and application of remote sensing geology; Email: fu_chliang@sina.com .
    Corresponding author: YANG Qinghua, male, born in 1964, professor, mainly engages in research and application of remote sensing technology; Email: 466064295@qq.com

    摘要

  • 该数据集以Landsat-7 ETM+卫星数据为主要数据源，在已有地质矿产资料分析研究的基础上，采用计算机技术和GIS技术相结合的方法，完成了非洲地区约3020万km2面积的1:500万遥感地质解译。提取了地层、火山岩、中酸性侵入岩、基性岩或超基性岩、线性构造和环形构造等与成矿有密切关系的地质要素，划分出7个重要成矿带。形成了包含非洲地区Landsat-7 ETM+遥感影像图，非洲地区1:500万遥感地质解译图和非洲地区1:500万重要成矿带划分图在内的数据集，卫星数据分辨率为30 m，为在非洲地区开展基础地质研究和矿产勘查投资提供重要参考。

    Based on the analysis results of existing geological and mineral data and using computer technology and GIS technology, we completed a 1:5000000 remote sensing geological interpretation in Africa over an area of 30.2 million km2. The dataset used in this work takes Landsat-7 ETM+ data as its main resource. The geological elements, such as strata, volcanic rocks, intermediate acid intrusive rocks, basic or ultrabasic rocks, linear structures and ring structures which are closely related to mineralization were extracted, and seven important metallogenic belts were recognized. The dataset with the Landsat-7 ETM+ remote sensing image in Africa, the 1:5000000 remote sensing geological interpretation map in Africa and the 1:5000000 division map of important metallogenic belts in Africa were generated, the satellite data resolution is 30m, providing an important reference to carry out basic geological research and mineral exploration investment in Africa.

    • HTML全文
  • 加载中

  • 图 1  非洲地区Landsat-7 ETM+遥感影像图

    下载: 全尺寸图片 幻灯片

    图 2  非洲地区1:500万遥感地质解译及重要成矿带划分图

    下载: 全尺寸图片 幻灯片

    Figure 1.

    下载: 全尺寸图片 幻灯片

    Figure 2.

    下载: 全尺寸图片 幻灯片

    表 1  数据库（集）元数据简表

    下载: 导出CSV

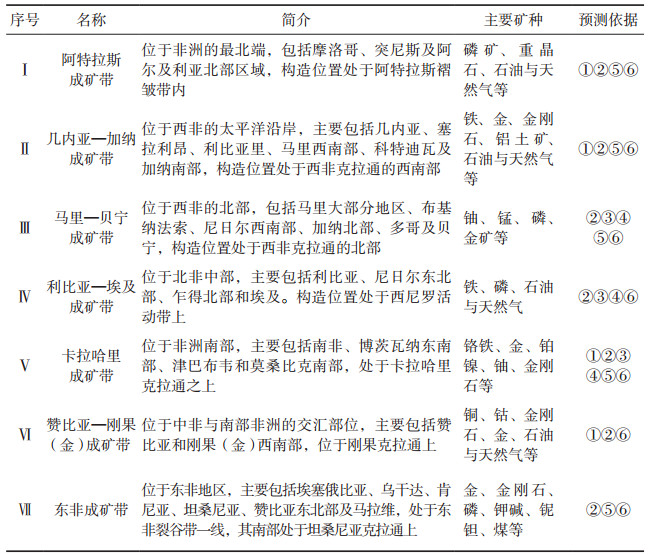

    表 2  划分的非洲7处重要成矿带

    下载: 导出CSV

    Table 1.  Metadata table of dataset(s)

    下载: 导出CSV

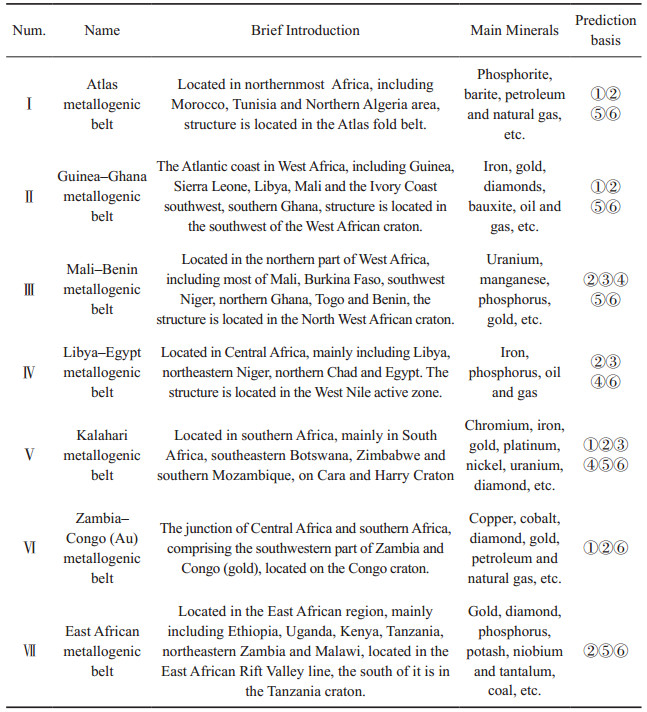

    Table 2.  The seven important metallogenic belts in Africa

    下载: 导出CSV
    • 参考文献(12)

  • 段焕春, 林晓辉.2009.非洲地质经济:纪念天津华北地质勘查局"走出去"10周年论文集[M].北京:地质出版社.

    方洪宾, 赵福岳, 黄洁, 张瑞江, 张振德, 杨清华.2010.1:250000遥感地质解译技术指南[M].北京:地质出版社.

    付长亮, 杨清华, 姜琦刚, 王梦飞, 蒋校.2015.遥感技术在境外地质调查中的应用——以津巴布韦大岩墙为例[J].国土资源遥感, 27(4):85-92. doi: 10.6046/gtzyyg.2015.04.14

    荆林海, 沈远超, 蔺启忠, 曾庆栋, 邹为雷.2001.胶莱盆地北缘遥感信息提取及解译分析[J].地质与勘探, 37(1):91-94. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=dzkt200101020&dbname=CJFD&dbcode=CJFQ

    宋明国.2004.非洲矿业投资指南[M].北京:地质出版社.

    杨自安, 徐国端, 邹林, 张普斌.2004.遥感与多元地学信息综合找矿定位预测[J].矿产与地质, 18(4):343-345. http://www.cqvip.com/Main/Detail.aspx?id=10656532

    Duan Huanchun, Lin Xiaohui.2009.African Geological Economy:Commemorate the 10th Anniversary Collection of "Going out" of Tianjin North China Geological Prospecting Bureau[M].Beijing:Geological Publishing House.

    Fang Hongbin, Zhao Fuyue, Huang Jie, Zhang Ruijiang, Zhang Zhende, Yang Qinghua.2010.Technical Guide for Remote Sensing Geological Interpretation of 1:250000[M].Beijing:Geological Publishing House.

    Fu changliang, Yang Qinghua, Jiang Qigang, Wang Mengfei, Jiang Xiao.2015.Application of remote sensing technique to geological survey abroad:A case study of Great Dyke, Zimbabwe[J].Remote Sensing for Land and Resources, 27(4):85-92. http://www.oalib.com/paper/2987901

    Jing Linhai, Shen Yuanchao, 2001.Lin Qizhong, Zeng Qingdong, Zou Weilei.Extraction and interperation for the northern marigin of the jiaolai basin with remote sensing[J].Geology and Prospecting, 37(1):91-94. http://en.cnki.com.cn/Article_en/CJFDTOTAL-KCKX201102019.htm

    Song Mingguo.2004.African Mining Investment Guide[M].Beijing:Geological Publishing House.

    Yang Zian, Xu Guoduan, Zou Lin, Zhang Pubin.2004.Prospecting prediction with remote sensing and integrative geochemical information[J].Mineral Resources and Geology, 187(104):343-345. https://www.sciencedirect.com/science/article/pii/S1878522011000725
