内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查数据集

,  ,  ,  ,

文章导航 > 中国地质 > 2017 > 44(S1): 88-95

上一篇

下一篇

侯建军, 王宇, 郑泉, 蒙奎文, 刘忠辉. 2017. 内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查数据集[J]. 中国地质, 44(S1): 88-95. doi: 10.12029/gc2017Z111
引用本文: 侯建军, 王宇, 郑泉, 蒙奎文, 刘忠辉. 2017. 内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查数据集[J]. 中国地质, 44(S1): 88-95. doi: 10.12029/gc2017Z111
shu
HOU Jianjun, WANG Yu, ZHENG Quan, MENG Kuiwen, LIU Zhonghui. 2017. Dataset of Detailed Hydrogeological Investigation for Water Supply in Tengri Industrial Park, Alxa Left Banner, Inner Mongolia Autonomous Region[J]. Geology in China, 44(S1): 88-95. doi: 10.12029/gc2017Z111
Citation: HOU Jianjun, WANG Yu, ZHENG Quan, MENG Kuiwen, LIU Zhonghui. 2017. Dataset of Detailed Hydrogeological Investigation for Water Supply in Tengri Industrial Park, Alxa Left Banner, Inner Mongolia Autonomous Region[J]. Geology in China, 44(S1): 88-95. doi: 10.12029/gc2017Z111
shu

内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查数据集

  • 内蒙古自治区地质调查院, 内蒙古 呼和浩特 010020

  • 基金项目:
    内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查项目（2010-3-SK3）资助
详细信息
    作者简介: 侯建军, 男, 1963年生, 高级工程师, 主要从事水文地质调查工作; E-mail:nmddyhoujj@163.com

Dataset of Detailed Hydrogeological Investigation for Water Supply in Tengri Industrial Park, Alxa Left Banner, Inner Mongolia Autonomous Region

  • Geological Survey Institute of Inner Mongolia, Hohhot 010020, Inner Mongolia, China

  • Fund Project: Supported by 'Detailed prospecting of water supply hydrogeology in Alashan League in Inner Mongolia' (2010-3-SK3)
More Information
    Author Bio: HOU Jianjun, male, born in 1963, senior engineer, mainly engages in hydrogeology survey work; E-mail:nmddyhoujj@163.com .

    摘要

  • 2011年内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查数据集是对内蒙古自治区地质调查院承担的“内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查”项目提供的钻孔抽水试验成果（12个钻孔点）、地下水水化学成果（40个水样）、岩土样试验成果（102个岩土样）、地下水位统测（35个测试点）四组数据整理而得。其中，钻孔抽水试验成果数据主要包括水位埋深、静止水位标高、水位降深、涌水量、渗透系数、导水系数、矿化度等；地下水水化学成果数据主要包括游离CO2、H2SiO3、溶解性固体、总硬度、总碱度、Ph值等；岩土样试验成果数据主要包括给水度、含盐量、颗粒组成等；地下水位统测主要包括取水层位、含水层顶底板埋深、水位埋深、水位标高、水利性质等内容。通过校核和验证，所有结果均在误差范围之内。对于地表水资源贫乏地区，围绕该地区对水资源的需求，以选择供水水源地为勘查目的，为科学合理的利用地下水资源提供依据，保证经济和生态环境的可持续发展。为了更好地利用这些数据，采用国内规范的数据处理方法和原则，对试验数据进行整理和质量控制。

    This dataset is provided by the 'Detailed prospecting of water supply hydrogeology in Alashan League in Inner Mongolia' from the Geological Survey Institute of Inner Mongolia. It contains data of water pumping tests (12 drilling points), ground water chemical (40 water samples), rock sample tests (102 rock samples) and simultaneous measurement of groundwater level (35 test points). Data of borehole pumping test includes Aquifer lithology, Water depth, Static water level elevation, water level drop depth, gushing water, permeability coefficient, pressure coefficient, Water temperature, mineralization degree, etc. Data of groundwater hydrochemical results include main ion content, Soluble CO2, Free CO2, H2SiO3, Soluble total solids, total hardness, Total alkalinity, pH, etc. Data of rock and soil samples results include specific yield, permeability coefficient K, particle composition, etc. Data of simultaneous measurement of groundwater level include ground elevation, well depth, wellhead elevation, water level, aquifer, etc. According to the requirements for water resources, the data can provide evidence for developing groundwater resources, ensuring sustainable development of the economy and ecological environment. We take the domestic standards data processing method and principles to ensure observational data quality.

    • HTML全文
  • 加载中

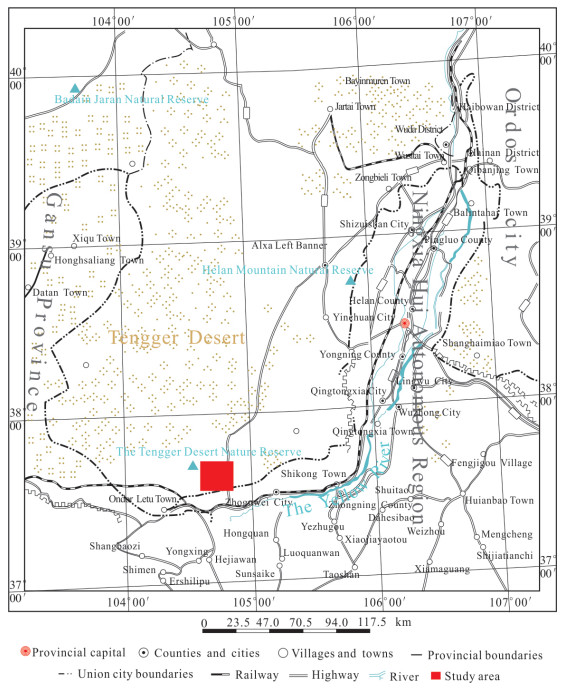

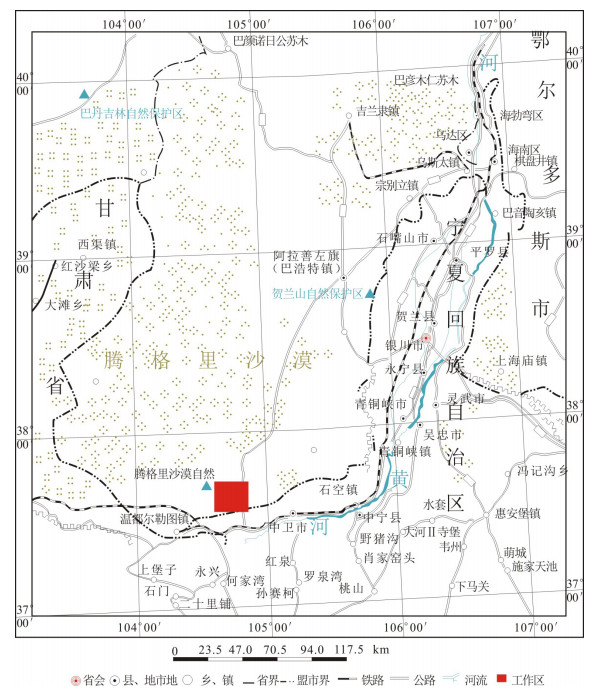

  • 图 1  交通位置图

    下载: 全尺寸图片 幻灯片

    Figure 1.

    下载: 全尺寸图片 幻灯片

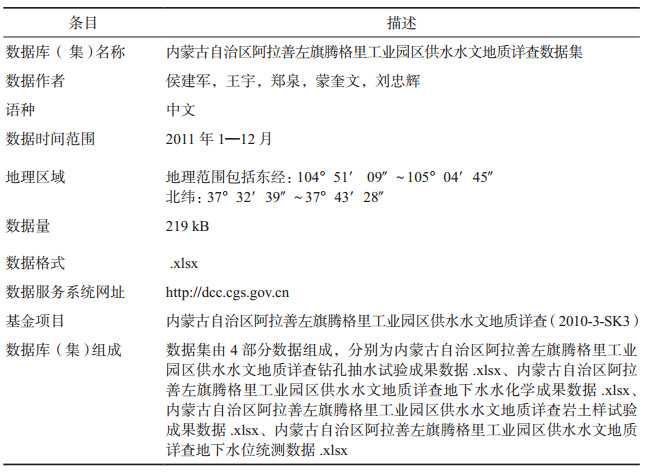

    表 1  数据库（集）元数据简表

    下载: 导出CSV

    表 2  内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查钻孔抽水试验成果数据集例表

    下载: 导出CSV

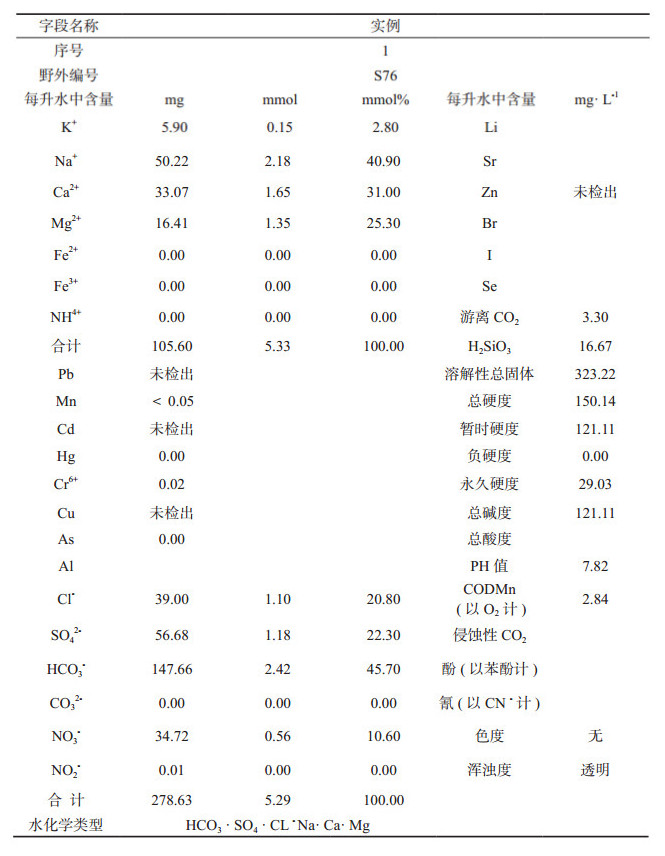

    表 3  内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查地下水水化学成果数据集例表

    下载: 导出CSV

    表 4  内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查岩土样试验成果数据集例表

    下载: 导出CSV

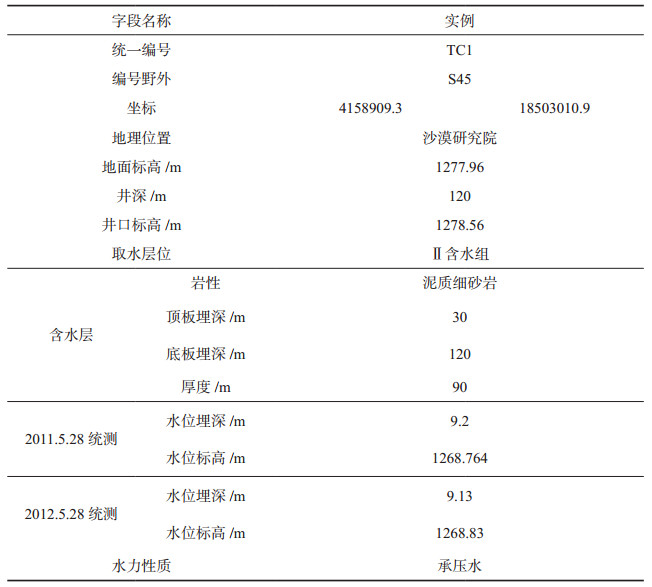

    表 5  内蒙古自治区阿拉善左旗腾格里工业园区供水水文地质详查地下水位统测数据集例表

    下载: 导出CSV

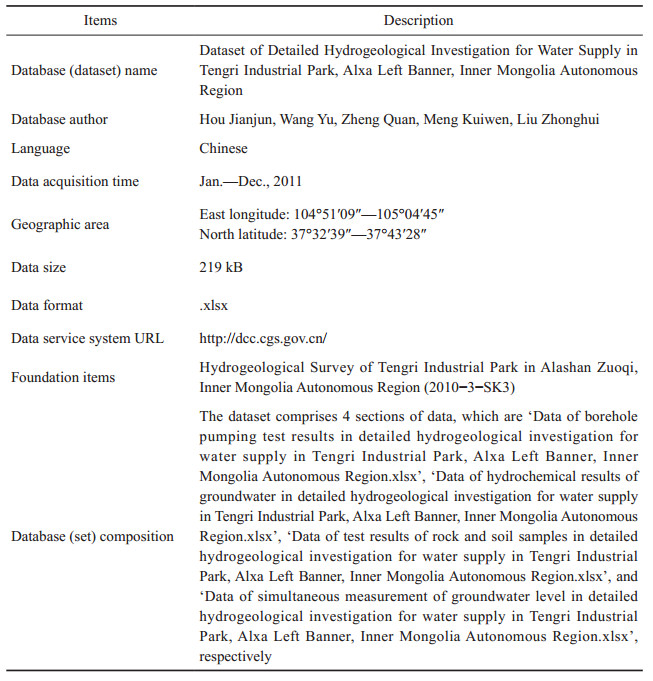

    Table 1.  Metadata table of dataset(s)

    下载: 导出CSV

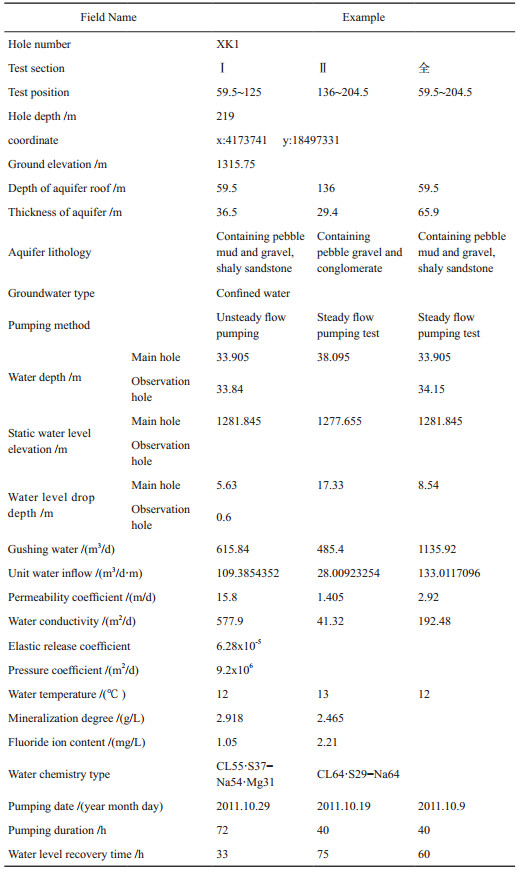

    Table 2.  Pumping test data of detailed hydrogeology survey in Alashan League, Inner Mongolia

    下载: 导出CSV

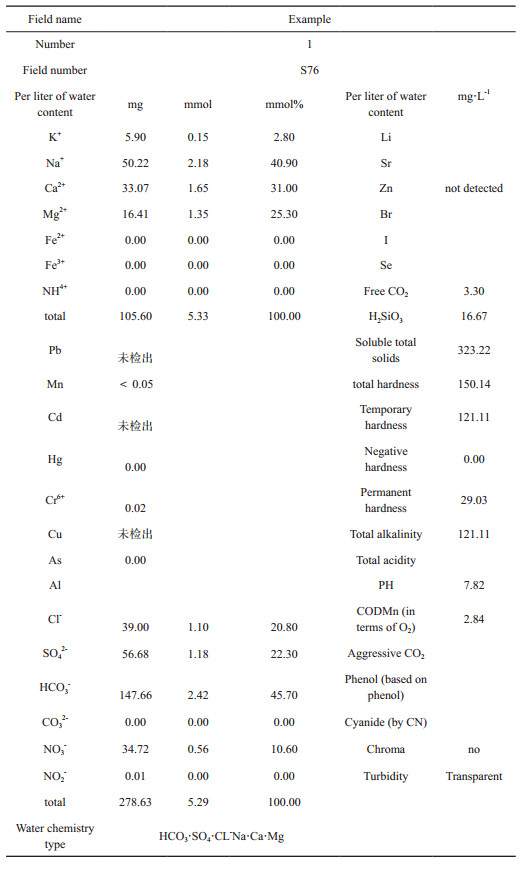

    Table 3.  Ground water chemical analysis of detailed hydrogeology survey in Alashan League, Inner Mongolia

    下载: 导出CSV

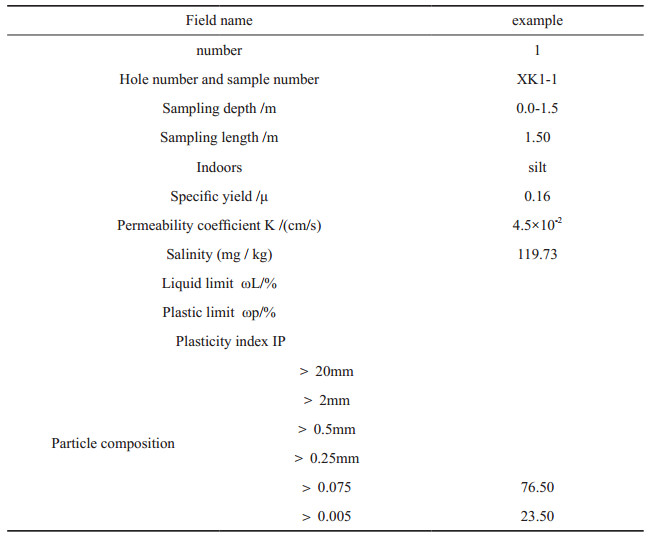

    Table 4.  Rock and soil test of detailed hydrogeology survey in Alashan League, Inner Mongolia

    下载: 导出CSV

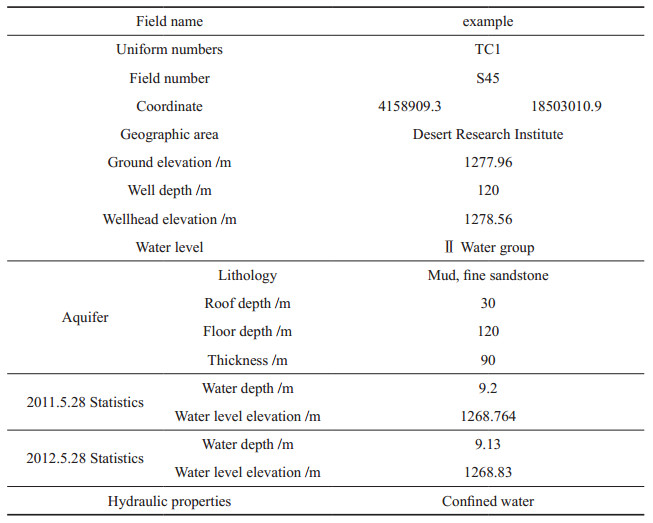

    Table 5.  Simultaneous observation of groundwater level for detailed hydrogeology survey in Alashan League, Inner Mongolia

    下载: 导出CSV
    • 参考文献(10)

  • GB 50296-1999. 供水管井技术规范[S]. GB 50027-2001.

    供水水文地质勘察规范[S].

    金玉山, 王有名.2005.阿拉善左旗腾格里通湖地区水资源可持续利用对策及建议[J].内蒙古科技与经济, (6):44-46. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=nmkj200506022&dbname=CJFD&dbcode=CJFQ

    欧阳慧, 欧阳旭.2008.我国西部生态脆弱地区空间发展策略研究——以内蒙古阿拉善左旗为例[J].开发研究, (2):14-17. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=kfyj200802003&dbname=CJFD&dbcode=CJFQ

    喻晓林, 王敬.2007.内蒙古阿拉善左旗腾格里通湖地区水资源开发利用现状及对策[J].地下水, (1):8-10. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=dxsu200701004&dbname=CJFD&dbcode=CJFQ

    GB 50296-1999, Technical Standard for Water-supply Well[S].

    GB 50027-2001, Standard for Hydrogeological Investigation of Water-supply[S].

    Jin Yushan, Wang Youming.2005.Countermeasures and suggestions on sustainable utilization of water resources in Tong lake area, Tengri, Alxa Left Banner[J].Inner Mongolia Science Technology and Economy, (6):44-46(in Chinese).

    Ouyang Hui, Ou Yangxu.2008.A study on the spatial development strategy of ecologically vulnerable areas in West China——A case study of Alashan Zuoqi in Inner Mongolia[J].Development Research, (2):14-17(in Chinese).

    Yu Xiaolin, Wang Jing.2007.Present situation and countermeasure of water resources development and utilization in Tong lake area, Tengri, Alxa Left Banner[J].Groundwater, (01):8-10(in Chinese). http://publicationslist.org/data/ivy.publisher/atom.xml
