Airborne hyperspectral study of spatial relationship between oil and gas leakage and salinization in Jimusar area
-
摘要:
笔者在新疆吉木萨尔地区开展航空高光谱遥感油气探测示范研究的过程中，发现油气渗漏地区往往有盐碱化现象。据此，利用航空高光谱成像系统在该区取得的可见光-近红外和短波红外遥感数据，采用自主开发的波段分类填图方法，对吉木萨尔农田、荒地和戈壁地区的油气渗漏异常信息进行了提取，经野外验证和化学分析，圈定了7处油气渗漏异常区。同时，构建了盐碱化的高光谱识别模型，利用该模型进行了盐碱化信息填图，并对吉木萨尔同一覆盖区的盐碱化异常进行了提取，圈定了盐碱化异常区。通过对油气渗漏异常区与盐碱化异常区的叠置聚焦分析，发现二者空间位置有高度的重合性。笔者认为这一高光谱遥感探测发现，不仅具有探索的理论意义，而且具有实用价值。其实用价值主要体现在高光谱遥感油气探测中，通过烃碱信息的相互印证，可以减少油气信息的漏判，提高油气渗漏信息识别的准确性。同时，在缺少航空高光谱遥感数据的情况下，还可以利用卫星多光谱遥感数据源，通过提取盐碱化异常和圈定盐碱化异常区的途径，帮助缩小找油气的目标区，为油气资源的调查、评价和选区提供新的信息和依据。上述研究同时表明，自然界的盐碱化可能并非全是由"干旱蒸发"形成，很可能还存在与油气有关的盐碱化，在油气勘查中如何区分这两种类型的盐碱化，特别是应用高光谱遥感技术将二者区分开来，是值得深入探讨的科学问题。
-
关键词:
- 航空高光谱遥感 /
- CASI/SASI/TASI /
- 油气渗漏异常 /
- 盐碱化异常 /
- 烃碱聚焦

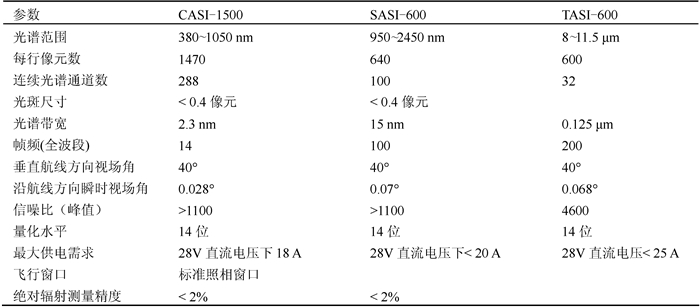

Abstract:Oil and gas leakages in the Jimusar area are spatially associated with salinization. In this study, the airborne hyperspectral image of the Jimusar region with a total area of 2500 km2 in Xinjiang was obtained by using CASI/SASI imagery of the National Key Laboratory of Science and Technology on Remote Sensing Information and Image analysis. The dataset was used to extract oil leakage information by using newly developed classification method. Seven oil leakage areas were detected. In addition, the extraction model for soil salt was also developed and applied to study the distribution of soil salt in the Jimasar region. Based on the superposition analysis of oil and gas anomaly area and salinization anomaly area, the authors detected a high degree of coincidence in the spatial location of the two ares. The authors believe that this hyperspectral remote sensing detection not only has theoretical significance but also has practical value. Its practical value is mainly reflected in the hyperspectral remote sensing oil and gas exploration. Through the mutual confirmation of hydrocarbon information, one can reduce redundant information of oil and gas leakage and improve the accuracy of oil and gas leakage identification. Additionally, in the absence of aerospace hyperspectral remote sensing data sources, satellite multispectral remote sensing data can also be used to extract the salinization anomalies and delineate the anomalous areas of salinization and alkalinization, thereby helping to narrow the target areas for oil and gas exploration. The results obtained by the authors indicate that the salinization of nature may not be wholly attributed to "dry evaporation", and there may be oil and gas related salinization. The distinguishing between these two kinds of salinization is a scientific problem worthy of in-depth discussion, especially in the field of hyperspectral remote sensing.
-
-
Campbell J B, Wynne R H. 2011. Introduction to Remote Sensing. Fifth Edition[M]. New York:Guilford Press, 3-28.
Clark R N, King T V V, Klejwa M, Swayze G A, Vergo N. 1990. High spectral resolution reflectance spectroscopy of minerals[J]. Journal of Geophysical Research, 95:12653-12680. doi: 10.1029/JB095iB08p12653
Du Letian. 1996. Hydrocarbon Alkali Fluid geochemistry-new Discussion on Hydrothermal Fluids and Magma Process[M]. Beijing:Science Press, 140-176.
Du Xiaodi, Tang Yue, Liu Dechang, Li Zhao, Wang Haida. 2015. The application of aerial hyperspectral technology to the geological survey for oil and gas in the East Junggar Bain[J]. Geology in China, 2015, 42(1):275-287(in Chinese with English Abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DIZI201501021.htm
Ellis J M, Davis H H, Zamudio J A. 2001. Exploring for onshore oil seeps with hyperspectral imaging[J]. Oil and Gas Journal, 99:49-58.
Gayantha R L K, Tsehaie W, Frank J A van R, Zack K, Freek van der M, Keith D S, van Hummel G J. 2012. Hyperspectral remote sensing of evaporate minerals and associated sediments in Lake Magadi area, Kenya[J]. International Journal of Applied Earth Observation and Geoinformation, 14:22-32. doi: 10.1016/j.jag.2011.08.009
Hörig B, Kühn F, Oschütz F, Lehmann F. 2001. HyMap hyperspectral remote sensing to detect hydrocarbons[J]. International Journal of Remote Sensing, 22:1413-1422. doi: 10.1080/01431160120909
Heather Freeman. 2003. Evaluation of the use of hyperspectral imagery for identification of microseeps near Santa Barbara, California. In West Virginia University, Morgan County, West Virginia, USA.
Khan S D, Jacobson S. 2008. Remote Sensing and Geochemistry for Detecting Hydrocarbon Microseepages[J]. Geological Society of America Bulletin, 120(1/2):96-105. http://d.old.wanfangdata.com.cn/NSTLQK/NSTL_QKJJ026941660/
Li Zhizhong, Wang Daming, Liu Dechang, Liu Yinnian, Zhao Huijie, Dang Fuxin. 2015. Hyperspectral remote sensing technology and its progress in resources exploration[J]. Earth Science, 40(8):1287-1294(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqkx201508001
Li Zhizhong, Yang Rihong, Dang Fuxin, Zhang Xianfeng, Tan Binxiang, Zhao Huijie. 2009. The hyperspectral remote sensing technology and its application. Geological Bulletin of China, 28(2/3):270-277(in Chinese with English abstract). http://d.old.wanfangdata.com.cn/Periodical/hebgcdxxb201806002
Liu Jia, Wang Daming, Liu Dechang, Zhen Hongrui, Li Zhizhong, Sui Zhengwei. 2015. Oil and gas anomaly extraction by combining hyperspectral image data with multispectral image data[J]. Earth Science, 40(8):1371-1380(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqkx201508014
Lu Yingcheng, Tian Qingjiu, Qi Xiaoping, Wang Jingjing, Wang Xiangcheng. 2009. Spectral response analysis of offshore thin oil slicks[J]. Spectroscopy and Spectral Analysis, 29(4):986-989(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gpxygpfx200904028
Lu Yingcheng, Tian Qingjiu, Wang Jingjing, Wang Xiangcheng, Qi Xiaoping, 2009. Spectral response analysis of offshore oil slicks. Chinese Science Bulletin, 53 (9):1085-1088(in Chinese). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gpxygpfx200904028
Shen Yuanting, Ni Guoqiang, Xu Daqi, Jiang Lili, He Jinping. Study on gas exploration by hyperion hyperspectral remote sensing data. Journal of Infrared Millimeter Waves. 27(3):210-213(in Chinese with English abstract). doi: 10.3724/SP.J.1010.2008.00210
Tian Shufang, Chen Jianping, Zhou Mi. 2007. Hydrocarbon micro seep detection in Dongsheng area, Inner Mongolia, using aerospace hyperspectral remote sensing[C]//Proceedings of 16th Symposium of China Remote Sensing Technology.
Van Der Meer F, Van Dijk P, Van Der Werff H, Yang H. 2002. Remote sensing and petroleum seepage:a review and case study. Terra Nova, 14:1-17. doi: 10.1046/j.1365-3121.2002.00390.x
Zhao Xinmei. 2007. Hyperspectral oil and gas anomalies detection based on hydrocarbon micro seep model. China University of Geosciences(Beijing), Beijing.
杜小弟, 唐跃, 刘德长, 李昭, 王海达. 2015.航空高光谱探测技术在准噶尔盆地东部地区油气调查中的应用[J].中国地质, 42(1):275-287. doi: 10.3969/j.issn.1000-3657.2015.01.022 http://geochina.cgs.gov.cn/ch/reader/view_abstract.aspx?file_no=20150121&flag=1
杜乐天. 1996.烃碱流体地球化学原理——重论热液作用和岩浆作用[M].北京:科学出版社, 140-176.
李志忠, 汪大明, 刘德长, 刘银年, 赵慧洁, 党福星. 2015.高光谱遥感技术及资源勘查应用进展[J].地球科学, 40 (8):1287-1294. http://d.old.wanfangdata.com.cn/Periodical/dqkx201508001
刘佳, 汪大明, 刘德长, 郑鸿瑞, 李志忠, 隋正伟, 2015.协同利用高光谱与多光谱遥感技术提取油气异常信息[J].地球科学, 40(8):1371-1380 http://d.old.wanfangdata.com.cn/Periodical/dqkx201508014
赵欣梅. 2007.基于烃类微渗漏理论的高光谱遥感油气异常探测方法研究[J].北京: 中国地质大学(北京).
田淑芳, 陈建平, 周密. 2007.基于航天高光谱遥感的内蒙古东胜地区油气微渗漏信息提取研究[J].第16届全国遥感技术学术交流会论文集, 北京: 地质出版社.
沈渊婷, 倪国强, 徐大琦. 2008.利用Hyperion短波红外高光谱数据探测天然气的研究.红外与毫米波学报, 27(3):210-213. doi: 10.3321/j.issn:1001-9014.2008.03.013
李志忠, 杨日红, 党福星. 2009.高光谱遥感卫星技术及其地质应用[J].地质通报, 28 (2~3):270-277. http://d.old.wanfangdata.com.cn/Periodical/zgqydz200902020
陆应诚, 田庆久, 齐小平, 王晶晶, 王向成, 2009.海面甚薄油膜光谱响应研究与分析[J].光谱学与光谱分析, 2009, 29 (4):986-989. doi: 10.3964/j.issn.1000-0593(2009)04-0986-04
陆应诚, 田庆久, 王晶晶, 王向成, 齐小平, 2008.海面油膜光谱响应实验研究[J].科学通报, 2008, 53 (9):1085-1088. doi: 10.3321/j.issn:0023-074X.2008.09.017
-
