Redetermination and disintegration of the continental volcanic strata of the former Santanghu Formation in Oetonggar area, Eastern Junggar Basin
-
摘要:
笔者通过岩性组合与岩相组合对比研究、SHRIMP锆石U-Pb测年与化石年代学研究等手段,认为东准噶尔奥依托浪格地区原三塘湖组陆相火山岩应重新厘定为巴塔玛依内山组,并建议将这套准噶尔盆地东北缘广泛分布的陆相火山岩根据地质时代解体为巴塔玛依内山组与三塘湖组,三塘湖组仅代表早二叠纪陆相火山岩。年代学研究表明:奥依托浪格地区巴塔玛依内山组年龄具有穿时性,下段年龄为(335.6±6.5)Ma,上段年龄为(320.5±7.1)Ma,属早石炭世晚期到晚石炭世,解决了巴塔玛依内山组长久以来的下、上石炭统之争。综合研究认为:这套陆相火山岩属于东准噶尔构造带自西向东链式缝合背景下的构造-岩浆活动,残余洋盆消失至陆相火山活动开启,同时受到西侧拉张环境与东侧岛弧环境的影响。奥依托浪格地区巴塔玛依内山组火山机构、构造、喷发间歇期发育,具有石油地质意义。
Abstract:In this paper,the authors studied the comparison between lithologic assemblage and lithofacies assemblage SHIRIMP zircon U-Pb dating results and fossil chronology,and believed that the continental volcanic rocks of the former Santanghu Formation in Oetonggar area of Eastern Junggar Basin should be redefined as the Batamayineishan Formation. It is suggested that the widely distributed continental volcanic rocks at the northeast edge of Junggar Basin should be decomposed into the Batamayineishan Formation and the Santanghu Formation according to the geological age. The Santanghu Formation only represents the early Permian continental volcanic rocks. The study of chronology shows that the age of the Batamayineishan Formation in Oetolanagar is time-penetrating. The age of the first lithologic segment is (335.6±6.5)Ma,and the age of the second lithologic segment is (320.5±7.1)Ma,suggesting that the rocks belong to the late lower Carboniferous period to the upper Carboniferous period. Thus,the dispute over the lower and upper Carboniferous system for the Batamayineishan Formation has been solved. According to the comprehensive study,this set of continental volcanic rocks belongs to tectono-magmatic activities in the East Junggar tectonic belt from west to east under the background of chain suture. The residual ocean basin disappeared until the beginning of continental volcanic activity; in addition,it was affected by the tension environment on the western side and the island arc environment on the eastern side. Volcanic mechanisms,structures,and intermittent eruptions of the Batamayineishan Formation in the Oetanagar region suggest that it has petroleum geological significance.
-

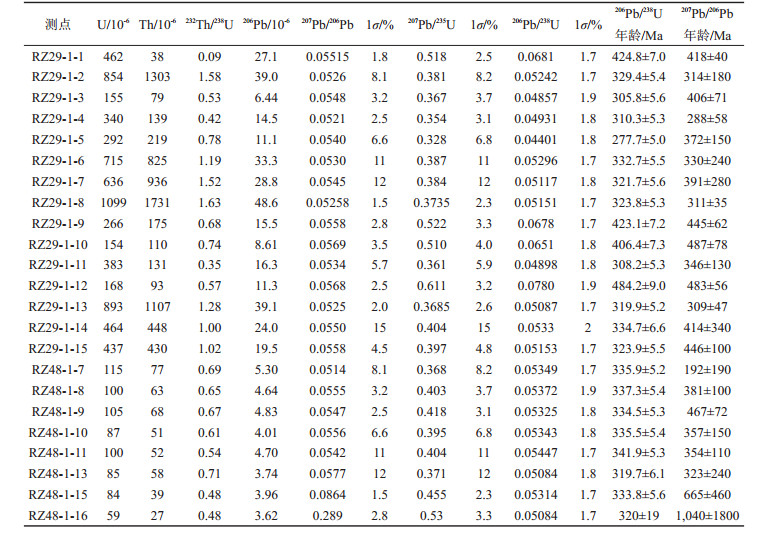

表 1 RZ29-1、RZ48-1锆石SHRIMP U−Pb年龄测试结果
Table 1. RZ29-1 and RZ48-1 zircon SHRIMP U−Pb age test results

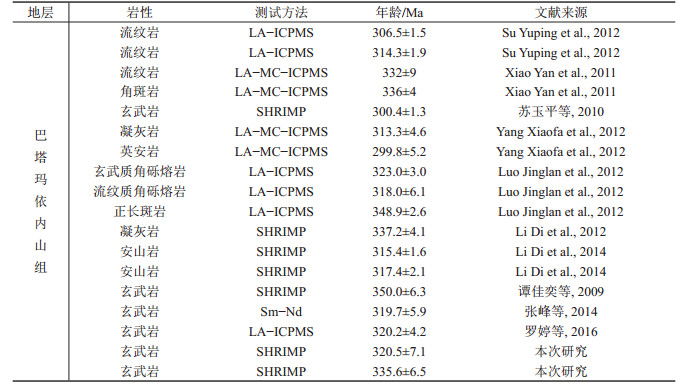

表 2 巴塔玛依内山组年代学数据
Table 2. Chronologic data of Batamayineishan Formation
-
Chen Shi, Zhang Yuanyuan, Guo Zhaojie. 2009. Zircon SHRIMP UPb dating and its implications of post-collisional volcanic rocks in Santanghu Basin, Xingjiang[J]. Acta Petrologica Sinica, 25(3):527-538 (in Chinese with English abstract).
Dou Yawei, Sun Zhenhua. 1985. The age of harjiawu formation and karagang formation in north Xinjiang[J]. Geological Review, 31(6):489-494, 585-586 (in Chinese with English abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzlp198506001
Li Chengdong, Zheng Jianmin, Zhang Yingli, Zhang Kai, Hua Yanqiu. 2005. Redifinition of the Huade Group and its tectonic significance[J]. Geology in China, 32(3):353-362.
Li Di, He Dengfa, Santosh M, Tang Jieyun. 2014. Petrogenesis of Late Paleozoic volcanics from the Zhaheba depression, East Junggar:Insights into collisional event in an accretionary orogeny of Central Asia[J]. Lithos, 184-187; 167-193. doi: 10.1016/j.lithos.2013.10.003
Li Di, He Dengfa, Tang Yong, Fan Chun, Kong Yuhua. 2012. Genesis of Early Carboniferous volcanic rock of the Di'nan uplift in Junggar Basin:Constraints to the closure time of Kalamaili ocean[J]. Acta Petrologica Sinica, 28(8):2340-2354.
Li Jianzhong, Wu Xxiaozhi, Oi Xuefeng, Zheng Man, Zhang Qingchun. 2010. Distribution and tectonic setting of Upper Paleozoic volcanic rock in northern Xinjiang[J]. Acta Petrologica Sinica, 26(1):195-206 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98201001022
Li Wei, Liu Yiqun, Dong Yunpeng. 2012. The geochemical characteristics, geochronology and tectonic significance of the Carboniferous volcanic rocks of the Santanghu area in northeastern Xinjiang, China.[J]. Science China:Earth Sciences, 42(11):1716-1728 (in Chinese with English abstract).
Li Zhensheng, Nie Feng, Tian Xiaoli, Shi Yonghong, Niu Hao, Wang Chuang. 2016. Redefinition of formation age of Late Paleozoic strata in the Eastern Junggar Tectonic Zone and its implications for evolution of regional geological structure[J]. Acta Geologica Sinica, 90(3):569-588 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dizhixb201603014
Long Xiaoping, Sun Min, Yuan Chao, Xiao Wenjiao, Chen Hanlin, Zhao Yongjiu, Cai Keda, Li Jiliang. 2006. Genesis of Carboniferous volcanic rocks in the eastern Junggar:Constraints on the closure of the Junggar Ocean[J]. Acta Petrologica Sinica, 22(1):31-40 (in Chinese with English abstract).
Lü Huantong, Xia Huiping, Chen Zhonghong, Lai Shixin, Zhang Yong, Mao Haibo. 2013. Stratigraphic division, correlation and distribution of the carboniferous system in the Junggar basin[J]. Journal of Stratigraphy, 37(3):353-360 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dcxzz201303014
Luo Jinglan, Hou Lianhua, Jiang Yiqin, Shao Hongmei, Yang Yanfang, Guo Yongfeng, Kang Jing. 2012. Chronology and tectonic settings of igneous rocks and origin of volcanic reservoirs in Ludong area, eastern Junggar basin[J]. Acta Petrolei Sinica, 33(3):351-360(in Chinese with English abstract). doi: 10.1038/aps.2011.183
Luo Ting, Chen Shuai, Liao Qun an, Chen Jiping, Hu Chaobin, Wang Fuming, Tian Jian, Wu Weiwei. 2016. Geochronology, geochemistry and geological significance of the Late Carboniferous bimodal volcanic rocks in the eastern Junggar[J]. Earth Science, 41(11):1845-1862 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqkx201611003
Mao Zhiguo, Zou Caineng, Zhu Rukai, Guo Hongli, Wang Jun, Tang Yong, Qi Liqi, Zhang Zhigeng. 2010. Geochemical characteristics and tectonic settings of Carboniferous volcanic rocks in Junggar basin[J]. Acta Petrologica Sinica, 26(1):207-216 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98201001023
Su Yuping, Zheng Jiangping, Griffin William L, Zhao Junhong, Tang Huayun, Ma Qiang, Lin Xiaoyang. 2012. Geochemistry and geochronology of Carboniferous volcanic rocks in the eastern Junggar terrane, NW China:Implication for a tectonic transition[J]. Gondwana Research, 22(3/4):1009-1029.
Su Yuping, Zheng Jianping, Griffin W L. 2010. Zircon U-Pb and Hf isotopes of volcanic rocks from the Batamayineishan Formation in the eastern Junggar Basin[J]. Chinese Science Bulletin, 55(30):2933-2945 (in Chinese).
Sun Qiaoli. 1995. Newly named stratigraphic unit Santanghu Formation[J]. Xinjiang Geology, (3):214-223 (in Chinese with English abstract).
Tan Jiayi, Wu Runjiang, Zhang Yuanyuan, Wang Shufang, Guo Zhaojie. 2009. Characteristics and geochronology of volcanic rocks of Batamavineishan Formation in Kalamaily, Eastern Junggar, Xinjiang[J]. Acta Petrologica Sinica, 25(3):539-546 (in Chinese with English abstract).
Wu Xiaoqi, Liu Deliang, Wei Guoqi. Li Jian, Li Zhensheng. 2009.Geochemical characteristics and tectonic settings of Carboniferous volcanic rocks from Ludong-Wucaiwan area, Junggar basin[J]. Acta Petrologica Sinica, 25(1):55-66 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98200901005
Xiao Yan, Zhang Hongfu, Shi Ji'an, Su Benxun, Sakyi P A, Lu Xinchuan, Hu Yan, Zhang Zhou. 2011. Late Paleozoic magmatic record of East Junggar, NW China and its significance:Implication from zircon U-Pb dating and Hf isotope[J]. Gondwana Research, 20(2/3):532-542.
Xinjiang Uygur Autonomous Region Bureau of Geology and Mineral Resources. 1993. Regional Geology of Xinjiang Uygur Autonomous Region[M]. Wuhan:China University of Geosciences Press, 141-142.
Xinjiang Uygur Autonomous Region Bureau of Geology and Mineral Resources. 1999. Rock Strata in Xinjiang Uygur Autonomous Region[M]. Wuhan:China University of Geosciences Press, 79-80.
Yang Gaoxue, Li Yongjun, Li Zhucang. 2010. Genesis and tectonic settings of post collision volcanic rocks in north eastern margin of East Junggar, Xinjiang[J]. Earth Science Frontiers, 17(1):49-60.
Yang Xiaofa, He Dengfa, Wang Qingchen, Tang Yong. 2012.Tectonostratigraphic evolution of the Carboniferous arc-relaed basin in the East Junggar Basin, northwest China:Insights into its link with the subduction process[J]. Gondwana Research, 22(3/4):1030-1046.
Zhang Feng, Xu Tao, Fan Junjie, Pan Aijun, Wang Bin, Chao Yinyin. 2014. Whole-rock Sm-Nd isochron age of Carboniferous volcanic rocks in eastern Junggar and its tectonic significance[J]. Geochimica, 43(3):301-316 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqhx201403011
Zhang Shengyin, Zhu Jun, Wen Ge, Liu Shuangquan, Lu Xingchuan, Zhang Shuncun, Shi Jian. 2015. Significant of volcanic eruption spatiotemporal sequence in Batamayineishan Formation, Ludong Region, Junggar Basin[J]. Journal of Central South University(Science and Technology), 46(1):199-207 (in Chinese with English abstract).
Zhang Yuanyuan, Chen Shi, Guo Zhaijie, Fang Shihu. 2009. Zircon SHRIMP U-Pb dating of the latest Paleozoic volcanic rocks in Zhaheba area, eastern Junggar and its geological implications[J]. Acta Petrologica Sinica, 25(3):506-514 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98200903003
Zhao Xia, Jia Chengzao, Zhang Guangya. 2008. Geochemistry and tectonic settings of Carboniferous intermediate basic volcanic rocks in Ludong-Wucaiwan, Junggar basin[J]. Earth Science Frontiers, 15(2):272-279 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dxqy200802030
Zhao Zehui, Guo Zhaijie, Han Baofu, Wang Yi. 2006. The geochemical characteristics and tectonic-magmatic implications of the latest-Paleozoic volcanic rocks from Santanghu basin, eastern Xinjiang, northwest China[J]. Acta Petrologica Sinica, 22(1):199-214 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98200601020
Zhao Zhenhua, Wang Qiang, Xiong Xiaolin, Zhang Haixiang, Niu Hecai, Xu Jifeng, Bai Zhenghua, Qiao Yulou. 2006. Two types of adakites in north Xinjiang, China[J]. Acta Petrologica Sinica, 22(5):1249-1265 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98200605016
陈石, 张元元, 郭召杰. 2009.新疆三塘湖盆地后碰撞火山岩的锆石SHRIMP U-Pb定年及其地质意义[J].岩石学报, 25(3):527-538. http://d.old.wanfangdata.com.cn/Periodical/ysxb98200903005
窦亚伟, 孙喆华. 1985.新疆北部哈尔加乌组和卡拉岗组的地质时代[J].地质论评, (6):489-494, 585-586. doi: 10.3321/j.issn:0371-5736.1985.06.001
李承东, 郑建民, 张英利, 张凯, 花艳秋. 2005.化德群的重新厘定及其大地构造意义[J].中国地质, 32(3):353-362. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20050302&flag=1
李建忠, 吴晓智, 齐雪峰, 郑曼, 张庆春. 2010.新疆北部地区上古生界火山岩分布及其构造环境[J].岩石学报, 26(1):195-206. http://d.old.wanfangdata.com.cn/Periodical/ysxb98201001022
李玮, 柳益群, 董云鹏, 周小虎, 柳小明, 李红, 樊婷婷, 周鼎武, 徐学义, 陈隽璐. 2012.新疆三塘湖地区石炭纪火山岩年代学、地球化学及其大地构造意义[J].中国科学:地球科学, 42(11):1716-1731. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgkx-cd201211009
李振宏, 杨永恒, 渠洪杰, 公王斌. 2015.晋东北地区侏罗纪地层划分、时代重新厘定及其地质意义[J].中国地质, 42(4):1046-1057. doi: 10.3969/j.issn.1000-3657.2015.04.019 http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20150419&flag=1
李振生, 聂峰, 田晓莉, 石永红, 牛浩, 王创. 2016.东准噶尔构造带晚古生代地层时代的厘定及其对区域构造演化意义[J].地质学报, 90(3):569-588. doi: 10.3969/j.issn.0001-5717.2016.03.014
龙晓平, 孙敏, 袁超, 肖文交, 陈汉林, 赵永久, 蔡克大, 李继亮. 2006.东准噶尔石炭系火山岩的形成机制及其对准噶尔洋盆闭合时限的制约[J].岩石学报, (1):31-40. http://d.old.wanfangdata.com.cn/Periodical/ysxb98200601003
罗静兰, 侯连华, 蒋宜勤, 邵红梅, 杨艳芳, 郭永峰, 康静. 2012.陆东地区火成岩形成时代与构造背景及火山岩储层成因[J].石油学报, 33(3):351-360. http://d.old.wanfangdata.com.cn/Periodical/syxb201203002
罗婷, 陈帅, 廖群安, 陈继平, 胡朝斌, 王富明, 田健, 吴魏伟. 2016.东准噶尔晚石炭世双峰式火山岩年代学、地球化学及其构造意义[J].地球科学, 41(11):1845-1862. http://d.old.wanfangdata.com.cn/Periodical/dqkx201611003
吕焕通, 夏惠平, 陈中红, 赖世新, 张勇, 毛海波. 2013.准噶尔盆地石炭系的划分、对比及分布[J].地层学杂志, 37(3):353-360. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dcxzz201303014
毛治国, 邹才能, 朱如凯, 郭宏莉, 王君, 唐勇, 祁利琪, 张志更. 2010.准噶尔盆地石炭纪火山岩岩石地球化学特征及其构造环境意义[J].岩石学报, 26(1):207-216. http://d.old.wanfangdata.com.cn/Periodical/ysxb98201001023
苏玉平, 郑建平, Griffin William L, 汤华云, O'Reilly Suzanne Y, 林向洋. 2010.东准噶尔盆地巴塔玛依内山组火山岩锆石U-Pb年代及Hf同位素研究[J].科学通报, 55(30):2933-2945. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=kxtb201030007
孙巧缡. 1995.新命名地层单位——三塘湖组[J].新疆地质, (3):214-223.
谭佳奕, 吴润江, 张元元, 王淑芳, 郭召杰. 2009.东准噶尔卡拉麦里地区巴塔玛依内山组火山岩特征和年代确定[J].岩石学报, 25(3):539-546. http://d.old.wanfangdata.com.cn/Periodical/ysxb98200903006
吴小奇, 刘德良, 魏国齐, 李剑, 李振生. 2009.准噶尔盆地陆东-五彩湾地区石炭系火山岩地球化学特征及其构造背景[J].岩石学报, 25(1):55-66. http://d.old.wanfangdata.com.cn/Periodical/ysxb98200901005
新疆维吾尔自治区地质矿产局. 1993.新疆维吾尔自治区区域地质志[M].武汉:中国地质大学出版社, 141-142.
新疆维吾尔自治区地质矿产局. 1999.新疆维吾尔自治区岩石地层[M].武汉:中国地质大学出版社, 79-80.
杨高学, 李永军, 李注苍, 刘晓宇, 杨宝凯, 吴宏恩. 2010.东准噶尔东北缘后碰撞火山岩成因与构造环境[J].地学前缘, 17(1):49-60. http://d.old.wanfangdata.com.cn/Conference/7824953
张峰, 陈建平, 徐涛, 范俊杰, 潘爱军, 郭晓东, 李杰美, 朝银银. 2014.东准噶尔晚古生代依旧存在俯冲消减作用——来自石炭纪火山岩岩石学、地球化学及年代学证据[J].大地构造与成矿学, 38(1):140-156. http://d.old.wanfangdata.com.cn/Periodical/ddgzyckx201401014
张峰, 徐涛, 范俊杰, 潘爱军, 王斌, 朝银银. 2014.东准噶尔石炭系巴塔玛依内山组火山岩全岩Sm-Nd等时线年龄及其构造意义[J].地球化学, 43(3):301-316. http://d.old.wanfangdata.com.cn/Periodical/dqhx201403011
张生银, 朱军, 文革, 柳双权, 鲁新川, 张顺存, 史基安. 2015.准噶尔盆地陆东地区巴塔玛依内山组火山喷发时空序列及其石油地质意义[J].中南大学学报(自然科学版), 46(1):199-207. http://d.old.wanfangdata.com.cn/Conference/8210479
张元元, 陈石, 郭召杰, 方世虎. 2009.东准噶尔扎河坝地区古生代晚期火山岩的锆石SHRIMP U-Pb定年及其地质意义[J].岩石学报, 25(3):506-514. http://d.old.wanfangdata.com.cn/Periodical/ysxb98200903003
赵霞, 贾承造, 张光亚, 卫延召, 赖绍聪, 方向, 张丽君. 2008.准噶尔盆地陆东-五彩湾地区石炭系中、基性火山岩地球化学及其形成环境[J].地学前缘, (2):272-279. doi: 10.3321/j.issn:1005-2321.2008.02.030
赵泽辉, 郭召杰, 韩宝福, 王毅. 2006.新疆三塘湖盆地古生代晚期火山岩地球化学特征及其构造-岩浆演化意义[J].岩石学报, (1):199-214. http://d.old.wanfangdata.com.cn/Periodical/ysxb98200601020
赵振华, 王强, 熊小林, 张海祥, 牛贺才, 许继峰, 白正华, 乔玉楼. 2006.新疆北部的两类埃达克岩[J].岩石学报, (5):1249-1265. http://d.old.wanfangdata.com.cn/Periodical/ysxb98200605016
