The fluid inclusion characteristics and petroleum accumulation of Chang 8 tight sandstone in northern Shaanxi, Ordos Basin
-
摘要:
研究目的 鄂尔多斯盆地陕北地区延长组长8含油分布范围广，是下步勘探重要的目标领域，但其石油烃类演化和油藏分布的关系尚不清楚。
研究方法 基于流体包裹体产状特征、成分及均一性分析结果，综合地质与地球化学方法，探讨了鄂尔多斯盆地陕北地区长8致密砂岩储层内石油的来源及成藏特征，揭示了长8油藏形成时间以及与油气成藏的关系。
研究结果 长8砂岩储层中的流体包裹体以气液烃包裹体、气液两相盐水包裹体为主，主要分布于细砂岩的石英加大边或裂隙中，可分为早、晚两期，与气液烃包裹体伴生的盐水包裹体均一温度主要存在85~105℃和115~135℃两个峰值区间，分布连续，油气为连续充注；成藏演化史表明，长8石油主要充注时期为110~135 Ma，在晚侏罗世发生早期充注，在早白垩世发生大规模充注。在区域上主要发育长7烃源岩，在最大生排烃阶段烃源岩Ro值接近1.0%，达到生烃门限，大量生烃，长9烃源岩在志丹地区局部分布。
结论 结合包裹体特征与烃类形成的关系，陕北地区长8油藏受烃源岩、储层及充注动力等因素控制，石油充注程度不一，发育平面上分布不均匀的岩性油藏，区域上具有“双源供烃、差异聚集”的成藏特点。
Abstract:This paper is the result of oil and gas exploration engineering.
Objective The Yanchang Formation 8 in the northern Shaanxi region of the Ordos Basin has a wide oil distribution range and is an important target area for future exploration. However, the relationship between the evolution of hydrocarbons and the distribution of oil reservoirs is still unclear.
Methods Based on the analysis of the occurrence characteristics, composition and homogeneity of fluid inclusions, geological and geochemical methods are used, the oil source and reservoir forming characteristics of Chang 8 tight sandstone are discussed, and the formation time of Chang 8 reservoir and its relationship with hydrocarbon accumulation are revealed.
Results The fluid inclusions in Chang 8 sandstone reservoir are mainly gas-liquid hydrocarbon inclusions and gasliquid two-phase brine inclusions, which are distributed in quartz enlarged edge or fractures of fine sandstone, and can be divided into early and late stages. The homogenization temperature of brine inclusions associated with gas-liquid hydrocarbon inclusions mainly has two peak ranges of 85-105℃ and 115-135℃, which shows that oil and gas are continuously filled. The history and evolution of reservoir formation shows that the main filling period of Chang 8 oil is 110-135 Ma, during which the early filling in late Jurassic and large-scale filling in early Cretaceous occurred. The source rocks of Chang 7 in the region are mainly developed, and the Ro value is close to 1.0% in the maximum hydrocarbon generation and expulsion stage, reaching the hydrocarbon generation threshold and generating a large number of hydrocarbons. The source rocks of Chang 9 are locally distributed in Zhidan area.
Conclusions Combining the characteristics of inclusions with the formation of hydrocarbons, the Chang 8 reservoir in Northern Shaanxi is controlled by factors such as source rock, reservoir and hydrocarbon charging. The oil filling degree is different, and the lithologic reservoir is developed differently, which shows two sets of source rocks hydrocarbon supply and differential accumulation.
-
-

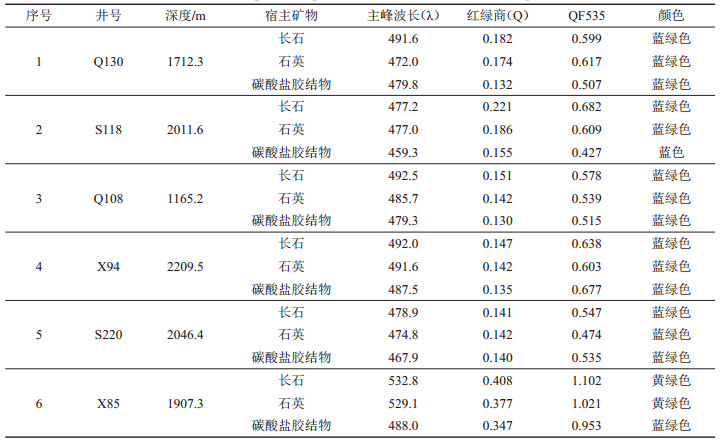

表 1 陕北地区长8储集层部分包裹体荧光光谱参数特征
Table 1. Characteristics of fluorescence spectrum parameters of inclusions in Chang 8 reservoir in northern Shaanxi
下载: 导出CSV
-
Bai Yubin, Zhao Zilong, Zhao Jingzhou, Liu Peng, Li Shuyao. 2014. Oil reservoir forming mechanisms and main controlling factors of tight oil of Chang-9 member in Ansai area, Ordos Basin[J]. Journal of Central South University(Science and Technology), 45(9): 3127-3136 (in Chinese with English abstract).
Chen Gang, Ding Chao, Xu Liming, Zhang Huiruo, Li Nan, Li Yan, Hu Yanxu, Huang Deshun. 2012. Indirect dating of multistage hydrocarbon accumulations by fluid inclusion data: A case study of the Permian hydrocarbon accumulation in the northeast Ordos Basin[J]. Acta Petrolei Sinica, 33(6): 1003-1012(in Chinese with English abstract).
Chen Ling, Zhang Wei, She Zhenbing. 2012. Methods for dating of hydrocarbon accumulation[J]. Xinjiang Petroleum Geology, 33(5): 550-553(in Chinese with English abstract).
Chen Mengna, Luo Anxiang, Li Jun, Shi Ziwei, Zhao Jingzhou, Shao Xiaozhou, Er Chuang, Bai Zhuoli. 2018. Characteristics of fluid inclusions in Chang 9 oil reservoirs of Huanxian-Zhengning area and its geological signifiance[J]. Journal of Xi'an Shiyou University(Natural Science Edition), 33(3): 1-6(in Chinese with English abstract).
Chen Shijia, Lu Jungang, Yao Jingli, Yang Guoping, Zhang Jizhi, Liu Chaowei, Tang Haiping, Wang Gang. 2012. Characteristics of reservoir formation and the controlling factors of Chang 8 oil-bearing formation in Huaqing Area of Ordos Basin[J]. Acta Sedimentologica Sinica, 30(6): 1130-1139(in Chinese with English abstract).
Chu Meijuan, Li Shixiang, Liu Xianyang, Deng Xiuqin, Guo Zhengquan. 2013. Accumulation mechanisms and modes of Yanchang Formation Chang 8 interval hydrocarbons in Ordos Basin[J]. Acta Sedimentologica Sinica, 31(4): 683-692(in Chinese with English abstract).
Ding Chao, Chen Gang, Guo Lan, Zhang Wenlong, Shi Xiaolin, Xu Xiaogang, Liu Teng. 2016. Differential uplift on the northeast margin of Ordos Basin: Evidence from apatite fission track analysis[J]. Geolgoy in China, 43(4): 1238-1247(in Chinese with English abstract).
Fu Jinhua, Deng Xiuqin, Wang Qi, Li Jihong, Qiu Junli, Hao Lewei, Zhao Yande. 2017. Compaction and hydrocarbon accumulation of Triassic Yanchang Formation Chang 8 Member, Ordos Basin, NW China: Evidence from geochemistry and fluid inclusions[J]. Petroleum Exploration and Development, 44(1): 48-57(in Chinese with English abstract). doi: 10.1016/S1876-3804(17)30007-1
Guo Chuan, Zhu Yushuang, Li Wenqing, Huang Qijiang. 2009. Fracture characteristics of Chang6 reservoir in Pingqiao area of Ansai Oil field[J]. Journal of Northwest University(Natural Science Edition), 39(1): 97-101(in Chinese with English abstract).
Lai Jin, Wang Guiwen, Wu Dacheng, Cao Jiangning, Zhang Xiaotao, Ran Ye, Yao Yabin, Zhang Yongdi. 2014. Diagenetic facies distribution in high resolution sequence stratigraphic framework of Chang 8 Oil Layers in the Jiyuan area[J]. Geolgoy in China, 41(5): 1487-1502(in Chinese with English abstract).
Liu Dehan, Lu Huanzhang, Xiao Xianming. 2007. Hydrocarbon Inclusions and Their Application in Petroleum Exploration and Development[M]. Guangzhou: Guangdong Science and Technology Press, 109-111(in Chinese).
Liu Yiqun, Li Wenhou, Feng Qiao. 1997. Palaeotemperatures and diagenetic stage of the upper Triassic oil sandstones in the eastern Ordos Basin[J]. Acta Geologic Sinica, 71(1): 65-74(in Chinese with English abstract).
Ren Ruiqing, Zhu Jing, Shi Lichuan, Wang Weibin, Dan Weidong, Liang Xiaowei. 2017. Controlling factors of hydrocarbon accumulation in Chang6 and Chang 8 reservoirs of Yanchang Formation in Zhoujiawan block, Ordos Basin, China[J]. Jourunal of Chengdu University Technology(Science & Technology Edition), 44(1): 36-42(in Chinese with English abstract).
Ren Zhanli, Zhang Sheng, Gao Shengli, Cui Junping, Xiao Yuanyuan, Xiao Hui. 2007. Tectonic thermal evolution history and its significance of reservoir formation and mineralization in Ordos Basin[J]. Science in China (Series D: Earth Sciences), 37(S1): 23-32(in Chinese).
Ren Zhanli. 1996. Research on the relations between geothermal history and oil-gas accumulations[J]. Acta Petrolei Sinica, 17(1): 17-24(in Chinese with English abstract).
Shi Baohong, Zhang Yan, Zhang Lei, Yang Yajuan, Li Hui. 2012. Hydrocarbon accumulation dating by fluid inclusion characteristics in Chang7 tight sandstone reservoirs of Yanchang Formation in Ordos Basin[J]. Petroleum Geology & Experiment, 34(6): 599-603(in Chinese with English abstract).
Shi Lei, Lu Shuangfang, Li Jijun, Wang Xuefei. 2011. Evaluation of source rock of Chang 9 Member, Yanchang Formation, Ordos Basin[J]. Science Technology and Engineering, 11(20): 4756-4761(in Chinese with English abstract). doi: 10.3969/j.issn.1671-1815.2011.20.018
Tao Shizhen. 2006. Sequence of diagenetic authigenigenic mineral the basis of timing the inclusions formation in sedimentary rocks[J]. Petroleum Exploration and Development, 33(2): 154-160(in Chinese with English abstract). doi: 10.3321/j.issn:1000-0747.2006.02.007
Wan Yongping, Li Yuanyuan, Liang Xiao. 2010. Fractures of reservoirs inferred from fluid inclusions: A case study on the Upper Paleozoic of Northern Shaanxi slope[J]. Geology and Exploration, 46(4): 711-715(in Chinese with English abstract).
Wand Qi, Hao Fang, Xu Changgui, Wei Ajuan, Sun Zhongheng, Cao Yijun, Zou Huayao. 2018. Origin and accumulation characterization reservoirs in Shaxibei area of petroleum in buried hill, Bohai Sea[J]. Oil & Gas Geology, 39(4): 676-684(in Chinese with English abstract).
Wang Weibin, Zhu Jing, Ma Wenzhong, Feng Shunyan, Liu Yanni, Zhao Jing. 2017. Characteristics and influencing factors of Chang 8 tight sandstone reservoir of Triassic Yanchang Formation in Zhoujiawan area, Ordos Basin[J]. Lithologic Reservoirs, 29(1): 51-58(in Chinese with English abstract). doi: 10.3969/j.issn.1673-8926.2017.01.007
Wang Xiyong, Zhang Qinglong, Wang Shuliang, Ge Rongfeng, Chen Juan. 2010. Structural features and tectonic stress fields of the Mesozoic and Cenozoic in the eastern margin of the Ordos Basin, China[J]. Geological Bulletin of China, 29(8): 1168-1176(in Chinese with English abstract). doi: 10.3969/j.issn.1671-2552.2010.08.009
Yao Jingli, Xu Li, Xing Lantian, Luo Anxiang, Deng Xiuqin, Duan Yi, Zhao Yang, Wu Yingzhong. 2015. Fluid overpressure and oil migration in Chang 7 and Chang 8 subsections of Yanchang Formation in Ordos Basin, China[J]. Natural Gas Geoscience, 26(12): 2219-2226(in Chinese with English abstract). doi: 10.11764/j.issn.1672-1926.2015.12.2219
Ye Bo, Liang Xiaowei, Song Juan, Cao Runrong, Mao Zhenhua, Hao Bingying. 2018. Reservoir accumulation characteristics of Jurassic Yan'an Formation in Yanwu area, Ordos Basin[J]. Lithologic Reservoirs, 30(4): 65-72(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-YANX201804007.htm
Zeng Lianbo, Li Zhongxing, Shi Chengen, Wang Zhengguo, Zhao Jiyong, Wang Yongkang. 2007. Characteristics and origin of fractures in the extra low-permeability sandstone reservoirs of the Upper Triassic Yanchang Formation in the Ordos Basin[J]. Acta Geology Sinica, 81(2): 174-180(in Chinese with English abstract).
Zhang Li, Lei Zhenyu, Xu Hong, Shuai Qingwei, Luo Shuaibing, Qian Xing. 2019. Sedimentary features and geological conditions for hydrocarbon generation and accumulation in Taixi Basin[J]. Oil & Gas Geology, 40(1): 152-161(in Chinese with English abstract).
Zhao Guiping. 2017. Characterization of fluid inclusions and timing of gas accumulation in Upper Paleozoic reservoirs of Hangjinqi area, Ordos Basin[J]. Oil & Gas Geology, 38(5): 905-912(in Chinese with English abstract).
Zhao Jingzhou, Yang Xianchao, Wu Fuli, Shi Baohong. 2006. Controlling of uplifts on the Triassic petroleum accumulation and distribution in north Shaanxi slope, Ordos Basin[J]. Journal of Geology, 80(5): 648-655(in Chinese with English abstract).
Zhao Yande, Qi Yalin, Luo Anxiang, Cheng Dangxing, Li Jihong, Huang Jinxiu. 2016. Application of fluid inclusions and dating of authigenic illite in reconstruction Jurassic reservoirs hydrocarbon filling history, Ordos Basin[J]. Journal of Jilin University (Earth Science Edition), 46(6): 1637-1648(in Chinese with English abstract).
Zhao Zhenyu, Guo Yanru, Wang Yan, Lin Dongjuan. 2012. Study progress in tectonic evolution and paleogeography of Ordos Basin[J]. Special Oil and Gas Reservoirs, 19(5): 15-20 (in Chinese with English abstract).
白玉彬, 赵子龙, 赵靖舟, 刘鹏, 李树垚. 2014. 鄂尔多斯盆地安塞地区长9致密油成藏机理与主控因素[J]. 中南大学学报(自然科学版), 45(9): 3127-3136 https://www.cnki.com.cn/Article/CJFDTOTAL-ZNGD201409027.htm
曾联波, 李忠兴, 史成恩, 王正国, 赵继勇, 王永康. 2007. 鄂尔多斯盆地上三叠统延长组特低渗透砂岩储层裂缝特征及成因[J]. 地质学报, 81(2): 174-180. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200702005.htm
陈刚, 丁超, 徐黎明, 章辉若, 李楠, 李岩, 胡延旭, 黄得顺. 2012. 多期次油气成藏流体包裹体间接定年——以鄂尔多斯盆地东北部二叠系油气藏为例[J]. 石油学报, 33(6): 1003-1012. https://www.cnki.com.cn/Article/CJFDTOTAL-SYXB201206012.htm
陈玲, 张微, 佘振兵. 2012. 油气成藏时间的确定方法[J]. 新疆石油地质, 33(5): 550-553. https://www.cnki.com.cn/Article/CJFDTOTAL-XJSD201205012.htm
陈梦娜, 罗安湘, 李军, 时孜伟, 赵靖舟, 邵晓州, 耳闯, 白卓立. 2018. 环县-正宁地区长9油层组流体包裹体特征及地质意义[J]. 西安石油大学学报(自然科学版), 33(3): 1-6. https://www.cnki.com.cn/Article/CJFDTOTAL-XASY201803001.htm
陈世加, 路俊刚, 姚泾利, 杨国平, 张纪智, 刘超威, 唐海评, 王刚. 2012. 鄂尔多斯盆地华庆地区长8油层组成藏特征及控制因素[J]. 沉积学报, 30(6): 1130-1139. https://www.cnki.com.cn/Article/CJFDTOTAL-CJXB201206015.htm
楚美娟, 李士祥, 刘显阳, 邓秀芹, 郭正权. 2013. 鄂尔多斯盆地延长组长8油层组石油成藏机理及成藏模式[J]. 沉积学报, 31(4): 683-692. https://www.cnki.com.cn/Article/CJFDTOTAL-CJXB201304016.htm
丁超, 陈刚, 郭兰, 张文龙, 师晓林, 徐小刚, 刘腾. 2016. 鄂尔多斯盆地东北部差异隆升过程裂变径迹分析[J]. 中国地质, 43(4): 1238-1247. http://geochina.cgs.gov.cn/geochina/article/abstract/20160410?st=search
付金华, 邓秀芹, 王琪, 李继宏, 邱军利, 郝乐伟, 赵彦德. 2017. 鄂尔多斯盆地三叠系长8储集层致密与成藏耦合关系——来自地球化学和流体包裹体的证据[J]. 石油勘探与开发, 44(1): 48-57. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK201701007.htm
郭川, 朱玉双, 李文清, 黄启江. 2009. 安塞油田坪桥地区长6储层裂缝特征研究[J]. 西北大学学报(自然科学版), 39(1): 97-101. https://www.cnki.com.cn/Article/CJFDTOTAL-XBDZ200901032.htm
赖锦, 王贵文, 吴大成, 曹江宁, 张晓涛, 冉冶, 姚亚斌, 张永迪. 2014. 姬塬地区长8油层组层序地层格架内成岩相展布特征[J]. 中国地质, 41(5): 1487-1502. http://geochina.cgs.gov.cn/geochina/article/abstract/20140507?st=search
刘德汉, 卢焕章, 肖贤明. 2007. 油气包裹体及其在石油勘探和开发中的应用[M]. 广州: 广东科技出版社, 109-111.
柳益群, 李文厚, 冯乔. 1997. 鄂尔多斯盆地东部上三叠统含油砂岩的古地温及成岩阶段[J]. 地质学报, 71(1): 65-74. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE199701007.htm
任瑞清, 朱静, 史立川, 王维斌, 淡卫东, 梁晓伟. 2017. 鄂尔多斯盆地周家湾长6和长8油层组成藏控制因素[J]. 成都理工大学学报(自然科学版), 44(1): 36-42. https://www.cnki.com.cn/Article/CJFDTOTAL-CDLG201701014.htm
任战利, 张盛, 高胜利, 崔军平, 肖媛媛, 肖晖. 2007. 鄂尔多斯盆地构造热演化史及其成藏成矿意义[J]. 中国科学(D辑: 地球科学), 37(S1): 23-32. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK2007S1003.htm
任战利. 1996. 鄂尔多斯盆地热演化史与油气关系的研究[J]. 石油学报, 17(1): 17-24. https://www.cnki.com.cn/Article/CJFDTOTAL-SYXB601.002.htm
师磊, 卢双舫, 李吉君, 王雪飞. 2011. 鄂尔多斯盆地长9烃源岩评价[J]. 科学技术与工程, 11(20): 4756-4761. https://www.cnki.com.cn/Article/CJFDTOTAL-KXJS201120020.htm
时保宏, 张艳, 张雷, 杨亚娟, 李慧. 2012. 鄂尔多斯盆地延长组长7致密储层流体包裹体特征与成藏期次[J]. 石油实验地质, 34(6): 599-603. https://www.cnki.com.cn/Article/CJFDTOTAL-SYSD201206009.htm
陶士振. 2006. 自生矿物序次是确定包裹体期次的根本依据[J]. 石油勘探与开发, 33(2): 154-160. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK200602006.htm
万永平, 李园园, 梁晓. 2010. 基于流体包裹体的储层微裂缝研究——以陕北斜坡上古生界为例[J]. 地质与勘探, 46(4): 711-715. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKT201004019.htm
王奇, 郝芳, 徐长贵, 韦阿娟, 孙中恒, 操义军, 邹华耀. 2018. 渤海海域沙西北地区潜山油源及成藏特征[J]. 石油与天然气地质, 39(4): 676-684. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201804006.htm
王维斌, 朱静, 马文忠, 冯顺彦, 刘艳妮, 赵静. 2017. 鄂尔多斯盆地周家湾地区长8致密砂岩储层特征及影响因素[J]. 岩性油气藏, 29(1): 51-58. https://www.cnki.com.cn/Article/CJFDTOTAL-YANX201701007.htm
王锡勇, 张庆龙, 王良书, 葛荣峰, 陈娟. 2010. 鄂尔多斯盆地东缘中-新生代构造特征及构造应力场分析[J]. 地质通报, 29(8): 1168-1176. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD201008012.htm
姚泾利, 徐丽, 邢蓝田, 罗安湘, 邓秀芹, 段毅, 赵阳, 吴应忠. 2015. 鄂尔多斯盆地延长组长7和长8油层组流体过剩压力特征与油气运移研究[J]. 天然气地球科学, 26(12): 2219-2226. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX201512002.htm
叶博, 梁晓伟, 宋娟, 曹润荣, 毛振华, 郝炳英. 2018. 鄂尔多斯盆地演武地区侏罗系延安组油藏成藏特征[J]. 岩性油气藏, 30(4): 65-72. https://www.cnki.com.cn/Article/CJFDTOTAL-YANX201804007.htm
张莉, 雷振宇, 许红, 帅庆伟, 骆帅兵, 钱星. 2019. 西盆地地层沉积特征与成烃-成藏地质条件[J]. 石油与天然气地质, 40(1): 152-161. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201901016.htm
赵桂萍. 2017. 鄂尔多斯杭锦旗地区上古生界储层流体包裹体特征与天然气成藏时期[J]. 石油与天然气地质, 38(5): 905-912. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201705009.htm
赵靖舟, 杨县超, 武富礼, 时保宏. 2006. 论隆起背景对鄂尔多斯盆地陕北斜坡区三叠系油藏形成和分布的控制作用[J]. 地质学报, 80(5): 648-655. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200605005.htm
赵彦德, 齐亚林, 罗安湘, 程党性, 李继宏, 黄锦绣. 2016. 应用流体包裹体和自生伊利石测年重构鄂尔多斯盆地侏罗系油藏烃类充注史[J]. 吉林大学学报(自然科学版), 46(6): 1637-1648. https://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ201606004.htm
赵振宇, 郭彦如, 王艳, 林冬娟. 2012. 鄂尔多斯盆地构造演化及古地理特征研究进展[J]. 特种油气藏, 19(5): 15-20. https://www.cnki.com.cn/Article/CJFDTOTAL-TZCZ201205003.htm
-
