The chronology, geochemical characteristics and tectonic setting of the volcanic rocks in the Benbatu Formation of Huolinhe area, Inner Mongolia
-
摘要:
在内蒙古东部霍林河地区晚古生代地层中厘定出一套火山岩，其LA-ICPMS锆石U-Pb年龄为（313.7±3.5）Ma，时代归属晚石炭世。岩石学、岩石地球化学特征表明：研究区本巴图组火山岩主要由安山岩、玄武安山岩组成，属准铝质碱性系列岩石，SiO2含量52.83%~54.76%，具较高的Al2O3含量（17.43%~20.79%），TiO2含量（0.97%~1.41%）较低，Na2O（3.74%~4.21%）>K2O（2.37%~3.02%）。稀土总量（ΣREE）较高，为46.78×10-6~124.36×10-6，轻稀土（LREE）富集（42.57×10-6~109.06×10-6），重稀土（HREE）较富（4.21×10-6~15.30×10-6）；LREE/HREE值为6.04~10.43，轻、重稀土分馏较强，（La/Yb）N值为6.32~14.56，在球粒陨石标准化稀土元素配分图上呈现出左高右低的右倾型分配模式；富集大离子亲石元素（Rb、Ba、K、Pb、Sr）和轻稀土元素，亏损高场强元素（Nb、Ta、Ti）和重稀土元素。岩浆来源于俯冲流体交代的地幔楔部分熔融；具岛弧及大陆边缘弧构造环境的特征，形成于板块边缘的消减带，主要与古亚洲洋板块的俯冲作用有关。
Abstract:In this study, the authors determined a set of volcanic rocks in the Late Paleozoic strata at Huolinhe area, Inner Mongolia. The age of zircon U-Pb isotope based on LA-ICP-MS analysis is (313.7±3.5)Ma, suggesting Late Carboniferous. The characteristics of petrography and petrogeochemical indicate that the Benbatu Formation consists of andesite and andesitic basalt rocks and belongs to aluminous rocks of alkalic series. The SiO2 values are 52.82%-54.76%, with higher Al2O3 content (17.43%-20.79%) and lower TiO2 content (0.97%-1.41%); Na2O (3.74%-4.21%)>K2O (2.37%-3.02%). In addition, rare earth elements (ΣREE) are between 46.78×10-6 and 124.36×10-6, light rare earth elements (LREE) are enriched (42.57×10-6-109.06×10-6), and heavy rare earth elements (HREE) are relatively enriched (4.21×10-6-15.30×10-6). The ratios of LREE/HREE are 6.04-10.43, suggesting obvious fractionation of light and heavy rare earth elements. The ratios of (La/Yb)N are 6.32-14.56, exhibiting right-inclined shape high on the left and low on the right on the chondrite-normalized REE patterns. Large ion lithophile elements (Rb, Ba, K, Pb, Sr)and LREE are enriched whereas high field-strength elements(Nb, Ta, Ti, P)and HREE are depleted. Magma came from mantle wedge partial melting with underthrust fluid metasomatism. These rocks are characterized by structural environment of island arc and continental edge arc and were formed along the subduction zone at the edge of the plate and related to Paleoasian Ocean subduction.
-
-
图 1 研究区地质简图(a—中亚地区构造简图(据Jahn et al., 2004修改)；b—中国东北地区构造简图(据潘桂棠等，2015修改)；c—霍林河地区地质简图)
Figure 1.
图 5 本巴图组火山岩TAS图解(a)(LeMaitre et al., 1989)、Nb/Y-Zr/TiO2图解(b)(Winchester et al., 1977)、Na2O-K2O图解(c)(Middlemost EAK，1972)、A/CNK-A/NK图解(d)(Maniar et al., 1989)
Figure 5.
图 6 本巴图组火山岩球粒陨石标准化稀土元素配分图(a)、原始地幔标准化微量元素蛛网图(b)(标准化值据Sun et al., 1989)
Figure 6.
图 7 本巴图组火山岩Th/Hf-Ta/Hf图解(a)(汪云亮等，2001)、Th/Yb-Ta/Yb图解(b)(Pearce，1982)、Hf/3-Th-Nb/16图解(c)(Wood，1980)、Hf/3-Th-Ta图解(d)(Wood，1979)
Figure 7.

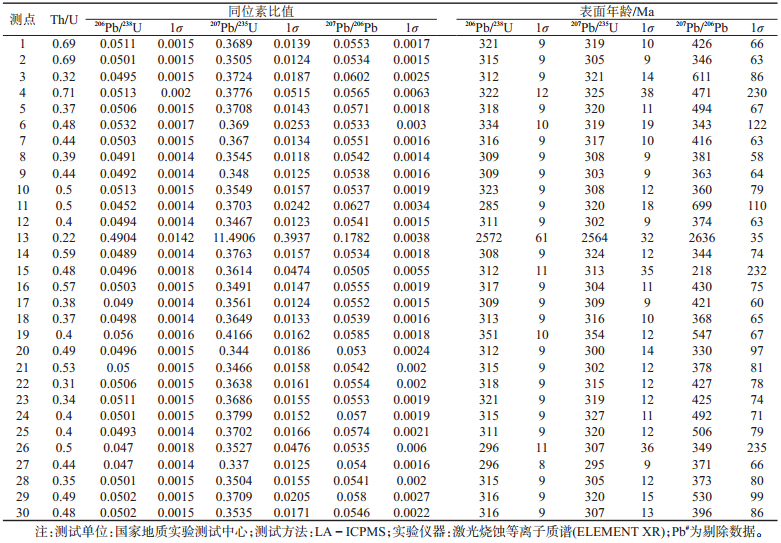

表 1 本巴图组火山岩LA-ICPMS锆石U-Pb定年分析结果
Table 1. LA-ICPMS zircon U-Pb data of the volcanic rocks in the Benbatu Formation
下载: 导出CSV

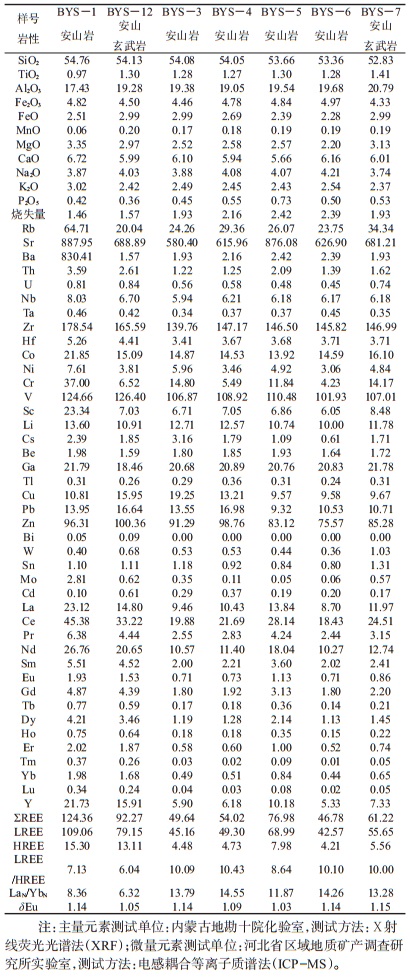

表 2 本巴图组火山岩主量元素(%)、微量元素(10-6)及稀土元素(10-6)分析结果
Table 2. Major elements(%), trace elements(10-6) and REE(10-6) analyses of the Zhaduding A-type granites of the volcanic rocks in the Benbatu Formation
下载: 导出CSV
-
Bao Zhiwei, Chen Senhuang, Zhang Zhentang. 1994. Study on REE and Sm-Nd isotopes of Hegenshan ophiolite, Inner Mongolia[J]. Geochimica, 23 (4):339-349(in Chinese with English abstract).
Bea F, Arzamastsev A, Montero P, Arzamastseva L. 2001. Anomalous alkaline rocks of Soustov. Kola:Evidence of mantle-derived metasomatic fluids affecting crustal materials[J]. Contribution to Mineralogy and Petrology, 140:554-566. doi: 10.1007/s004100000211
Bureau of Geology and Mineral Resources of Inner Mongolia Autonomous Region. 1996. Stratigtaphy (Lithostratic) of Inner Mongolia Autonomous Region[M].Wuhan:China University of Geoscience Press, 1-344 (in Chinese with English abstract).
Chen B, Jahn B M, Tian W. 2009. Evolution of the Solonker suture zone:Constraints from zirconU-Pb ages, Hf isotopic ratios and whole-rock Nd-Sr isotope compositions of subduction-and collision-related magmas and forearc sediments[J]. Joumal of Asian Earth Sciences, 34(3):245-257. https://ui.adsabs.harvard.edu/abs/2009JAESc..34..245C/abstract
Chen Bin, Zhang Guochun, Wilde S. 2001. Subduction and collision-related granitoids from southern Sonidzuoqi, Inner Mongolia:isotopic ages and tectonic implications[J]. Geological Review, 47 (4):361-367(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZLP200104005.htm
Dai Fengyan, Zhang Najun. 1987. The significance of anomalous values of some elements in REE in the research of rock genesis[J].Geological Science and Technology Information, 6(2):57-61.
Dai Fuqiang, Zhao Zifu, Zheng Yongfei. 2015. Plate mantle interaction: the origin of andesitic volcanic rocks after the collision in the Dabie orogenic belt[C]//Academic Annual Meeting of China Mineral Rock Geochemistry Society(in Chinese with English abstract).
Fan Chenzi, Hu Mingyue, Zhao Linghao, Sun Dongyang, Zhan Xiuchun. 2012. Advances in in situ microanalysis of U-Pb zircon geochronology using laser ablation-inductively coupled plasma-mass spectrometry[J]. Rock and Mineral Analysis, 31 (1):29-46(in Chinese with English abstract).
Ge Wenchun, Lin Qiang, Sun Deyou, Wu Fuyuan, Yuan Zhongkuan, Li Wenyuan, Li Mingzhi, Yin Chengxiao. 1999. Geochemical characteristics of the Mesozoic basalts in Da Hinggan Ling:Evidence of the mantle-crust interaction[J]. Acta Petrologica Sinica, 15(3):396-407(in Chinese with English abstract).
Guo Xiaodan, Zhou Jianbo, Zhang Xingzhou, Qiu Haijun. 2011. The detrital zircon LA-ICP-MS U-Pb ages and its significance of Benbatu Formation in Xiwuzhumuqinqi, Inner Mongolia, China. Geological Bulletin of China, 30(2/3):278-290(in Chinese with English abstract).
He Fubing, Wei Bo, Xu Jixiang, Sun Yonghua, Li Ruijie.2017.Ages, origin and geological implications of the volcanic rocks in the Baoligaomiao Formation of East Ujimqin Banner, Inner Mongolia[J]. Geology in China, 44(6):1159-1174(in Chinese with English abstract).
Hu Xiangsheng, Mo Xuanxue, Fan Li. 1990. Jiangda ancient trench-arc-basin system, Xizang (Tibet): Evidences from volcanic rocks[C]//Contribution to Geology of the Qinghai-Xizang (Tibet) Plateau. Beijing: Geological Publishing House, 1-15(in Chinese with English abstract).
Jahn B M, Windley B, Natal In B, Dobretsov N. 2004. Phanerozoic continental growth in Central Asia[J]. Journal of Asian Earth Sciences, 23(5):599-603. https://ui.adsabs.harvard.edu/abs/2004JAESc..23..599J/abstract
LeMaitre R W, Bateman P, Dudek A. 1989. A Classification of Igneous Rock and Glossary of Terms[M]. Oxford:Blackwell, 193.
Li Dapeng, Chen Yuelong, Wang Zhong, Lin Yu, Zhou Jian. 2012.Paleozoic sedimentary record of the Xing-Meng Orogenic Belt, Inner Mongolia:Implications for the provenances and tectonic evolution of the Central Asian Orogenic Belt[J]. Chin. Sci. Bull., 57:776-785. https://www.researchgate.net/publication/257688532_Paleozoic_sedimentary_record_of_the_Xing-Meng_Orogenic_Belt_Inner_Mongolia_Implications_for_the_provenances_and_tectonic_evolution_of_the_Central_Asian_Orogenic_Belt
Li Jinyi. 1998. Some new ideas on teetoics of NE china and its neighboring areas[J]. Geological Review, 44(4):339-347(in Chinese with English abstract).
Li Jinyi. 2006. Permian geodynamic setting of Northeast China and adjacent regions:Closure of the Paleo-Asian Ocean and subduction of the Paleo-Pacific plate[J].Journal of Asian Earth Sciences, 26:207-224. doi: 10.1016/j.jseaes.2005.09.001
Li Pengwu, Gao Rui, Guang Ye, Li Qiusheng. 2006. Palaeo magnetie constraints on the final closure time of Solonker-Linxi suture[J]. Journal of Jilin University:Earth Science Edition, 36 (5):744-758(in Chinese with English abstract).
Li Ruijie. 2013. The Reserch of Geochemical Characteristics, Geochronology and Geology Significance of the Benbatu Formation Volcanic Rocks of the Xiwuqi Area in Inner Mongolia[D]. Beijing: China University of Geosciences(Beijing): 1-61(in Chinese with English abstract).
Liu Dunyi, Jian Ping, Zhang Qi, Zhang Fuqin, Shi Yuruo, Shi Guanghai, Zhang Lüqiao, Tao Hua. 2003. SHRIMP dating of adakites in the Tulingkai Ophiolite, Inner Mongolia:Evidenee for the Early Paleozoic subduction[J].Acta Geological Sinica, 77 (3):317-327, 435-437(in Chinese with English abstract). https://www.zhangqiaokeyan.com/academic-journal-cn_acta-geologica-sinica_thesis/0201252712181.html
Liu Jianfeng, Li Jinyi, Sun Lixin, Yin Dongfang, Zheng Peixi. 2016.Zircon U-Pb dating of the Jiujingzi ophiolite in Bairin Left Banner, Inner Mongolia:Constraints on the formation and evolution of the Xar Moron River suture zone[J]. Geology in China, 43(6):1947-1962(in Chinese with English abstract). http://www.en.cnki.com.cn/Article_en/CJFDTOTAL-DIZI201606008.htm
Liu Jianfeng. 2009. Late Paleozoic Magmatism and Its Constraints on Regional Tectonic Evolution in Linxi-Dongwuqi Area, Inner Mongolia[D]. Jilin: Jilin University: 1-142 (in Chinese with English abstract).
Liu Yong, Li Tingdong, Xiao Qinghui, Geng Shufang, Wang Tao, Chen Bike. 2010. New chronology of the Ningyuan alkali basalt in southern Hunan, China:Evidence from LA-ICP-MS zircon U-Pb dating[J]. Geological Bulletin of China, 29(6):833-841(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-ZQYD201006006.htm
Ma Shiwei, Zhou Zhiguang, Liu Changfeng, Li Ruijie, Lai Lin, Zhang Xuebin, Meng Yuanku. 2016. Petrogenesis and tectonic significance of the Late Carboniferous quartz diorite in Xi Ujimqin Banner, Inner Mongolia[J]. Geology in China, 43(6):1932-1946(in Chinese with English abstract).
Maniar P D, Piccoli P M. 1989. Tectonic discrimination of granitoids[J].Geological Society of America Bulletin, 101(5):635-643. doi: 10.1130/0016-7606(1989)101<0635:TDOG>2.3.CO;2
Miao Laicheng, Zhang Fuqin, Fan Weiming, Liu Dunyi. 2007.Phanerozoic evolution of the Inner Mongolia-Daxinganling orogenic belt in North China: constraints from geochronology of ophiolites and associated formations[C]//Zhai M G, Windley B F, Kusy T M, Meng Q R(eds.). Mesozoic Sub-continental Lithospheric Thinning under Eastem Asia.Special Publications, vol, Geological Society, London, 206: 223-237.
Middlemost EAK. 1972. A simple classification of volcanic rocks[J].Bulletin of Volcanology, 36:382-397. doi: 10.1007/BF02596878
Mu Kebin, Pei Xianzhi, Li Ruibao, Li Zuochen, Pei Lei, Liu Chenjun, Gao Feng, Chen Youxin, Wang Meng, Zhao Shaowei. 2019.Geochronology, Geochemistry and Geological Significance of the Granite Veins in the Bailongjiang Group, South Qinling[J].Northwestern Geology, 52(3):111-135 (in Chinese with English abstract). https://www.zhangqiaokeyan.com/academic-journal-cn_northwestern-geology_thesis/0201273307015.html
Ou Yangjing, Wang Shuangshuang, Yu Man, Liu Ye, Wang Fan, Shang Zhaocong, Yao Chao, Wang Jinrong. 2010. Igneous assemblages of different origin in island arc and their geological significances[J]. Gansu Geology, 19 (2):18-26(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-GSDZ201002004.htm
Pan Guitang, Lu Songnian, Xiao Rongge, Zhang Kexin, Yin Fuguang, Hao Guojie, Luo Mansheng, Ren Fei, Yuan Sihua. 2016. Division of Tectonic Stages and Tectonic Evolution in China.[J].Earth Science Frontiers, 23(6):1-23(in Chinese with English abstract). http://www.en.cnki.com.cn/Article_en/CJFDTotal-DXQY201606006.htm
Pan Guitang, Xiao Rongge. 2015. Explanatory Note to The Tectonic Map of China[M].Beijing:Geological Publishing House, 1-160(in Chinese with English Abstract).
Pan Shiyu. 2012. Geochemical characteristics and tectonic significance of Late Carboniferous volcanic rocks in Benbatu Formation of Sonid Youqi, Inner Mongolia[J]. Global Geology, 31 (1):40-50(in Chinese with English abstract). http://sjdz.jlu.edu.cn/EN/abstract/abstract8641.shtml
Pearce J A. 1982. Trace element characteristics of lavas from destructive plate boundaries[C]//Thorps R S(ed.). Andesites. New York: JohnWiley and Sons, 525-548.
Shao Ji'an, Mu Baolei, He Guoqi, Zhang Lüqiao. 1997. The geological processes of northern part of North China during the Paleoasian and Pacific tectonics[J]. Sciences in China (Series D), 27:390-394(in Chinese with English abstract).
Sun Deyou, Wu Fuyuan, Zhang Yanbin, Gao Shan. 2004. The final closing time of the west Lamulun River-Changchun-Yanji plate suture zone Evidence from the Dayushan granitic pluton, Jilin province[J]. Journal of Jilin University(Earth Science Edition), 34(2):174-181(in Chinese with English abstract).
Sun S S, McDonough W F. 1989. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and processes[J]//Saunders A D, Norry M J(eds.). Magmatism in the Ocean Basins. Geological Society London Special Publications, 42: 313-345.
Tang Kedong, Shao Ji'an. 1997. On tectonic evolution of centralasian fold region——Achievement reviewon recent studies by russian geologists[J]. Geoscience, 11 (1):21-28(in Chinese with English abstract).
Tang Kedong, Wang Ying, He guoqi, Shao Ji'an. 1995. Continental-margin structure of northeast china and its adjacent areas[J]. Acta Geologica Sinica, 69(1):16-30(in Chinese with English abstract). https://kns.cnki.net/KCMS/detail/detail.aspx?dbcode=CJFD&filename=DZXW199503001
Tang Wenhao, Zhang Zhicheng, Li Jianfeng, Feng Zhishuo, Chen Chen. 2011. Geochemistry of the Carboniferous volcanic rocks of Benbatu Formation in Sonid Youqi, Inner Mongolia and Its geological significance[J]. Acta Scientiarum Naturalium Universitatis Pekinensis, 47 (2):321-330(in Chinese with English abstract).
Tischendor f G, Paelchen. 1985.Zur Klassifikation von Granitoiden/Classification of granitoids[J]. Zeitschrift fuer Geologische Wissenschaften, 13(5):615-627. http://www.researchgate.net/publication/294693677_Zur_Klassifikation_von_Granitoiden?ev=auth_pub
Wang Hui, Gao Rongkuan. 1999. Further study on biostratum division and correlation of early permian epoch of mandula area of Damaoqi, Inner Mongolia[J]. Geology of Inner Mongolia, (2):7-20(in Chinese with English abstract).
Wang Jingui, Zhang Xinquan, Zhang ZiXuan, Xu Fan, ZHou Jing, Zhang Zhenli, Ren Peilin.2018.Research on the comprehensive prospecting model of copper polymetallic deposit in Meiyougou, Inner Mongolia[J]. Geological Survey and Research, 41(01):75-81 (in Chinese with English abstract).
Wang Yujing, Fan Zhiyong. 1997. Discovery of the Permian radiolarian fossils in ophiolites north of the XarMoron River, Inner Mongolia, and its geological implications[J]. Acta Palaeontologica Sinica, 36(1):58-69(in Chinese with English abstract).
Wang Yunliang, Zhang Chengjiang, Xiu Shuzhi.2001. Th/Hf-Ta/Hf identification of tecton ic setting of basalts[J]. Acta Petrologica Sinica, 17(3):413-421(in Chinese with English abstract).
Winchester J A, Floyd P A. 1977. Geochimical discrimination of different magma series and their differentiation products using immobile elements[J]. Chemical Geology, 20:325-343. doi: 10.1016/0009-2541(77)90057-2
Wood D A. 1979. Avariably veined suboceanic uppermantle-genetic significance for mid-ocean ridge basalts from geochemical evidence[J]. Geology, 7:499-503 doi: 10.1130/0091-7613(1979)7<499:AVVSUM>2.0.CO;2
Wood D A. 1980. The application of a Th-Hf-Ta diagram to problems of tectonomagmatic classification and to establishing the nature of crustal contamination of basaltic lavas of British Tertialy volcanic province[J]. Earth Planet. Sci. Lett., 50:11-30. doi: 10.1016/0012-821X(80)90116-8
Wu Fuyuan, Cao Lin. 1999. Some important problems of geology in northeastern Asia[J]. Geology, 18 (2):1-13(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-SJDZ902.001.htm
Wu Yuanbao, Zheng Yongfei. 2004. Genesis of zircon and its constraintion interpretation of U-Pb age[J]. Chinese Science Bulletin, 49(15):1544-1569(in Chinese with English abstract).
Xiao Wenjiao, Windley B F, Hao Jie, Zhai Mingguo. 2003. Accretion leading to collision and the Permian Solonker suture, Inner Mongolia, China:Termination of the central Asian orogenic belt[J]. Tectonics, 22(6):8-1-8-20. http://sourcedb.igg.cas.cn/cn/zjrck/200907/W020101130538854036897.pdf
Xu Bei, Chorvet, Zhang Fuqin. 2001. Primary study on petrology and geochronology of blueschist in Sunite Zuo Qi, northern Inner Mongolia[J]. Chinese Journal of Geology, 36(4):424-434(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DZKX200104005.htm
Xu Bei, Chen Bin. 1997. The structure and evolution of a Middle Paleozoic orogenic belt between the North China and Siberian blocks, northern Inner Mongolia, China[J]. Science in China (Ser. D), 27 (3):227-232(in Chinese with English abstract).
Yang Haixing, Gao Lidong, Gao Yushi, Sui Haitao, Liu Zhihui, Zhao Zhifei, Zhao Shengjin, Yu Haiyang, Zhang Weiyu, Lv Jing, Lang Xinxin. 2019. Geochronolagy and geochemistry of the andesites in the Manitu Formation from Hanshanlinchang area in mid-southern Daxinganling Mountain and its geological significance[J]. Geology and Exploration, 55(4):1223-1240(in Chinese with English abstract).
Yang Haixing, Gao Lidong, Gao Yushi, Sui Haitao, Zhao Zhifei, Lü Jing, Zhang Weiyu, Zhao Shengjin, Liu Zhihui, Zhou Yingshuai. 2019. Zircon U-Pb geochronology and geochemistry for the stratotype section of the Meiletu Formation in Mid-Southern Daxinganling Mountain and its geological significance[J]. Geological Bulletin of China, 38(5):845-857(in Chinese with English abstract). http://www.zhangqiaokeyan.com/academic-journal-cn_geological-bulletin-china_thesis/0201270235459.html
Yi Weixin. 2013.Petrological characteristics and genesis of cenozoic volcanic rocks in volcanic cluster of chugoku district in Japan[J].Journal of Henan Polytechnic University:Natural Science, 32(4):418-426(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-JGXB201304010.htm
Zhang Chen, Li Maosong. 1997. The features of Late Paleozoic tectonomagmatic activity and crustal revolution in the southern Suzuoqi area[J]. Geological Journal of China Universities, 3 (1):31-39(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-GXDX701.003.htm
Zhao Zhenhua. 2007.How to use the trace element diagrams to discriminate tectonic settings[J]. Geotectonica et Metallogenia, 31 (1):92-103(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DGYK200701012.htm
包志伟, 陈森煌, 张桢堂. 1994.内蒙古贺根山地区蛇绿岩稀土元素和Sm-Nd同位素研究[J].地球化学, 23 (4):339-349. doi: 10.3321/j.issn:0379-1726.1994.04.004
陈斌, 赵国春, Wilde S. 2001.内蒙古苏尼特左旗南两类花岗岩同位素年代学及其构造意义[J].地质评论, 47 (4):361-367. http://www.cnki.com.cn/Article/CJFDTotal-DZLP200104005.htm
代富强, 赵子福, 郑永飞. 2015.板片-地幔相互作用: 大别造山带碰撞后安山质火山岩成因[C]//中国矿物岩石地球化学学会学术年会.
戴凤岩, 张娜钧. 1987.稀土元素中某些元素异常值在岩石成因研究中的意义[J].地质科技情报, 6(2):57-61. http://www.cnki.com.cn/Article/CJFDTotal-DZKQ198702009.htm
范晨子, 胡明月, 赵令浩, 孙冬阳, 詹秀春. 2012.锆石铀-铅定年激光剥蚀-电感耦合等离子体质谱原位微区分析进展[J].岩矿测试, 31 (1):29-46. doi: 10.3969/j.issn.0254-5357.2012.01.004
葛文春, 林强, 孙德有, 吴福元, 元钟宽, 李文远, 陈明植, 尹成孝. 1999.大兴安岭中生代玄武岩的地球化学特征:壳幔相互作用的证据[J].岩石学报, 15(3):396-407. http://www.cnki.com.cn/Article/CJFDTotal-YSXB199903007.htm
郭晓丹, 周建波, 张兴洲, 邱海峻. 2011.内蒙古西乌珠穆沁旗本巴图组碎屑锆石LA-ICP-MS U-Pb年龄及其意义[J].地质通报, 30 (2/3):278-290. http://www.cnki.com.cn/Article/CJFDTotal-ZQYD2011Z1014.htm
何付兵, 魏波, 徐吉祥, 孙永华, 李瑞杰.2017.内蒙古巴彦敖包地区宝力高庙组火山岩地球化学特征、锆石U-Pb年龄及地质意义[J].中国地质, 44(6):1159-1174. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20170610&flag=1
胡享生, 莫宣学, 范例. 1990.西藏江达古沟-弧-盆体系的火山岩石学与地质学标志[C]//地质矿产部青藏高原地质文集编委会, 青藏高原地质文集.北京: 地质出版社. 1-15.
李锦轶. 1998.中国东北及邻区若干地质构造问题的新认识[J].地质论评, 44 (4):339-347. doi: 10.3321/j.issn:0371-5736.1998.04.002
李朋武, 高锐, 管烨, 李秋生. 2006.内蒙古中部索伦-林西缝合带封闭时代的古地磁分析[J].吉林大学学报:地球科学版, 36(5):744-758. http://www.cnki.com.cn/Article/CJFDTotal-CCDZ200605014.htm
李瑞杰. 2013.内蒙古西乌旗本巴图组火山岩地球化学特征、年代学及地质意义研究[D].北京: 中国地质大学(北京): 1-61.
http://cdmd.cnki.com.cn/Article/CDMD-11415-1013270277.htm 刘敦一, 简平, 张旗, 张福勤, 石玉若, 施光海, 张履桥, 陶华. 2003.内蒙古图林凯蛇绿岩中埃达克岩SHRIMP测年:早古生代洋壳消减的证据[J].地质学报, 77 (3):317-327, 435-437. doi: 10.3321/j.issn:0001-5717.2003.03.004
刘建峰, 李锦轶, 孙立新, 殷东方, 郑培玺. 2016.内蒙古巴林左旗九井子蛇绿岩锆石U-Pb定年:对西拉木伦河缝合带形成演化的约束[J].中国地质, 43(6):1947-1962. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20160608&flag=1
刘建峰. 2009.内蒙古林西-东乌旗地区晚古生代岩浆作用及其对区域构造演化的制约[D].吉林: 吉林大学, 1-142.
http://cdmd.cnki.com.cn/Article/CDMD-10183-2009093598.htm 刘勇, 李廷栋, 肖庆辉, 耿树方, 王涛, 陈必河. 2010.湘南宁远地区碱性玄武岩形成时代的新证据:锆石LA-ICP-MSU-Pb定年[J].地质通报, 29(6):833-841. doi: 10.3969/j.issn.1671-2552.2010.06.005
马士委, 周志广, 柳长峰, 李瑞杰, 来林, 张学斌, 孟元库. 2016.内蒙古西乌旗地区晚石炭世石英闪长岩的岩石成因及构造意义[J].中国地质, 43(6):1932-1946. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20160607&flag=1
穆可斌, 裴先治, 李瑞保, 李佐臣, 裴磊, 刘成军, 高峰, 陈有炘, 王盟, 赵少伟. 2019.南秦岭白龙江群中花岗岩脉群年代学、地球化学特征及地质意义[J].西北地质, 52(3):111-135. http://www.cnki.com.cn/Article/CJFDTotal-XBDI201903011.htm
内蒙古自治区地矿局. 1996.内蒙古自治区岩石地层[M].武汉:中国地质大学出版社.
欧阳京, 汪双双, 于漫, 刘晔, 王凡, 尚兆聪, 姚超, 王金荣. 2010.岛弧环境中不同成因的火成岩组合及其地质意义[J].甘肃地质, 19 (2):18-26. http://www.cnki.com.cn/Article/CJFDTotal-GSDZ201002004.htm
潘桂棠, 陆松年, 肖荣阁, 张克信, 尹福光, 郝国杰, 骆满生, 任飞, 袁四化. 2016.中国大地构造阶段划分和演化[J].地学前缘, 23 (6):1-23. http://www.cnki.com.cn/Article/CJFDTotal-DXQY201606006.htm
潘桂棠, 肖荣阁. 2015.中国大地构造图说明书[M].北京:地质出版社, 1-160.
潘世语. 2012.内蒙古苏尼特右旗晚石炭世本巴图组火山岩地球化学特征及构造意义[J].世界地质, 31 (1):40-50. doi: 10.3969/j.issn.1004-5589.2012.01.005
邵济安, 牟保磊, 何国琦, 张履桥.1997.华北北部在古亚洲域与古太平洋域构造叠加过程中的地质作用[J].中国科学:D辑, 27 (8):390-394. http://www.cnki.com.cn/Article/CJFDTotal-JDXK199705001.htm
孙德有, 吴福元, 张艳斌, 高山. 2004.西拉木伦河-长春-延吉板块缝合带的最后闭合时间——来自吉林大玉山花岗岩体的证据[J].吉林大学学报(地球科学版), 34(2):174-181. http://www.cnki.com.cn/Article/CJFDTotal-CCDZ200402003.htm
汤文豪, 张志诚, 李建锋, 冯志硕, 晨辰. 2011.内蒙古苏尼特右旗查干诺尔石炭系本巴图组火山岩地球化学特征及其地质意义[J].北京大学学报(自然科学版), 47 (2):321-330. http://www.cnki.com.cn/Article/CJFDTotal-BJDZ201102021.htm
唐克东, 邵济安. 1997.中亚褶皱区构造演化问题——俄罗斯学者近年研究成果评价[J].现代地质, 11 (1):21-28. http://www.cnki.com.cn/Article/CJFDTotal-XDDZ701.003.htm
唐克东, 王莹, 何国琦, 邵济安. 1995.中国东北及邻区大陆边缘构造[J].地质学报, 69(1):16-30. http://www.cnki.com.cn/Article/CJFDTotal-DZXE199501001.htm
汪云亮, 张成江, 修淑芝. 2001.玄武岩类形成的大地构造环境的Th/Hf-Ta/Hf图解判别[J].岩石学报, 17(3):413-421. http://www.cnki.com.cn/Article/CJFDTotal-YSXB200103008.htm
王惠, 高荣宽. 1999.内蒙古达茂旗满都拉地区早二叠世生物地层划分对比再研究[J].内蒙古地质, (2):7-20. http://www.cnki.com.cn/Article/CJFD1999-NMGZ902.001.htm
王金贵, 张鑫全, 张子轩, 许凡, 周敬, 张振利, 任陪林. 2018.内蒙古煤油沟铜多金属矿综合找矿模式的研究[J].地质调查与研究, 41(01):75-81. doi: 10.3969/j.issn.1672-4135.2018.01.010
王玉净, 樊志勇. 1997.内蒙古西拉木伦河北部蛇绿岩带中二叠纪放射虫的发现及其地意义[J].古生物学报, 36 (1):58-69. http://www.cnki.com.cn/Article/CJFDTotal-GSWX701.004.htm
吴福元, 曹林. 1999.东北亚地区的若干重要基础地质问题[J].世界地质, 18 (2):1-13. http://www.cnki.com.cn/Article/CJFDTotal-SJDZ902.001.htm
吴元保, 郑永飞. 2004.锆石成因矿物学研究及其对U-Pb年龄解释的制约[J].科学通报, 49 (16):1589-1604. doi: 10.3321/j.issn:0023-074X.2004.16.002
徐备, Charvet J, 张福勤. 2001.内蒙古北部苏尼特左旗蓝片岩岩石学和年代学研究[J].地质科学, 36 (4):424-434. doi: 10.3321/j.issn:0563-5020.2001.04.005
徐备, 陈斌. 1997.内蒙古北部华北板块与西伯利亚板块之间中古生代造山带的结构和演化[J].中国科学(D辑), 27 (3):227-232. http://www.cnki.com.cn/Article/CJFDTotal-JDXK199703005.htm
杨海星, 高利东, 高玉石, 隋海涛, 柳志辉, 赵志飞, 赵胜金, 于海洋, 张维宇, 吕晶, 郎欣欣.2019.大兴安岭中南段罕山林场地区玛尼吐组安山岩年代学、地球化学特征及其地质意义[J].地质与勘探, 55(4):1223-1240. http://www.cqvip.com/QK/93079X/201905/7003080480.html
杨海星, 高利东, 高玉石, 隋海涛, 赵志飞, 吕晶, 张维宇, 赵胜金, 柳志辉, 周颖帅. 2019.大兴安岭中南段梅勒图组层型剖面火山岩锆石U-Pb年代学、地球化学特征及其地质意义[J].地质通报, 38(5):845-857. http://www.cnki.com.cn/Article/CJFDTotal-ZQYD201905014.htm
易伟欣. 2013.日本中国地区火山群中新生代火山岩岩石学特征与成因[J].河南理工大学学报:自然科学版, 32(4):418-426. doi: 10.3969/j.issn.1673-9787.2013.04.008
张臣, 李茂松. 1997.内蒙古苏左旗地区晚古生代构造-岩浆活动及地壳演化特征[J].高校地质学报, 3 (1):31-39. http://www.cqvip.com/Main/Detail.aspx?id=2486290
赵振华. 2007.关于岩石微量元素构造环境判别图解使用的有关问题[J].大地构造与成矿学, 31 (1):92-103. doi: 10.3969/j.issn.1001-1552.2007.01.011
-
