Geological structure of the large section in eastern China's sea areas and its constraint on comprehensive stratigraphic division
-
摘要:
本文利用实测的地质地球物理资料，在中国东部海域开展了地学大断面重磁震联合反演，系统研究了各构造单元的基底性质和地层结构，并以此为约束开展了海陆综合地层分区。研究认为，东海陆架盆地基底为元古宇和古生界，盖层发育5套构造层；南黄海盆地具有双重基底，盖层可以划分为8个构造层。东海陆架盆地以晚中生代燕山期以来的变形为主；南黄海盆地海相下构造层主要表现为挤压变形，陆相中构造层主要发育拉张作用形成各种构造样式。区内莫霍面深度稳定，一般在30 km左右，仅在勿南沙—中部隆起处上地幔略有抬高，总体上南部东海陆架盆地区莫霍面埋深要大于北部南黄海盆地—苏鲁造山带。将中国东部海域划分为2个地层大区，6个地层区和14个地层分区。大断面地层结构研究揭示，在南黄海海域和东海海域广泛发育中、古生代地层，巨厚的中—古生界为油气资源的形成与赋存提供了丰富的物质基础。
Abstract:Based on the geophysical and geophysical data collected in recent years,the authors carried out the joint gravity- magnetic-seismic inversion in eastern China's sea areas and studied the characteristics of the basement and geological structure of each structural unit systematically. Constrained by the joint interpretation,the authors carried out the unified sea-land stratigraphic regionalization and predicted the favorable oil- bearing prospective areas of Mesozoic. The basement of the East China Sea shelf basin is composed of Proterozoic and Paleozoic strata,and 5 sets of tectonic layers are developed in the caprock. The south Yellow Sea basin having dual basement and caprock feature can be divided into 8 tectonic layers. The East China Sea shelf basin is dominated by the late Mesozoic Yanshanian transformation. The lower tectonic layer of the Yellow Sea basin is mainly characterized by extrusion deformation while the middle tectonic layer is mainly characterized by multiple structural styles formed by extension. The depth of the Moho surface is stable in the study area,which is usually about 30 km. The upper mantle is slightly elevated in the Wunansha-middle uplift. The Moho depth in the East China Sea shelf basin is generally deeper than that in the South Yellow Sea Basin—Sulu orogenic belt. Eastern China's sea areas and their adjacent areas can be divided into 2 first level stratigraphic regions (Eurasian),6 second level stratigraphic regions and 14 third level stratigraphic regions. The study of large cross- section stratigraphic structure reveals that the Mesozoic and Paleozoic strata are widely developed in south Yellow Sea and the East China Sea. The thick Meso-Paleozoic strata provide a rich material basis for oil and gas formation and accumulation.
-
-

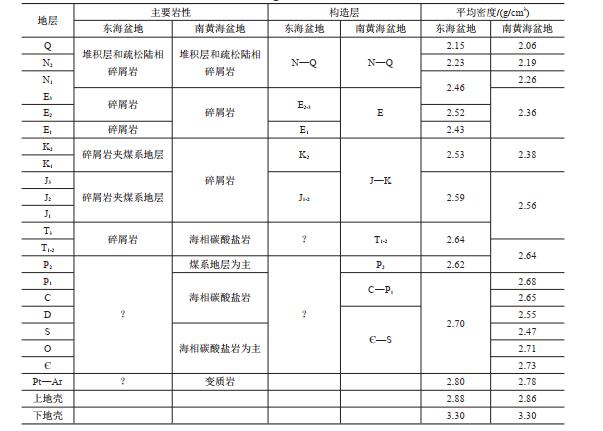

表 1 中国东部海区及邻区地层和密度统计（据陈晓红等，2013；侯方辉等，2012）
Table 1. Statistics of stratigraphy and density in eastern China's sea areas and adjacent areas(after Chen Xiaohong et al., Hou Fanghui et al., 2012)
下载: 导出CSV

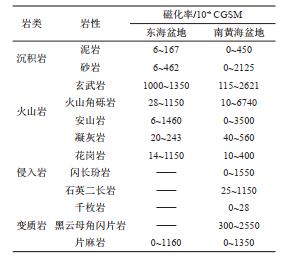

表 2 中国东部海区及邻区磁化率统计（据陈晓红等，2013；侯方辉等，2012）
Table 2. Statistics of magnetic susceptibility in eastern China's sea areas and adjacent areas(after Chen Xiaohong et al., Hou Fanghui et al., 2012)
下载: 导出CSV

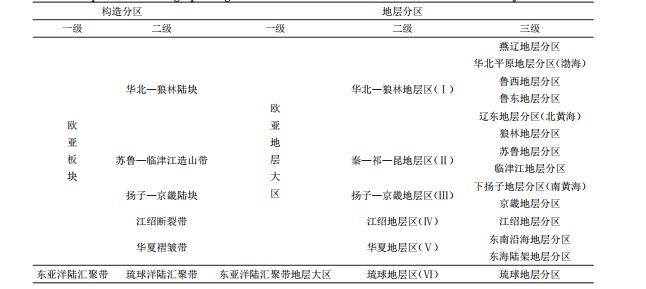

表 4 中国东部海域及相邻陆域综合地层分区方案
Table 4. Comprehensive stratigraphic regionalization scheme for eastern China's sea areas and adjacent land areas
下载: 导出CSV
-
Cai Laixing, Wang Jiao, Guo Xingwei, Xiao Guolin, Zhu Xiaoqing.2017.Characteristics of sedimentary facies and source rocks of Mesozoic—Paleozoic in central uplift of South Yellow Sea: A case study of CSDP-2 coringwell[J].Journal of Jilin University(Earth Science Edition), 47(4):1030-1046(in Chinese with English abstract). http://www.researchgate.net/publication/319458231_Characteristics_of_Sedimentary_Facies_and_Source_Rocks_of_Mesozoic-Paleozoic_in_Central_Uplift_of_South_Yellow_Sea_A_Case_Study_of_CSDP-2_Coring_Well
Chen Xiaohong, Liu Zhan, Zhang Zhixun, Yang Huiliang, Hou Fanghui.2013.Deducing the East China Sea shelf basin jointing gravity and seismic data[J].Progress in Geophys., 28(3): 1596-1061(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqwlxjz201303057
Hou Fanghui, Tian Zhenxing, Zhang Xunhua, Zhang Zhixun, Li Sanzhong.2012.Joint inversion of gravity, magnetic and seismic data of the South Yellow Sea Basin[J].Oil Geophysical Prospecting, 47(5): 808-814(in Chinese with English abstract). http://www.researchgate.net/publication/285514396_Joint_inversion_of_gravity_magnetic_and_seismic_data_of_the_South_Yellow_Sea_Basin
Li Sanzhong, Liu Xin, Suo Yanhui, Liu Liping, Qian Cunchao.2009.Triassic folding and thrusting in the Eastern Block of the North China Craton and the Dabie- Sulu orogen and its geodynamics[J].Acta Petrologica Sinica, 25(9): 2031- 2049(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98200909001
Lin Zhen, Yao Yongjian.2009.Gravity- magnetic- seismic inversion and integrated interpretation of a typical section in South Yellow Sea[J].Geophysical & Geochemical Exploration, 33(4): 361-373 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-WTYH200904000.htm
Lin Zhen, Zhang Li, Zhong Guangjian.2013.The application of gravity magnetic seismic joint inversion to the comprehensive interpretation of geophysics in the northern south China sea[J].Geophysical & Geochemical Exploration, 37(6): 968- 975(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=wtyht201306002
Luo Di, Zhang Xunhua, Cai Feng, Liu Zhan, Zhang Zhixun, Hou Fanghui, Du Runlin, Wei Long.2013.Integrated gravity- magnetic- seismic data inversion and interpretation and their application to underwater tectonics[J].Marine Geology Quaternary Geology, 37(6):968- 975(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201406012
Wang Mingjian, Chen Xi, Lei Baohua, Zhu Xiaoqing.2018.Current status and problems of oil and gas exploration in south yellow sea basin [J].Marine Geology Frontiers, 34(11): 20- 25(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzdt201811003
Wang Mingjian, Xiao Guolin, Yang Changqing.2019.Characteristics and evaluation of Mesozoic source rocks in the southeastern East China Sea continental shelf[J]. China Geology, (2):133-141. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgdz-e201902003
Wang Mingjian, Xiao Guolin, Zhang Yong, Yang Yanqiu, Yang Changqing.2019.Cretaceous hydrocarbon accumulation conditions in the southeastern East China Sea Shelf Basin [J].Marine Geology & Quaternary Geology, 39(6):169- 176(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201906015
Wang Mingjian, Xu Yang, ZhangYong, Huang Long.2020.Integrated stratigraphic regionalization of eastern China sea areas and adjacent land and their characteristics[J].Marine Geology & Quaternary Geology, 40(2): 1-9(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz202002001
Wang Mingjian, Zhang Xunhua, Wang Anguo.2014.Quantative prediction of listric normal fault geometry and its application- taking southern depression of South Yellow Sea Basin for example[J].Journal of Northeast Petroleum University, 38(2): 1-8 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DQSY201402002.htm
Wang Mingjian, Zhang Xunhua, Xiao Guolin.2014.Tectonic evolution and hydrocarbon accumulation since Triassic of the Southern Depression in South Yellow Sea Basin[J].Natural Gas Geoscience, 25(7): 991-998(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=trqdqkx201407004
Wang Wenjuan, Li Gang, Yang Changqing, Yang Chuansheng.2013.Charactristics of seismic sequences in the east China Sea shelf Basin and their geological attributes[J].Marine Geology & Quaternary Geology, 33(3):117- 122(in Chinese with English abstract). http://www.researchgate.net/publication/276093744_CHARACTRISTICS_OF_SESMIC_SEQUENCES_IN_THE_EAST_CHINA_SEA_SHELF_BASIN_AND_THEIR_GEOLOGICAL_ATTRIBUTES
Xiao Guolin, Wang Mingjian, Yang Changqing.2019.Numerical simulation of Mesozoic hydrocarbon generation, migration and accumulation in the southern East China Sea [J].Marine Geology & Quaternary Geology, 39(6): 138-149(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201906012
Yang Yanqiu, Yang Changqing, Li Gang, Gong Jianming. 2012.Structural styles and their distribution pattern in the southern East China Sea shelf Basin[J].Marine Geology & Quaternary Geology, 32(3):113-118(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201203014
Yu Peng, Wang Jialin, Wu Jiansheng, Yang Hui.2006.Review and discussions on geophysical joint inversion[J].PEG, 29(2): 87- 93 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ktdqwljz200602003
Zhang Hongtao, Zhang Xunhua, Wen Zhenhe, Lan Xianhong.2008.Geologic-Geophysic Series Maps of East China Seas with A Scale of 1:1000000[M].Beijing: China Ocean Press(in Chinese).
Zhang Xunhua.2008.Tectonic Geology in China Seas[M].Beijing: China Ocean Press(in Chinese).
Zhou Jianbo, Zeng Weishun, Cao Jialin, Han Jie.2013.The tectonic framework and evolution of the Sulu Orogen:evidence from the low- grade metamorphic rocks in the Sulu UHP belt[J].Chinese Science Bulletin, 58(23):2338-2343(in Chinese). doi: 10.1360/972013-561
蔡来星, 王蛟, 郭兴伟, 肖国林, 朱晓青.南黄海中部隆起中—古生界沉积相及烃源岩特征——以CSDP-2井为例[J].吉林大学学报(地球科学版), 2017, 47(4):1030-1046. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=cckjdxxb201704006
陈晓红, 刘展, 张志珣, 杨慧良, 侯方辉.2013.东海陆架盆地重震联合解释推断研究[J].地球物理学进展, 28(3):1596-1061. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqwlxjz201303057
侯方辉, 田振兴, 张训华, 张志珣, 李三忠.2012.南黄海盆地两条地震剖面的重磁数据联合反演效果[J].47(5): 808-814.
李三忠, 刘鑫, 索艳慧, 刘丽萍, 钱存超.2009.华北克拉通东部地块和大别—苏鲁造山带印支期褶皱-逆冲构造与动力学背景.岩石学报, 25(9):2031-2049. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98200909001
林珍, 姚永坚.2009.南黄海某典型剖面重磁震联合反演及综合解释[J].物探与化探, 33(4):361-373. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=wtyht200904001
林珍, 张莉, 钟广见.2013.重磁震联合反演在南海东北部地球物理解释中的应用[J].物探与化探, 37(6):968-975. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=wtyht201306002
骆迪, 张训华, 蔡峰, 刘展, 张志珣, 侯方辉, 杜润林, 魏龙.2013.重磁震联合反演及综合解释在海域构造解释中的应用[J].海洋地质与第四纪地质, 37(6):968-975. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201406012
王明健, 陈晞, 雷宝华, 朱晓青.2018.南黄海盆地油气勘探现状及存在问题[J].海洋地质前沿, 34(11): 20-25. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzdt201811003
王明健, 肖国林, 张勇, 杨艳秋, 杨长清.2019.东海陆架盆地东南部白垩系油气成藏条件[J].海洋地质与第四纪地质, 39(6): 169- 176. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201906015
王明健, 徐扬, 张勇, 黄龙.2020.中国东部海域及相邻陆域综合地层分区及地层发育特征[J].海洋地质与第四纪地质, 40(2): 1-9. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz202002001
王明健, 张训华, 肖国林.2014.南黄海盆地南部坳陷三叠纪以来的构造演化与油气成藏[J].天然气地球科学, 25(7): 991-998. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=trqdqkx201407004
王明健, 张训华, 王安国.2014.铲式正断层几何形态的定量预测及其在南黄海盆地南部坳陷的应用[J].东北石油大学学报, 38(2): 1-8. http://www.cqvip.com/QK/92021A/201402/49607222.html
王文娟, 李刚, 杨长清, 杨传胜.2013.东海陆架盆地地震层序特征及地质属性[J].海洋地质与第四纪地质, 33(3):117-122. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201303012
肖国林, 王明健, 杨长清.2019.东海南部中生界烃类生成、运聚与成藏数值模拟[J].海洋地质与第四纪地质, 39(6): 138-149. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201906012
杨艳秋, 杨长清, 李刚, 龚建明.2012.东海陆架盆地南部构造样式及分布特征[J].海洋地质与第四纪地质, 32(3):113-118. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz201203014
于鹏, 王家林, 吴健生, 杨辉.2006.地球物理联合反演的研究现状和分析[J].勘探地球物理进展, 29(2):87-93. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ktdqwljz200602003
张洪涛, 张训华, 温珍河, 蓝先洪.2010.中国东部海区及邻域地质地球物理系列图(1:100万)[M].北京:海洋出版社.
张训华.2008.中国海域构造地质学[M].北京:海洋出版社.
周建波, 曾维顺, 曹嘉麟, 韩杰.2013.苏鲁造山带的构造格局与演化:来自苏鲁超高压带浅变质岩的制约[J].科学通报, 58(23): 2338-2343 http://www.cqvip.com/QK/94252X/201323/46920170.html
-
