Magmatic evolution characteristics of two types of rhyolite dacite in Xiangshan uranium ore field——Evidence from chemical composition of feldspar and biotite
-
摘要:
研究目的 长石、黑云母等岩浆分异作用形成的矿物可以作为寄主岩石岩浆演化的指示剂。相山流纹英安岩与流纹英安斑岩两者在形成时代、成因归属、物质来源和地幔物质参与等方面存在争议。
研究方法 本文借助电子探针技术对相山两类流纹英安岩中的长石、黑云母进行定量分析，对两者间的成分、物质来源、形成温度、氧逸度和岩石性质等特征进行分析研究，在此基础上探讨两类流纹英安岩的岩浆演化特征。
研究结果 研究结果表明：相山打鼓顶组流纹英安岩可区分为两类，一类是喷溢相的流纹英安岩（K1d2a），另一类是侵入相的流纹英安斑岩（K1d2b）。流纹英安岩的长石类型较流纹英安斑岩多，其中流纹英安岩的长石类型包括钠长石、钾长石、钾-透长石、更长石、中长石；流纹英安斑岩长石类型主要有钠长石、钾长石和钾-透长石。流纹英安岩与流纹英安斑岩的黑云母形成温度基本相同（750±20℃），均具有高氧逸度，同属钙碱性岩；岩浆物质来源相同，均有幔源物质加入。
结论 流纹英安岩与流纹英安斑岩的化学成分基本相同、长石类型相似、物质来源相同、结晶温度相同、氧逸度一致、岩石性质相同，说明两者具有同源性。
Abstract:This paper is the result of mineral exploration engineering.
Objective Minerals formed by magmatic differentiation, such as feldspar and biotite, can be used as indicators of magmatic evolution of host rocks.There are disputes between rhyodacite and rhyodacite porphyry from Xiangshan, in the aspects of formation age, origin, material source and mantle material participation.
Methods In this paper, the electron probe technology is used to quantitatively analyze the feldspar and biotite in two types of rhyodacites in Xiangshan, and the composition, material source, formation temperature, oxygen fugacity and rock properties of the two types of rhyodacites are analyzed and studied.
Results The results show that the rhyodacite of Xiangshan Daguding Formation can be divided into two types, one is the effusive rhyodacite (K1d2a) and the other is the intrusive rhyodacite porphyry (K1d2b). The types of feldspar from rhyodacite are more than those of rhyodacite porphyry. The feldspar types of rhyodacite include albite, potassium feldspar, potassium sanidine, feldspar and andesine. The main feldspar types of rhyodacite porphyry are albite, potassium feldspar and potassium-sanidine. The biotite formation temperature of rhyodacite and rhyodacite porphyry is basically the same (750±20℃). Rhyodacite and rhyodacite porphyry both have high oxygen fugacity and belong to calc-alkaline rocks, indicating the same magma material source with part from mantle material.
Conclusions The chemical composition is basically the same, together with the same feldspar type, the same material source, the same crystallization temperature, the sameoxygen fugacity, and the same rock properties, indicating that the two have homology.
-
-
图 8 相山两类流纹英安岩中斜长石Ab-An-Or三元图解（底图据Deer et al., 1992）
Figure 8.
图 11 相山两类流纹英安岩中黑云母的成分分类图（底图据Foster，1960）
Figure 11.

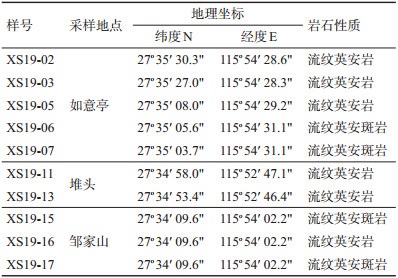

表 1 相山两类流纹英安岩采样位置
Table 1. Sampling locations of two types of rhyolitic dacite in Xiangshan
下载: 导出CSV
表 2 相山两类流纹英安岩长石电子探针测试数据（%）
Table 2. Electron probe test data of feldspar of two types of rhyolite dacite in Xiangshan (%)
下载: 导出CSV
表 3 相山两类流纹英安岩岩浆黑云母电子探针测试结果（%）及计算结果
Table 3. Electron probe test and calculation results of biotite of two types of rhyolite dacite in Xiangshan (%)
下载: 导出CSV
-
Abdel-Rahman A F M. 1994. Nature of biotites from alkaline, calc-alkaline, and peraluminous magmas[J]. Journal of Petrology, 35(2): 525-541 doi: 10.1093/petrology/35.2.525
Chen Guo'an, Zhou Junruo. 1996. The mineralogical characteristics of biotite in type I and type A granites in Zhangzhou area, Fujian, China[J]. Mineralogy and Petrology, 16(2): 25-30(in Chinese with English abstract).
Chen Lei, Zhao Yuanyi, Wang Zongqi, Liu Yan, Cao Jie, Ding Li. 2013. Geochemistry and Sr-Nd Isotopes of rhyodacite and granite porphyry in Shannan ore district of Xiangshan ore field, Jiangxi Province[J]. Geology and Exploration, 49(6): 999-1016(in Chinese with English abstract)
Chen Zhengle, Wang Yong, Zhou Yonggui, Han Fengbin, Wang Pingan, Gong Hongliang, Shao Fei, Tang Xiangsheng, Xu Jinshan. 2013. SHRIMP U-Pb dating of zircons from volcanic-intrusive complexes in the Xiangshan uranium orefield, Jiangxi Province, and its geological implications[J]. Geology in China, 40(1): 217-231(in Chinese with English abstract). doi: 10.3969/j.issn.1000-3657.2013.01.015
Deer W A, Howie R A, Zussman J. 1992. An Introduction to the Rock-forming Minerals (2nd editions)[M]. London: Longman Scientific & Technical, 696.
Foster M D. 1960. Interpretation of the composition of trioctahedral micas[J]. US Geological Survey, Professional Paper 354B: 11-49.
Fu Jinbao, 1981, Chemical composition characteristics of biotite in porphyry copper deposits[J]. Geology and Exploration, (9): 16-19(in Chinese with English abstract)
Guidotti C V. 1984. Micas in metamorphic rocks[J]. Micas Reviews in Mineralogy, 13(1): 357-467
Guo Fusheng, Yang Qingkun, Meng Xiangjin, Xie Caifu, Shi Guo, Chen Liuqin, Jiang Zhenpin, Zeng Tao, Luo Nenghui. 2016. Geochemical characteristics and petrogenesis of acid volcanic-intrusive complex in Xiangshan, Jiangxi[J]. Acta Geologica Sinica, 90(4): 769-784(in Chinese with English abstract). doi: 10.3969/j.issn.0001-5717.2016.04.012
Guo Fusheng, Lin Ziyu, Li Guangrong, Deng Juzhi, Xie Caifu, Yang Haiyan, Wu Zhichun, Zhou Wanpeng, Jiang Yongbiao, Li Hongxing, Fang Genxian. 2017. Study on the geological structure of Xiangshan uranium-bearing volcanic basin: Evidences from magnetotelluric sounding and 3D geological modeling[J]. Chinese Journal of Geophysics, 60(4): 1491-1510 (in Chinese with English abstract)
Guo Fusheng, Wu Zhichun, Li Xiang, Zhang Wanliang, Zeng Wenle, Lin Ziyu, Xie Caifu. 2018. The 3D geological modeling of Xiangshan volcanic basin in Jiangxi Province[J]. Geological Bulletin of China, 37(Z1): 421-434(in Chinese with English abstract)(in Chinese with English abstract)
Henry D J. 2005. The Ti-saturation surface for low-to-medium pres-sure metapelitic biotites: Implications for geothermometry and Ti-substitution mechanisms[J]. American Mineralogist, 90(2/3): 316-328
Hewitt D A, Wones D R. 1984. Experimental phase relations of the micas[J]. Reviews in Mineralogy and Geochemistry, 201-256.
Jia Wei, Wang Zhengqi. 2017. Geochemical characteristics of rhyodacite and rhyodacitic porphyry in Xiangshan volcanic basin in the Late Jurassic and their significance[J]. Journal of East China University of Technology(Natural Science), 40(3): 213-224. (in Chinese with English abstract)
Lin Wenwei, Peng Lijun. 1994. The estimation of Fe3+ and Fe2+ contents in amphibole and biotite from EMPA data[J]. Journal of Jilin University of Earth Sciences, 24(2): 155-162(in Chinese with English abstract).
Liu Long, Zhang Shuming, Ruan Xiaoyu, Zhangxin, Ouyang Junyong, Xia Yinchu, Wu Zhichun. 2020. Geochronology, geochemistry and the geological significance of Wuzhang granite porphyry in the southern Xiangshan orefield[J]. Acta Petrologica Sinica, 36(6): 1769-1786(in Chinese with English abstract). doi: 10.18654/1000-0569/2020.06.08
Lü Zhicheng, Duan Guozheng, Dong Guanghua. 2003. Mineral chemistry of biotite from granites associated with different mineralization in three stages of Yanshanina period in the southern-middle parts of the Da Hinggan Ling Mountains and its petrogenetic and metallogenic significance[J]. Acta Mineralogica Sinica, 23(2): 177-184(in Chinese with English abstract). doi: 10.3321/j.issn:1000-4734.2003.02.015
Patino Douce A E. 1993. Titanium substitution in biotite: An empirical model with applications to thermometry, O2 and H2O barometers, and consequence for biotite stability[J]. Chemical Geology, 108(1/4): 132-162
Robert J L. 1976. Titanium solubility in synthetic phlogopite solid solutions[J]. Chemical Geology, 17(3): 213-227.
Wang Liling, Zhang Shuming, Xu Xun, Zhangxin, Ruan Xiaoyu, Lan Dechu, Wu Zhichun, Qi Jiawei. 2020. LA-ICP-MS zircon U-Pb dating LA and genetic types of uranium-bearing granite porphyry in northern Xiangshan orefield, Jiangxi Province[J]. Geological Bulletin of China, 39(1): 62-79(in Chinese with English abstract).
Wang Weiping, Tang Juxing, Ying Lijuan. 2012. Mineral Chemical Characteristics of Biotites from Hornfels in the Jiama(Gyama) polymetallic sopper deposit of Tibet and their geological significance[J]. Acta Geoscientica Sinica, 33(4): 444-458(in Chinese with English abstract)
Wones D R, Eugster H P. 1965. Stability of biotite-experiment theory and application[J]. American Mineralogist, 50(9): 1228-1273
Wones D R. 1989. Significance of the assemblage titanite+ magnetite+quartz in granitic rocks[J]. American Mineralgist, 74(7/8): 744-749
Wu Rengui. 1999. The features of volcanic formation in Ruyiting profile of Xiangshan[J]. Journal of East China Geological Institute, 22(3): 201-208(in Chinese with English abstract).
Wu Rengui, Yu Dagan, Zhang Shuming. 2003. Identification of rhyolite dacite porphyry and its relation to uranium mineralization at Xiangshan uranium ore-field[J]. Uranium Geology, 19(2): 81-87(in Chinese with English abstract).
Xie Lei, Wang Dezi, Wang Rucheng, Qiu Jiansheng, Chen Xiaoming. 2004. Complex zoning texture in plagioclases from the quartz diorite enclave in the Putuo granitic complex, Zhejiang Province: record of magma mixing[J]. Acta Petrologica Sinica, 20(6): 1397-1408(in Chinese with English abstract)
Yang S Y, Jiang S Y, Jiang Y H, Zhao K D, Fan H H. 2010. Zircon U-Pb geochronology, Hf isotopic composition and geological implications of the rhyodacite and rhyodacitic porphyry in the Xiangshan uranium ore field, Jiangxi Province, China[J]. Science China: Earth Sciences, 53(10): 1411-1426. doi: 10.1007/s11430-010-4058-0
Yang Shuiyuan, Jiang Shaoyong, Jiang Yaohui, Zhao Kuidong, Fan Honghai. 2010. Zircon U-Pb geochronology and Hf isotopic composition of rhyolite dacite and rhyolite dacite porphyry and their geological significance in Xiangshan, Jiangxi Province[J]. Scientia Sinica(Terrae), 40(8): 953-969(in Chinese with English abstract).
Yang Shuiyuan, Jiang Shaoyong, Zhao Kuidong, Jiang Yaohui, Fan Honghai. 2012. Zircon U-Pb geochronology, geochemistry and Sr-Nd-Hf isotopic compositions of the rhyolite porphyry from the Zoujiaoshan deposit in Xiangshan uranium ore field, Jiangxi Province, SE China[J]. Acta Petrologica Sinica, 28(12): 3915-3928(in Chinese with English abstract)
Yang Wenjin, Wang Liankui, Zhang Shaoli, Xu Wenxin. 1986. Micas of the two series of granites in south China[J]. Acta Mineralogica Sinica, 6(4): 298-307(in Chinese with English abstract)
Yang Wenjin, Wang Liankui, Zhang Shaoli, Xu Wenxin. 1988. On the origin and evolution of granites in south China in terms of trace elements in micas[J]. Acta Mineralogica Sinica, 8(2): 127-135(in Chinese with English abstract).
Yu Xinqi, Wu Ganguo, Shu Liangshu, Yan Tiezeng, Zhang Da, Di Yongjun. 2006. The Cretaceous tectonism of the Gan-Hang tectonic belt, southeastern China[J]. Earth Science Frontiers, 13(3): 31-43(in Chinese with English abstract). doi: 10.3321/j.issn:1005-2321.2006.03.006
Zhang Wanliang, Li Ziying. 2007. Single-zircon U-Pb age of rhyodacite from Xiangshan area and its geological implications[J]. Acta Petrologica et Mineralogica, 26(1): 21-26(in Chinese with English abstract)
Zhang Shuming, Yu Dagong, Wu Rengui, Zhang Lifen. 2005. Shoshonitic rock and uranium mineralizatin in Xiangshan uranium ore-field in Jiangxi[J]. Geotectonica et Metallogenia, 29(4): 105-114(in Chinese with English abstract)
Zhang Shuming, Cao Shousun, Zeng Wenle, Rao Zehuang, Xie Guofa, Fang Xin, Zhang Ying, Wang Lei, Zhang Xin. 2012. Fluid inclusion characteristics of typical uranium deposits in Xiangshan orefield, Jiangxi Province[J]. Mineral Deposits, 31(1): 65-82(in Chinese with English abstract).
Zhang Zunzhong, Gu Lianxing, Wu Changzhi, San Jinzhu, Tang Xiaoqian, Xi Aihua, Wang Shuo. 2005. Weiya Complex, Eastern Tianshan: Single-sourced or diverse-sourced?——Evidence from biotite[J]. Geochimica, 34(4): 328-338(in Chinese with English abstract).
Zhao Mian, Yang Shuiyuan, Zuo Renguang, Zhao Kuidong, Jiang Yaohui, Ling Hongfei, Chen Peirong. 2015. Magmatic evolution characteristics of Xiangshan volcanic-intrusive complex in Gan-Hang Belt: Study on the mineral chemistry of plagioclase and biotite[J]. Acta Petrologica Sinica, 31(3): 759-768(in Chinese with English abstract).
Zhou Zuoxia. 1986. The origin of intrusive mass in Fengshandong, Hubei Province[J]. Acta Petrologica Sinica, 2(1): 59-70(in Chinese with English abstract)
陈国安, 周珣若. 1996. 漳州地区白垩至纪I型和A型花岗岩中黑云母的矿物学特征[J]. 矿物岩石, 16(2): 25-30 doi: 10.19719/j.cnki.1001-6872.1996.02.004
陈雷, 赵元艺, 王宗起, 刘妍, 曹洁, 定立. 2013. 江西相山铀矿田山南矿区流纹英安岩和花岗斑岩的地球化学与Sr、Nd同位素特征[J]. 地质与勘探, 49(6): 999-1016 https://www.cnki.com.cn/Article/CJFDTOTAL-DZKT201306001.htm
陈正乐, 王永, 周永贵, 韩凤彬, 王平安, 宫红良, 邵飞, 唐湘生, 徐金山. 2013. 江西相山火山-侵入杂岩体锆石SHRIMP定年及其地质意义[J]. 中国地质, 40(1): 217-231 http://geochina.cgs.gov.cn/geochina/article/abstract/20130115?st=search
傅金宝. 1981. 斑岩铜矿中黑云母的化学组成特征[J]. 地质与勘探, (9): 16-19 https://www.cnki.com.cn/Article/CJFDTOTAL-DZKT198109002.htm
郭福生, 杨庆坤, 孟祥金, 谢财富, 时国, 陈留勤, 蒋振频, 曾涛, 罗能辉. 2016. 江西相山酸性火山—侵入杂岩体地球化学特征与岩石成因[J]. 地质学报, 90(4): 769-784 https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE201604012.htm
郭福生, 林子瑜, 黎广荣, 邓居智, 谢财富, 杨海燕, 吴志春, 周万蓬, 姜勇彪, 李红星, 方根显. 2017. 江西相山火山盆地地质结构研究: 来自大地电磁测深及三维地质建模的证据[J]. 地球物理学报, 60(4): 1491-1510 https://www.cnki.com.cn/Article/CJFDTOTAL-DQWX201704022.htm
郭福生, 吴志春, 李祥, 张万良, 曾文乐, 林子瑜, 谢财富. 2018. 江西相山火山盆地三维地质建模的实践与思考[J]. 地质通报, 37(Z1): 421-434. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD2018Z1021.htm
贾伟, 王正其. 2017. 相山流纹英安岩和流纹英安斑岩地球化学特征及意义[J]. 东华理工大学学报(自然科学版), 40(3): 213-224. doi: 10.3969/j.issn.1674-3504.2017.03.002
林文蔚, 彭丽君. 1994. 由电子探针分析数据估算角闪石、黑云母中的Fe 3+、Fe 2+[J]. 长春地质学院学报, 24(2): 155-162. https://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ402.004.htm
刘龙, 张树明, 阮小语, 张鑫, 欧阳军勇, 夏寅初, 吴志春. 2020. 相山矿田南部浯漳花岗斑岩体年代学、地球化学及地质意义[J]. 岩石学报, 36(6): 1769-1786. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB202006008.htm
吕志成, 段国正, 董广华. 2003. 大兴安岭中南段燕山期三类不同成矿花岗岩中黑云母的化学成分特征及其成岩成矿意义[J]. 矿物学报, 23(2): 177-184. doi: 10.3321/j.issn:1000-4734.2003.02.015
王利玲, 张树明, 许迅, 张鑫, 阮小语, 蓝德初, 吴志春, 戚佳伟. 2020. 江西相山矿田北部产铀花岗斑岩LA-ICP-MS锆石U-Pb定年及成因类型[J]. 地质通报, 39(1): 62-79. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD202001009.htm
王崴平, 唐菊兴, 应立娟. 2012. 西藏甲玛铜多金属矿床角岩中黑云母矿物化学特征及地质意义[J]. 地球学报, 33(4): 444-458. https://www.cnki.com.cn/Article/CJFDTOTAL-DQXB201204010.htm
吴仁贵. 1999. 相山地区如意亭剖面火山建造特征[J]. 华东地质学院学报, 22(3): 201-208. https://www.cnki.com.cn/Article/CJFDTOTAL-HDDZ199903000.htm
吴仁贵, 余达淦, 张树明. 2003. 相山铀矿田流纹英安斑岩的厘定及与铀矿化的关系[J]. 铀矿地质, 19(2): 81-87. https://www.cnki.com.cn/Article/CJFDTOTAL-YKDZ200302002.htm
谢磊, 王德滋, 王汝成, 邱检生, 陈小明. 2004. 浙江普陀花岗杂岩体中的石英闪长质包体: 斜长石内部复杂环带研究与岩浆混合史记录[J]. 岩石学报, 20(6): 96-107. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200406008.htm
杨水源, 蒋少涌, 姜耀辉, 赵葵东, 范洪海. 2010. 江西相山流纹英安岩和流纹英安斑岩锆石U-Pb年代学和Hf同位素组成及其地质意义[J]. 中国科学: 地球科学, 40(8): 953-969. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201008003.htm
杨水源, 蒋少涌, 赵葵东, 姜耀辉, 范洪海. 2012. 江西相山铀矿田邹家山矿床中流纹斑岩的锆石U-Pb年代学、岩石地球化学与Sr-Nd-Hf同位素组成[J]. 岩石学报, 28(12): 3915-3928. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201212010.htm
杨文金, 王联魁, 张绍立, 徐文新. 1986. 华南两个不同成因系列花岗岩的云母标型特征[J]. 矿物学报, 6(4): 298-307. https://www.cnki.com.cn/Article/CJFDTOTAL-KWXB198604001.htm
杨文金, 王联魁, 张绍立, 徐文新. 1988. 从云母微量元素特征探讨华南花岗岩的成因和演化[J]. 矿物学报, 8(2): 127-135. https://www.cnki.com.cn/Article/CJFDTOTAL-KWXB198802004.htm
余心起, 吴淦国, 舒良树, 颜铁增, 张达, 狄永军. 2006. 白垩纪时期赣杭构造带的伸展作用[J]. 地学前缘, 13(3): 31-43. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY200603005.htm
张万良, 李子颖. 2007. 相山―流纹英安岩‖单颗粒锆石U-Pb年龄及地质意义[J]. 岩石矿物学杂志, 26(1): 21-26. https://www.cnki.com.cn/Article/CJFDTOTAL-YSKW200701003.htm
张树明, 余达淦, 吴仁贵, 张丽芬. 2005. 相山铀矿田钾玄质岩石与铀成矿[J]. 大地构造与成矿学, 29(4): 105-114. https://www.cnki.com.cn/Article/CJFDTOTAL-DGYK200504014.htm
张树明, 曹寿孙, 曾文乐, 饶泽煌, 谢国发, 方欣, 张莹, 王蕾, 张鑫. 2012. 江西相山矿田典型铀矿床流体包裹体特征及意义[J]. 矿床地质, 31(1): 65-82. https://www.cnki.com.cn/Article/CJFDTOTAL-KCDZ201201007.htm
张遵忠, 顾连兴, 吴昌志, 三金柱, 汤晓茜, 郗爱华, 王硕. 2005. 东天山尾亚杂岩体: 同源还是异源?——来自黑云母的证据[J]. 地球化学, 34(4): 328-338. https://www.cnki.com.cn/Article/CJFDTOTAL-DQHX200504003.htm
赵沔, 杨水源, 左仁广, 赵葵东, 姜耀辉, 凌洪飞, 陈培荣. 2015. 赣杭构造带相山火山侵入杂岩的岩浆演化特征——来自斜长石和黑云母的化学成分研究[J]. 岩石学报, 31(3): 759-768. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201503010.htm
周作侠. 1986. 湖北丰山洞岩体成因探讨[J]. 岩石学报, 2(1): 59-70. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB198601007.htm
-
