摘要:
研究目的 白云鄂博超大型稀土矿床的形成与碳酸岩关系密切。在白云鄂博矿区外围，西矿区西南部中新生代沉积覆盖区，也存在一定规模的碳酸质岩石，其成因属性对白云鄂博矿床的形成具有启示意义。
研究方法 本文通过岩石学及矿物学研究发现，该碳酸质岩石实际为火成碳酸岩。
研究结果 碳酸岩总体受流体交代程度较弱，根据矿物组成，可分为白云石型和方解石型两种类型。岩石地球化学分析表明，碳酸岩样品富Sr（>4940×10-6），Mn（>2150×10-6）以及Ba（>106×10-6），REE平均含量为938×10-6，远高于本区沉积碳酸盐岩；样品全岩δ13CV-PDB和δ18OV-SMOW值范围分别为：-3.7‰~-4.2‰和6.7‰~7.7‰，为典型原始火成碳酸岩特征；岩石具有较均一的Sr同位素组成，87Sr/86Sr=0.702815~0.703185，表明它们为地幔来源且受地壳污染的可能性较小。此外，对碳酸岩中白云石、方解石、磷灰石的单矿物分析也均指示它们为岩浆成因。
结论 综上所述，覆盖区碳酸质岩石为火成碳酸岩，其对于白云鄂博矿床研究，以及本区大地构造演化研究均具有重要意义。
Abstract:This paper is the result of mineral exploration engineering.
Objective The formation of the giant Bayan Obo REE deposit is closely related to carbonatitic magmatism. Near the ore district, southwest of West Ore Body, there are carbonate rocks with a certain scale covered by Mesozoic-Cenozoic sediments, the genesis of which can indicate the formation process of the well-known Bayan Obo deposit.
Methods This contribution demonstrates that these rocks are actually igneous by the detailed study on petrology and mineralogy.
Results The rocks were little affected by fluid metasomatism and can be divided into dolomite type and calcite type according to their mineral compositions. Bulk rock analysis shows that these carbonatites are rich in Sr (>4940×10-6), Mn (>2150×10-6) and Ba (>106×10-6), and the average REE content are 938×10-6, much higher than that of sedimentary carbonates. The δ13CV-PDB and δ18OV-SMOW of the rock samples are-3.7‰--4.2‰ and 6.7‰-7.7‰, respectively, typical of primary igneous carbonatite. They have relatively homogeneous Sr isotopic compositions (87Sr/86Sr=0.702815-0.703185), indicating the mantle-derived rocks were contaminated by the crust limitedly. In addition, the mineral chemical features of dolomite, calcite and apatite also indicate an igneous origin.
Conclusions The identification of these carbonatites is of great significance for the comparative study on the Bayan Obo deposit and tectonic evolution of the area.
-
Key words:
- petrogeochemistry /
- mineral chemistry /
- C-O-Sr isotopes /
- carbonatite /
- mineral exploration engineering /
- Bayan Obo /
- Inner Mongolia
-
-
图 4 ZK106-3和ZK9-1中样品CaO-MgO-TFe2O3+MnO分类图解（修改自Woolley and Kempe, 1989）
Figure 4.
图 5 ZK106-3和ZK9-1中样品微量元素原始地幔标准化蛛网图（a）与稀土元素球粒陨石标准化配分图（b）（标准化值据Sun and McDonough, 1989；McDonough and Sun, 1995）
Figure 5.
图 6 方解石碳酸岩中磷灰石稀土元素球粒陨石标准化配分模式图（标准化值据McDonough and Sun, 1995）
Figure 6.
图 7 样品中白云石和方解石SrO-MnO图解（虚线值根据Yang and Le Bas, 2004）
Figure 7.
图 8 方解石碳酸岩样品中磷灰石Y-Sr（a）和Mn-Sr（b）图解（底图据Belousova et al., 2002）
Figure 8.
图 9 白云石碳酸岩样品碳、氧同位素组成（原始火成碳酸岩范围据Taylor et al., 1967）
Figure 9.

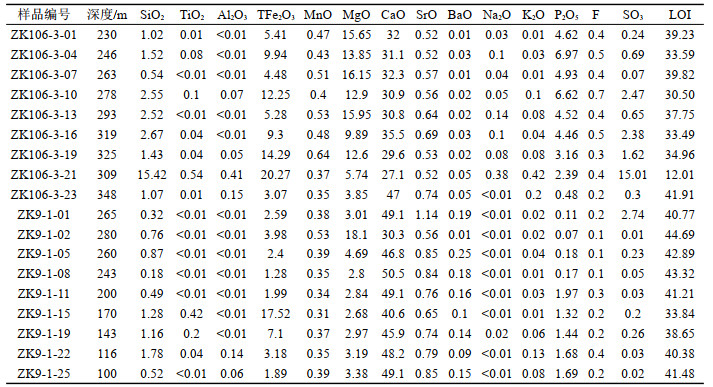

表 1 ZK106-3和ZK9-1中样品主量元素含量（%）
Table 1. Major element contents (%) of samples from ZK106-3 and ZK9-1
下载: 导出CSV

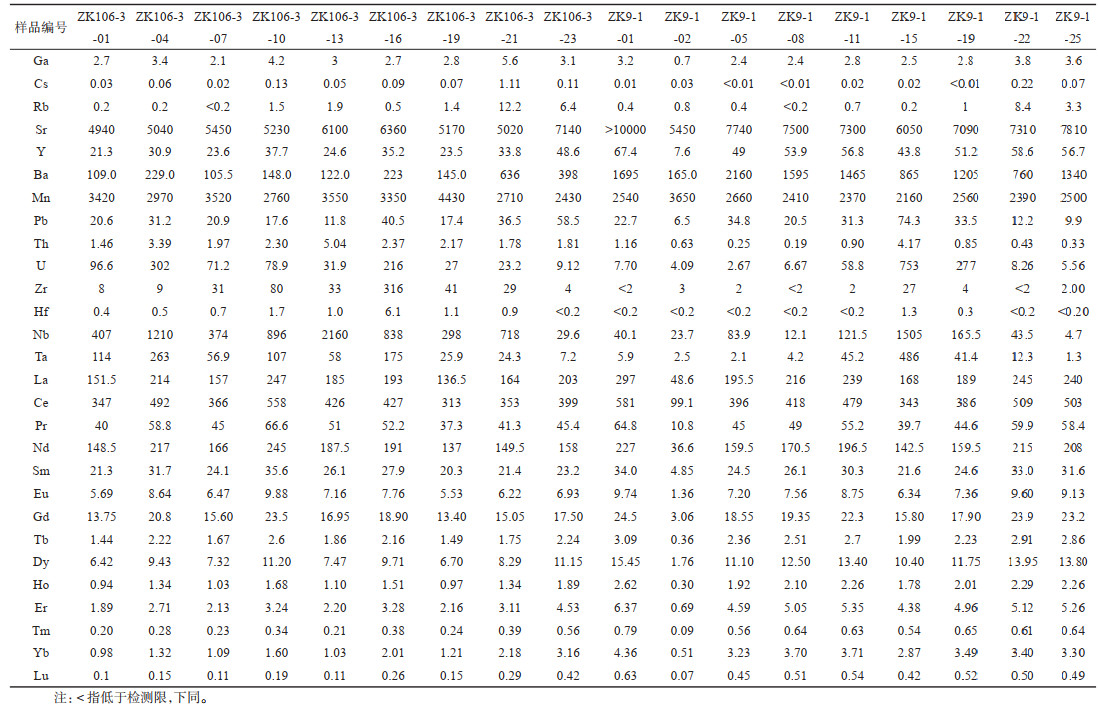

表 2 ZK106-3和ZK9-1中样品微量与稀土元素含量（10-6）
Table 2. Trace and REE element contents (10-6) of samples from ZK106-3 and ZK9-1
下载: 导出CSV

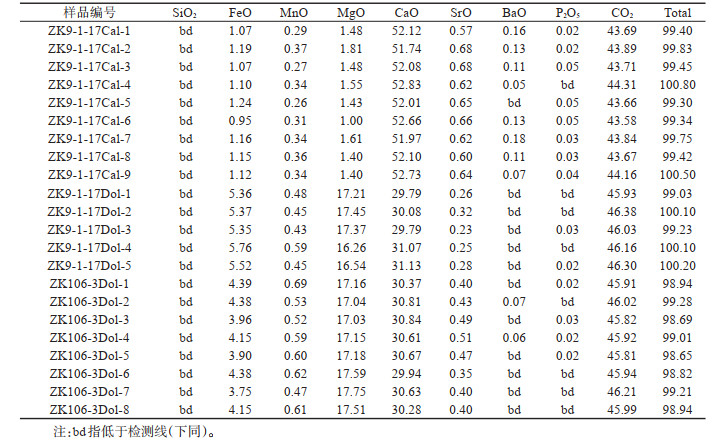

表 3 白云石和方解石碳酸岩样品中的白云石和方解石主量元素含量（%）
Table 3. Major element contents (%) of dolomite and calcite in dolomite-carbonatite and calcite-carbonatite samples
下载: 导出CSV

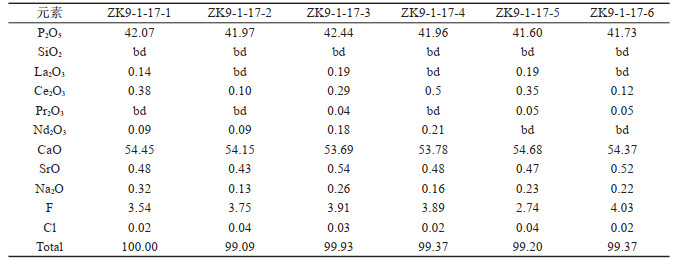

表 4 方解石碳酸岩样品中磷灰石的主量元素含量（%）
Table 4. Major element contents (%) of apatite grains in calcite-carbonatite samples
下载: 导出CSV
表 5 覆盖区方解石碳酸岩样品中磷灰石的微量与稀土元素含量（10-6）
Table 5. Trace element contents (10-6) of apatite grains in calcite-carbonatite samples
下载: 导出CSV
表 6 白云石碳酸岩样品碳、氧同位素组成（‰）
Table 6. Carbon and oxygen isotopic compositions (‰) of dolomite-carbonatite samples
下载: 导出CSV
表 7 白云石碳酸岩样品的Sr同位素数据
Table 7. Strontium isotopic compositions of dolomite-carbonatite samples
下载: 导出CSV
-
