摘要:
文章选取赣东北地区东坑口酸性岩体作为研究对象，对酸性岩体的岩相学、年代学及锆石原位Hf同位素、岩石地球化学进行研究。通过LA-ICP-MS锆石U-Pb定年得出东坑口酸性岩体中花岗斑岩的年龄为（134.25±0.99）Ma，花岗闪长斑岩加权平均年龄为（132.6±1.3）Ma，可以判断其形成时代属燕山晚期。东坑口酸性岩体主量元素地球化学特征基本一致，均为高钾钙碱性花岗岩，SiO2含量较高，铝饱和指数A/CNK值均小于1.1，属于典型的I型花岗岩；微量元素地球化学表现为富集大离子亲石元素Rb、Th、U，明显亏损高场强元素Ti、P，轻微亏损Ba、Sr的特征；酸性岩体稀土元素特征具有一致性，Eu亏损不明显。结合Hf同位素表明酸性岩体的岩浆由下地壳变质砂岩部分熔融组合形成，且东坑口岩体具有典型的埃达克岩特征，为低Mg#埃达克岩系。该酸性岩体是在陆陆碰撞过程中，碰撞挤压致使下地壳加厚以后，向伸展减薄转换的体制中形成的。产出环境为陆内造山环境，太平洋板块向华南大陆俯冲引起的弧后多阶段岩石圈伸展作用。
Abstract:Dongkengkou acid pluton in northeast Jiangxi Province was selected as a study case to expound its petrography, chronology, zircon Hf isotopes and petrogeochemistry. The LA-ICP-MS zircon U-Pb dating of granite porphyry and granodiorite porphyry yields ages of (134.25±0.99)Ma and(132.6±1.3)Ma respectively, indicating that the Dongkengkou pluton was emplaced during the late Yanshanian. The main element geochemical characteristics of Donggangkou acidic pluton are basically the same. They are all high-k calc-alkaline granites with high SiO2 content and aluminum saturation index A/CNK values less than 1.1, which belong to typical I-type granite. The pluton is enriched in large ion lithophile elements such as Rb, Th and U, depleted in high field strength elements such as Ti and P, and slightly depleted in Ba and Sr. The characteristics of rare earth elements in acidic rocks are consistent, but Eu deficit is not obvious. Combined with Hf isotopes, it is indicated that the magma of the pluton was formed by the partial melting of metamorphic sandstone from the lower crust. It has typical characteristics of adakite rocks with low Mg. It is inferred that the pluton was formed during the transformation from crust thickening due to collision and compression to crust thinning due to extension in the process of continent-continent collision. The tectonic environment is intracontinental orogen. The subduction of the Pacific plate to the South China Continent results in the back-arc multi-stage lithospheric extension.
-
Key words:
- acid pluton /
- chronology /
- genesis /
- geological survey engineering /
- Dongkengkou /
- Wuyuan /
- Jiangxi
-
-
图 5 东坑口酸性岩体花岗岩类型和系列划分图解(据Middlemost, 1994；Frost，2001)
Figure 5.
图 6 东坑口岩体微量元素蛛网图（标准值据Thompson et al., 1982）
Figure 6.
图 7 东坑口酸性岩体稀土元素球粒陨石标准化曲线图（标准值据Boynton, 1984）
Figure 7.
图 10 东坑口斑岩体Y-Sr/Y(a)和YbN-（LaN/YbN）(b)判别图（据Defan et al., 1990；Martin，1999）
Figure 10.
图 12 东坑口酸性岩体Nb-Y(a)与Rb-（Y +Nb）构造环境判别图解判别图(b)（底图据Pearce et al., 1984）
Figure 12.

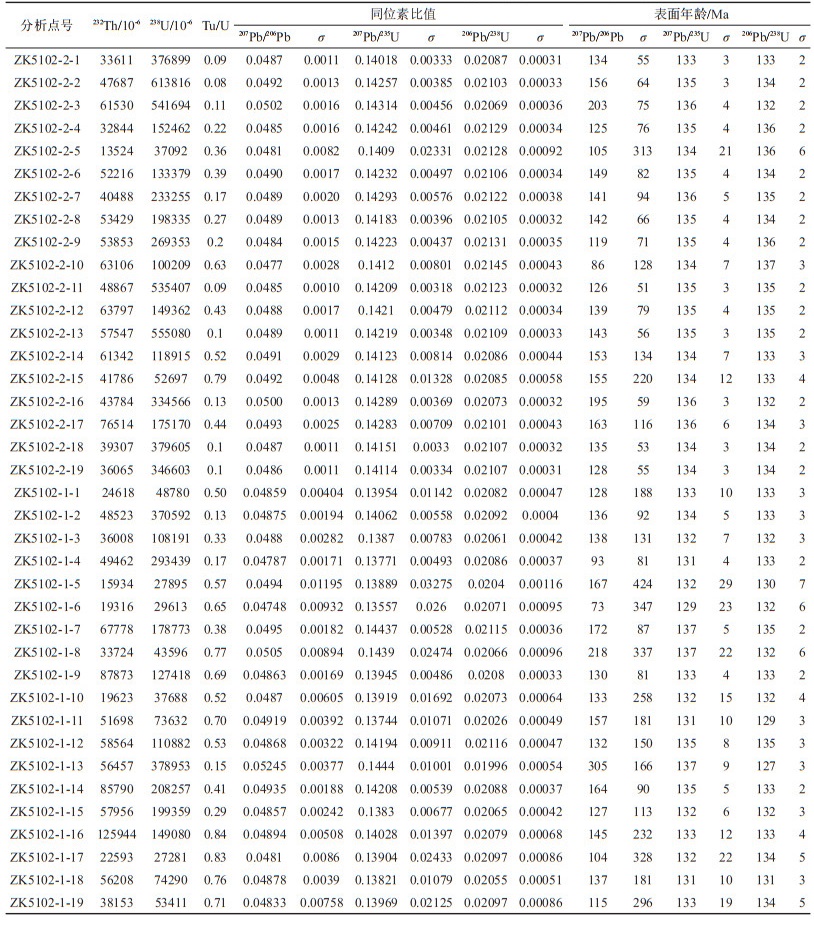

表 1 东坑口酸性岩体花岗斑岩锆石LA-ICP-MS U-Pb年龄测定结果
Table 1. Zircon LA-ICP-MS U-Pb dating of granite porphyry in Dongkengkou pluton
下载: 导出CSV

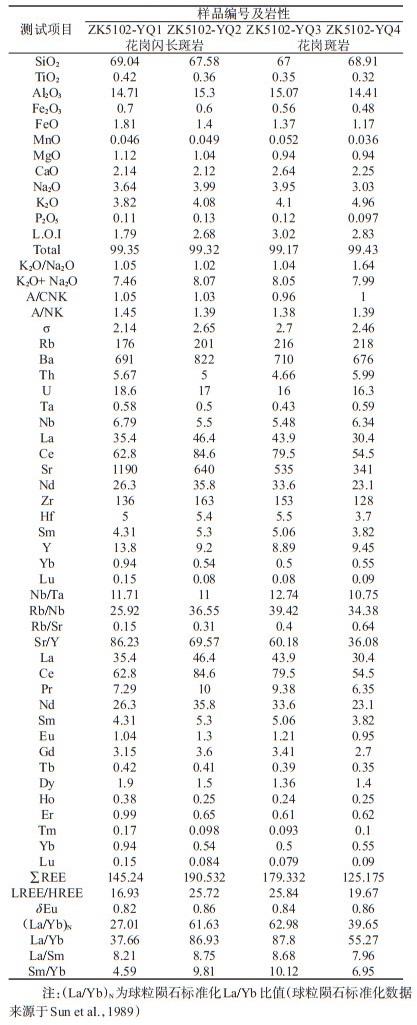

表 2 东坑口酸性岩体主量（%）微量元素含量（10-6）
Table 2. Contents of major (%) and trace elements (10-6) of Dongkengkou pluton
下载: 导出CSV

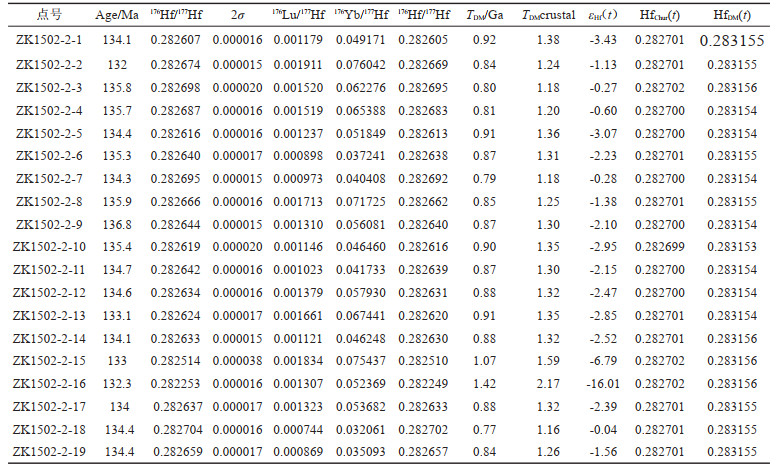

表 3 东坑口酸性岩体花岗斑岩锆石原位Hf同位素分析
Table 3. Zircon Hf isotope data of granite porphyry in Dongkengkou pluton
下载: 导出CSV
-
Altherr R, Holl A. 1998. Break-up of the greater Indo-Australian continent and accretion of blocks framing South and East Asia[J]. Geodinamics, 26: 149-170. doi: 10.1016/S0264-3707(98)00012-X
Andersen T. 2002. Correction of common lead in U-Pb analyses that do not report 204Pb[J]. Chemical Geology, 192(1/2): 59-79. http://www.sciencedirect.com/science/article/pii/S000925410200195X
Barbarin B. 1999. A review of relationships between granitoid types, their origins and their geodynamic environments[J]. Lithos, 46: 605-626. doi: 10.1016/S0024-4937(98)00085-1
Boynton W V. 1984. Geochemistry of the Rare Earth Elements: Meteoritestudies[M]//Henderson P(ed. ). Rare Earth Element Geochemistry, Elservier: 63-114.
Chen Guohua, Shu Liangshu, Shu Licheng, Zhang Cheng, Ouyang Yongpeng. 2015. Geological characteristics and metallogenic background of Zhuxi tungsten(copper) polymetallic deposit in the eastern part of Jiangnan[J]. Science China, 45(12): 1799-1818(in Chinese).
Chen Xiaoming, Tan Qingquan, Zhao Guangtao. 2002. Plagioclases from the basalt of Okinawa Trough and its petrogenesis significance[J]. Acta Petrologica Sinica, 18(4): 482-488(in Chinese with English abstract). http://www.oalib.com/paper/1471641
Chen Xuefei, Wang Yinggeng, Sun Weidong, Yang Xiaoyng. 2013. Zircon U-Pb chronology, geochemistry and genesis of the Zhuxiling granite in Ningguo, southern Anhui[J]. Acta Geologica Sinica, 87(11): 1662-1678(in Chinese with English abstract) http://www.researchgate.net/publication/313550482_Zircon_U-Pb_chronology_geochemistry_and_genesis_of_the_Zhuxiling_granite_in_Ningguo_Southern_Anhui
Defant M J, Drummond M S. 1990. Derivation of some morden arc magmas by of young subducted lithosphere[J]. Nature, 347: 662-665. doi: 10.1038/347662a0
Defant M J, Drummond M S. 1993. Mout St. Helens: Potential example of partial melting of subducted lithosphere in a volcanic arc[J]. Geology, 21: 547-550. doi: 10.1130/0091-7613(1993)021<0547:MSHPEO>2.3.CO;2
Dong Shenbao, Tian Wei. 2004. The nomenclature, characteristics and petrogenesis of adakite[J]. Earth Science Frontiers, (4): 585-594(in Chinese with English abstract).
Feng Chengyou, Zhang Dequan, Xiang Xinkui, Li Daxin, Qu Hongying, Liu Jiannan, Xiao Ye. 2012. Re-Os isotopic dating of molybdenite from the Dahutang tungsten deposit in northwestern Jiangxi Province and its geological implication[J]. Acta Petrologica Sinica, 28(12): 3858-3868(in Chinese with English abstract).
Frost. 2001. A geochemitic classification for granitic rocks[J]. Journal of Petrology, 42: 2033-2048. doi: 10.1093/petrology/42.11.2033
Gao Shan, Luo Tingchuan, Zhang Benren, Zhang Hongfei, Han Yinwen, Zhao Zhidan, HartmutKern. 1999. Structure and composition of the crust in eastern China[J]. Science China(series D), (3): 204-213(in Chinese).
Griffin W L, Belousova E A, Shee S R, Pearson N J, O'Reilly S Y. 2004. Archean crustal evolution in the northern Yilgarn Craton: U-Pb and Hf-isotope evidence from detrital zircons[J]. Precambrian Research, 131(3/4): 231-282. http://gemoc.mq.edu.au/TerraneChronpds/300%20Griffin.pdf
Guo Shuo, Zhao Yuanyi, Qu Huanchun, Wu Dexin, Xu Hong, Li Chao, Liu Yan, Zhu Xiaoyun, Wang Zengke. 2012. Geological characteristics and ore-forming time of the Dexing porphyry copper ore mine in Jiangxi Province[J]. Acta Geologica Sinica, 86(3): 691-699. doi: 10.1111/j.1755-6724.2012.00696.x
Huang Lanchun, Jiang Shaoyong. 2012. Zircon U-Pb geochronology, geochemistry and petrogenesis of the porphyric-like muscovite granite in the Dahutang tungsten deposit, Jiangxi Province[J]. Acta Petrologica Sinica, 28(12): 3887-3900(in Chinese with English abstract). http://www.oalib.com/paper/1475724
Hu Ruizhong, Bi Xianwu, Peng Jiantang, Liu Shen, Zhong Hong, Zhao Hongjun, Jiang Guohao. 2007. Some problems concerning relationship between Mesozoic-Cenozoic lithospheric extension and uranium metallogenesis in South China[J]. Mineral Deposits, (2): 139-152(in Chinese with English abstract).
Hou Kejun, Li Yanhe, Zou Tianren, Qu Xiaoming, Shi Yuruo, Xie Guiqing. 2007. Laser ablation-MC-ICP-MS technique for Hf isotope microanlysis of zircon and its geological applications[J]. Acta Petrologica Sinica, (10): 2595-2604(in Chinese with English abstract). http://www.oalib.com/paper/1472292
Jackson S E, Pearson N J, Griffin W L, Belousova E A. 2004. The application of laser ablation-inductively coupled plasma-mass spectrometry to in situ U-Pb zircon Geochronology[J]. Chemical Geology, 211(1/2): 47-69. http://www.ingentaconnect.com/content/el/00092541/2004/00000211/00000001/art00004
Jahn B M, Wu F Y, Lo C H. 1999. Crust-mantle interaction induced by deep subduction of the continental crust, geochemical and Sr-Nd isotopic evidence from post-collisional: Mafic ultramafic intrusions of the northern Dabie complex central China[J]. Chemical Geology, 157(1/2): 119-164.
Li Changmin. 2009. A review on the minerageny and situ microanalytical dating techniques of Zircons[J]. Geological Survey and Research, 32(3): 161-174(in Chinese with English abstract). http://www.researchgate.net/publication/284065585_A_review_on_the_minerageny_and_situ_microanalytical_dating_techniques_of_zircons
Li Xiaofeng, Yi Xiankui, Zhu Heping. 2009. Source of ore-forming fluids in Jinshan gold deposit of Dexing County: Constraints from microstructures and stable isotopes[J]. Mineral Deposits, 28(1): 42-52(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-KCDZ200901005.htm
Lv Jinsong, Zhang Xuehui, Sun Jiandong, Zhang Yong, Wu Bin, Luo Xuequan. 2017. Spatiotemporal evolution and metallogenic regularity offelsic rocks in the Yanshanian of the eastern segment Qinhang metallogenic belt, South China[J]. Acta Petrologica Sinica, 33(11): 3635-3658(in Chinese with English abstract). http://www.researchgate.net/publication/330637125_Spatiotemporal_evolution_and_metallogenic_regularity_of_felsic_rocks_in_the_Yanshanian_of_the_eastern_segment_Qinhang_metallogenic_belt_South_China
Mao Jingwen, Xie Guiqing, Li Xiaofeng, Zhang Changqing, Mei Yanxiong. 2004. Mesozoic large scale mineralization and multiple lithospheric extension in south China[J]. Earth Science Frontiers, 1(1): 45-55(in Chinese with English abstract).
MaoJingwen, Xie Guiqing, Guo Chunli, Chen Yuchuan. 2007. Large-scale tungsten-tin mineralization in the Nanling region, South China: Metallogenic ages and corresponding geodynamic processes[J]. Acta Petrologica Sinica, 23(10): 2329-2338(in Chinese with English abstract).
Mao Jingwen, Xie Guiqing, Guo Chunli, Yuan Shunda, Cheng Yanbo, Chen Yuchuan. 2008. Spatial-temporal distribution of Mesozoic ore deposits in South China and their metallogenic settings[J]. Geological Journal of China Universities, 14(4): 510-526(in Chinese with English abstract).
Martin H. 1999. Adakitic magmas: modern analogues of Archean granitoids[J]. Lithos, 46(3): 411-429. doi: 10.1016/S0024-4937(98)00076-0
McDonough W F, Sun S S. 1995. The composition of the Earth[J]. Chemical Geology, 120(3/4): 223-253. http://www.sciencedirect.com/science/article/pii/0009254194001404
Middlemost E A K. 1994. Naming materials in the magma/igneous rock system[J]. Earth-Science Reiews, 37(3/4): 215-224. http://www.onacademic.com/detail/journal_1000035302893810_0b9a.html
Pearce J A, Harris N B W, Tindle A G. 1984. Trace element discrimination diagrams for the tectonic interpretation of granitic rocks[J]. Journal of Petrology, 25: 956-983. doi: 10.1093/petrology/25.4.956
Rudnick R L, Barth M, Horn I, McDonough W F. 2009. Rutile-bearing refractory eclogites: Missing link between continents and depleted mantle[J]. Science, 287(5451): 2780281. http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.330.9559&rep=rep1&type=pdf
Shu Liangshu. 2012. An analysis of principal features of tectonic evolution in South China Block[J]. Geological Bulletin of China, 31(7): 1035-1053(in Chinese with English abstract). http://www.zhangqiaokeyan.com/academic-journal-cn_geological-bulletin-china_thesis/0201252283503.html
Sun S S, Mcdonough W F. 1989. Chemical and isotopic systematics of oceanic basalts: implications for mantle composition and processes[J]. Geological Society, London, Special Publications, 42(1): 313-345. doi: 10.1144/GSL.SP.1989.042.01.19
Tang Yingwen, Xie Yuling, Li Yingxu, Qiu Liming, Zhang Xinxin, Han Yuda, Jiang Yanceng. 2013. LA-CP-MS U-Pb ages, geochemical characteristics of the zircons from Wushanguan complex body in Anji mining area northwestern Zhejiang and their geological significances[J]. Geological Review, 59(4): 702-715(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZLP201304013.htm
Thompson R N. 1982. British Tertiary volcanic province[J]. Scottish Journal of Geology, 18: 59-107. http://www.researchgate.net/publication/284337851_British_Tertiary_volcanic_province
Wang Qiang, Zhao Zhenghua, Xu Jifeng, Bai Zhenghua, Wang Jianxin. 2004. Geochemical characteristics of adakitic intrusive rocks in Tongshankou, southeastern Hubei: Melting of lower crust and genesis of porphyry copper deposits[J]. Acta Petrologica Sinica, 20(2): 351-360(in Chinese with English abstract).
Wang Qiang, Zhao Zhenghua, Xu Jifeng, Li Xianhua, Xiong Xiaolin, Bao Zhiwei, Liu Yimao. 2002. Yanshanian adakitic rocks and mineralization in the eastern Yangtze block[J]. Science China(series D), 32(S1): 127-136(in Chinese).
Whalen J B, Currie K I, Chappell B W. 1987. A-type granites: Geochemical characteristics, discrimination and petrogenesis[J]. Contributions to Mineralogy and Petrology, 95: 407-419. doi: 10.1007/BF00402202
Wu Fuyuan, Li Xianhua, Zheng Yongfei, Gao Shan. 2007. Lu-Hf isotopic systematics and their applications in petrology[J]. Acta Petrologica Sinica, 23(2): 185-220(in Chinese with English abstract). http://www.oalib.com/paper/1492671
Xie Guiqing. 2003. Geological and Geochemical Characteristics of the Basic Dykes (body) since the Late Mesozoic in Southeastern China and Its Geodynamic Significance-Taking Jiangxi Province as An Example[D]. Guiyang: Institute of Geochemistry, Chinese Academy of Sciences, 1-128(in Chinese with English abstract).
Xing Guangfu, Hong Wentao, Zhang Xuehui, Zhao Xilin, Ban Yizhong, Xiaofan. 2017. Yanshanian granitic magmatisms and their mineralizations in East China[J]. Acta Petrologica Sinica, 33(5): 1571-1590(in with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-YSXB201705014.htm
Yang Zeli, Qiu Jiangsheng, Xing Guangfu, Yu Minggang, Zhao Jiaolong. 2014. Petrogenesis and magmatic evolution of the yashan granite pluton in yichun, Jiangxi Province, and their constraints on mineralization[J]. Acta Geologica Sinica, 88(5): 850-868(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/ http://search.cnki.net/down/default.aspx?filename=DZXE201405004&dbcode=CJFD&year=2014&dflag=pdfdown
Zhang Qi. 2012. A discussion on the low-SiO 2 adakite and high-SiO2 adakite[J]. Acta Petrologica et Mineralogica, 31(6): 897-900(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-YSKW201206012.htm
Zhang Zhihui, Hu Bojie, Zhang Da, Xiong Guangqiang, Zhu Xinyou, Jia Wenbin, Gong Xiaodong. 2020. Zircon U-Pb age, geochemistry and Hf isotope characteristics of Shimensi granite porphyry in nortnern Jiangxi Province and its constraint on mineralization. Geological Bulletin of China, 39(8): 1267-1284(in Chinese with English abstract).
陈国华, 舒良树, 舒立旻, 张诚, 欧阳永棚. 2015. 江南东段朱溪钨(铜)多金属矿床的地质特征与成矿背景[J]. 中国科学(地球科学), 45(12): 1799-1818. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201512002.htm
陈小明, 谭清泉, 赵广涛. 2002. 海底玄武岩中斜长石研究及其岩石学意义[J]. 岩石学报, (4): 482-488. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200204005.htm
陈雪霏, 汪应庚, 孙卫东, 杨晓勇. 2013. 皖南宁国竹溪岭地区花岗岩锆石U-Pb年代学及地球化学及其成因研究[J]. 地质学报, 87(11): 1662-1678. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE201311003.htm
董申保, 田伟. 2004. 埃达克岩的原义、特征与成因[J]. 地学前缘, (4): 585-594. doi: 10.3321/j.issn:1005-2321.2004.04.025
丰成友, 张德全, 项新葵, 李大新, 瞿泓滢, 刘建楠, 肖晔. 2012. 赣西北大湖塘钨矿床辉钼矿Re-0s同位素定年及其意义[J]. 岩石学报, 28 (12): 3858-3868. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201212006.htm
高山, 骆庭川, 张本仁, 张宏飞, 韩吟文, 赵志丹, HartmutKern. 1999. 中国东部地壳的结构和组成[J]. 中国科学(D辑: 地球科学), (3): 204-213. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK199903001.htm
黄兰椿, 蒋少涌. 2012. 江西大湖塘钨矿床似斑状白云母花岗岩锆石U-Pb年代学、地球化学及成因研究[J]. 岩石学报, 28(12): 3887-3900. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201212008.htm
胡瑞忠, 毕献武, 彭建堂, 刘燊, 钟宏, 赵军红, 蒋国豪. 2007. 华南地区中生代以来岩石圈伸展及其与铀成矿关系研究的若干问题[J]. 矿床地质, (02): 139-152. https://www.cnki.com.cn/Article/CJFDTOTAL-KCDZ200702000.htm
侯可军, 李延河, 邹天人, 曲晓明, 石玉若, 谢桂青. 2007. LA-MC-ICP-MS锆石Hf同位素的分析方法及地质应用[J]. 岩石学报, (10): 2595-2604. doi: 10.3969/j.issn.1000-0569.2007.10.025
李长民. 2009. 锆石成因矿物学与锆石微区定年综述[J]. 地质调查与研究, 32(3): 161-174. doi: 10.3969/j.issn.1672-4135.2009.03.001
李晓峰, 易先奎, 朱和平. 2009. 德兴金山金矿床成矿流体来源: 小尺度构造和同位素地球化学证据[J]. 矿床地质, 28 (1): 42-52. doi: 10.3969/j.issn.0258-7106.2009.01.004
吕劲松, 张雪辉, 孙建东, 张勇, 武彬, 骆学全. 2017. 钦杭成矿带东段燕山期中酸性岩浆活动时空演化与成矿规律[J]. 岩石学报, 33(11): 3635-3658. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201711020.htm
毛景文, 谢桂青, 李晓峰, 张长青, 梅燕雄. 2004. 华南地区中生代大规模成矿作用与岩石圈多阶段伸展[J]. 地学前缘, 1(1): 45-55. doi: 10.3321/j.issn:1005-2321.2004.01.003
毛景文, 谢桂青, 郭春丽, 陈毓川. 2007. 南岭地区大规模钨锡多金属成矿作用: 成矿时限及地球动力学背景[J]. 岩石学报, 23(10): 2329-2338. doi: 10.3969/j.issn.1000-0569.2007.10.002
毛景文, 谢贵青, 郭春丽, 袁顺达, 程彦博, 陈毓川. 2008. 华南地区中生代主要金属矿床时空分布规律和成矿环境[J]. 高校地质学报, 14(4): 510-526. doi: 10.3969/j.issn.1006-7493.2008.04.005
舒良树. 2012. 华南构造演化的基本特征[J]. 地质通报, 31(7): 1035-1053. doi: 10.3969/j.issn.1671-2552.2012.07.003
唐燕文, 谢玉玲, 李应栩, 邱立明, 张欣欣, 韩宇达, 姜妍岑. 2013. 浙江安吉多金属矿区坞山关杂岩体锆石LA-ICP-MS U-Pb年龄、地球化学特征及地质意义[J]. 地质论评, 59(4): 702-715. doi: 10.3969/j.issn.0371-5736.2013.04.010
王强, 赵振华, 许继峰, 李献华, 熊小林, 包志伟, 刘义茂. 2002. 扬子地块东部燕山期埃达克质(adakite-like)岩与成矿[J]. 中国科学(D辑: 地球科学), 32(S1): 127-136. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK2002S1013.htm
王强, 赵振华, 许继峰, 白正华, 王建新. 2004. 鄂东南铜山口、殷祖埃达克质(adakitic)侵入岩的地球化学特征对比: (拆沉)下地壳熔融与斑岩铜矿的成因[J]. 岩石学报, 20(2): 351-360. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200402014.htm
吴福元, 李献华, 郑永飞, 高山. 2007. Lu-Hf同位素体系及其岩石学应用[J]. 岩石学报, (2): 185-220. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200702002.htm
谢桂青. 2003. 中国东南部晚中生代以来的基性岩脉(体)的地质地球化学特征及其地球动力学意义初探——以江西省为例[D]. 贵阳: 中国科学院地球化学研究所博士论文, 1-128.
邢光福, 洪文涛, 张雪辉, 赵希林, 班宜忠, 肖凡. 2017. 华东地区燕山期花岗质岩浆与成矿作用关系研究[J]. 岩石学报, 33(5): 1571-1590. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201705014.htm
杨泽黎, 邱检生, 邢光福, 余明刚, 赵姣龙. 2014. 江西宜春雅山花岗岩体的成因与演化及其对成矿的制约[J]. 地质学报, 88(5): 850-868. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE201405004.htm
张旗. 2012. 低硅埃达克岩和高硅埃达克岩问题[J]. 岩石矿物学杂志, 31(6): 897-900. doi: 10.3969/j.issn.1000-6524.2012.06.011
张志辉, 胡擘捷, 张达, 熊光强, 祝新友, 贾文彬, 巩小栋. 2020. 赣北石门寺花岗斑岩锆石U-Pb年龄、岩石地球化学、Hf同位素特征及其对成矿的制约[J]. 地质通报, 39(8): 1267-1284. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD202008014.htm
-
