Geochemistry of the diamondiferous olivine basalt and magmatic evolution in the Bailushan area, Xuzhou
-
摘要:
江苏徐州地区位于华北克拉通的东南部，其区内及周边广泛发育碱性超基性岩-基性岩，其中不乏含金刚石母岩，但是主要为金伯利岩。笔者在苏北寻找金刚石原生矿的过程中，在徐州白露山地区发现了含金刚石的橄榄玄武岩。本区橄榄玄武岩SiO2含量为42.64%~51.13%，K2O+Na2O为2.57%~5.93%，Al2O3为10.48%~13.53%，MgO含量变化范围较大，为3.11%~19.34%。以主量元素做TAS图解可以看出本区基性岩的投影点基本都落于玄武岩范围，属于高钾钙碱性。微量元素特征显示白露山的样品靠近OIB和火山弧区域。富集端元明显偏高的Ba/Th比值暗示玄武岩中含有大陆下地壳物质。而白露山橄榄玄武岩元素地球化学特征及组成变化范围大并不是主要由地壳混染引起的，而是因为源区含有残留的再循环大陆下地壳。这些地球化学特征说明徐州白露山橄榄玄武岩与辽宁、山东地区金伯利岩具有一定的成因联系，为该区金刚石找矿提供了有利线索。
Abstract:Xuzhou is located in the southeast of the north China craton. Alkaline ultrabasic rocks-basic rocks are widely developed in and around it, where there are some diamondiferous rocks, but mainly kimberlite. During the prospecting of primary diamond deposit, the diamondiferous rocks were discovered in Bailushan, north of Xuzhou. The SiO2 content of olive basalt ranges from 42.64% to 51.13%, K2O+Na2O from 2.57% to 5.93%, Al2O3 from 10.48% to 13.53%, and MgO content from 3.11% to 19.34%. On the TAS diagram, the points of basic rocks in this area all fall into the range of basalt, indicating high potassium calcium alkalinity. Trace element signatures indicate that samples from Bailushan are close to the OIB and volcanic arc regions. The higher Ba/Th ratio of enriched endmember suggests that the basalts contain lower continental crust materials. Therefore, the wide range of elements geochemistry and isotopic composition of olivine basalts is not mainly caused by crustal contamination, but because the source area contains residual recirculation subcontinental crust. These geochemical characteristics suggest that the Bailushan olivine basalt in Xuzhou is related to the kimberlite in Liaoning and Shandong, which provides a favorable clue for diamond prospecting in this area.
-
-

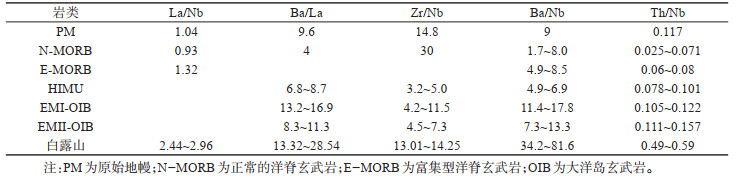

表 3 白露山橄榄玄武岩与原始地幔、MORB和OIB的元素比值对比
Table 3. Comparison of olivine basalts from Bailushan with elemental ratios of primitive mantle, MORB and OIB
下载: 导出CSV
-
Cai Yitao, Chen Guoguang, Zhang Jie, Dong Zhongdou, Zhou Shiwen. 2014. Geochemical features of the olivine-gabbros and its relationship with diamond-forming in the Langan area, Anhui Province[J]. Resources Survey and Environment, 35(4): 245-253(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-HSDZ201404003.htm
Cai Yitao, Zhang Jie, Dong Zhongdou, Cao Zhengqi, Xiao Shuyue, Li Shuai, Li Chengkai, Chen Lezhu, Fan Feipeng. 2018. Neoproterozoic basic magmatism in the north of Anhui Province: Evidence from whole- rock geochemistry and U-Pb geochronology of Diabase in Langan area[J]. Geology in China, 45(2): 351-366(in Chinese with English abstract). http://www.researchgate.net/publication/328850307_Neoproterozoic_basic_magmatism_in_the_north_of_Anhui_Province_Evidence_from_whole-rock_geochemistry_and_U-Pb_geochronology_of_Diabase_in_Langan_area
Chen Lihui, Ceng Gang, Hu Senlin, Yu Xun, Chen Xiayu. 2012. Crustal recycling and genesis of continental alkaline basalts: Case study of the Cenozoic alkaline basalts from Shandong Province, Eastern China[J]. Geological Journal of China Universities, 18(1): 16-27(in Chinese with English abstract). http://www.cnki.com.cn/Article/CJFDTotal-GXDX201201004.htm
Gao Shan, Rudnick Roberta L, Yuan Hongling, Liu Xiaoming, Liu Yongsheng, Xu Wenliang, Ling Wenli, Ayers John, Wang Xuanche, Wang Qinghai. 2004. Recycling lower continental crust in the North China Craton[J]. Nature, 432: 892-897. doi: 10.1038/nature03162
Herzberg C, Asimow P D. 2008. Petrology of some oceanic island basalts: PRIMELT2. XLS software for primary magma calculation[J]. Geochem. Geophys. Geosist., 9(9): 1-25. http://www.onacademic.com/detail/journal_1000035775568210_e750.html
Hoernle Kaj, Tilton George Bas, Mike J Le, Duggen, Svend, Garbe-Schönberg, Dieter. 2002. Geochemistry of oceanic carbonatites compared with continental carbonatites: Mantle recycling of oceanic crustal carbonate[J]. Contrib. Mineral. Petrol., 142: 520-542. doi: 10.1007/s004100100308
Huang Xianjue. 2012. Study on primary diamond deposit types and analysis of the prospect of exploration of diamond resources in Anhui Province[J]. Geology of Anhui, 22(2): 103-105(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-AHDZ201202005.htm
Liu Yongqing, Gao Linzhi, Liu Yanxue, Song Biao, Wang Zongxiu. 2005. Zircon U-Pb dating in the event of Neoproterozoic mafic magma, Xuhuai area[J]. Chinese Science Bulletin, 50(22): 2514-2521(in Chinese). doi: 10.1360/csb2005-50-22-2514
Pan Guitang. 2009. Subdivision of Tectonic Units in China[J]. Geology in China, 36(1): 1-28(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DIZI200901004.htm
Pan Guoqiang, Kong Qingyou, Wu Junqi, Liu Jiarun, Zhang Qinglong, Ceng Jiahu, Liu Daozhong. 2000. Geochemical features of NeoProterozoic diabase sills in Xuzhou-Suzhou Area[J]. Geological Journal of China Universities, 6(1): 53-63(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-GXDX200001006.htm
Rudnick, Roberta L, Gao, Shan, Ling, Wen Li, Liu, Yong Shen, Mcdonough, William F. 2004. Petrology and geochemistry of spinel peridotite xenoliths from Hannuoba and Qixia, North China Craton[J]. Lithos, 77: 609-637. doi: 10.1016/j.lithos.2004.03.033
Rudnick Roberta L, Gao Shan. 2003. Composition of the Continental Crust[M]. Oxford: Elsevier Pergamon, 1-64.
Shi Jianbin, Lu Aidong, Qian Jing, Zhou Dan, Wang Yubo. 2012. Synthetic geo-environment evaluation for the mountains in Tongshan district, Xuzhou[J]. Journal of Geological Hazards and Environment Preservation, 23(2): 36-39(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZHB201202012.htm
Shu Liangshu, Wu Junqi, Liu Daozhong. 1994. Thrust tectonics of Xuzhou-Suzhou Region, Eastern China[J]. Journal of Nanjing University, 30(4): 638-647(in Chinese with English abstract). http://www.researchgate.net/publication/307448033_Thrust_tectonics_of_Xuzhou-Suzhou_region_eastern_China
Taylor, Stuart Ross, Mclennan, Scott M. 1985. The continental crust: Its composition and evolution, an examination of the geochemical record preserved in sedimentary rocks[J]. Journal of Geology, 94: 632-633. http://ci.nii.ac.jp/ncid/BA00414266
Wang Luchao, Wang Jilin, Li Lei. 2011. Tectonic characteristics and their evolution in Xu-Su area[J]. Journal of Geology, 35(3): 247-250(in Chinese with English abstract). http://d.wanfangdata.com.cn/Periodical_jsdz201103004.aspx
Wang Mengxi, Wang Yan. 2012. Mineral chemistry of Zhouan ultramafic intrusion on northern margin of the Yangtze Block: Implications for origin of intrusion and Ni-Cu-(PGE) sulfide mineralization[J]. Mineral Deposits, 31(2): 179-194(in Chinese with English abstract). http://www.researchgate.net/publication/290161166_Mineral_chemistry_of_Zhouan_ultramafic_intrusion_on_northern_margin_of_the_Yangtze_Block_implications_for_origin_of_intrusion_and_Ni-Cu-PGE_sulfide_mineralization
Wang, Yan, Zhao, Zi Fu, Zheng, Yong Fei, Zhang, Jun Jun. 2011. Geochemical constraints on the nature of mantle source for Cenozoic continental basalts in East-Central China[J]. Lithos, 125: 940-955. doi: 10.1016/j.lithos.2011.05.007
Xiang Zhenqun, Li Huaikun, Lu Songnian, Zhou Hongying, Li Huimin, Wang Huichu, Chen Zhihong, Niu Jian. 2012. Emplacement age of the gabbrodiabase dike in the Hongmen scenic region of Mount Tai, Shandong Province, North China: Baddeleyite U-Pb precise dating[J]. Acta Petrologica Sinica, 28(9): 2831-2842(in Chinese with English abstract). http://www.researchgate.net/publication/295632773_Emplacement_age_of_the_gabbro-diabase_dike_in_the_Hongmen_scenic_region_of_Mount_Tai_Shandong_Province_North_China_Baddeleyite_U-Pb_precise_dating?ev=auth_pub
Xu Wenliang, Gao Shan, Yang Debin, Pei, Fu Ping, Wang, Qinghai. 2009. Geochemistry of eclogite xenoliths in Mesozoic adakitic rocks from Xuzhou-Suzhou Area in Central China and their tectonic implications[J]. Lithos, 107: 269-280. doi: 10.1016/j.lithos.2008.11.004
Zeng G, Chen L H, Hofmann A W. 2011. Crust recycling in the sources of two parallel volcanic chains in Shandong, North China[J]. Earth & Planetary Science Letters, 302: 359-368. http://es.nju.edu.cn/_upload/article/files/bb/d4/2cb4d0594661b6be2867f879e038/5ce7fa45-8640-41aa-9e27-a408696e5beb.pdf
Zeng, Gang, Chen, Li Hui, Xu, Xi Sheng, Jiang, Shao Yong, Hofmann, Albrecht W. 2010. Carbonated mantle sources for Cenozoic intra-plate alkaline basalts in Shandong, North China[J]. Chemical Geology, 273: 35-45. doi: 10.1016/j.chemgeo.2010.02.009
Zhang Guishan, Wen Hanjie, Hu Ruizhong, Qiu Yuzhuo. 2009. Geochemical features of the Cenozoic alkaline ultramafic volcanic rock in Fujian and their tectonic signif icance[J]. Acta Geologica Sinica, 83(2): 284-294(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/ http://search.cnki.net/down/default.aspx?filename=DZXE200902014&dbcode=CJFD&year=2009&dflag=pdfdown
Zhang Jie, Cai Yitao, Dong Zhongdou, Ma Yuguang, Fan Feipeng, Chen Lezhu, Li Chengkai, Yang Diwei. 2015. Investigation on mineral characteristic of diamond and geochemical characteristic of its host in the Langan Area, Anhui Province[J]. Journal of Gems. & Gemmology, 17(5): 1-11(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-BSHB201505001.htm
Zhang Peiyuan. 1998. New knowledge of some important questions about diamond deposit genesis[J]. Hunan Geology, 17(3): 204-210(in Chinese with English abstract). http://search.cnki.net/down/default.aspx?filename=HNDZ803.016&dbcode=CJFD&year=1998&dflag=pdfdown
Zhang Hongfu, Sun Min, Zhou Xinhua, Fan Weiming, Zhai Mingguo, Yin, Jifeng. 2002. Mesozoic lithosphere destruction beneath the North China Craton: Evidence from major-, trace-element and Sr-Nd-Pb isotope studies of Fangcheng Basalts[C]//Abstract of Academic Papers of Institute of Geology and Geophysics, Chinese Academy of Sciences, 241-254.
Zhang, Jun Jun, Zheng, Yong Fei, Zhao, Zi Fu. 2009. Geochemical evidence for interaction between oceanic crust and lithospheric mantle in the origin of Cenozoic continental basalts in East-Central China[J]. Lithos, 110: 305-326. doi: 10.1016/j.lithos.2009.01.006
Zhao Zheng, Qi Liang, Huang Zhilong, Yan Zaifei, Xu Cheng. 2010. A study of mineralogy and petrochemistry of Jijie alkaline-ultramafic rocks, southern part of Panxi rift[J]. Earth Science Frontiers, 17(2): 320-335(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DXQY201002036.htm
蔡逸涛, 陈国光, 张洁, 董钟斗, 周世文. 2014. 安徽栏杆地区橄榄辉长岩地球化学特征及其与金刚石成矿的关系[J]. 资源调查与环境, 35(4): 245-253. doi: 10.3969/j.issn.1671-4814.2014.04.002
蔡逸涛, 张洁, 董钟斗, 曹正琦, 肖书阅, 李帅, 李成凯, 陈乐柱, 范飞鹏. 2018. 皖北栏杆地区新元古代岩浆活动: 含金刚石母岩U-Pb年代学及地球化学制约[J]. 中国地质, 45(2): 351-366. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20180210&flag=1
陈立辉, 曾罡, 胡森林, 俞恂, 陈霞玉. 2012. 地壳再循环与大陆碱性玄武岩的成因: 以山东新生代碱性玄武岩为例[J]. 高校地质学报, 18(1): 16-27. doi: 10.3969/j.issn.1006-7493.2012.01.002
黄先觉. 2012. 金刚石原生矿床类型及安徽省金刚石找矿前景分析[J]. 安徽地质, 22(2): 103-105. https://www.cnki.com.cn/Article/CJFDTOTAL-AHDZ201202005.htm
柳永清, 高林志, 刘燕学, 宋彪, 王宗秀. 2005. 徐淮地区新元古代初期镁铁质岩浆事件的锆石U-Pb定年[J]. 科学通报, 50(22): 2514-2521. doi: 10.3321/j.issn:0023-074X.2005.22.013
潘桂棠. 2009. 中国大地构造单元划分[J]. 中国地质, 36(1): 1-28. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20090101&flag=1
潘国强, 孔庆友, 吴俊奇, 刘家润, 张庆龙, 曾家湖, 刘道忠. 2000. 徐宿地区新元古代辉绿岩床的地球化学特征[J]. 高校地质学报, 6(1): 53-63. doi: 10.3969/j.issn.1006-7493.2000.01.007
施建斌, 卢爱冬, 钱静, 周丹, 王宇波. 2012. 徐州市铜山区山体地质环境综合评价[J]. 地质灾害与环境保护, 23(2): 36-39. doi: 10.3969/j.issn.1006-4362.2012.02.007
舒良树, 吴俊奇, 刘道忠. 1994. 徐宿地区推覆构造[J]. 南京大学学报(自然科学版), 30(4): 638-647. doi: 10.3321/j.issn:0469-5097.1994.04.001
王陆超, 汪吉林, 李磊. 2011. 徐宿地区构造特征及其演化[J]. 地质学刊, 35(3): 247-250. doi: 10.3969/j.issn.1674-3636.2011.03.247
王梦玺, 王焰. 2012. 扬子地块北缘周庵超镁铁质岩体矿物学特征及其对铜镍矿化的启示[J]. 矿床地质, 31(2): 179-194. doi: 10.3969/j.issn.0258-7106.2012.02.001
相振群, 李怀坤, 陆松年, 周红英, 李惠民, 王惠初, 陈志宏, 牛健. 2012. 泰山地区古元古代末期基性岩墙形成时代厘定——斜锆石U-Pb精确定年[J]. 岩石学报, 28(9): 2831-2842. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201209014.htm
张贵山, 温汉捷, 胡瑞忠, 裘愉卓. 2009. 福建新生代碱性超基性火山岩地球化学特征及构造意义[J]. 地质学报, 83(2): 284-294. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200902014.htm
张洁, 蔡逸涛, 董钟斗, 马玉广, 范飞鹏, 陈乐柱, 李成凯, 杨迪威. 2015. 安徽栏杆金刚石矿物特征及其寄主母岩地球化学特征研究[J]. 宝石和宝石学杂志, 17(5): 1-11. doi: 10.3969/j.issn.1008-214X.2015.05.001
张培元. 1998. 有关金刚石成因等若干重大问题的新认识[J]. 湖南地质, 17(3): 204-210. https://www.cnki.com.cn/Article/CJFDTOTAL-HNDZ803.016.htm
赵正, 漆亮, 黄智龙, 严再飞, 许成. 2010. 攀西裂谷南段鸡街碱性超基性岩矿物学与岩石化学[J]. 地学前缘, 17(2): 320-335. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201002036.htm
-
