Genetic types, geological characteristics and genetic mechanism of manganese deposits in Africa
-
摘要:
研究目的 非洲锰矿资源丰富，储量3.1亿t、资源量6.6亿t排名在世界上均列第一，加强非洲锰矿床的研究和认识对推动锰矿找矿工作具有重要的指导意义。
研究方法 通过对重要成矿带典型矿床的解剖总结了非洲锰矿床的成因类型、地质特征。
研究结果 非洲锰矿成因类型主要有前寒武系条带状铁建造（BIF）型、海相沉积型、陆相（三角洲湖相）沉积型、与岩浆作用有关的热液型锰矿床等，其中以前寒武系条带状铁建造（BIF）型和海相沉积型最为重要。
结论 非洲锰矿资源具有矿床规模大（以大型、超大型为主）、品位高（30%~50%）、分布相对集中的总体特征；锰矿床的成锰时代较早，以前寒武纪为主；多数锰矿床都遭受2.0 Ga的不整合侵蚀及新生代表生氧化两期风化淋滤作用改造。
Abstract:This paper is the result of mineral exploration engineering.
Objective Manganese ore resources abundant in Africa, where the 310 Mt reserves and 660 Mt resources rank first in the world.Enhance research and awareness of manganese deposits in Africa, It has important guiding significance for promoting the prospecting of manganese ore in my country.
Methods Through the dissection of typical deposits in important metallogenic belts, the genetic types and geological characteristics of manganese deposits in Africa are summarized.
Results Manganese ore types in Africa are diverse, such precambrian banded iron formation (BIF) type, marine sedimentary type, continental (delta-lacustrine) sedimentary type, magmatic hydrothermal type etc., Among them, the precambrian banded iron formation (BIF) type and marine sedimentary type are the most important.
Conclusions Manganese deposits are characterized by large deposits (mainly large and super large), high grade (30%-50%), and relatively concentrated distribution. The manganese-forming age of manganese deposits is earlier, mainly in the Precambrian; Most manganese deposits suffer eluviation weathering supergene processes from 2.0 Ga unconformity erosionand Cenozoic.
-
-
图 2 南非西格里夸兰（Griqualand）德兰士瓦超群区域地质图(a，显示了卡拉哈里锰矿田（KMF）和黑山（Black Ridge）逆冲断裂的分布）以及卡拉哈里锰矿田（KMF）横向剖面示意图（b）（据Cairncross and Beukes, 2013）
Figure 2.
图 3 马尔曼（Maremane）穹隆地质图（a）、N-S向横剖面示意图（b）、东部矿带（Manganore地区）的喀斯特（岩溶）地区锰矿床（c）及西部矿带（Lohatlha地区）的喀斯特（岩溶）矿床（d）
Figure 3.
图 4 加蓬Francevillian锰矿区地质简图（a）和莫安达（Moanda）附近的Bangombe高原的横剖面（b）（据Nicolas et al., 2016）
Figure 4.
图 5 加蓬Francevillian次级盆地古地理剖面示意图和锰矿床位置图（据Gauthier-Lafaye and Weber, 2003）
Figure 5.
图 6 西非比利姆（Birimian）岩系的简化地质图（据Baratoux et al., 2011）
Figure 6.
图 7 西非Birimian岩系锰矿带典型的富含高品位表生氧化锰矿石的示意图（据Nicolas et al., 2016）
Figure 7.
图 8 摩洛哥伊米尼（Imini）锰矿带位置图（a）、伊米尼（Imini）锰矿带的简化地质图（b，显示了森诺曼—土仑阶白云岩中所含锰矿体的分布）及Lantenois锰矿床的地层柱状图（c，显示了三层Mn矿体（C1、C2、C3）；三个沉积旋回系统（S1、S2、S3））（据Mohammed, 2016）
Figure 8.
图 9 伊米尼（Imini）锰矿带含矿地层柱状图（据Mohammed, 2016）
Figure 9.
图 10 非洲主要锰矿床与含铁建造形成时间分布示意图（据Cairncross and Beukes, 2013；Nicolas et al., 2016有修改）
Figure 10.

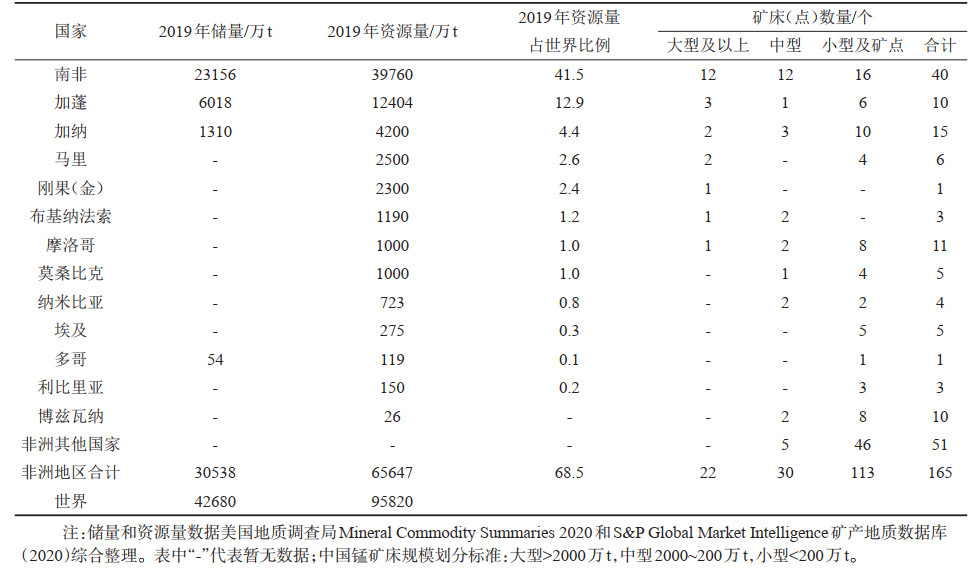

表 1 非洲主要锰矿资源国锰矿石资源量/储量和锰矿床（点）统计表
Table 1. Summary of manganese ore resources/reserves of major manganese ore resource countries in Africa
下载: 导出CSV

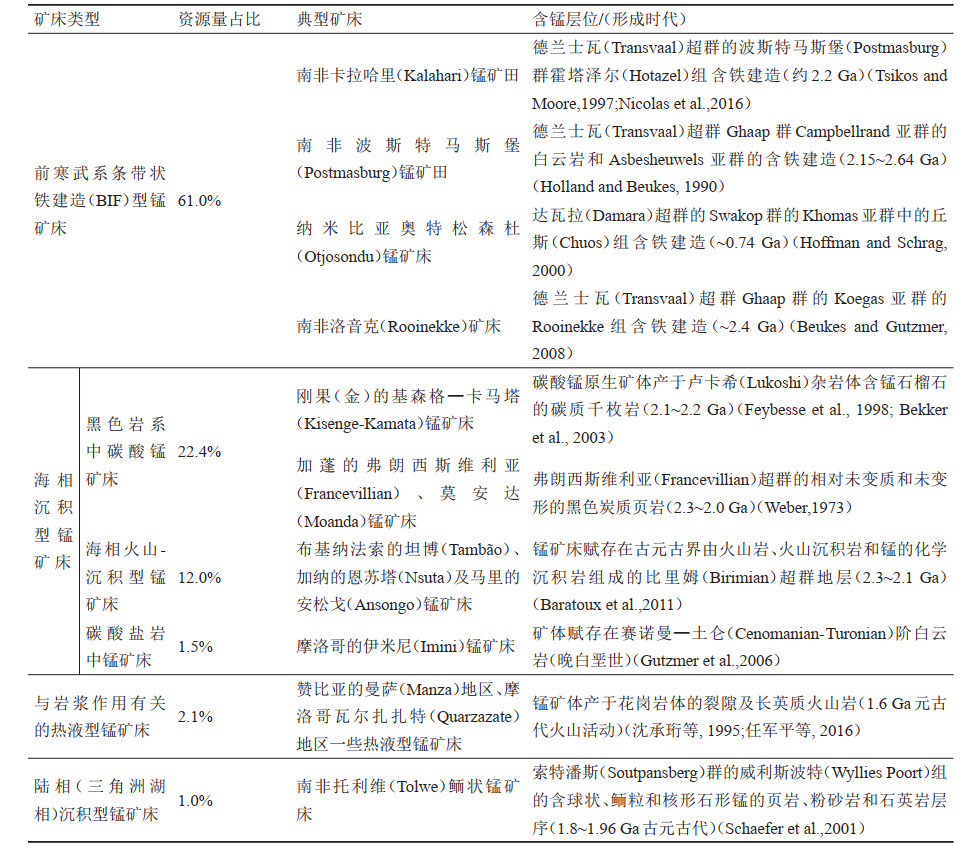

表 2 非洲锰矿床成因类型及其典型性矿床的规模和含锰层位
Table 2. The genetic types and their typical manganese deposits in the Mn-bearing strata of African
下载: 导出CSV

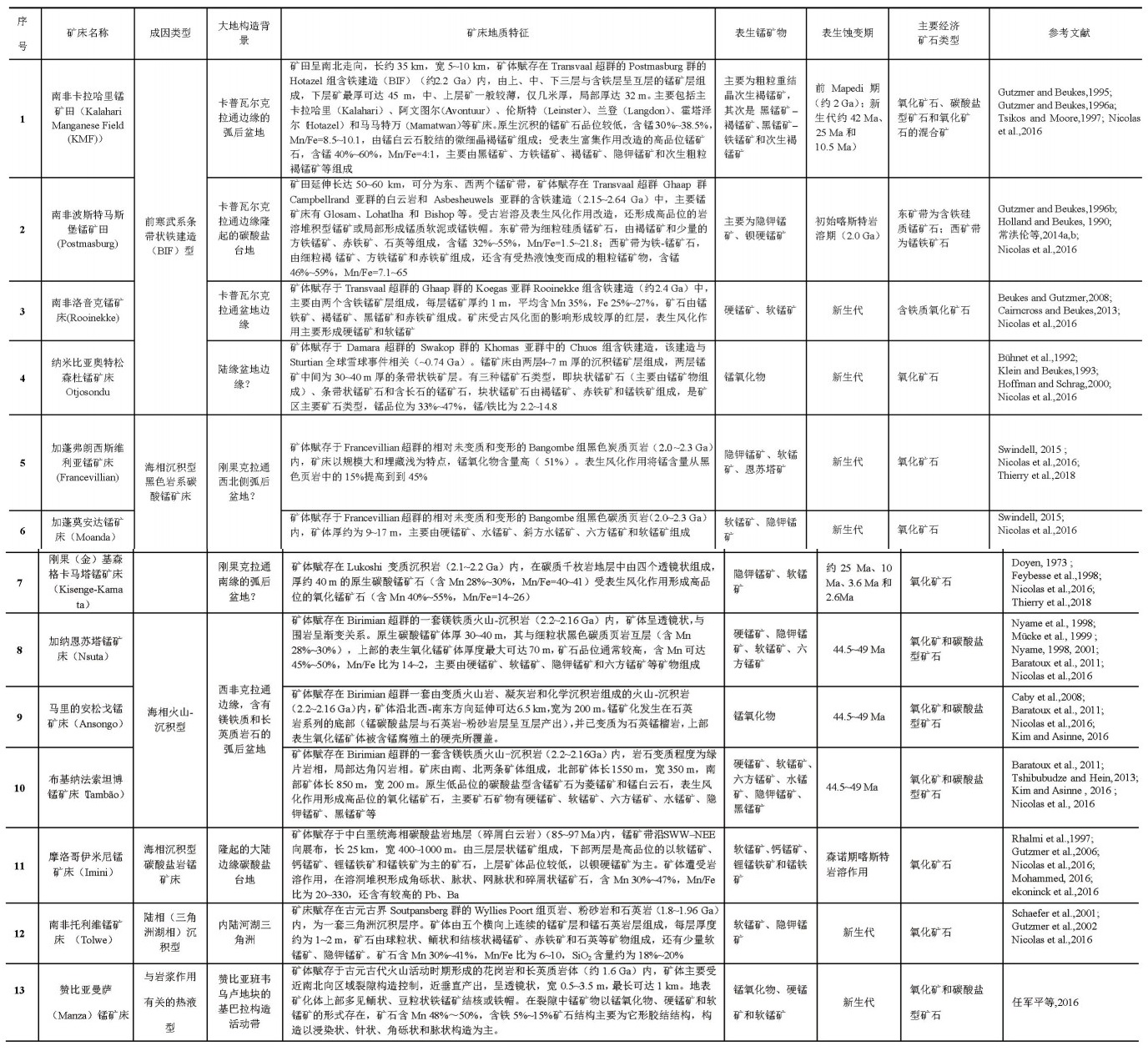

表 3 非洲重要锰矿床（矿田）主要地质特征
Table 3. The main geological characteristics of important manganese deposits (fields) in Africa
下载: 导出CSV
-
Baratoux L, Metelka V, Naba S, Jessell M W, Grégoire M, Ganne J. 2011. Juvenile Paleoproterozoic crust evolution during the Eburnean orogeny (< 2.2-2.0 Ga), western Burkina Faso[J]. Precambrian Research, 191: 18-45. doi: 10.1016/j.precamres.2011.08.010
Bekker A, Karhu J A, Eriksson K A, KaufmanA J. 2003. A Chemostratigraphy of Paleoproterozoic carbonate successions of the Wyoming Craton: Tectonic forcing or biogeochemical change?[J]. Precambrian Research, 120: 279-325. doi: 10.1016/S0301-9268(02)00164-X
Bekker A, Slack J F, Planavsky N, Krapez B, Hofmann A, Konhauser K O, Rouxel O J. 2010. Iron formation: The sedimentary product of a complex interplay among mantle, tectonic, oceanic, and biospheric processes[J]. Economic Geology, 105(3): 467-508. doi: 10.2113/gsecongeo.105.3.467
Beukes N J, Gutzmer J. 2008. Origin and paleoenvironmental significance of major iron formations at the Archaean-Paleoproterozoic boundary[J]. Reviews in Economic Geology, 15: 5-47. https://pubs.geoscienceworld.org/segweb/books/book/1224/chapter/107022386/Origin-and-Paleoenvironmental-Significance-of
Bühn B, Stansistreet I G, Okrusch M. 1992. Late Proterozic outer shelf manganese and iron deposits at Otjosondu (Namibia) related to the Damaran oceanic opening[J]. Economic Geology, 87: 1393-1411. doi: 10.2113/gsecongeo.87.5.1393
Caby R, Buscail F, Dembe D, Diakite S, Sacko S, Bal M. 2008. Neoproterozoic garnet-glaucophanites and eclogites: New insights for subduction metamorphism of the Gourma fold and thrust belt (eastern Mali)[C]//Ennih N, Liegeois J P (eds. ). The Boundaries of the West African Craton. Geological Society, London, Special Publications, 297: 203-216.
Cairncross B, Beukes N J. 2013. The Kalahari Manganese Field[M]. Assore, Johannesburg, Random House Struik, 1-384.
Cairncross B, Beukes N J, Gutzmer J. 1997. The Manganese Adventure: The South African Manganese Fields[M]. Assore, Johannesburg, Associated Ore & Metal Corporation Limited, 1-236.
Cannon W F, Kimball B E, Corathers L A. 2017. Manganese[C]//Schulz K J, De Young J H, Seal IIRR, Bradley D C. Critical mineral resources of the United States-Economic and Environmental Geology and Prospects for Future Supply. Reston, Virginia: U.S. Geological Survey Professional Paper, 1802-L, 1-40.
Chang Honglun, Kong Fanhui, Song Xiaodong, Du Jun, Zhao Jin, Li Jianfeng, Wang Congying. 2014a. Geological characteristics and genesis analysis of deposits in Postmasburg area, South Africa[J]. Geological Review, 60(3): 580-590(in Chinese with English abstract).
Chang Honglun, Kong Fanhui, Song Xiaodong, Du Jun, Zhao Jin, Li Jianfeng, Wang Congying. 2014b. Dolostone controls in Postmasburg manganese field, South Africa[J]. Acta Sedimentology, 32(5): 832-839(in Chinese with English abstract).
Chen Jiabin, Yu Lianghui. 2020. Comparative Analysis of Mineral Resources Situation in China, America and Europe[M]. Beijing, Geological Publishing House(in Chinese with English abstract).
Clout J M F, Simonson B M. 2005. Precambrian iron formations and iron formation-hosted iron ore deposits[C]//Hedenquist J W, Thompson J F H, Goldfard R J, Richards J P. Economic Geology One Hundredth Anniversary Volume, 1905-2005. Littleton: Economic Geology: 643-679.
Cong Yuan, Dong Qingji, Xiao Keyan, Chen Jianping, Gao Yongbao, Yin Jiangning. 2018. Characteristics and predicted potential of Mn resources in China[J]. Geoscience Frontier, 25(3): 118-137(in Chinese with English abstract).
Dekoninck A, Bernard A, Barbarand J, Saint-Bezar B, Missenard Y, Lepretre R, SaddiqiO, Yans J. 2016. Detailed mineralogy and petrology of manganese oxyhydroxide deposits of the Imini district (Morocco)[J]. Miner Deposita, 51: 13-23. doi: 10.1007/s00126-015-0590-3
De Putter T, Ruffet G, Yans J, Mees F. 2015. The age of supergene manganese deposits in Katanga and its implications for the Neogene evolution of the African Great Lakes Region[J]. Ore Geology Reviews, 71: 350-362. doi: 10.1016/j.oregeorev.2015.06.015
DoyenL. 1973. The manganese ore deposit of Kisenge-Kamata (Western Katanga), mineralogical and sedimentological aspects of the primary ore[J]. Ores in Sediments, 3: 93-100.
Fan D L, Yang P. 1999. Introduce to and classification of manganese deposits of China[J]. Ore Geology Reviews, ,15: 1-15. doi: 10.1016/S0169-1368(99)00011-6
Feybesse J L, Johan V, Triboulet C, Guerrot C, Mayaga-Mikolo F, Bouchot V, N'Dong J E. 1998. The West Central African belt: A model of 2.5-2.0 Ga accretion and two-phase orogenic evolution[J]. Precambrian Research, 87: 161-216. doi: 10.1016/S0301-9268(97)00053-3
Fu Yong, Xu Zhigang, Pei Haoxiang, Jiang Ran. 2014. Study on metallogenic regularity of manganese ore deposits in China[J]. Acta Geologica Sinica, 88(12): 2192-2207(in Chinese with English abstract). https://en.cnki.com.cn/Article_en/CJFDTOTAL-DZXE201412004.htm
Gauthier-Lafaye F, Weber F. 2003. Natural nuclear fission reactors: Time constraints for occurrence, and their relation to uranium and manganese deposits and to the evolution of the atmosphere[J]. Precambrian Research, 120: 81-100. doi: 10.1016/S0301-9268(02)00163-8
Gutzmer J, Beukes N J. 1995. Fault-controlled metasomatic alteration of Earl Proterozoic sedimentary manganese ores in the Kalahari Manganese Field, South Africa[J]. Economic Geology, 90: 823-844. doi: 10.2113/gsecongeo.90.4.823
Gutzmer J, Beukes N J. 1996a. Mineral paragenesis of the Kalahari manganese field, South Africa[J]. Ore Geology Reviews, 11: 405-428. doi: 10.1016/S0169-1368(96)00011-X
Gutzmer J, Beukes N J. 1996b. Karst-hosted fresh water Palaeoproterozoic manganese deposits, Postmasburg, South Africa[J]. Economic Geology, 91: 1435-1454. doi: 10.2113/gsecongeo.91.8.1435
Gutzmer J, Beukes N J. 1998. Earliest laterites and possible evidence for terrestrial vegetation in the Early Proterozoic[J]. Geology, 26: 263-266. https://pubs.geoscienceworld.org/gsa/geology/article-abstract/26/3/263/187228/Earliest-laterites-and-possible-evidence-for
Gutzmer J, Beukes N J, Rhalmi M, Mukhopadhyay J. 2006. Cretaceous karstic cave-fill manganese-lead-barium deposits of Imini, Morocco[J]. Economic Geology, 101: 385-405. doi: 10.2113/gsecongeo.101.2.385
Gutzmer J, Du Plooy A P, Beukes N J. 2012. Timing of supergene enrichment of low-grade manganese ores in the Kalahari manganese field, South Africa[J]. Ore Geology Reviews, 47: 136-153. doi: 10.1016/j.oregeorev.2012.04.003
Gutzmer J, Schaefer M O, Beukes N J. 2002. Red bed-hosted oncolitic manganese ore of the Paleoproterozoic Soutpansberg Group, Bronkhorstfontein, South Africa[J]. Economic Geology, 97: 1023-1039.
Hoffman P F, Schrag D P. 2000. Snowball earth[J]. Scientific American, 282: 68-75. doi: 10.1038/scientificamerican0100-68
Holland H D, Beukes N J. 1990. A paleoweathering profile from Griqualand West, South Africa: Evidence for a dramatic rise in atmospheric oxygen between 2.2 and 1.9 BYBP[J]. American Journal of Science, 290A: 1-34. https://pubmed.ncbi.nlm.nih.gov/11538688/
Kim A A H, Asinne T. 2016. Manganese deposits of the Oudalan province in the northeast of Burkina Faso, and Ansongo Inlier in eastern Mali[J]. Ore Geology Reviews, 78: 645-651. doi: 10.1016/j.oregeorev.2015.11.008
Klein C. 2005. Some Precambrian banded iron-formations(BIFs) from around the world: Their age, geologic setting, mineralogy, metamorphism, geochemistry, and origin[J]. American Mineralogist, 90(10): 1473-1499. doi: 10.2138/am.2005.1871
Klein C, Beukes N J. 1993. Sedimentology and geochemistry of glaciogenic Late Proterozoic Rapitan iron formation in Canada[J]. Economic Geology, 88: 542-565. doi: 10.2113/gsecongeo.88.3.542
Konhauser K O. 2008. Introduction to Geomicrobiology[M]. John Wiley & Sons, Blackwell Publishing, 1-425.
Mohammed Bouabdellah. 2016. Mineral Deposits of North Africa[M]. Springer International Publishing Switzerland, 1-585.
Mücke A, Dzigbodi-Adjimah K, Annor A. 1999. Mineralogy, petrography, geochemistry and genesis of the Paleoproterozoic Birimian manganese-formation of Nsuta/Ghana[J]. Mineralium Deposita, 34: 297-311. doi: 10.1007/s001260050205
Nicolas J B, Edward P W S, Herve Wabo. 2016. Manganese deposits of Africa[J]. Episodes, 39(2): 285-317. doi: 10.18814/epiiugs/2016/v39i2/95779
Nyame F K. 1998. Mineralogy, Geochemistry, and Genesis of the Nsuta Manganese Deposit[D]. Unpublished Ph. D dissertation, Okayama University, 1-213.
Nyame F K. 2001. Petrological significance of manganese carbonate inclusions in spessartine garnet and relation to the stability of spessartine in metamorphosed manganese-rich rocks[J]. Contributions to Mineralogy and Petrology, 141: 733-746. doi: 10.1007/s004100100257
Nyame F K, Kase K, Yamamoto M. 1998. Spessartine garnets in a manganiferous carbonate formation from Nsuta, Ghana[J]. Resource Geology, 48: 13-22. doi: 10.1111/j.1751-3928.1998.tb00003.x
Nyame F K, Beukes N J, Kase K, Yamamoto M. 2003. Compositional variations in manganese carbonate micronodules from the Lower Proterozoic Nsuta deposit, Ghana: Product of authigenic precipitation or post-formational diagenesis?[J]. Sedimentary Geology, 154: 159-175. doi: 10.1016/S0037-0738(02)00128-8
Ren Junping, Zuo Libo, Xu Kangkang, Wang Jie, Liu Xiaoyang, He Shengfei, Liu Yu, He Fuqing. 2016. Geodynamic evolution and mineral resources present research in Bangweulu Block, Northern Zambia[J]. Geological Review, 62(4): 979-996(in Chinese with English abstract).
Rhalmi M, Pascal A, Lang J. 1997. Contrôle sédimentaire et diagénétique de la minéralisation manganésifère au cours du Crétacé Supérieur dans la région d'Imini (Haut-Atlas central, Maroc)[J]. Comptes Rendus Académie Sciences 323(2): 213-220.
Schaefer M O, Gutzmer J, Beukes N J. 2001. Late Paleoproterozoic Mn-rich oncoids: Earliest evidence for microbially mediated Mn precipitation[J]. Geology, 29: 835-838. https://pubs.geoscienceworld.org/gsa/geology/article-abstract/29/9/835/191832/Late-Paleoproterozoic-Mn-rich-oncoids-Earliest
Shen Chengheng, Wang Shoulun, Chen Senhuang. 1995. The World's Ferrous Metal Mineral Resources[M]. Beijing: Geological Publishing House (in Chinese with English abstract).
Swindell E P W. 2015. Manganese Deposits of Africa-A short review[C]//Internal Report (unpublished). Swindell Consulting Geologist, Krugersdorp, South Africa, 1-94.
Tetteh G M. 2010. Geology and mineralization of the Paleoproterozoic Nsuta manganese deposit in the Birimian of Ghana[D]. PhD thesis (unpublished), University of Ghana, Legon, 1-186.
Thein J. 1990. Paleogeography and geochemistry of the "Cenomano-Turonian" formations in the manganese district of Imini (Morocco) and their relation to ore deposition[J]. Ore Geology Reviews, 5: 257-291. doi: 10.1016/0169-1368(90)90034-K
Thierry D P, Jean-Paul L, Stijn D, Jacques C, Adrian B, Floria M. 2018. Paleoproterozoic manganese and base metals deposits at Kisenge-Kamata (Katanga, D.R. Congo)[J]. Ore Geology Reviews, 96: 558-563.
Trendall A F. 2002. The signify cance of iron-formation in the Precambrian stratigraphic record[J]. Special Publication International Association of Sedimentologists, 33(1): 33-66. https://onlinelibrary.wiley.com/doi/10.1002/9781444304312.ch3
Tshibubudze A, Hein K A A. 2013. Structural setting of gold deposits in the Oudalan-Gorouol volcano-sedimentary belt east of the Markoye Shear Zone, West African craton[J]. Journal of African Earth Sciences, 80: 31-47. doi: 10.1016/j.jafrearsci.2012.11.010
Tsikos H, Moore J M. 1997. Petrography and geochemistry of the Paleoproterozoic Hotazel iron-manganese formation, Kalahari manganese field, South Africa: Implications for Precambrian manganese metallogenesis[J]. Economic Geology, 92: 87-97. doi: 10.2113/gsecongeo.92.1.87
Tsikos H, Moore J M. 1998. The Kalahari manganese field: An enigmatic association of iron and manganese[J]. South African Journal of Geology, 101: 287-290. https://pubs.geoscienceworld.org/gssa/sajg/article/101/4/287/121770/The-Kalahari-manganese-field-an-enigmatic
Varentsov I M. 1964. Sedimentary Manganese Ores[M]. Elsevier Publishing Company, Elsevier, Amsterdam, 1-119.
Vasconcelos P M, Renne P R, Brimhall G H, Becker T A. 1994. Direct dating of weathering phenomena by 40 Ar- 39 Ar and K-Ar analysis of supergene K-Mn oxides[J]. Geochimica et Cosmochimica Acta, 58: 1635-1665. doi: 10.1016/0016-7037(94)90565-7
Wang Changle, Zhang Lianchang, Liu Li, Dai Yanpei. 2012. Research progress of precambrian iron formations abroad and some problems deserving further discussion[J]. Mineral Deposits, 31(6): 1311-1325(in Chinese with English abstract). http://www.adearth.ac.cn/article/2018/1001-8166/1001-8166-33-2-152.shtml
Weber F. 1973. Genesis and Supergene evolution of Precambrian sedimentary manganese deposit at Moanda (Gabon), UNESCO, Genesis of Precambrian Iron and Manganese deposits. Proceedings Kiev Symposium[J]. Earth Sciences, 9: 307-322.
Yao Peihui, Lin Zhentai, Du Chunlin. 1995. China Manganese Ore Chronicle[M]. Beijing: Metallurgical Industry Press(in Chinese with English abstract).
Ye Lianjun, Fan Delian, Yang Peiji. 1994. Manganese Deposits in China[M]. Beijing: Geological Publishing House(in Chinese with English abstract).
Yin Jiangning, Xiao Keyan. 2014. Resources potential analysis and metallogenic prospect of Mn resources in China[J]. Geology in China, 41(5): 1424-1437(in Chinese with English abstract).
Zouhri S, Kchikach A, Saddiqi O, Haïmer F Z E, Baid-der L, Michard A. 2008. The Cretaceous-Tertiary Plateaus[C]//Michard A, Saddiqi O, Chalouan A, de Lamotte D F (eds. ). Continental Evolution: the Geology of Morocco. Springer, Berlin-Heidelberg 116: 331-358.
常洪伦, 孔繁辉, 宋晓东, 杜俊, 赵晋, 李建锋, 王聪颖. 2014a. 南非Postmasburg地区锰矿床地质特征及成因分析[J]. 地质论评, 60(3): 580-590.
常洪伦, 孔繁辉, 宋晓东, 赵晋, 李建锋, 杜俊, 王聪颖. 2014b. 南非Postmasburg锰矿田白云岩的控矿作用[J]. 沉积学报, 32(5): 832-839. https://www.cnki.com.cn/Article/CJFDTOTAL-CJXB201405005.htm
陈甲斌, 余良晖. 2020. 中美欧矿产资源形势对比分析[M]. 北京: 地质出版社.
丛源, 董庆吉, 肖克炎, 陈建平, 高永宝, 阴江宁. 2018. 中国锰矿资源特征及潜力预测[J]. 地学前缘, 25(3): 118-137. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201803013.htm
付勇, 徐志刚, 裴浩翔, 江冉. 2014. 中国锰矿成矿规律初探[J]. 地质学报, 88(12): 2192-2207.
任军平, 左立波, 许康康, 王杰, 刘晓阳, 何胜飞, 刘宇, 贺福清. 2016. 赞比亚北部班韦乌卢地块演化及矿产资源研究现状[J]. 地质论评, 62(4): 979-996.
沈承珩, 王守伦, 陈森煌. 1995. 世界黑色金属矿产资源[M]. 北京: 地质出版社.
王长乐, 张连昌, 刘利, 代堰锫. 2012. 国外前寒武纪铁建造的研究进展与有待深入探讨的问题[J]. 矿床地质, 31(6): 1311-1325. doi: 10.3969/j.issn.0258-7106.2012.06.015
姚培慧, 林镇泰, 杜春林. 1995. 中国锰矿志[M]. 北京: 冶金工业出版社.
阴江宁, 肖克炎. 2014. 中国锰矿资源潜力分析及成矿预测[J]. 中国地质, 41(5): 424-437. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20140502&flag=1
叶连俊, 范德廉, 杨培基. 1994. 中国锰矿床[M]. 北京, 地质出版社.
-
