The geochemical characteristics and metallogenic condition of Permain Lucaogou Formation oil shale in Jimusaer, Junggar Basin, Xinjiang
-
摘要:
研究目的 本文旨在通过对比准噶尔盆地吉木萨尔地区二叠系芦草沟组高品位和低品位油页岩的品质和成因差异，揭示高品位油页岩的特殊成矿条件。
研究方法 对吉木萨尔地区两个剖面采集的露头样品，进行TOC、热解、含油率、微量、稀土元素测试，从而开展高品位和低品位油页岩有机地球化学特征，微量稀土元素特征及成矿条件差异分析。
研究结果 研究区高品位油页岩有机质类型为I型；低品位油页岩有机质类型为I-II1型。高品位和低品位油页岩中B、Ba、Cr、Nb、Sr、V、Zr等微量元素含量差异明显，高品位油页岩中各稀土元素平均含量和各样品稀土元素分布区间都小于低品位油页岩，且外源元素富集程度也相对更低，显示了更少的陆源碎屑输入。微量元素比值显示，研究区油页岩形成于温暖湿润气候，淡水-半咸水，还原环境。高品位油页岩与低品位油页岩相比，形成时水体盐度值更大，有机质生产力更高。
结论 温暖湿润气候背景下，相对较少的陆源碎屑供给，减少了对有机质的稀释和氧化破坏，同时较高的水体盐度值更利于水体分层，从而形成一个长时间的还原环境，再加上更高的有机质生产力，从而形成了高品位油页岩。
Abstract:This paper is the result of oil and gas exploration engineering.
Objective This paper aims to reveal the special metallogenic conditions of high-grade oil shale by comparing the quality and genetic differences between high grade and low grade oil shale of Permian Lucaogou Formation in Jimusaer area, Junggar Basin.
Methods TOC, Rock-eval, oil yield, trace and rare earth elements were tested on outcrop samples collected from two sections in Jimusar area, so as to analysis the difference of organic geochemical characteristics, trace and rare earth element characteristics and metallogenic conditions of high-grade and low-grade oil shale.
Results Research results show that, the organic matter type of high grade oil shale is type I, but the organic matter type of low grade oil shale is type I-II1. The trace elements contents of the high grade oil shale (such as B, Ba, Cr, Nb, Sr, V, Zr) are significantly different from that of low grade oil shale. The average contents of rare earth elements and the distribution range of rare earth elements in high grade oil shale are smaller than that in low grade oil shale. And elements that are usually enriched in terrestrial detrital minerals of the high grade oil shale is lower than that of low grade oil shale, which shows less terrigenous clastic input of high grade oil shale. The trace elements ratio shows that the oil shale in the study area is formed in warm and humid climate, semi-salty water and reducing environment. Compared to the low grade oil shale, the high grade oil shale was formed with higher salinity water and higher organic matter productivity.
Conclusions Under the background of warm and humid climate, the relatively small supply of terrigenous clastics reduces the dilution and oxidation of organic matters, and high salinity is more conducive to water stratification, thus forming a long-term reduction environment. Combined with higher organic matter productivity, high-grade oil shale is formed.
-
-
图 8 吉木萨尔油页岩稀土元素球粒陨石分配模式图(球粒陨石数据引自Mclennan et al., 2003)
Figure 8.

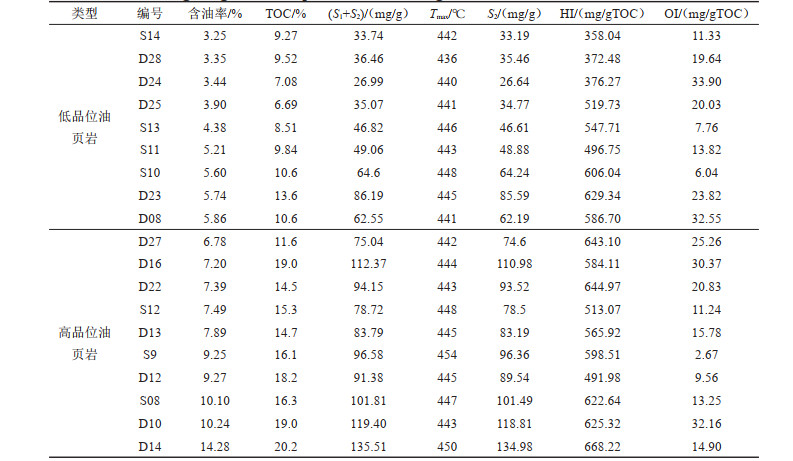

表 1 吉木萨尔地区芦草沟组油页岩有机地化参数
Table 1. Organic geochemical parameters of Lucaogou Formation oil shale in Jimusaer area
下载: 导出CSV

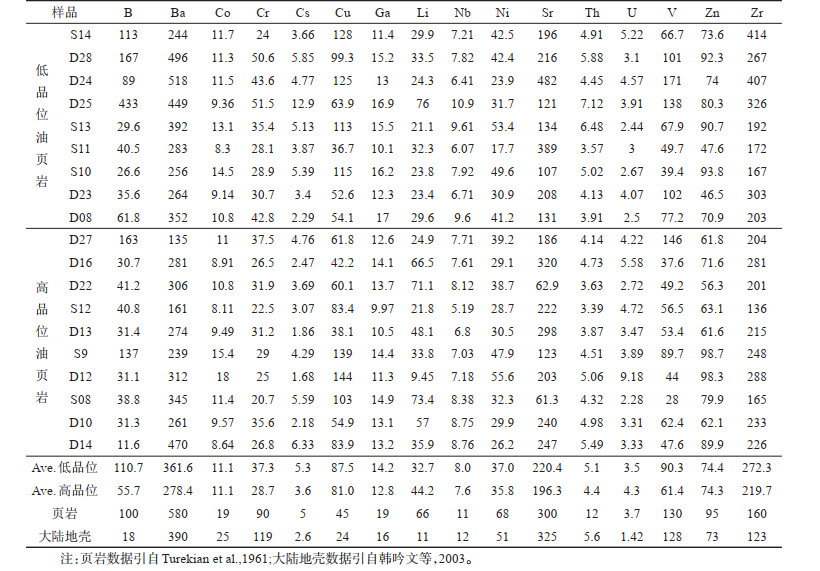

表 2 吉木萨尔地区油页岩微量元素(10-6)数据
Table 2. Trace elements contents (10-6) of oil shale in Jimusaer
下载: 导出CSV

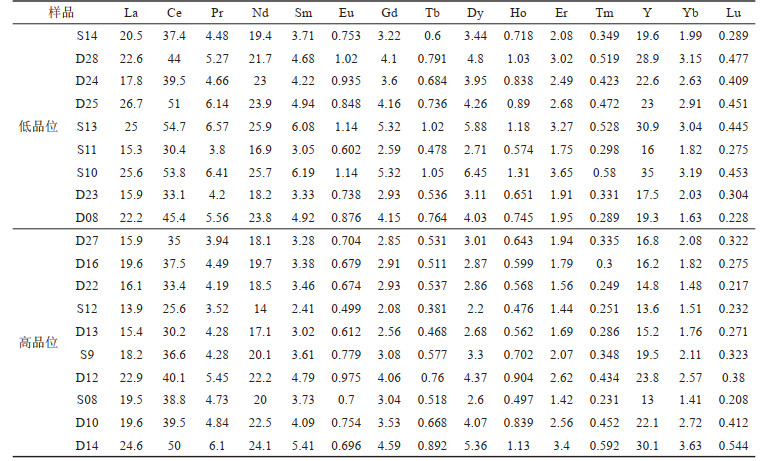

表 3 吉木萨尔地区油页岩稀土元素含量(10-6)
Table 3. Rare earth elements contents (10-6) of oil shale in Jimusaer
下载: 导出CSV

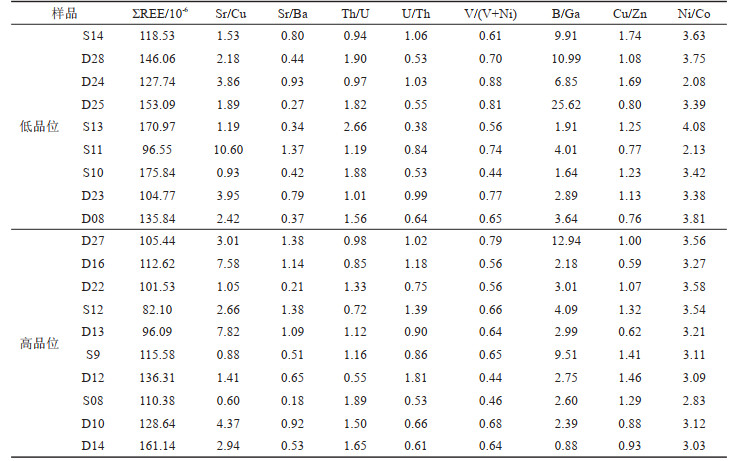

表 4 吉木萨尔地区油页岩成矿条件参数
Table 4. Parameter of metallogenic conditions of oil shale in Jimusaer
下载: 导出CSV
-
Bai Yunlai. 2008. Prospects for development of oil shale deposits in southeastern margin of Junggar Basin[J]. Xinjiang Petroleum Geology, 29(4): 462-465 (in Chinese with English abstract).
Carroll A R, Brassell S C, Graham S A. 1992. Upper Permian lacustrine oil shale of the southern Junggar Basin, northwest China[J]. AAPG, 76: 1874-1902.
Chen Zhiyong, Xiao Chuantao, Zhang Weidao, Liu Li. 2006. High resolution sequence stratigraphy of Cangfanggon Group in Jimusaer area[J]. Journal of Oil and Gas Technology, 28(2): 12-16 (in Chinese with English abstract).
Deng Hongwen, Qian Kai. 1993. Sedimentary Geochemistry and Environmental Analysis[M]. Gansu: Gansu Science and Technology Press (in Chinese).
Department of Geology, Nanjing University. 1979. Geochemistry[M]. Beijing: Science Press (in Chinese).
Department of Marine Geology, Tongji University. 1980. Identification Marks of Marine and Terrestrial Strata[M]. Beijing: Science Press (in Chinese).
Gao Yuan, Wang Yongli, He Daxiang, Meng Pei, Wu Yingqin, Wang Zixiang, Wang Gen, Zhang Hong, Gong Juncheng, Yang hui, Wang Youxiao. 2013. Shale gas potential and organic geochemical characteristics of oil shale in the southeast of Junggar Basin[J]. Natural Gas Geoscience, 24(6): 1196-1204 (in Chinese with English abstract).
Gao Zhiliang, Kang Yongshang, Liu Renhe, Bai Wenhua. 2011. Geological features and developmental controlling factors of lucaogou oil shale in the southern margin of Junngar Basin[J]. Xinjiang Geology 29(2): 75-79 (in Chinese with English abstract).
Guo Rui, Li Songchen, Qu Xiaorong. 2016. Review of geophysical logging technique for oil shale[J]. Sino-Global Energy, 46(4): 1090-1099 (in Chinese with English abstract).
Han Yinwen, Ma Zhendong, Zhang Hongfei, Zhang Benren, Li Fanglin, Gao Shan, Bao Zhengyu. 2003. Geochemistry[M]. Beijing: Geological Publishing House (in Chinese).
Jones B, Manning D A C. 1994. Comparison of geochemical indices used for the interpretation of palaeoredox conditions in ancient mudstones[J]. Chemical Geology, 111(1/4): 111-129.
Li Chengbo, Guo Wei, Song Yuqin, Du Jiangfeng. 2006. The genetic type of the oil shale at the northern foot of Bogeda Mountain, Xinjiang and prediction for favorable areas[J] Journal of Jilin University (Earth Science Edition), 36(6): 949-953 (in Chinese with English abstract).
Li Jingjing. 2009. Study on the Oil Shale Geochemistry of Permian Lucaogou Formation in the Northern Bogda Moutain[D]. Beijing: China University of Geosciences (Beijing) (in Chinese with English abstract).
Liu Chuanlian, Xu Jinli. 2002. Estimation method on productivity of oil-producing lake and a case study[J]. Acta Sedimentologica Sinica, 20(1): 144-150 (in Chinese with English abstract).
Liu Feng, Liu Zhaojun, Liu Rong, Meng Qingtao, Zhang Jian, Shi Jizhong, Du Jiangfeng. 2007. Geochemistry of oil shale from Jijuntun Formation of Eocene in Fushun Basin and its depositional environment[J]. Global Geology, 26 (4): 441-446 (in Chinese with English abstract).
Liu Rong, Liu Zhaojun, Liu Feng, Meng Qingtao, Shi Jizhong, Zhang Jian, Du Jiangfeng. 2008. High grade and low grade oil shale metallogenic mechanism of Eocene Jijuntun Formation in Fushun Basin[J]. Petroleum Geology and Oilfield Development in Daqing, 27(2): 47-49 (in Chinese with English abstract).
Liu Zhaojun, Yang Huling, Dong Qingshui, Zhu Jianwei, Guo Wei, Ye Songqing, Liu Rong, Meng Qingtao, Zhang Hailong, Gan Shucai. 2009. Oil Shale in China[M]. Beijing: Petroleum Industry Press (in Chinese with English abstract).
Liu Zhaojun, Sun Pingchang, Liu Rong, Meng Qingtao, Hu Fei. 2016. Research on oil shale features and metallogenic differences in Dunhua-Mishan Fault Zone Basins[J]. Journal of Jilin University (Earth Science Edition), 46(4): 1090-1099 (in Chinese with English abstract).
Ma Baolin, Wen Changqing. 1991. Formation and Evolution of Sediment and Resource of Combination Gas in Tarim Basin[M]. Beijing: Science Press (in Chinese).
Mclennan S M. 1995. Early Proterozoic crustal evolution: Geochemical and Nd, Pb isotopic evidence from metasedimentary rocks, southwestern North America[J]. Geochimica et Cosmochimica Acta, 59(6): 1153-1177. doi: 10.1016/0016-7037(95)00032-U
Miao Jianyu. 2001. The Depositional Environment of Permian System Hydrocarbon Source Rocks and Its Potential Hydrocarbon Generating Characteristics in Major Basins in North Xinjiang[D]. Xi'an: Northwest University (in Chinese with English abstract).
Peng Xuefeng, Wang Lijin, Jiang Liping. 2011. Analysis of sedimentary environment of the Permian Lucaogou Formation in southeastern margin of the Junggar Basin[J]. Journal of Xinjiang University (Natural Science Edition), 28(4): 395-400 (in Chinese with English abstract).
Peng Xuefeng, Wang Lijin, Jiang Liping. 2012. Geochemical characteristics of the Lucaogou Formation oil shale in the southeastern margin of the Junggar Basin and its environmetal implications[J]. Bulletin of Mineralogy, Petrology and Geochemistry, 31(2): 121-127 (in Chinese with English abstract).
Shang Fei, Zhou Haiyan, Liu Yong, Zhou Xuexian, Wang Lan, Bi He, Wang Guochang, Song Li, Chen Ruiqian. 2020. A discussion on the organic matter enrichment model of the Nenjiang Formation, Songliao Basin: A case study of oil shale in the 1st and 2nd members of the Nenjiang Formation[J]. Geology in China, 47(1): 236-248(in Chinese with English abstract).
Strategic Research Center of Oil and Gas Resources, MLR, Jilin University. 2010. Resource Evaluation of Oil Shale in China[M]. Beijing: China Land Press (in Chinese).
Tao S, Shan Y, Tang D, Xu H, Li S, Cui Y. 2016. Mineralogy, major and trace element geochemistry of Shichanggou oil shales, Jimusaer, Southern Junggar Basin, China: Implications for provenance, palaeoenvironment and tectonic setting[J]. Journal of Petroleum Science & Engineering, 146: 432-445.
Turekian K K, Wedepohl K H. 1961. Distribution of the elements in some major units of the Earth's crust[J]. Geochemistry, 72: 175-192.
Wang Dongying, Tang Dazhen, Gou Mingfu, Wang Feng, Tao Shu, Gao Guanfeng. 2007. Oil shale geology of Lucaogou Formation in Fukang Area on Southern Margin of Junggar Basin[J]. China Petroleum Exploration, (6): 18-22, 71 (in Chinese with English abstract).
Wang Suiji, Huang Xingzhen, Tuo Jincai, Shao Hongshun, Yan Cunfeng, Wang Shouqing, He Zurong. 1997. Evolutional characteristics and their paleoclimate significance of trace elements in the Hetaoyuan Formation, Biyang Depression[J]. Acta Sedimentologica Sinica, 15(1): 65-70 (in Chinese with English abstract).
Wang Yiran, Wu Tianqi, Tian Jijun, Yang Shuguang, Wang Changjiang, Zhang Guoqing, Wei Bo, Li Le, Fan Qi. 2016. Formation conditions and favorable exploration zones of shale gas on the southern margin of Junggar Basin[J]. Geology in China, 43(1): 288-297 (in Chinese with English abstract).
Wu Yaming. 2013. Logging recognition of oil shale[J]. China Petroleum and Chemical Standard and Quality, (15): 149-150 (in Chinese).
Xinjiang Bureau of Geo-exploration and Mineral Development. 1993. Regional Geology of Xinjiang Uygur Autonomous Region[M]. Beijing: Geological Publishing House (in Chinese).
Zhang Jiaqiang, Liu Zhixun, Qian Jialin, Liu Zhaojun, Li Shuyuan, Zhu Jianwei, Wang Dejie, Wang Jianqiu, Chen Huijun, Meng Qingtao, Xu Shengchuan, Liu Zhong, Wen Zhiliang, Zhang Xinan, Zhang Yingxin. Liu Rong. 2009. Feasibility of Developing Oil Shale Industry in China[M]. Beijing: Geological Publishing House (in Chinese).
Zheng Rongcai, Liu Meiqing. 1999. Study on palaeosalinity of Chang-6 oil reservoir set in Ordos Basin[J]. Oil and Gas Geology, 20(1): 20-25 (in Chinese with English abstract).
Zheng Yiding, Lei Yuhong, Zhang Liqiang, Wang Xiangzeng, Zhang Lixia, Jiang Chengfu, Chneg Ming, Yu Yuxi, Tian Fei, Sun Binghua. 2015. Characteristics of element geochemistry and paleo sedimentary environment evolution of Zhangjiatan shale in the southeast of Ordos Basin and its geological significance for oil and gas[J]. Natural Gas Geoscience, 26(7): 1395-1404 (in Chinese with English abstract).
Zhong Hongli, Pu Renhai, Yan Hua, Zhao Ming, Xu Jing. 2012. Analysis on paleosalinity and paleoenvironment of Late Paleozoic in Tarim Basin[J]. Journal of Northwest University (Natural Science Edition), 42(1): 74-81 (in Chinese with English abstract).
白云来. 2008. 准噶尔盆地东南缘油页岩的开发前景[J]. 新疆石油地质, 29(4): 462-465. https://www.cnki.com.cn/Article/CJFDTOTAL-XJSD200804016.htm
陈志勇, 肖传桃, 张伟道, 刘莉. 2006. 吉木萨尔地区仓房沟群高分辨率层序地层学研究[J]. 石油天然气学报, 28(2): 12-16. doi: 10.3969/j.issn.1000-9752.2006.02.004
邓宏文, 钱凯. 1993. 沉积地球化学与环境分析[M]. 甘肃: 甘肃科学技术出版社.
高苑, 王永莉, 何大祥, 孟培, 吴应琴, 王自翔, 汪亘, 张虹, 巩俊成, 杨辉, 王有孝. 2013. 准噶尔盆地东南缘油页岩有机地球化学特征及含气潜力[J]. 天然气地球科学, 24(6): 1196-1204. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX201306014.htm
高智梁, 康永尚, 刘人和, 拜文华. 2011. 准噶尔盆地南缘芦草沟组油页岩地质特征及主控因素[J]. 新疆地质, 29(2): 75-79.
郭睿, 李松臣, 屈晓荣. 2016. 油页岩地球物理测井方法技术综述[J]. 中外能源, 21(11): 35-43. https://www.cnki.com.cn/Article/CJFDTOTAL-SYZW201611008.htm
国土资源部油气资源战略研究中心, 吉林大学. 2010. 全国油页岩资源评价[M]. 北京: 中国大地出版社.
韩吟文, 马振东, 张宏飞, 张本仁, 李方林, 高山, 鲍征宇. 2003. 地球化学[M]. 北京: 地质出版社.
李成博, 郭巍, 宋玉勤, 杜江峰. 2006. 新疆博格达山北麓油页岩成因类型及有利区预测[J]. 吉林大学学报(地), 36(6): 949-953.
李婧婧. 2009. 博格达山北麓二叠系芦草沟组油页岩地球化学特征研究[D]. 北京: 中国地质大学(北京).
刘传联, 徐金鲤. 2002. 生油古湖泊生产力的估算方法及应用实例[J]. 沉积学报, 20(1): 144-150. doi: 10.3969/j.issn.1000-0550.2002.01.024
刘沣, 刘招君, 柳蓉, 孟庆涛, 张健, 史冀忠, 杜江峰. 2007. 抚顺盆地始新统计军屯组油页岩地球化学特征及其沉积环境. 世界地质, 26 (4): 441-446. doi: 10.3969/j.issn.1004-5589.2007.04.009
柳蓉, 刘招君, 刘沣, 孟庆涛, 史冀忠, 张健, 杜江峰. 2008. 抚顺盆地始新世计军屯组油页岩富矿成矿机制[J]. 大庆石油地质与开发, 27(2): 47-49. doi: 10.3969/j.issn.1000-3754.2008.02.013
刘招君, 杨虎林, 董清水, 朱建伟, 郭巍, 叶松青, 柳蓉, 孟庆涛, 张海龙, 甘树才. 2009. 中国油页岩[M]. 北京: 石油工业出版社, 99-102.
刘招君, 孙平昌, 柳蓉, 孟庆涛, 胡菲. 2016. 敦密断裂带盆地群油页岩特征及成矿差异分析. 吉林大学学报(地球科学版), 46(4): 1090-1099.
马宝林, 温常庆. 1991. 塔里木沉积岩形成演化与油气[M]. 北京: 科学出版社, 36-60.
苗建宇. 2001. 新疆北部主要盆地二叠系烃源岩沉积环境与生烃特征[D]. 西安: 西北大学.
南京大学地质学系. 1979. 地球化学[M]. 北京: 科学出版社.
彭雪峰, 汪立今, 姜丽萍. 2011. 准噶尔盆地东南缘二叠系芦草沟组沉积环境分析[J]. 新疆大学学报(自然科学版), 28(4): 395-400. doi: 10.3969/j.issn.1000-2839.2011.04.004
彭雪峰, 汪立今, 姜丽萍. 2012. 准噶尔盆地东南缘芦草沟组油页岩元素地球化学特征及沉积环境指示意义[J]. 矿物岩石地球化学通报, 31(2): 121-127. doi: 10.3969/j.issn.1007-2802.2012.02.004
商斐, 周海燕, 刘勇, 周学先, 王岚, 毕赫, 王国昌, 宋力, 陈睿倩. 2020. 松辽盆地嫩江组泥页岩有机质富集模式探讨——以嫩江组一、二段油页岩为例[J]. 中国地质, 47(1): 236-248. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20200119&flag=1
同济大学海洋地质系. 1980. 海、陆相地层辨认标志[M]. 北京: 科学出版社.
王东营, 汤达祯, 苟明福, 王烽, 陶树, 高冠峰. 2007. 准噶尔南缘阜康地区芦草沟组油页岩地质特征[J]. 中国石油勘探, 6: 18-22, 71. https://www.cnki.com.cn/Article/CJFDTOTAL-KTSY200706005.htm
王随继, 黄杏珍, 妥进才, 邵宏舜, 闫存凤, 王寿庆, 何祖荣. 1997. . 泌阳凹陷核桃园组微量元素演化特征及其古气候意义[J]. 沉积学报, 15(1): 65-70. https://www.cnki.com.cn/Article/CJFDTOTAL-CJXB701.011.htm
王怡然, 吴天琦, 田继军, 杨曙光, 王长江, 张国庆, 韦波, 李乐, 樊奇. 2016. 准噶尔盆地南缘页岩气形成条件与有利区预测[J]. 中国地质, 43(1): 288-297. doi: 10.3969/j.issn.1000-3657.2016.01.021 http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20160121&flag=1
吴雅明. 2013. 油页岩测井识别. 中国石油和化工标准与质量, (15): 149-150. doi: 10.3969/j.issn.1673-4076.2013.15.137
新疆维吾尔自治区地质矿产局. 1993. 新疆维吾尔自治区区域地质志[M]. 北京: 地质出版社.
张家强, 刘志逊, 钱家麟, 刘招君, 李术元, 朱建伟, 王德杰, 王剑秋, 陈会军, 孟庆涛, 许圣传, 刘忠, 温志良, 张新安, 张迎新, 柳蓉. 2009. 中国发展油页岩产业的可行性[M]. 北京: 地质出版社.
郑荣才, 柳梅青. 1999. 鄂尔多斯盆地长6油层组古盐度研究[J]. 石油与天然气地质, 20(1): 20-25. doi: 10.3321/j.issn:0253-9985.1999.01.005
郑一丁, 雷裕红, 张立强, 王香增, 张丽霞, 姜呈馥, 程明, 俞雨溪, 田飞, 孙兵华. 2015. 鄂尔多斯盆地东南部张家滩页岩元素地球化学、古沉积环境演化特征及油气地质意义[J]. 天然气地球科学, 26(7): 1395-1404.
钟红利, 蒲仁海, 闫华, 赵明, 许璟. 2012. 塔里木盆地晚古生代古盐度与古环境探讨[J]. 西北大学学报(自然科学版), 42(1): 74-81. doi: 10.3969/j.issn.1000-274X.2012.01.017
-
