Evaluation of Cambrian caprock in the platform-basin area of Tarim Basin and optimization of favorable area for oil and gas caprock
-
摘要:
研究目的 塔里木盆地台盆区中寒武统发育大面积的膏盐岩、膏质泥岩和膏质云岩地层，探讨该套地层的油气封盖能力和展布可为塔里木盆地寒武系盐下领域的勘探提供依据。
研究方法 对4口井的44个岩心样品进行镜下薄片、物性参数和突破压力测试。通过建立各参数之间的关系，定量地对研究区中寒武统不同岩性岩石的封盖能力进行评价；结合二维地震和14口钻井资料对研究区中寒武统膏盐岩、膏质泥岩和膏质云岩地层的厚度进行研究；最终综合研究区中寒武统微观和宏观的评价结果，并以实际钻井的勘探情况作为约束，建立针对该研究区盖层封盖能力的综合评价方式。
研究结果 研究结果认为膏盐岩相比膏质泥岩与膏质云岩具有更好的封盖能力，但断裂和石膏的埋藏地质条件会影响盖层的封盖能力。其中阿瓦提凹陷、塔中隆起北部、满西低凸起南部以及巴楚隆起中北部膏盐岩盖层厚度较大，以巴楚隆起北部为中心，膏盐岩厚度向四周呈不规则状递减，环绕状分布。
结论 认为阿瓦提凹陷、满西低凸起西部和南部、塔中隆起北部和西部，以及塔北隆起中部为盖层发育的有利区。
Abstract:This paper is the result of oil and gas exploration engineering.
Objective Gypsum-salt rocks, gypsum-bearing mudstone, and gypsum-bearing dolomite were extensively deposited in the platform-basin area of Tarim Basin during the Middle Cambrian. The study on the oil and gas sealing capacity and distribution of this set of strata can provide a basis for the exploration of the Cambrian subsalt field in the Tarim Basin.
Methods 44 core samples from 4 wells were studied under microscopic thin sections and tested for physical parameters and breakthrough pressure. Based on the relationship among physical parameters, the sealing ability of the Middle Cambrian rocks in the study area was quantitatively evaluated. Meanwhile, we studied the thicknesses of the Middle Cambrian gypsum-salt rocks, gypsum-bearing mudstone, and gypsum-bearing dolomite using two-dimensional seismic data and drilling data from 14 wells. The microscopic and macroscopic appraisals of Middle Cambrian successions are constrained by drilling data obtained during exploration. Finally, we proposed a comprehensive method to evaluate the sealing ability of the caprock.
Results The results suggest that gypsum-salt rocks have better sealing ability than gypsum-bearing mudstone and gypsum-bearing dolomite, but the faults and burial condition will affect the sealing ability of the caprock. It shows that the thicknesses of the gypsum caprocks are great in the Awati Depression, the north of the Tazhong Uplift, the south of the Manxi Low Uplift, and the middle and north of the Bachu Uplift. The thinness of gypsum is greatest in the Bachu Uplift and decreases unevenly towards the surrounding areas.
Conclusions The research results show that the Awati Depression, the West and south of Manxi Low Uplift, the north and west of Tazhong Uplift, and the middle of Tabei Uplift are favorable areas for the development of the caprock.
-
Key words:
- oil and gas /
- Middle Cambrian /
- gypsum salt rock /
- caprock /
- sealing ability /
- oil and gas exploration engineering /
- Tarim Basin
-
-

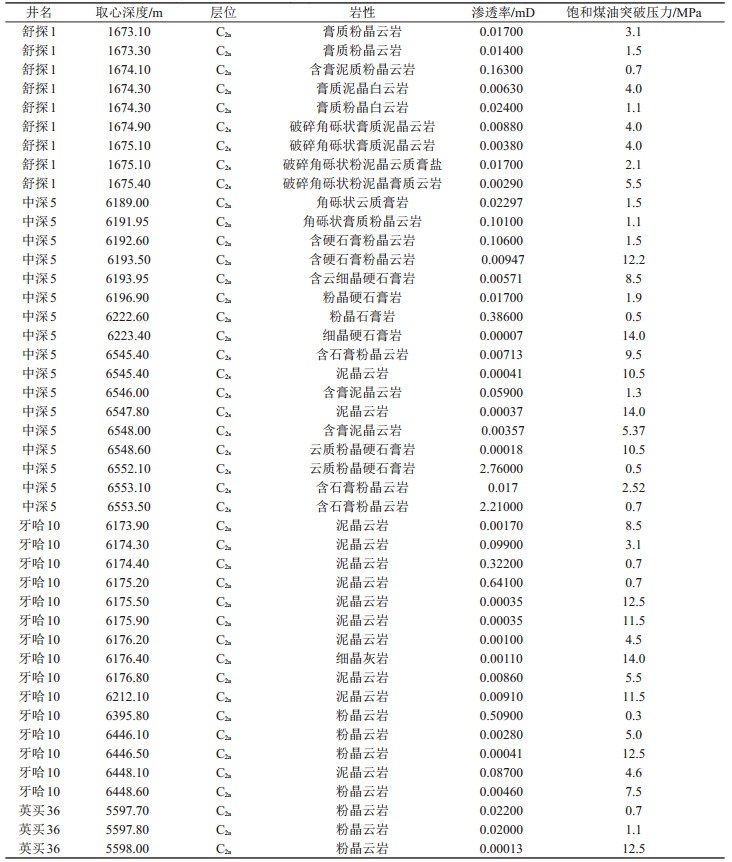

表 1 台盆区寒武系盖层渗透率及突破压力统计
Table 1. Permeability and breakthrough pressure statistics of Cambrian caprock in the Tarim Basin
下载: 导出CSV

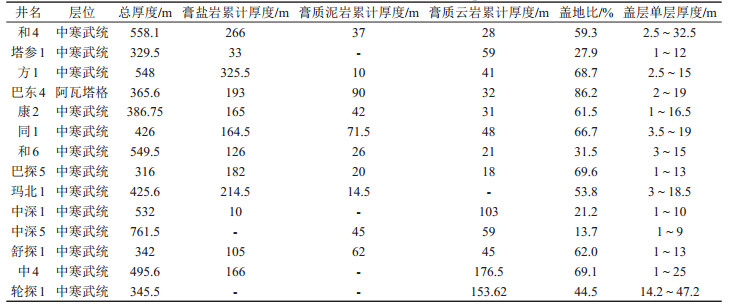

表 2 塔里木盆地台盆区中寒武统盖层厚度统计
Table 2. Thickness statistics of the Middle Cambrian caprock in Tarim Basin
下载: 导出CSV

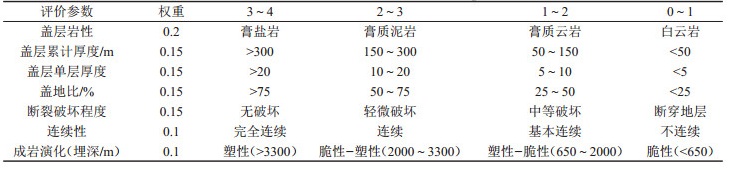

表 3 塔里木盆地台盆区中寒武统盖层封盖性综合定量评价
Table 3. Thickness statistics of the Middle Cambrian caprock in Tarim Basin
下载: 导出CSV

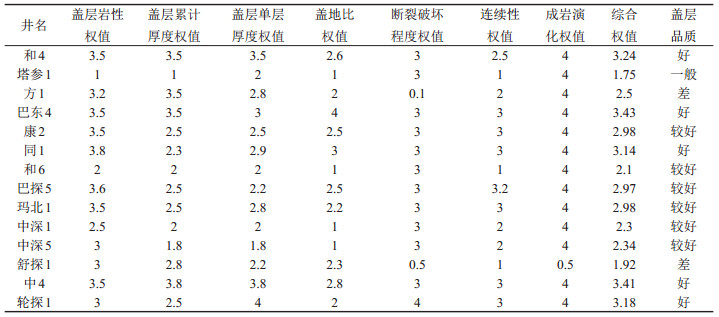

表 4 盖层封闭能力综合评价结果
Table 4. Thickness statistics of the Middle Cambrian caprock in Tarim Basin
下载: 导出CSV
-
Bai Zhongkai, Lü Xiuxiang, Song Zongxu, Qiu Haijun, Zhou Xingui, Gao Yongjin, Qi Yingmin, Zhu Lichun, Fu Xiaotao, Zhou Yuanyuan. 2019. Characteristics of boundary fault systems and its hydrocarbon controlling on hydrocarbon accumulation in Awati Sag, Tarim Basin, China[J]. China Geology, 2(1): 94-107. doi: 10.31035/cg2018095
Bai Zhongkai, Xie Li, Han Miao, Lü Xiuxiang, Sun Zhichao, Li Qingyao, Yang Youxing, Zhang Jinhu. 2018. Paleoproductivity conditions of lower member of Cambrian Xiaoerbulak Formation in Kalpin thrust belt, Tarim Basin[J]. Geology in China, 45(2): 227-236(in Chinese with English abstract).
Cai Xiyao, Mao Shuhua, Qian Yixiong, Chen Yue, You Donghua. 2009. Stratigraphic classification and correlation of Cambrian in Bachu Uplift, Tarim Basin[J]. Xinjiang Petroleum Geology, 30(1): 38-42(in Chinese with English abstract).
Chen Yongquan, Yan Wei, Han Changwei, Yang Pengfei, Li Zheng. 2015. Redefinition on structural paleogeography and lithofacies paleogeography framework from Cambrian to Early Ordovician in Tarim Basin: A new approach based on seismic stratigraphy evidence[J]. Natural Gas Geoscience, 26(10): 1831-1843(in Chinese with English abstract).
Deng Zuyou, Wang Shaochang, Jiang Zhenglong, Chen Zhaonian. 2000. Breaking pressure of gas caprocks[J]. Oil & Gas Geology, 21(2): 136-138(in Chinese with English abstract).
Downey M W. 1984. Evaluating seals for hydrocarbon accumulations[J]. AAPG Bulletin, 68: 1752-1763.
Du Jinhu, Pan Wenqing. 2016. Accumulation conditions and play targets of oil and gas in the Cambrian subsalt dolomite, Tarim Basin, NW China[J]. Petroleum Exploration and Development, 43(3): 327-339(in Chinese with English abstract).
Fu Guang, Chen Zhangming, Jiang Zhenxue. 1995. Research method on capillary sealing ability of caprocks[J]. China Offshore Oil and Gas, 9(2): 83-88(in Chinese with English abstract).
Fu Guang, Wang Biao, Shi Jijian. 2014. Comprehensive quantitative evaluation method of sealing oil-gas ability of caprock and its application[J]. Journal of Zhejiang University (Engineering Science), 48(1): 174-179(in Chinese with English abstract).
Fu Xiaofei, Jia Ru, Wang Haixue, Wu Tong, Meng Lingdong, Sun Yonghe. 2015. Quantitative evaluation of fault-caprock sealing capacity: A case from Dabei-Kelasu structural belt in Kuqa Depression, Tarim Basin, NW China[J]. Petroleum Exploration and Development, 42(3): 300-309(in Chinese with English abstract).
Fu Xiaofei, Wu Tong, Lyu Yanfang, Liu Shaobo, Tian Hua, Lu Mingxu. 2018. Research status and development trend of the reservoir caprock sealing properties[J]. Oil & Gas Geology, 39(3): 454-471(in Chinese with English abstract).
Gao Zhiqian, Fan Tailiang, Yin Hui, Zhang Xiaolong, Wang Enhui. 2011. Extensional tectonic characteristics and its sedimentary response of Early-Middle Cambrian in Tarim Basin[J]. Journal of Southwest Petroleum University, 33(3): 83-88 (in Chinese with English abstract).
Hu Aiqin, Jahn Bor-ming, Zhang Guoxin, Chen Yibing, Zhang Qianfeng. 2000. Crustal evolution and Phanerozoic crustal growth in northern Xinjiang: Nd isotopic evidence. Part Ⅰ. Isotopic characterization of basement rocks[J]. Tectonophysics, 328(1/2): 15-51.
Huang Zhilong, Hao Shisheng. 1994. A method of estimating breakthrough pressure and displacement pressure of caprock[J]. Xinjiang Petroleum Geology, 15(1): 163-166(in Chinese with English abstract).
Jia Chengzao. 1999. Structural characteristics and oil/gas accumulative regularity in Tarim Basin [J]. Xinjiang Petroleum Geology, 20(3): 177-183(in Chinese with English abstract).
Jiang Youlu. 1998. A discussion on the relation between the cap rock thickness of oil & gas reservoir and its hydrocarbon column height[J]. Natural Gas Industry, 18(2): 20-23(in Chinese with English abstract).
Jin Zhijun, Zhou Yan, Yun Jinbiao, Sun Dongsheng, Long Shengxiang. 2010. Distribution of gypsum-salt cap rock and near-term hydrocarbon exploration targets in the marine sequences of China[J]. Oil & Gas Geology, 31(6): 715-724(in Chinese with English abstract).
Li Yonghao, Cao Jian, Hu Wenxuan, Lu Xiancai, Fan Ming, Zhang Dianwei, Hong Dongdong. 2016. Research advances on hydrocarbon sealing properties of gypsolyte/saline rocks[J]. Oil & Gas Geology, 37(5): 634-643(in Chinese with English abstract).
Liao Xiao, Wang Zhenliang, Fan Changyu, Yu Changqing, Yu Zhuyu. 2019. Quantitativecharacterization of sealing integrity by caprock of Paleocene Artashi Formation gypsolyte rock in Kashi Sag of Tarim Basin, NW China[J]. Journal of Central South University, 26(3): 695-710. doi: 10.1007/s11771-019-4040-8
Lin Tong, Wang Tongshan, Pan Wenqing, Yuan Wenfang, Li Qiuwen, Ma Wei. 2019a. The evolution of the sealing effectiveness of the gypsum during the burial process[J]. Oil & Gas Geology, http://kns.cnki.net/kcms/detail/11.4820.TE.20191213.1118.002.html.
Lin Tong, Wang Xiaoming, Zhang Lu, Zeng Xu, Zhang Shuai, Cheng Yuzong. 2019b. Experimental analysis of the effect of caprock thickness on sealed natural gas[J]. Natural Gas Geoscience, 30(3): 322-330(in Chinese with English abstract).
Liu Dongying. 2010. Characteristics of break through pressure of Mesozoic-Paleozoic cover in Jiangsu Lower Yangtze area[J]. Petroleum Geology & Experiment, 32(4): 362-365(in Chinese with English abstract).
Long Xiaoping, Yuan Chao, Sun Min, Kröner Alfred, Zhao Guochun, Wilde Simon, Hu Aiqin. 2011. Reworking of the Tarim Craton by under plating of mantle plume-derived magmas: Evidence from Neoproterozoic granitoids in the Kuluketage area, NW China[J]. Precambrian Research, 187(1/2) : 1-14.
Lu Xuesong, Jiang Youlu, Song Yan. 2007. Influence of mechanical properties and stress state of caprock on its sealing performance: taking Kela-2 gas field as an example[J]. Natural Gas Industry, 27(8): 48-51(in Chinese with English abstract).
Lü Xiuxiang, Jin Zhijun, Zhou Xinyuan, Pi Xuejun. 2000. Oil and gas accumulation related to evaporaterocks in Kuqa Depression of Tarim Basin[J]. Petroleum Exploration and Development, 27(4): 20-21(in Chinese with English abstract).
Lü Xiuxiang, Qu Yiqian, Yu Hongfeng, Lan Xiaodong. 2014. Sealing capacity of carbonate cap rocks: A case study of Ordovician in northern slope of central Tarim Basin[J]. Petroleum Geology & Experiment, 36(5): 532-538(in Chinese with English abstract).
Lü Yanfang, Fu Guang, Yu Dan. 2005. Comprehensive evaluation of sealing ability of cap rock in China's large and medium gas fields and their contribution to gas accumulation[J]. Oil & Gas Geology, 26(6): 742-745(in Chinese with English abstract).
Lü Yanfang, Zhang Shaochen, Wang Yaming. 2000. Research of quantitative relations between sealing ability and thickness of cap rock[J]. Acta Petrolei Sinica, 21(2): 27-30(in Chinese with English abstract).
Nygard R, Gutierrez M, Bratli R K. 2006. Brittle-ductile transition, shear failure and leakage in shales and mudrocks[J]. Marine and Petroleum Geology, 23: 201-212. doi: 10.1016/j.marpetgeo.2005.10.001
Shen Anjiang, Zheng Jianfeng, Chen Yongquan, Ni Xinfeng, Huang Lili. 2016. Characteristics, origin and distribution of dolomite reservoir in Lower-Middle Cambrian, Tarim Basin, NW China[J]. Petroleum Exploration and Development, 43(3): 340-349(in Chinese with English abstract).
Tian Lei, Cui Haifeng, Liu Jun, Zhang Nianchun, Shi Xiaoqian. 2018. Early-Middle Cambrian paleogeography and depositional evolution of Tarim Basin[J]. Oil & Gas Geology, 39(5): 171-181(in Chinese with English abstract).
Wang Tingbin. 2005. Distribution of large middle sized gas fields in China: Geological characteristics and key controlling factors[J]. Petroleum Exploration and Development, 32(4): 1-8(in Chinese with English abstract).
Wang Zhaoming, Xie Huiwen, Chen Yongquan, Qi Yingmin, Zhang Ke. 2014. Discovery and exploration of Cambrian subsalt dolomite original hydrocarbon reservoir at Zhongshen-1 well in Tarim Basin[J]. China Petroleum Exploration, 19(2): 5-17(in Chinese with English abstract).
Watts N L. 1987. Theoretical aspects of cap-rock and fault seals for single and two-phase hydrocarbon columns[J]. Marine and Petroleum Geology, 4(4): 274-307. doi: 10.1016/0264-8172(87)90008-0
Xiong Jianfei, Yu Tengxiao, Cao Zicheng, Zhao Ming, Fan Huaiyang, Wu Tao. 2011. New advances in Cambrian Biostratigraphy of the covered area of the Tarim Basin[J]. Journal of Stratigraphy, 35(4): 419-430(in Chinese with English abstract).
Yang Chuanzhong, Liu Xin. 1991. A study of carbonate of oil and gas[J]. Natural Gas Industry, 11(6): 17-23(in Chinese with English abstract).
Yang Haijun, Chen Yongquan, Tian Jun, Du Jinhu, Zhu Yongfeng, Li Honghui, Pan Wenqing, Yang Pengfei, Li Yong, An Haiting. 2020. Great discovery and its significance of ultra-deep oil and gas exploration in wellLuntan-1 of the Tarim Basin[J]. China Petroleum Exploration, 25(2): 62-72(in Chinese with English abstract).
Yang Haijun. 2015. Exploration knowledge and direction of Lower Proterozoic inner dolostones, Tarim Basin[J]. Natural Gas Geoscience, 26(7): 1213-1223(in Chinese with English abstract).
Yi Shiwei, Li Mingpeng, Guo Xujie, Yang Fan, Miao Weidong, Lin Shiguo, Gao Yang. 2019. Breakthrough direction of Cambrian pre-salt exploration fields in Tarim Basin[J]. Acta Petrolei Sinica, 40(11): 1281-1295(in Chinese with English abstract).
Yu Haibo, Qi Jiafu, Shi Jun, Wu Chao, Zhang Wei, Fan Sheng, Sun Tong, Yang Xiangyang. 2015. Basement fault activities have influenced on caprock tectonic deformation in Kuqa Depression[J]. Chinese Journal of Geology, 50(1): 50-62(in Chinese with English abstract).
Zhang Jizhi, Wang Zhaoming, Yang Haijun, Xu Zhiming, Xiao Zhongyao, Li Zhongxuan. 2017. Origin and differential accumulation of hydrocarbons in Cambrian sub-salt dolomite reservoir in Zhongshen Area, Tarim Basin, NW China[J]. Petroleum Exploration and Development, 44 (1) : 40-47 (in Chinese with English abstract). doi: 10.1016/S1876-3804(17)30006-X
Zhang Linye, Bao Shuyou, Liu Qing, Zhang Shouchun, Zhu Rifang, Zhang Lei. 2010. Effects of hydrocarbon physical properties on caprock's capillary sealing ability[J]. Scientia Science(Terrae), 40(1): 28-33(in Chinese with English abstract).
Zhang Yanqiu, Guo Zenghui, Chen Daizhao. 2020. Porosity distribution in cyclic dolomites of the Lower Qiulitag Group (Upper Cambrian) in northwestern Tarim Basin, China[J]. China Geology, 3(3): 425-444.
Zhao Qingbo, Yang Jinfeng. 1994. A preliminary discussion on the types of cap rocks in Chinese gas reservoir and their control on the gas accumulation[J]. Petroleum Exploration and Development, 21(3): 15-26(in Chinese with English abstract).
Zhou Xiaobei, Li Jianghai, Fu Chenjian, Li Wenshan, Wang Honghao. 2012. A discussions on the Cryogenian-Cambrian tectonic-sedimentary event and tectonic setting of northern Tarim Basin[J]. Geology in China, 39(4): 900-911(in Chinese with English abstract).
Zhou Yan, Jin Zhijun, Zhu Dongya, Yuan Yusong, Li Shuangjian. 2012. Current status and progress in research of hydrocarbon cap rocks[J]. Petroleum Geology & Experiment, 34(3): 234-251(in Chinese with English abstract).
Zhu Yongjin, Shen Anjiang, Liu Lingli, Chen Yongquan, Yu Guang. 2020. Tectonic-sedimentary filling history through the Later Sinian to the Mid-Cambrian in Tarim Basin and its explorational potentical[J]. Acta Sedimentologica Sinica, 38(2): 398-410(in Chinese with English abstract).
白忠凯, 谢李, 韩淼, 吕修祥, 孙智超, 李清瑶, 杨有星, 张金虎. 2018. 塔里木盆地柯坪地区寒武系肖尔布拉克组下段古生产力研究[J]. 中国地质, 45(2): 227-236 http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20180202&flag=1
蔡习尧, 毛树华, 钱一雄, 陈跃. 尤东华. 2009. 塔里木盆地巴楚隆起寒武系划分与对比[J]. 新疆石油地质, 30(1): 38-42. https://www.cnki.com.cn/Article/CJFDTOTAL-XJSD200901013.htm
陈永权, 严威, 韩长伟, 杨鹏飞, 李峥. 2015. 塔里木盆地寒武纪—早奥陶世构造古地理与岩相古地理格局再厘定——基于地震证据的新认识[J]. 天然气地球科学, 26(10): 1831-1843. doi: 10.11764/j.issn.1672-1926.2015.10.1831
邓祖佑, 王少昌, 姜正龙, 陈昭年. 2000. 天然气封盖层的突破压力[J]. 石油与天然气地质, 21(2): 136-138. doi: 10.3321/j.issn:0253-9985.2000.02.011
杜金虎, 潘文庆. 2016. 塔里木盆地寒武系盐下白云岩油气成藏条件与勘探方向[J]. 石油勘探与开发, 43(3): 327-339. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK201603003.htm
付广, 陈章明, 姜振学. 1995. 盖层物性封闭能力的研究方法[J]. 中国海上油气: 地质, 9(2) : 83-88. https://www.cnki.com.cn/Article/CJFDTOTAL-ZHSD199502003.htm
付广, 王彪, 史集建. 2014. 盖层封盖油气能力综合定量评价方法及应用[J]. 浙江大学学报: 工学版, 48(1): 174-179. https://www.cnki.com.cn/Article/CJFDTOTAL-ZDZC201401027.htm
付晓飞, 贾茹, 王海学, 吴桐, 孟令东, 孙永河. 2015. 断层-盖层封闭性定量评价-以塔里木盆地库车坳陷大北-克拉苏构造带为例[J]. 石油勘探与开发, 42(3): 300-309. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK201503007.htm
付晓飞, 吴桐, 吕延防, 柳少波, 田华, 卢明旭. 2018. 油气藏盖层封闭性研究现状及未来发展趋势[J]. 石油与天然气地质, 39(3): 454-471. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201803005.htm
高志前, 樊太亮, 尹微, 张晓龙, 王恩辉. 2011. 塔里木盆地早中寒武世张裂构造及沉积响应[J]. 西南石油大学学报(自然科学版), 33(3): 83-88. doi: 10.3863/j.issn.1674-5086.2011.03.013
黄志龙, 郝石生. 1994. 盖层突破压力及排替压力的求取方法[J]. 新疆石油地质, 15(1): 163-166. https://www.cnki.com.cn/Article/CJFDTOTAL-XJSD402.011.htm
贾承造. 1999. 塔里木盆地构造特征与油气聚集规律[J]. 新疆石油地质, 20(3): 177-183. doi: 10.3969/j.issn.1001-3873.1999.03.001
蒋有录. 1998. 油气藏盖层厚度与所封盖烃柱高度关系问题探讨[J]. 天然气工业, 18(2) : 20-23. doi: 10.3321/j.issn:1000-0976.1998.02.007
金之钧, 周雁, 云金表, 孙冬胜, 龙胜祥. 2010. 我国海相地层膏盐岩盖层分布与近期油气勘探方向[J]. 石油与天然气地质, 31(6): 715-724. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201006007.htm
李永豪, 曹剑, 胡文瑄, 陆现彩, 范明, 张殿伟, 洪东东. 2016. 膏盐岩油气封盖性研究进展[J]. 石油与天然气地质, 37(5): 634-643. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201605004.htm
林潼, 王铜山, 潘文庆, 袁文芳, 李秋芬, 马卫. 2021. 埋藏过程中膏岩封闭有效性演化特征—以塔里木盆地寒武系深层膏岩盖层为例[J]. 石油与天然气地质, 42(6): 1354-1364. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT202106010.htm
林潼, 王孝明, 张璐, 曾旭, 张帅, 程煜宗. 2019. 盖层厚度对天然气封闭能力的实验分析[J]天然气地球科学, 30(3): 322-330. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX201903003.htm
刘东鹰. 2010. 江苏下扬子区中—古生界盖层突破压力特征[J]. 石油实验地质, 32(4): 362-365. doi: 10.3969/j.issn.1001-6112.2010.04.011
鲁雪松, 蒋有录, 宋岩. 2007. 盖层力学性质及其应力状态对盖层封闭性能的影响——以克拉2气田为例[J]. 天然气工业, 27(8): 48-51. doi: 10.3321/j.issn:1000-0976.2007.08.014
吕修祥, 金之钧, 周新源, 皮学军. 2000. 塔里木盆地库车坳陷与膏盐岩相关的油气聚集[J]. 石油勘探与开发, 27(4): 20-21. doi: 10.3321/j.issn:1000-0747.2000.04.004
吕修祥, 屈怡倩, 于红枫, 兰晓东. 2014. 碳酸盐岩盖层封闭性讨论——以塔里木盆地塔中北斜坡奥陶系为例[J]. 石油实验地质, 36(5): 532-538. https://www.cnki.com.cn/Article/CJFDTOTAL-SYSD201405003.htm
吕延防, 付广, 于丹. 2005. 中国大中型气田盖层封盖能力综合评价及其对成藏的贡献[J]. 石油与天然气地质, 26(6): 742-745. doi: 10.3321/j.issn:0253-9985.2005.06.007
吕延防, 张绍臣, 王亚明. 2000. 盖层封闭能力与盖层厚度的定量关系[J]. 石油学报, 21(2) : 27-30. doi: 10.3321/j.issn:0253-2697.2000.02.005
沈安江, 郑剑锋, 陈永权, 倪新锋, 黄理力. 2016. 塔里木盆地中下寒武统白云岩储集层特征、成因及分布[J]. 石油勘探与开发, 43(3): 340 -349. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK201603004.htm
田雷, 崔海峰, 刘军, 张年春, 石小茜. 2018. 塔里木盆地早、中寒武世古地理与沉积演化[J]. 石油与天然气地质, 39(5): 171-181. https://www.cnki.com.cn/Article/CJFDTOTAL-SYYT201805016.htm
王庭斌. 2005. 中国大中型气田分布的地质特征及主控因素[J]. 石油勘探与开发, 32(4): 1-8. doi: 10.3321/j.issn:1000-0747.2005.04.001
王招明, 谢会文, 陈永权, 齐英敏, 张科. 2014. 塔里木盆地中深1井寒武系盐下白云岩原生油气藏的发现与勘探意义[J]. 中国石油勘探, 19(2): 5-17. https://www.cnki.com.cn/Article/CJFDTOTAL-KTSY201402001.htm
熊剑飞, 余腾孝, 曹自成, 赵明, 樊怀阳, 武涛. 2011. 塔里木盆地覆盖区寒武系生物地层研究新进展[J], 地层学杂志, 35(4): 419-430. https://www.cnki.com.cn/Article/CJFDTOTAL-DCXZ201104014.htm
杨传忠, 刘鑫. 1991. 碳酸盐岩油气盖层研究[J]. 天然气工业, 11(6): 17-23. https://www.cnki.com.cn/Article/CJFDTOTAL-TRQG199106003.htm
杨海军, 陈永权, 田军, 杜金虎, 朱永峰, 李洪辉, 潘文庆, 杨鹏飞, 李勇, 安海亭. 2020. 塔里木盆地轮探1井超深层油气勘探重大发现与意义[J]. 中国石油勘探, 25(2): 62-72. doi: 10.3969/j.issn.1672-7703.2020.02.007
杨海军. 2015. 塔里木盆地下古生界内幕白云岩勘探认识与勘探方向[J]. 天然气地球科学, 26(7): 1213-1223. https://www.cnki.com.cn/Article/CJFDTOTAL-TDKX201507002.htm
易士威, 李明鹏, 郭绪杰, 杨帆, 缪卫东, 林世国, 高阳. 2019. 塔里木盆地寒武系盐下勘探领域的重大突破方向[J]. 石油学报, 40(11): 1281-1295. doi: 10.7623/syxb201911001
余海波, 漆家福, 师骏, 吴超, 张玮, 范绳, 孙统, 杨向阳. 2015. 库车坳陷盐下构造对盐上盖层变形的影响因素分析[J]. 地质科学, 50(1): 50-62. doi: 10.3969/j.issn.0563-5020.2015.01.003
张纪智, 王招明, 杨海军, 徐志明, 肖中尧, 李中璇. 2017. 塔里木盆地中深地区寒武系盐下白云岩油气来源及差异聚集[J]. 石油勘探与开发, 44 (1) : 40-47. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK201701006.htm
张林晔, 包友书, 刘庆, 张守春, 朱日房, 张蕾. 2010. 盖层物性封闭能力与油气流体物理性质关系探讨[J]. 中国科学(D)辑: 地球科学, 40(1): 28-33. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201001003.htm
赵庆波, 杨金凤. 1994. 中国气藏盖层类型初探[J]. 石油勘探与开发, 21(3): 15-26. https://www.cnki.com.cn/Article/CJFDTOTAL-SKYK403.002.htm
周肖贝, 李江海, 傅臣建, 李文山, 王洪浩. 2012. 塔里木盆地北缘南华纪—寒武纪构造背景及构造-沉积事件探讨[J]. 中国地质, 39(4): 900-911. doi: 10.3969/j.issn.1000-3657.2012.04.005 http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20120405&flag=1
周雁, 金之钧, 朱东亚, 袁玉松, 李双建. 2012. 油气盖层研究现状与认识进展[J]. 石油实验地质, 34(3): 234-251. doi: 10.3969/j.issn.1001-6112.2012.03.002
朱永进, 沈安江, 刘玲利, 陈永权, 俞广. 2020. 塔里木盆地晚震旦世—中寒武世构造沉积充填过程及油气勘探地位[J], 沉积学报, 38(2): 398-410. https://www.cnki.com.cn/Article/CJFDTOTAL-CJXB202002014.htm
-
图(8)
表(4)
