Zircon U-Pb ages and Hf isotopic compositions of volcanic rocks in Eastern Liuzhou, Guangxi: Constraint for source characteristics of magmas
-
摘要:
研究目的 柳东地区位于右江盆地东缘，近年来该地区早三叠世石炮组中首次发现一套火山岩夹层，为研究盆地东缘的构造演化特征提供了重要依据。
研究方法 本文以新发现的柳东地区火山岩为研究对象，通过LA-ICP-MS锆石U-Pb年龄及Hf同位素分析，研究右江盆地东缘火山岩的形成时代及岩浆源区特征。
研究结果 结果表明，火山岩的岩性为凝灰岩-凝灰质熔岩-凝灰质火山角砾岩组合，指示了典型的火山岩特征。其2件凝灰岩样品中锆石LA-ICP-MS U-Pb加权平均年龄分别为(244.0±1.9)Ma和(247.1±0.9)Ma，锆石微量元素（U、Th、Hf、Nb）表现出大陆岩浆弧属性特征。锆石Hf同位素结果显示εHf(t)为-13.2~-1.2，二阶段模式年龄（TDMC）为1.35~2.06 Ga，其岩浆源区主要为地壳物质，平均地壳存留年龄为1.7~2.06 Ga。
结论 该火山岩夹层与其所出露的地层时代基本相符，属于早三叠世末期—中三叠世早期火山喷发产物，火山岩形成于火山弧-同碰撞的构造环境，代表了弧后盆地的沉积环境，与印支期古特提斯洋的闭合相关。该成果为古特提斯构造域的演化研究提供了新的基础资料，具有重要意义。
Abstract:This paper is the result of geological survey engineering.
Objective Eastern Liuzhou is located in the eastern margin of Youjiang Basin. In recent years, a set of volcanic rock interlayer has been found in the Early Triassic Shipao Formation in the eastern Liuzhou for the first time, which provides an important basis for studying the tectonic evolution of the eastern margin of the Youjiang Basin.
Methods Taking the newly discovered volcanic rocks in Eastern Liuzhou as the research object, this paper investigates the formation age and magmatic source characteristics of the volcanic rocks in the eastern margin of the Youjiang Basin through LA-ICP-MS zircon U-Pb age and Hf isotope analysis.
Results The results show that the volcanic rocks are composed of tuff, tuff lava, and tuffaceous volcanic breccia, showing typical characteristics of volcanic rock. LA-ICP-MS zircon U-Pb age dating results show that the weighted mean ages of zircon in the two tuff samples are (244.0±1.9) Ma and (247.1±0.9) Ma respectively. The trace elements (U, Th, Hf, Nb) compositions of zircon show the characteristics of continental magma arcs-derived zircons. The zircon have εHf(t) values of -13.2--1.2, with second-stage model ages (TDMC) of 1.35-2.06 Ga, suggesting that their magma source is mainly crustal materials, with average crustal residual age of 1.7-2.06 Ga.
Conclusions The timing volcanic rock interlayer is basically consistent with the stratigraphic age of the Early Triassic Shipao Formation, and are the product of volcanic eruption during the late Early Triassic to the early Middle Triassic. The volcanic rocks were formed in volcanic arc-related, syn-collisional tectonic setting, which is the representative of the sedimentary environment of back-arc basin, and is related to the closure of the paleo-Tethys during the Indosinian period. This outcome provides new and crucial information for a better understanding the tectonic evolution of the paleo-Tethys.
-
-

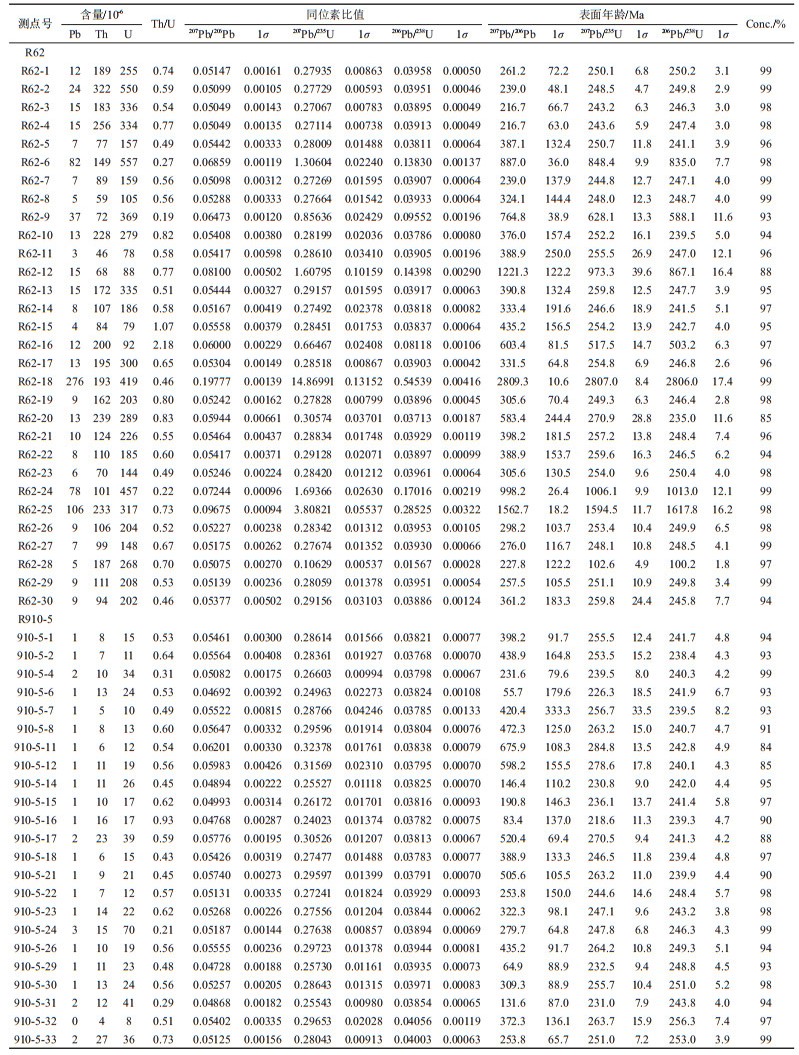

表 1 柳东地区火山岩的LA-ICP-MS锆石U-Th-Pb分析结果
Table 1. U-Th-Pb LA-ICP-MS data of zircon from volcanic rocks in Liudong area
下载: 导出CSV
表 2 柳东地区火山岩锆石Hf同位素数据
Table 2. Zircon Hf isotopic compositions of volcanic rocks in Liudong area
下载: 导出CSV
-
Blichert-Toft J, Albarede F. 1997. The Lu-Hf geochemistry of chondrites and the evolution of the mantle-crust system[J]. Earth Planet Sci. Lett., 148: 243-258. doi: 10.1016/S0012-821X(97)00040-X
Cai J X, Zhang K J. 2009. A new model for the Indochina and South China collision during the Late Permian to the Middle Triassic[J]. Tectonophysics, 467(1-4): 35-43. doi: 10.1016/j.tecto.2008.12.003
Chen Conglin, Shi Xiaoying. 2006. Sedimentary and tectonic evolution of Late Paleozoic deep-water strata in the Youjiang basin[J]. Geology in China, 33(2): 436-443(in Chinese with English abstract).
Griffin W L, Wang X, Jackson S E, Pearson N J, O'Reilly S Y, Xu X. 2002. Zircon chemistry and magma mixing, SE China: In-situ analysis of Hf isotopes, Tonglu and Pingtan igneous complexes[J]. Lithos, 61(3): 237-269.
Hoa T T, Izokh A E, Polyakov G V, Borisenko A S, Anh T T, Balykin P A, Phuong N T, Rudnev S N, Van V V, Nien B A. 2008. Permo-triassic magmatism and metallogeny of northern Vietnam in relation to the emeishan plume[J]. Russian Geology & Geophysics, 49(7): 480-491.
Hu Lisha, Du Yuansheng, Yang Jianghai, Huang Hu, Huang Hongwei, Huang Zhiqiang. 2012. Geochemistry and tectonic significance of Middle Triassic volcanic rocks in Nalong, Guangxi Area[J]. Geological Review, 58(3): 481-494(in Chinese with English abstract).
Huang Hu, Du Yuansheng, Huang Zhiqiang, Yang Jianghai, Huang Hongwei, Xie Chunxia, Hu Lisha. 2013. Depositional chemistry of chert during late Paleozoic from western Guangxi and its implication for the tectonic evolution of the Youjiang Basin[J]. Science China: Earth Sciences, 43(2): 304-316 (in Chinese).
Li Xianhua, Zhou Hanwen, Ding Shijiang, Li Jiyu, Zhang Renjie, Zhang Yeming, Ge Wenchun. 2000. Sm-Nd isotopic constraints on the age of the Bangxi-Chenxing ophiolite in Hainan Island: Implications for the tectonic evolution of eastern Paleo-Tethys[J]. Acta Petrologica Sinica, 16 (3): 425-432(in Chinese with English abstract).
Liang Jincheng, Deng Jixin, Chen Maohong, Jiang Bochang, Zhu Jijiao. 2001. The Early Triassic intermediate-acid volcanics and its tectonic environment in southwestern Guangxi[J]. Geotectonica et Metallogenia, 25(2): 141-148 (in Chinese with English abstract).
Machado N, Simonetti A. 2001. U-Pb dating and Hf isotopic composition of zircon by laser-ablation MC-ICP-MS[C]//Sylvester P(ed. ). Laser Ablation-ICPMS in the Earth Sciences: Principles and applications. Mineralogical Association of Canada, St. John's, Newfoundland: 121-146.
Pan Guitang, Chen Zhiliang, Li Xingzhen, Xu Qiang, Jiang Xinsheng. 1996. Models for the evolution of the polyarcbasin systems in eastern Tethys[J]. Lithofacies and Ancient Geography, 16(2): 52-65.
Peng Songbo, Liu Songfeng, Lin Musen, Wu Changfeng, Han Qingsen. 2016. Early Paleozoic Subduction in Cathaysia(Ⅰ): New evidence from the Nuodong ophiolite[J]. Earth Science, 41(5): 765-778(in Chinese with English abstract).
Peng Songbo, Liu Songfeng, Lin Musen, Wu Changfeng, Han Qingsen. 2016. Early Paleozoic Subduction in Cathaysia(Ⅱ): New evidence from the Dashuang high magnesian-magnesian andesite[J]. Earth Science, 41(6): 931-947(in Chinese with English abstract).
Qin Xiaofeng, Wang Zongqi, Gong Jianghua, Zhao Guiying, Shi Hao, Zhan Junyan, Wang Zhen. 2017. The confirmation of Caledonian intermediate-mafic volcanic rocks in northern margin of Yunkai block: Evidence for early Paleozoic paleo-ocean basin in southwestern segment of Qinzhou-Hangzhou joint belt[J]. Acta Petrologica Sinica, 33(3): 791-809(in Chinese with English abstract).
Qin Xiaofeng, Wang Zongqi, Zhang Yingli, Pan Luozhong, Hu Guiang, Zhou Fusheng. 2011. Geochronology and geochemistry of Early Mesozoic acid volcanic rocks from Southwest Guangxi: Constraints on tectonic evolution of the southwestern segment of Qinzhou-Hangzhou joint belt[J]. Acta Petrologica Sinica, 27(3): 794-808.
Vervoort J D, Blicherttoft J. 1999. Evolution of the depleted mantle: Hf isotope evidence from juvenile rocks through time[J]. Geochimica et Cosmochimica Acta, 63(3-4): 533-556. doi: 10.1016/S0016-7037(98)00274-9
Wang Man, Zhong Yuting, Hou Yingling, Shen Shuzhong, Xu Yigang, He Bin. 2018. Source and extent of the felsic volcanic ashes at the Permian-Triassic boundary in South China[J]. Acta Petrologica Sinica, 34(1): 36-48(in Chinese with English abstract).
Wen Shunv, Liang Xinquan, Fan Weiming, Wang Yuejun, Chi Guoxiang, Liang Xirong, Zhou Yun, Jiang Ying. 2013. Zircon U-Pb ages, Hf Isotopic composition of Zhizhong granitic intrusion in Ledong Area of Hainan Island and their tectonic implications[J]. Geotectonica et Metallogenia, 37(2): 294-307 (in Chinese with English abstract).
Wu F Y, Yang Y H, Xie L W, Yang J H, Xu P. 2006. Hf isotopic compositions of the standard zircons and baddeleyites used in U-Pb geochronology[J]. Chem. Geol., 234: 105-126. doi: 10.1016/j.chemgeo.2006.05.003
Wu Genyao, Ji Jianqing, He Shundong, Zhong Dalai. 2002. Early Permian magmatic arc in Pinxiang, Guangxi and its tectonic implications[J]. Journal of Mineralogy and Petrology, 22(3): 61-65(in Chinese with English abstract).
Wu Haoruo, Kuang Guodun, Wang Zhongcheng. 2001. The Yunkai block since Silurian[J]. Journal of Paleogeography, 3(3): 32-40 (in Chinese with English abstract).
Wu Haoruo, Xian Xiangyang, Kuang Guodun. 1994. Late Paleozoic radiolarian assemblages of southern Guangxi and its geological significance[J]. Scientia Geologica Sinica, 29(4): 339-345(in Chinese with English abstract).
Yang Jianghai, Cawood P A, Du yuansheng, Huang Hu, Huang Hongwei, Tao Ping. 2012. Large igneous province and magmatic arc sourced Permian-Triassic volcanogenic sediments in China[J]. Sendimentary Geology, 261/262: 120-131. doi: 10.1016/j.sedgeo.2012.03.018
Zhang Binhui, Ding Jun, Zhang Linkui, Zhang Bin, Chen Minhua. 2013. SHRIMP zircon U-Pb chronology of the Babu opiolite in southeastern Yunnan province[J]. Acta Geologica Sinica, 87(10): 1498-1509(in Chinese with English abstract).
Zhang Neng, Huang Qiming, Tan Jianzheng, Li Jiang. 2016. Extensive structural characteristics of Youjiang Basin, western Guangxi[J]. Geology in China, 43(3): 953-968(in Chinese with English abstract).
Zhang Suxin, Feng Qinglai, Gu Songzhu, Yu Jishun. 2006. Clay Stones Around Deep-Water Permian-Triassic Boundary from Guizhou and Guangxi Region[J]. Geological Science and Technology Information, 25(1): 9-13(in Chinese with English abstract).
Zhao Tianyu, Feng Qinglai, Liu Rong, Zhou Qiue, Wei Xun. 2013. Volcanic characteristics and LA-ICP-MS zircon U-Pb ages of clay rocks along Dongpan section of Guangxi[J]. Geological Buttetin of China, 32(9): 1402-1409(in Chinese with English abstract).
Zhong Dalai, Wu Genyao, Ji Jianqing, Zhang Qi, Ding Lin. 1998. Discovery of the ophiolites in southeastern Yunnan, China[J]. Chinese Science Bulletin, 43(13): 1365–1369 (in Chinese). doi: 10.1360/csb1998-43-13-1365
Zhou Dai, Hu Jun, Yang Wenqiang, Chen Qi, Wang Xiangdong, Wang Lei, Xu Deming. 2021. Formation age and petrogenesis of the Xinxing pluton in western Guangdong: Constraint on the closure of the East Paleo-Tethys Ocean[J]. Geology in China, 48(6): 1896-1923(in Chinese with English abstract).
陈丛林, 史晓颖. 2006. 右江盆地晚古生代深水相地层沉积构造演化[J]. 中国地质, 33(2): 436-443. doi: 10.3969/j.issn.1000-3657.2006.02.023
胡丽沙, 杜远生, 杨江海, 黄虎, 黄宏伟, 黄志强. 2012. 广西那龙地区中三叠世火山岩地球化学特征及构造意义[J]. 地质论评, 58(3): 481-494. doi: 10.3969/j.issn.0371-5736.2012.03.009
黄虎, 杜远生, 黄志强, 杨江海, 黄宏伟, 谢春霞, 胡丽沙. 2013. 桂西晚古生代硅质岩地球化学特征及其对右江盆地构造演化的启示[J]. 中国科学: 地球科学, 43(2): 304-316. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201302015.htm
李献华, 周汉文, 丁式江, 李寄嵎, 张仁杰, 张业明, 葛文春. 2000. 海南岛"邦溪—晨星蛇绿岩片"的时代及其构造意义——Sm-Nd同位素制约[J]. 岩石学报, (3): 425-432. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200003016.htm
梁金城, 邓继新, 陈懋弘, 蒋柏昌, 朱继姣. 2001. 桂西南早三叠世中酸性火山岩及其构造环境[J]. 大地构造与成矿学, 25(2): 141-148. doi: 10.3969/j.issn.1001-1552.2001.02.005
潘桂棠, 陈智樑, 李兴振, 徐强, 江新胜. 1996. 东特提斯多弧一盆系统演化模式[J]. 岩相古地理, 16(2): 52-65. https://www.cnki.com.cn/Article/CJFDTOTAL-TTSD199602006.htm
彭松柏, 刘松峰, 林木森, 吴长峰, 韩庆森. 2016. 华夏早古生代俯冲作用(Ⅰ): 来自糯垌蛇绿岩的新证据[J]. 地球科学, 41(5): 765-778. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201605004.htm
彭松柏, 刘松峰, 林木森, 吴长峰, 韩庆森. 2016. 华夏早古生代俯冲作用(Ⅱ): 大爽高镁—镁质安山岩新证据[J]. 地球科学, 41(6): 931-947. https://www.cnki.com.cn/Article/CJFDTOTAL-DQKX201606003.htm
覃小锋, 王宗起, 宫江华, 赵国英, 石浩, 詹俊彦, 王震. 2017. 云开地块北缘加里东期中—基性火山岩的厘定: 钦—杭结合带南西段早古生代古洋盆存在的证据[J]. 岩石学报, 33(3): 791-809. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201703010.htm
覃小锋, 王宗起, 张英利, 潘罗忠, 胡贵昂, 周府生. 2011. 桂西南早中生代酸性火山岩年代学和地球化学: 对钦—杭结合带西南段构造演化的约束[J]. 岩石学报, 27(3): 794-808. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201103019.htm
王曼, 钟玉婷, 侯莹玲, 沈树忠, 徐义刚, 何斌. 2018. 华南地区二叠纪—三叠纪界线酸性火山灰的源区与规模[J]. 岩石学报, 34(1): 36-48. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201801005.htm
温淑女, 梁新权, 范蔚茗, 王岳军, 池国祥, 梁细荣, 周云, 蒋英. 2013. 海南岛乐东地区志仲岩体锆石U-Pb年代学、Hf同位素研究及其构造意义[J]. 大地构造与成矿学, 37(2): 294-307. doi: 10.3969/j.issn.1001-1552.2013.02.012
吴根耀, 季建清, 何顺东, 钟大赉. 2002. 广西凭祥地区早二叠世的岩浆弧及其构造意义[J]. 矿物岩石, 22(3): 61-65. doi: 10.3969/j.issn.1001-6872.2002.03.014
吴浩若, 邝国敦, 王忠诚. 2001. 志留纪以来的云开地块[J]. 古地理学报, 3(3): 32-40. doi: 10.3969/j.issn.1671-1505.2001.03.004
吴浩若, 咸向阳, 邝国敦. 1994. 广西南部晚古生代放射虫组合及其地质意义[J]. 地质科学, (4): 339-345. doi: 10.3321/j.issn:0563-5020.1994.04.002
张斌辉, 丁俊, 张林奎, 张彬, 陈敏华. 2013. 滇东南八布蛇绿岩的SHRIMP锆石U-Pb年代学研究[J]. 地质学报, 87(10): 1498-1509. https://www.cnki.com.cn/Article/CJFDTOTAL-DZXE201310002.htm
张能, 黄启明, 谭建政, 李江. 2016. 桂西右江盆地伸展构造特征[J]. 中国地质, 43(3): 953-968. http://geochina.cgs.gov.cn/geochina/article/abstract/20160318?st=search
张素新, 冯庆来, 顾松竹, 于吉顺. 2006. 黔桂地区深水相二叠系—三叠系界线附近黏土岩研究[J]. 地质科技情报, 25(1): 9-13. doi: 10.3969/j.issn.1000-7849.2006.01.002
赵天宇, 冯庆来, 刘嵘, 周秋娥, 位荀. 2013. 广西东攀剖面黏土岩的火山岩特征及LA-ICP-MS锆石U-Pb年龄[J]. 地质通报, 32(9): 1402-1409. doi: 10.3969/j.issn.1671-2552.2013.09.009
钟大赉, 吴根耀, 季建清, 张旗, 丁林. 1998. 滇东南发现蛇绿岩[J]. 科学通报, 43(13): 1365-1370. https://www.cnki.com.cn/Article/CJFDTOTAL-KXTB199813003.htm
周岱, 胡军, 杨文强, 陈奇, 王祥东, 王磊, 徐德明. 2021. 粤西新兴岩体的形成时代与成因研究: 对古特提斯洋东支关闭时间的约束[J]. 中国地质, 48(6): 1896-1923. http://geochina.cgs.gov.cn/geochina/article/abstract/20210618?st=search
-
