APPLICATIONS OF HIGH-RESOLUTION FORMATION MICROSCANNER IMAGE LOGS(FMI)TO HYDROCARBON EXPLORATION IN PANYU B SUB-SAG, PEARL RIVER MOUTH BASIN AND ITS IMPLICATIONS
-
摘要:
由于番禺B洼钻井数量较少，加之已钻井揭示古近系含砂率高，且受限于三维地震资料尺度和分辨率，导致对深层古近系诸如沉积相、井旁构造及物源等等各种地质问题缺乏深入了解。鉴于FMI成像测井技术在解决诸多地质问题中的优异表现，在研究区进行了应用, 得到了4项研究成果：准确识别出了恩平组、珠海组和珠江组的岩石类型、沉积构造类型和沉积环境；在古近系地层中识别出了大量的微断层、高阻缝和高导缝; 获得了交错层理倾向的统计数据；得到井旁现今最大水平主应力方向。此外，还获得了2点启示：推测FMI图像上解释出的微断层和微裂缝促进了油气在深层的垂向输导，非常合理地解释了成藏事实；该井古近系储层在埋深较大的情况下也能有较好的物性。简而言之，由于此次FMI成像测井在番禺B洼的成功应用，取得了丰富的成果和有益的启示，这些有价值的资料将大大降低今后勘探的地质风险，极大推动了该区古近系的勘探进程。

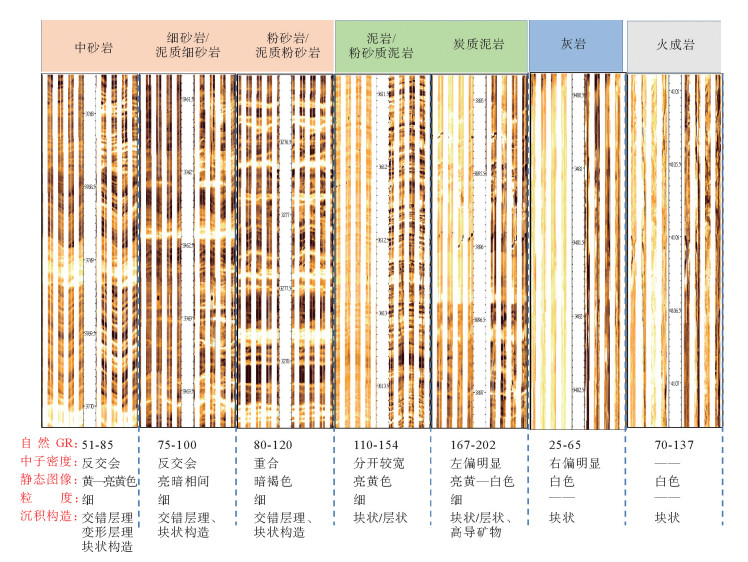

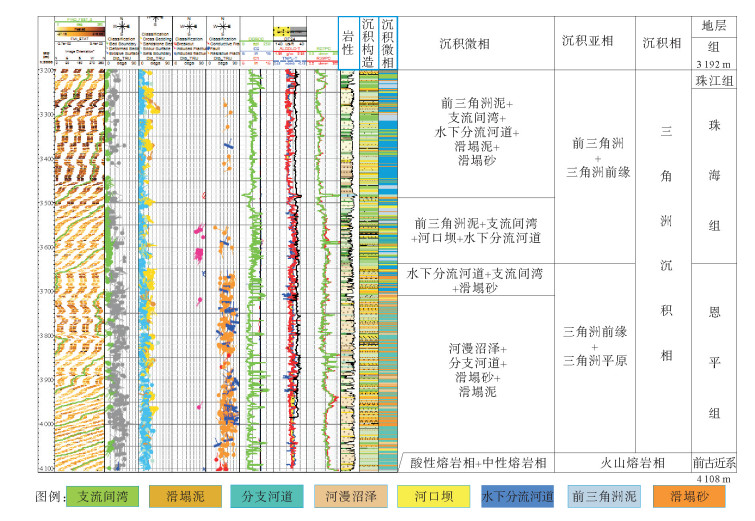

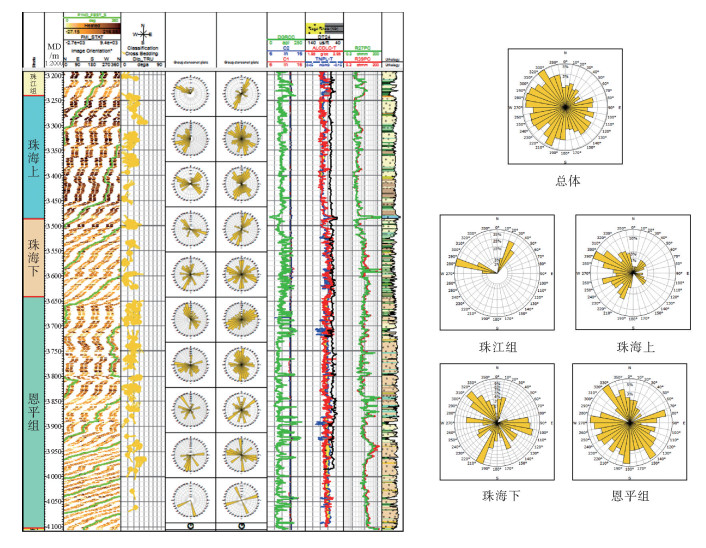

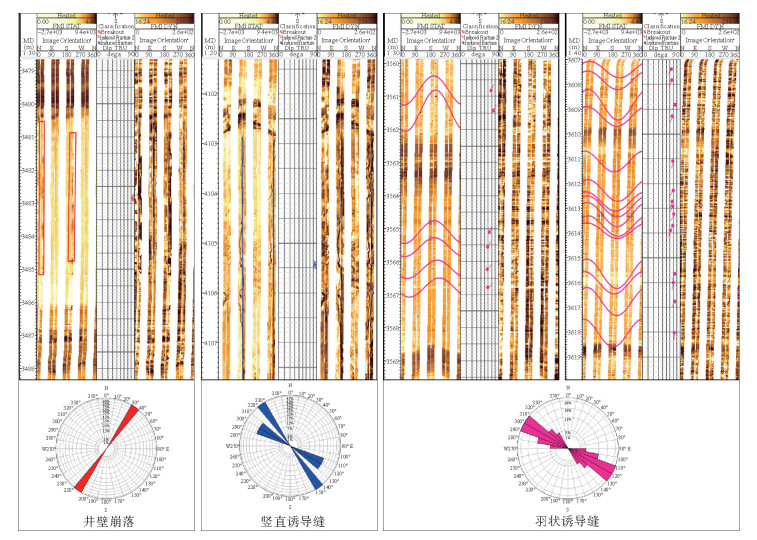

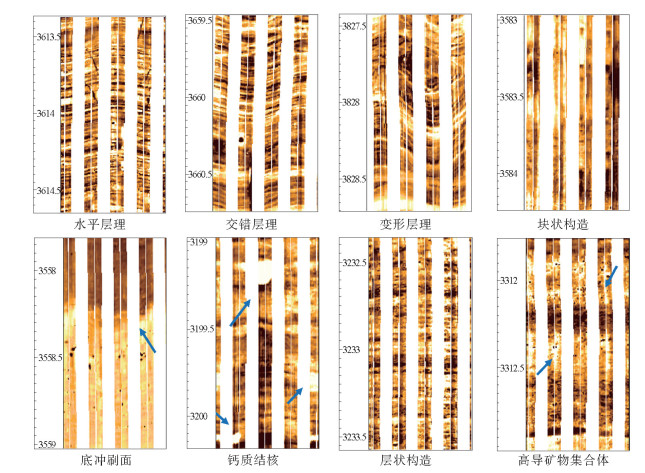

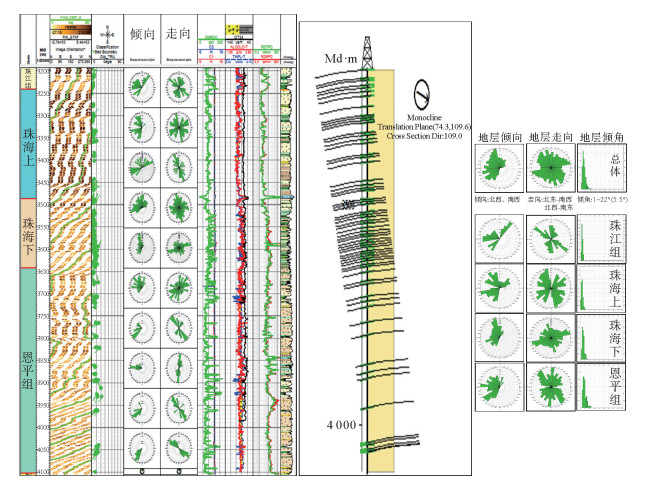

Abstract:There are a few drilling holes in the Panyu B Sub-sag and the quality of 3D seismic data are constrained by the Paleogene sand deposits. All of these resulted in the lack of in-depth understanding of the Paleogene geology there, such as sedimentary facies, provenance and near-borehole structures, etc. In view of its excellent performance in solving various geological problems, FMI logging technology was utilized to this region for the first time. Based on FMI data, four achievements are gained: (1) Lithology, sedimentary structures and sedimentary environments are accurately recognized and classified for the Enping, Zhuhai and Zhujiang Formations; (2) Many micro faults, resistive fractures and conductive fractures are identified in the Paleogene; (3) The dip direction of cross beddings are measured; (4) The direction of present maximum horizontal principal stress is acquired. It is further inferred that (1) The interpreted micro faults and fractures from FMI images may act as the paths for vertical migration of oil and gas, and are thus beneficial for oil and gas accumulation; (2) The Paleogene strata have good porosity and permeability even under great buried depth. In a word, owe to the successful application of the FMI logging, fruitful results and helpful inferences are acquired. The findings of this research will greatly mitigate the risks in oil and gas exploration in the region.
-
-
[1] 徐晓伟.能够解决地质问题的成像测井新技术[J].国外测井技术, 2005, 20(3):10-13. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gwcjjs200503007
[2] 徐锦绣, 王永利, 曹树春, 等.成像测井在地质油藏研究中的应用[J].海洋石油, 2009, 29(1):100-104. doi: 10.3969/j.issn.1008-2336.2009.01.021
[3] 杨玉卿, 崔维平, 王猛.成像测井沉积学研究进展与发展趋势[J].中国海上油气, 2017, 29(3):7-12. http://d.old.wanfangdata.com.cn/Periodical/zghsyq-gc201703002
[4] 杨礼节.成像测井技术研究现状及应用[J].中国石油和化工标准与质量, 2016(12):113-114. doi: 10.3969/j.issn.1673-4076.2016.12.068
[5] 何小胡, 张迎朝, 张道军, 等.成像测井技术在重力流沉积研究中的应用[J].测井技术, 2013, 37(1):103-109, 113. doi: 10.3969/j.issn.1004-1338.2013.01.022
[6] 曹积万.论成像测井资料在构造裂缝预测及评价中应用[J].化工管理, 2016(18):67. doi: 10.3969/j.issn.1008-4800.2016.18.059
[7] 袁立忠, 戴朝强, 汪瑞良, 等.成像测井在珠江口盆地惠州凹陷古近系勘探中的应用[J].石油天然气学报, 2012, 34(7):85-89. doi: 10.3969/j.issn.1000-9752.2012.07.017
[8] 钟广法, 游倩.高分辨率FMS成像测井资料在科学大洋钻探中的应用[J].地球科学进展, 2012, 27(3):347-358. http://d.old.wanfangdata.com.cn/Periodical/dqkxjz201203013
[9] 李红欣, 李天林, 杜江.成像测井技术的现状及其应用[J].石油和化工设备, 2013, 16(6):40-41. doi: 10.3969/j.issn.1674-8980.2013.06.013
[10] Zoback M D, Barton C A, Brudy M, et al. Determination of stress orientation and magnitude in deep wells [J]. International Journal of Rock Mechanics and Mining Sciences, 2003, 40:1049-1076. doi: 10.1016/j.ijrmms.2003.07.001
[11] Zoback M D.Reservoir Mechanics. New York: Cambridge University Press, 2007: 123-139.
[12] 张彦山, 梁国平, 丁建民, 等.由井壁崩落估算水平主应力量值的研究[J].地壳构造与地壳应力文集, 1999(0):134-139. http://www.cnki.com.cn/Article/CJFDTotal-SEIS199900017.htm
[13] 陈群策, 范桃园, 李绪深, 等.中国南海海域北部地区现今地应力实测及综合分析研究[J].地球物理学报, 2014, 57(8):2518-2529. http://www.cnki.com.cn/Article/CJFDTotal-DQWX201408013.htm
[14] 史明, 李阳兵, 林绍文.应用成像测井分析川西地区现今地应力场方向[J].西部探矿工程, 2012(6):100-101, 104. doi: 10.3969/j.issn.1004-5716.2012.06.035
[15] 周新桂, 张林炎, 范昆, 等.鄂尔多斯盆地现今地应力测量及其在油气开发中的应用[J].西安石油大学学报, 2009, 24(3):7-12. doi: 10.3969/j.issn.1673-064X.2009.03.002
[16] 叶莉.成像测井技术评价裂缝性储层的应用研究[J].科技创新与生产力, 2013(9):95-97, 100. doi: 10.3969/j.issn.1674-9146.2013.09.095
-
