A study of geochronology and geochemistry of volcanic rocks from Meiletu Formation in Horqin Right Wing Front Banner, Inner Mongolia
-
摘要:
通过对科右前旗一带梅勒图组火山岩LA-ICP-MS锆石U-Pb定年和元素地球化学分析，获得梅勒图组安山质晶屑熔结凝灰岩及安山岩的喷发年龄分别为125.6±1.6Ma和120.2±2.2Ma，指示梅勒图组火山岩的形成时代介于120~126Ma之间，形成于早白垩世中期。岩石具有高的SiO2（60.4%~65.3%）和全碱（7.0%~9.5%）含量，铝饱和指数A/CNK为0.89~0.98，属于钾玄岩及高钾钙碱性系列；稀土元素总量为124×10-6~169×10-6，（La/Yb）N值为5.83~13.4，负Eu异常微弱（δEu=0.84~1.05）；在原始地幔标准化微量元素蛛网图上，样品富集Rb、Ba、Th、U、K、La、Nd，亏损Nb、Ta、P和Ti，Sr/Y值介于19.4~29.7之间。其岩石源区为富集地幔，岩浆上升过程中受到地壳物质的混染，岩石形成于板内伸展环境，其地球动力学背景可能与古太平洋板块的俯冲有关。
-
关键词:
- LA-ICP-MS锆石U-Pb定年 /
- 地球化学 /
- 梅勒图组 /
- 火山岩 /
- 内蒙古科右前旗
Abstract:Through LA-ICP-MS zircon U-Pb dating and elemental geochemical analysis of Meiletu Formation volcanic rock in Horqin Right Wing Front Banner, the authors obtained the eruption ages of 125.6±1.6Ma and 120.2±2.2Ma for andesite crystallinoclasitc welded tuff and andesite in Meiletu Formation, indicating that the forming ages of Meiletu Formation volcanic rock are between 120 and 126Ma in the Early Cretaceous. The rock has high SiO2 (60.4%~65.3%) and total alkali content (7%~9.5%), with aluminum index A/CNK being 0.89~0.98, suggesting shoshonitic and high-K calc alkaline series; rare earths range from 124×10-6 to 169×10-6, and (La/Yb)N values are in the range of 5.83~13.4, with weak negative Eu anomalies (δEu=0.84~1.05); on the primitive mantle normalized trace element spider diagram, there exist enrichment of Rb, Ba, Th, U, K, La and Nd and depletion of Nb, Ta, P and Ti, with Sr/Y ratio between 19.4 and 29.7. The rock source area should be enriched mantle, and the magma was contaminated by crustal material during the process of magma rising. The rock was formed in an intraplate extensional environment, and its geodynamic background might have been related to subduction of paleo-Pacific plate.
-
-
表 1 梅勒图组火山岩LA-ICP-MS锆石U-Th-Pb分析结果
Table 1. LA-ICP-MS zircon U-Th-Pb data for the volcanic rocks of the Meletu Formation
测点号 含量/10-6 Th/U 同位素比值 年龄/Ma Pb Th U 207Pb/206Pb±1σ 207Pb/235U±1σ 206Pb/238U±1σ 207Pb/206Pb±1σ 207Pb/235U±1σ 206Pb/238U±1σ 01 9.44 171 349 0.49 0.0544±0.0035 0.1418±0.0098 0.01921±0.00044 387±146 135±9 123±3 02 15.8 360 526 0.69 0.0542±0.0021 0.1466±0.0057 0.01976±0.00034 389±81 139±5 126±2 03 11.79 191 357 0.54 0.0525±0.0042 0.1484±0.0130 0.02030±0.00062 306±177 141±12 130±4 04 10.59 177 392 0.45 0.0506±0.0025 0.1397±0.0070 0.01993±0.00039 220±113 133±6 127±2 05 7.04 106 293 0.36 0.0549±0.0036 0.1410±0.0086 0.01912±0.00042 409±148 134±8 122±3 06 9.13 209 290 0.72 0.0548±0.0035 0.1401±0.0077 0.01964±0.00050 406±144 133±7 125±3 07 22.7 517 741 0.70 0.0531±0.0021 0.1466±0.0061 0.01994±0.00039 332±91 139±5 127±2 08 7.65 124 288 0.43 0.0522±0.0033 0.1394±0.0087 0.01934±0.00046 300±146 133±8 123±3 09 5.29 69.3 211 0.33 0.0543±0.0040 0.1419±0.0102 0.01955±0.00053 383±167 135±9 125±3 10 14.21 295 481 0.61 0.0557±0.0039 0.1463±0.0089 0.02005±0.00050 443±156 139±8 128±3 11 6.66 117 267 0.44 0.0559±0.0036 0.1455±0.0192 0.01962±0.00048 456±146 138±8 125±3 01 8.06 119 333 0.36 0.0520±0.0020 0.1332±0.0047 0.01877±0.00038 283±89 127±4 120±2 02 20.6 191 463 0.41 0.0533±0.0016 0.2475±0.0083 0.03366±0.00077 346±67 225±7 213±5 03 6.14 161 240 0.67 0.0492±0.0027 0.1371±0.0167 0.01910±0.00099 167±123 130±15 122±6 04 29.9 77.8 765 0.10 0.0525±0.0009 0.2316±0.0050 0.03203±0.00062 309±6 212±4 203±4 05 15.2 22.3 22.5 0.99 0.1587±0.0038 9.964±0.632 0.45496±0.02845 2442±41 2431±59 2417±126 06 43.2 64.2 60.6 1.06 0.1643±0.0019 10.07±0.205 0.44372±0.00799 2502±19 2441±19 2367±36 07 557 780 797 0.98 0.1598±0.0020 9.970±0.244 0.45229±0.01110 2454±22 2432±23 2405±49 08 16.4 111 394 0.28 0.0544±0.0013 0.2460±0.0069 0.03279±0.00055 387±56 223±6 208±3 09 8.07 236 302 0.78 0.0485±0.0017 0.1250±0.0049 0.01866±0.00034 124±83 120±4 119±2 10 4.91 119 177 0.67 0.1124±0.0650 0.1257±0.0089 0.01951±0.00079 1839±1276 120±8 125±5 11 13.6 207 545 0.38 0.0508±0.0013 0.1358±0.0031 0.01954±0.00042 232±57 129±3 125±3 12 2.39 37.5 53.0 0.71 0.0549±0.0052 0.2413±0.0242 0.03157±0.00066 409±210 220±20 200±4 13 4.85 95.6 203 0.47 0.0511±0.0020 0.1290±0.0060 0.01832±0.00043 256±95 123±5 117±3 14 4.92 126 196 0.64 0.0520±0.0025 0.1333±0.0075 0.01850±0.00053 287±111 127±7 118±3 15 201 176 306 0.58 0.1595±0.0072 9.881±0.292 0.44929±0.00803 2450±76 2424±27 2392±36 16 182 205 268.6 0.76 0.1611±0.0018 10.12±0.275 0.45537±0.01127 2478±18 2446±25 2419±50 17 102.6 132.5 151.6 0.87 0.1577±0.0019 9.793±0.211 0.45130±0.00986 2431±20 2416±20 2401±44
下载: 导出CSV

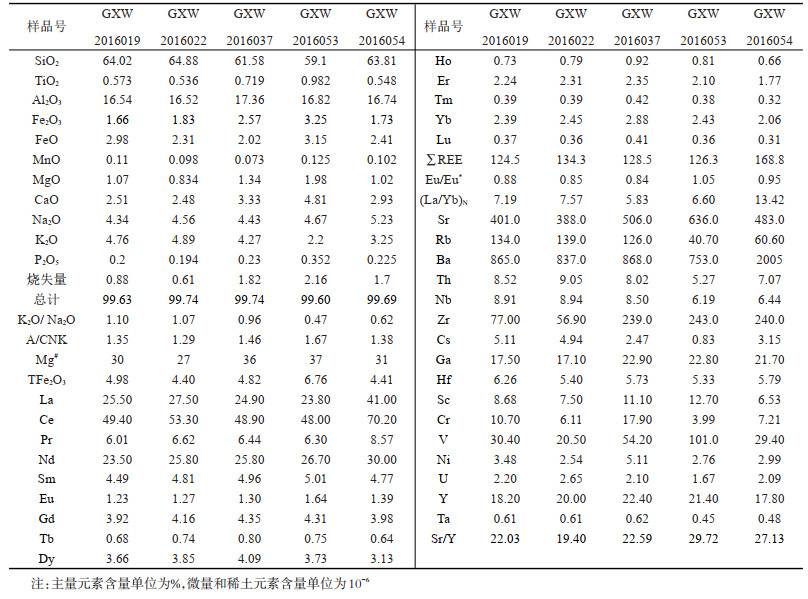

表 2 梅勒图组火山岩主量、微量及稀土元素分析结果
Table 2. Analyses of major, trace elements and REE for Meiletu Formation volcanic rocks
下载: 导出CSV
-
[1] 陶传忠.乌兰浩特南部玛尼吐组火山岩的形成时代及岩石成因[D].吉林大学硕士学位论文, 2015: 1-48.
[2] 葛文春, 林强, 李献华, 等.大兴安岭北部伊列克得组玄武岩的地球化学特征[J].矿物岩石, 2000, 20(3):14-18. doi: 10.3969/j.issn.1001-6872.2000.03.003
[3] 林强, 葛文春, 曹林, 等.大兴安岭中生代双峰式火山岩的地球化学特征[J].地球化学, 2003, 32(3):208-222. doi: 10.3321/j.issn:0379-1726.2003.03.002
[4] 赵国龙, 杨桂林, 傅嘉有.大兴安岭中南部中生代火山岩[M].北京:科学技术出版社, 1989:1-252.
[5] 孙德有, 许文良, 周燕.大兴安岭中生代火山岩的形成机制[J].矿物岩石地球化学通讯, 1994, 3:162-164. http://d.old.wanfangdata.com.cn/Periodical/dzdqhx200002005
[6] Wang F, Zhou X H, Zhang L C, et al. Late Mesozoic volcanism in the Great Xing'an Range (NE China):Timing and implications for the dynamic setting of NE Asia[J]. Earth and Planetary Science Letters, 2006, 251:179-198. doi: 10.1016/j.epsl.2006.09.007
[7] Zhang J H, Ge W C, Wu F Y, et al. Large-scale Early Cretaceous volcanic events in the northern Great Xing'an Range[J]. Northeastern China. Lithos, 2008, 102:138-157. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=d14ba8be8a38a9512101ffec46cee93d
[8] Zhang J H, Gao S, Ge W C, et al. Geochronology of the Mesozoic volcanic rocks in the Great Xing'an Range, northeastern China:Implications for subduction-induced delamination[J]. Chemical Geology, 2010, 276:144-165. doi: 10.1016/j.chemgeo.2010.05.013
[9] Fan W M, Guo F, Wang Y J, et al. Late Mesozoic calc-alkaline volcanism of post-orogenic extension in the northern Da Hinggan Mountains, northeastern China[J]. Journal of Volcanology and Geothermal Research, 2003, 121:115-135. doi: 10.1016/S0377-0273(02)00415-8
[10] Meng Q R. What drove Late Mesozoic extension of the northern China-Mongolia tract[J]. Tectonophysics, 2003, 369:155-174. doi: 10.1016/S0040-1951(03)00195-1
[11] Ying J F, Zhou X H, Zhang L C, et al. Geochronological framework of Mesozoic volcanic rocks in the Great Xing'an Range, NE China, and their geodynamic implications[J]. Journal of Asian Earth Sciences, 2010, 39(6):786-793. doi: 10.1016/j.jseaes.2010.04.035
[12] 蒋国源, 权恒.大兴安岭根河、海拉尔盆地中生代火山岩[J].中国地质科学院沈阳地质矿产研究所所刊, 1988, 17:23-100.
[13] 夏军, 王成善, 李秀华, 等.海拉尔及其邻区中生代火山岩的特征及其边缘陆块型火山岩的提出[J].成都地质学院学报, 1993, 20(4):67-79. http://www.cnki.com.cn/Article/CJFDTotal-CDLG199304011.htm
[14] Nasdala L, Hofmeister W, Norberg N, et al. Zircon M257-a homogeneous natural reference material for the ion microprobe UPb analysis of zircon[J]. Geostandards and Geoanalytical Research, 2008, 32:247-265. doi: 10.1111/j.1751-908X.2008.00914.x
[15] Liu Y S, Gao S, Hu Z C, et al. Continental and oceanic crust recycling-induced melt-peridotite interactions in the Trans-North China Orogen:U-Pb dating, Hf isotopes and trace elements in zircons from mantle xenoliths[J]. Journal of Petrology, 2009, 51:537-571. http://d.old.wanfangdata.com.cn/NSTLQK/10.1093-petrology-egp082/
[16] Ludwig K R. User's Manual for Isoplot/Ex (version 2.49): A Geochronological Toolkit for Microsoft Excel[M]. Berkeley Geochronology Center Special Publication, 2001, 1: 55.
[17] 侯可军, 李延河, 田有荣. LA-MC-ICP-MS锆石微区原位UPb定年技术[J].矿床地质, 2009, 28(4):481-492. doi: 10.3969/j.issn.0258-7106.2009.04.010
[18] Williams I S, Buick I S, Cartwright I. An extended episode of Early Mesoproterozoic metamorphic fluid flow in the Reynolds Range, central Australia[J]. Journal of Metamorphic Geology, 1996, 14(1):29-47. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=10.1111/j.1525-1314.1996.00029.x
[19] Bas M J L, Maitre R W L, Streckeisen A, et al. A Chemical Clas-sification of Volcanic Rocks Based on the Total Alkali-Silica Diagram[J]. Journal of Petrology, 1986, 27(3):745-750. doi: 10.1093/petrology/27.3.745
[20] Maniar P D, Piccoli P M. Tectonic discrimination of granitoids[J]. Geological Society of AmericaBulletin, 1989, 101:635-643. doi: 10.1130/0016-7606(1989)101<0635:TDOG>2.3.CO;2
[21] Turner S, Arnaud N, Liu J, et al. Post-collision, shoshonitic volcanism on the Tibetan Plateau:Implications for convective thinning of the Lithosphere and the source of ocean island basalts[J]. Petrol., 1993, 37(1):45-71. http://d.old.wanfangdata.com.cn/NSTLQK/10.1093-petrology-37.1.45/
[22] Peccerillo R, Taylor S R. Geochemistry of Eocene calc-alkaline volcanic rocks from the Kastamonu area, northern Turkey[J]. Contrib. Mineral. Petrol., 1976, 50:63-81. http://d.old.wanfangdata.com.cn/NSTLQK/10.1007-BF00384745/
[23] Boynton W V. Cosmochemistry of the rare earth elements:Meteorite studies[J]. Geochem., 1984, 2:63-114.
[24] Taylor S R, McLennan S M. The Continental Crust:Its Composition and Evolution[M]. Oxford:Blackwell Scientific Publications, 1985:54-374.
[25] 金玲, 杨伟红, 杨德明, 等.内蒙古科右中旗地区梅勒图组安山岩年代学特征及其地质意义[J].世界地质, 2014, 33(1):48-58. http://d.old.wanfangdata.com.cn/Periodical/sjdz201401005
[26] 内蒙古地质矿产局.内蒙古自治区区域地质志[M].北京:地质出版社, 1993.
[27] 徐美君, 许文良, 孟恩, 等.内蒙古东北部额尔古纳地区上护林-向阳盆地中生代火山岩LA-ICP-MS锆石U-Pb年龄和地球化学特征[J].地质通报, 2011, 30(9):1321-1338. doi: 10.3969/j.issn.1671-2552.2011.09.001 http://dzhtb.cgs.cn/gbc/ch/reader/view_abstract.aspx?file_no=20110901&flag=1
[28] 解开瑞, 巫建华, 李长华, 等.满洲里达石莫盆地流纹岩、花岗斑岩SHRIP锆石U-Pb年龄及其地质意义[J].铀矿地质, 2015, 31(6):569-577. doi: 10.3969/j.issn.1000-0658.2015.06.004
[29] 葛文春, 林强, 孙德有, 等.大兴安岭中生代玄武岩的地球化学特征:壳幔相互作用的证据[J].岩石学报, 1999, 15(3):396-407. http://d.old.wanfangdata.com.cn/Periodical/ysxb98199903008
[30] Sun S S, McDonough W F. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and process[C]//Sauders A D, Norry M J. Magmatism in the Ocean Basins. Geological Society Special Publication, 1989, 42: 313-345.
[31] Tischendorf G, Paelchen W. Zur Klassifikation von Granitoiden. Classification of granitoids[J]. Zeitschrift fuer Geologische Wissenschaften, 1985, 13(5):615-627.
[32] Rogers N W, Hawkesworth C J, Mattey D P, et al. Sediment subduction and the source of potassium in orogenic leucites[J]. Geology, 1987, 15:451-453. doi: 10.1130/0091-7613(1987)15<451:SSATSO>2.0.CO;2
[33] 李献华, 周汉文, 刘颖, 等.粤西阳春中生代钾玄质侵入岩及其构造意义:Ⅱ.微量元素和Sr-Nd同位素地球化学[J].地球化学, 2001, 30(1):57-65.. http://d.old.wanfangdata.com.cn/Periodical/dqhx200101007
[34] 吴华英, 张连昌, 周新华, 等.大兴安岭中段晚中生代安山岩年代学和地球化学特征及成因分析[J].岩石学报, 2008, 24(6):1339-1352. http://d.old.wanfangdata.com.cn/Periodical/ysxb98200806017
[35] Pearce J A, Norry M J. Petrogenetic implications of Ti, Zr, Y and Nb variations in volcanic rocks[J]. Contrib. Mineral. Petrol., 1979, (69):33-47. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=8b838f3d4ad35db228636f8366586e8e
[36] Defant M J, Drummond M S. Deriveation of some modem are magmas by melting of young subducted lithosphere[J]. Nature, 1990, 347(18):662-665. doi: 10.1038/347662a0
[37] 代军治, 毛景文, 杨富全, 等.华北地台北缘燕辽钼(铜)成矿带矿床地质特征及动力学背景[J].矿床地质, 2006, 25(5):598-612. doi: 10.3969/j.issn.0258-7106.2006.05.007
[38] 李锦轶, 张进, 杨天南, 等.北亚造山区南部及其毗邻地区地壳构造分区与构造演化[J].吉林大学学报(地球科学版), 2009, 39(4):584-605. http://d.old.wanfangdata.com.cn/Periodical/cckjdxxb200904002
[39] 聂凤军, 张可, 刘翼飞, 等.华北克拉通北缘及领区印支期岩浆活动与钼和金成矿作用[J].吉林大学学报(地球科学版), 2011, 41(6):1651-1666. doi: 10.3969/j.issn.1671-5888.2011.06.002
[40] 曾庆栋, 刘建明, 肖文交, 等.华北克拉通南北缘三叠纪钼矿化类型、特征及地球动力学背景[J].岩石学报, 2012, 28(2):357-371. http://d.old.wanfangdata.com.cn/Periodical/ysxb98201202001
[41] 林强, 葛文春, 孙德有, 等.东北地区中生代火山岩的大地构造意义[J].地质科学, 1998, 33(2):129-139. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199800069875
[42] 邵济安, 刘福田, 陈辉, 等.大兴安岭-燕山晚中生代岩浆活动与俯冲作用关系[J].地质学报, 2001, 75(1):56-61. doi: 10.3321/j.issn:0001-5717.2001.01.006
[43] 孟恩, 许文良, 杨德彬, 等.满洲里地区灵泉盆地中生代火山岩的锆石U-Pb年代学、地球化学及其地质意义[J].岩石学报, 2011, 27(4):1209-1226. http://www.cnki.com.cn/Article/CJFDTotal-YSXB201104029.htm
[44] 许文良, 葛文春, 裴福萍, 等.东北地区中生代火山作用的年代学格架及其构造意义[J].矿物岩石地球化学通报, 2008, 27(3):286-287. http://d.old.wanfangdata.com.cn/Periodical/kwysdqhxtb2008z1153
[45] Van der Voo R, Spakman W, Bijwaard H. Mesozoic subducted slabs under Siberia[J]. Nature, 1999, 397:246-249. doi: 10.1038/16686
[46] Richards M S. Prospecting for Jurassic slabs[J]. Nature, 1999, 397:203-204. doi: 10.1038/16574
-
