The genesis and dating of the Early Permian granitic rock in the north of Xilin Hot, Inner Mongolia
-
摘要:
内蒙古锡林浩特北部朝克乌拉山附近分布有早二叠世花岗岩类，可作为兴蒙造山带东部构造-岩浆活动的研究载体。本文通过对花岗岩类进行岩相学、岩石地球化学、锆石U-Pb年代学的研究，讨论其岩石成因、构造环境。早二叠世侵入岩岩性主要为正长花岗岩、二长花岗岩、正长斑岩。地球化学上，岩石具有高硅、富碱、贫钙、贫镁的特点，属于偏铝—过铝质碱性花岗岩。轻重稀土元素存在一定程度的分馏，总体表现出轻稀土相对富集、重稀土相对亏损，具有明显的负Eu异常，Rb、Th、K、La、Ce、Nd、Zr、Hf、Sm元素明显富集，Ba、Ta、Nb、Sr、P、Ti元素显著亏损。岩石的锆石饱和温度为802℃，具有低Sr高Yb特征，指示岩体形成于高温低压环境，结合岩石地球化学表明岩体属于铝质A型花岗岩，其源岩与岛弧岩浆作用有关。锆石U-Pb测年结果为(275.6±1.3)Ma(正长花岗岩)、(274.2±1.4)Ma(正长斑岩)，表明岩体形成时代为早二叠世晚期。结合区域上阿木山组中安山岩夹层的锆石U-Pb年龄，古生物、花岗岩证据表明晚石炭世至早二叠世晚期，贺根山洋闭合并完成了板块碰撞挤压到碰撞伸展的转换。
Abstract:The Permian granitic rock near the Chaokewula Mountain in the north of Xilin Hot area are very important for the study of the structural and magmatic acitivities in eastern Xing'an-Mongolian orogenic belt. The purpose of this study is to discuss the petrogenesis and tectonic setting based on detailed investigation of petrography,litho-geochemical characteristics and zircon U-Pb chronology of the granitic rock. The rocks are mainly composed of syenogranite,monzonitic granite and orthophyre. Geochemically,the granites are characterized by rich silicon and alkalis as well as depletion of calcium and magnesium,thus belonging to aluminous-peraluminous alkali granite. The rare earth elements demonstrate a slightly high degree of fractionation,and are characterized by richness of LREE and poorness of HREE. The rocks exhibit significant negative Eu anomalies. Trace element analyses show that the rocks are enriched in Rb,Th,K,La,Ce,Nd,Zr,Hf and Sm and depleted in Ba,Ta,Nb,Sr,P and Ti. The zircon saturation temperature of rock is 802℃,with geochemical characteristics of low Sr and high Yb,showing that the rocks were formed in an environment of high temperature and low pressure. Combined with the geological and geochemical data,the authors hold that the rocks belong to aluminous A-type granite,and the sources of rocks were formed in an island-arc environment. The zircon U-Pb age of syenogranite is (275.6±1.3) Ma,and the zircon U-Pb age of orthophyre is (274.2±1.4) Ma,respectively. These results indicate that the rock body was formed in late period of early Permian. With a set of volcanic rocks of Amushan Formation as the research object,the authors obtained the zircon U-Pb age of andesite. Combined with the palaeontology,granitoids and chronological evidence,the authors consider that the Hegenshan Ocean was closed and completed the transformation from collision to post-collision during the period from late Carboniferous to late Early Permian.
-
Key words:
- geological significance /
- A-type granite /
- zircon U-Pb age /
- geochemistry /
- Hegenshan orogenic belt
-
-
图 2 侵入岩TAS分类图解(a—底图据Middlemost, 1994)和K2O−SiO2图解(b—底图据Peccerllo et al., 1976)
Figure 2.
图 3 侵入岩A/NK-A/CNK图解(底图据Maniar et al., 1989)
Figure 3.
图 4 稀土元素原始地幔标准化分布型式图(a)和微量元素原始地幔标准化蛛网图(b)(原始地幔标准化值据Sun et al., 1989)
Figure 4.
图 7 (Na2O+K2O)/CaO−(Zr+Nb+Ce+Y)成因判别图解(底图据Whalen et al., 1987)
Figure 7.

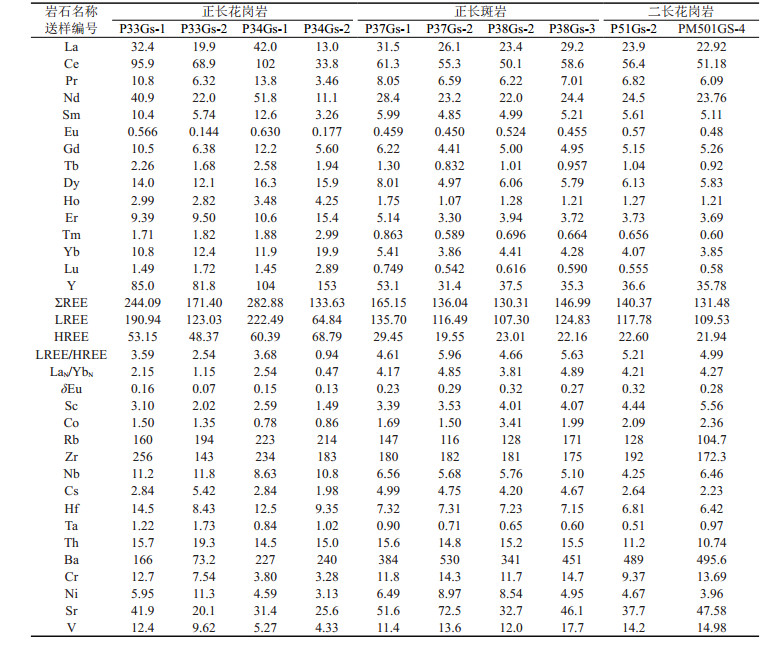

表 2 侵入岩稀土和微量元素分析结果(10−6)
Table 2. REE and trace elements compositions of intrusive rocks(10−6)
下载: 导出CSV

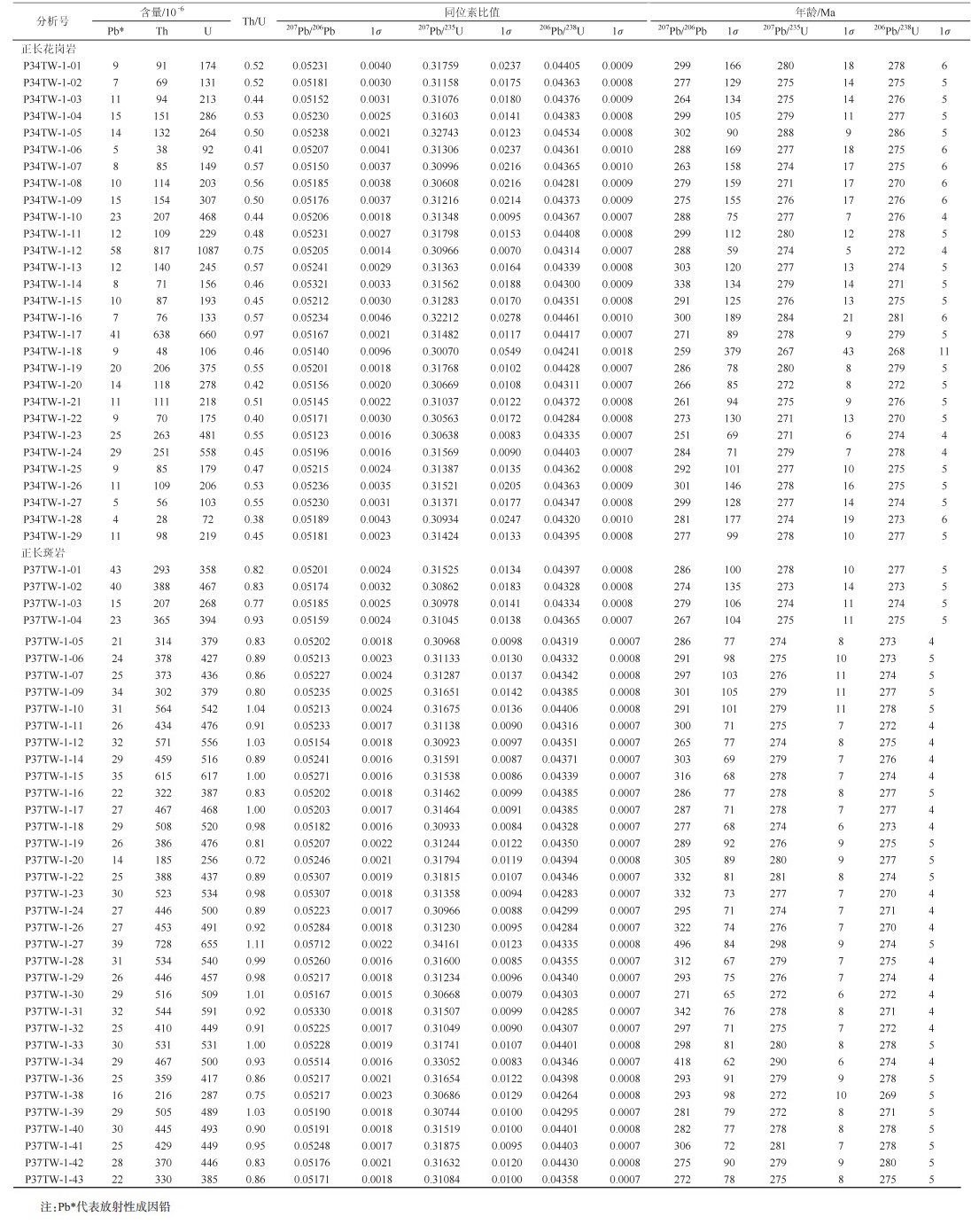

表 3 侵入岩LA−ICP−MS锆石U−Pb年代学分析结果
Table 3. LA−ICP−MS zircon U−Pb dating results of intrusive rock
下载: 导出CSV
-
Cheng Yinhang, Teng Xuejian, Xin Houtian, Yang Junquan, Ji Shiping, Zhang Yong, Li Yanfeng. 2012. SHRIMP zircon U-Pb dating of granites in Mahonondor area, East Ujimqin Banner, Inner Mongolia[J]. Acta Petrologica et Mineralogica, 31(3):323-334(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=yskwxzz201203003
Eby G N. 1992. Chemical subdivision of the A-type granitoids:Petrogenetic and tectonic implications[J]. Geology, 20(7):641-644. doi: 10.1130/0091-7613(1992)020<0641:CSOTAT>2.3.CO;2
Jiang Shaoyong, Zhao Kuidong, Jiang Yaohui, Dai Baozhang. 2008.Characteristics and genesis of Mesozoic A-type granites and associated mineral deposits in the southern Hunan and northern Guangxi Provinces along the Shi-Hang belt, South China[J]. Geological Journal of China Universities, 14(4):496-509(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=gxdzxb200804004
Jia Xiaohui, Wang Qiang, Tang Gongjian. 2009. A-type granites:research progress and implications[J]. Geotectonica et Metalbgenia, 33(3):465-480(in Chinese with English abstract). http://d.old.wanfangdata.com.cn/Periodical/ddgzyckx200903017
Loiselle M C, Wones D R. 1979. Characteristics and origin of anorogenic granites[J]. Geological Society of America Abstract Progressing, (11):468. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=9108a701005035f04fb9accc13dc243b
Lou Yaer, Du Yangsong. 2003. A review of petrogenetic classification of granitoids[J]. Earth Science Frontiers, 10(3):269-275(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dxqy200303024
Li Xiaowei, Mo Xuanxue, Zhao Zhidan, Zhu Dicheng. 2010. A discussion on how to discriminate A-type granite[J]. Geological Bulletin of China, 29(2/3):278-285(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgqydz201002012
Li Min, Li Min, Cheng Yinhang, Ren Bangfang, Li Yanfeng, Zhang Tianfu. 2015. Characteristics and geological significance of chronology and geochemistry of Bayandulan monzonitic granites in Dong Ujimqin Qi, Inner Mongolia[J]. Geological Science and Technology Information, 34(4):6-14(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzkjqb201504002
Li Ke, Zhang Zhicheng, Feng Zhishuo, Li Jianfeng, Tang Wenhao, Luo Zhiwen, Chen Yan. 2015. Two-phase magmatic events during Late Paleozoic in the north of the Central Inner Mongolia-Da Hinggan Orogenic Belt and its tectonic significance[J]. Acta Geologgica Sinica, 89(2):272-288(in Chinese with English abstract).
Maniar P D, Piccoli P M. 1989. Tectonic discrimination of granitoids[J]. Geological Society of America Bulletin, 101(5):635-643. doi: 10.1130/0016-7606(1989)101<0635:TDOG>2.3.CO;2
Middlemost E A. 1994. Naming materials in the magma/igneous rock system[J]. Earth-Science Reviews, 37(3/4):215-224.
Nie Fengjun, Cao Yi, Ding Chengwu, Liu Yifei. 2014. Preliminary discussions on the rejuvenated metallogenesis of the Da Hinggan-Mongolia Paleozoic orogenic belt as deduced from the studies on Sn, W and Mo—polymetallic deposits occurring within the Xilinhot and Ergun Massifs[J]. Acta Petrologica Sinica, 30(7): 2063 −2080(in Chinese with English abstract).
Peccerllo A, Taylor S R. 1976. Geochemistry of Eocene calc-alkaline volcanic rocks from the Kastamonu area, Northern Turkey[J]. Contributions to Mineralogy and Petrology, 58(1):63-81. doi: 10.1007/BF00384745
Qiu Jiansheng, Xiao E, Hu Jian, Xu Xisheng, Jiang Shaoyong, Li Zhen. 2008. Petrogenesis of highly fractionated I-type granites in the coastal area of northeastern Fujian Province:Constraints from zircon U-Pb geochronology, geochemistry and Nd-Hf isotopes[J]. Acta Petrologica Sinica, 24(11):2468-2484(in Chinese with English abstract).
Sun S S, McDonough W F. 1989.Chemical and Isotopic Systematic of Oceanic Basalts:Implications for Mantle Composition and Processes[J]. Geological Society London Special Publications, 42:313-345. doi: 10.1144/GSL.SP.1989.042.01.19
Shi Xingjun, Zhang Lei, Wang Tao, Xiao Xuchang, Tong Ying, Zhang Jianjun, Geng Jianzhen, Ye Ke. 2014. Geochronology and geochemistry of the intermediate-acid intrusive rocks from Zongnaishan area in northern Alxa, Inner Mongolia, and their tectonic implications[J]. Acta Petrol. Mineral., 33(6):989-1007(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=yskwxzz201406001
Tang Kedong. 1992. Tectonic Evolution and Minerogenetic Regularities of the Fold Belt along the Northern Margins of SinoKorean Plate[M]. Beijing:Peking University Press, 227(in Chinese with English abstract).
Tong Ying, Hong Dawei, Wang Tao, Shi Xingjun, Zhang Jianjun, Zeng Tao. 2010. Spatial and temporal distribution of granitoids in the middle segment of the Sino-Mongolian border and its tectonic and metallogenic implications[J]. Acta Geoscientica Sinica, 31(3):395-412(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqxb201003013
Watson E B, Harrison T M. 1983. Zircon saturation revisitedtemperature and composition effects in a variety of crustal magma types[J]. Earth Planet Sci. Lett., 64:295-304 doi: 10.1016/0012-821X(83)90211-X
Whalen J B, Currie K L, Chappell B W. 1987. A-type granites:Geochemical characteristics, discrimination and petrogenesis[J]. Contributions to Mineralogy and Petrology, 95(4):407-419. doi: 10.1007/BF00402202
Wu Fuyuan, Li Xianhua, Yang Jinhui, Zheng Yongfei. 2007.Discussions on the petrogenesis of granites[J]. Acta Petrologica Sinica, 23(6):1217-1238 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98200706001
Wu Suoping, Wang Meiying, Qi Kaijing. 2007. Present situation of researches on A-type granites:A review[J]. Acta Petrologica et Mineralogica, 26(1):57-66(in Chinese with English abstract).
Wu Weiwei, Liao Qunan, Chen Shuai, Hu Chaobin, Tian Jian, Wang Fuming, Fan Guangming. 2015. Petrogenesis and geological significance of highly fractionated A-type granites in Kalasayi, East Junggar[J]. Geological Bulletin of China, 34(2/3):385-399.
Xiao E, Qiu Jiansheng, Xu Xisheng, Jiang Shaoyong, Hu Jian, Li Zhen. 2007. Geochronology and geochemistry of the Yaokeng alkaline granitic pluton in Zhejiang Province:Petrogenetic and tectonic implications[J]. Acta Petrologica Sinica, 23(6):1431-1440(in Chinese with English abstract).
Xiao Zhongjun. 2015. Geochemical Characteristics, Zircon U-Pb Age of the early Permian alkaline granite and its geological significance in the Aershanbulage, Innner Mongolia[J]. Geological Survey and Research, 38(3):171-181(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=qhwjyjjz201503002
Yuan H L, Gao S, Liu X M. 2004. Accurate U-Pb age and trace element determinations of zircon by laser ablation-inductively coupled plasma-mass spectrometry[J]. Geostandards and Geoanlytical Research, 28:357-370.
Yuan H L, Gao S, Dai M N. 2008. Simultaneous determinations of U-Pb age, Hf isotopes and trace element compositions of zircon by excimer laser ablation quadrupole and multiple collector ICP-MS[J]. Chemical Geology, 247:100-117. doi: 10.1016/j.chemgeo.2007.10.003
Ye Xusong, Liao Qunan, Ge Mengchun. 2011. Petrogenesis and tectonic significance of Triassic peraluminous granitoids in Xilinhaote and Linxi area, Inner Mongolia[J]. Geological Science and Technology Information, 30 (3):57-64(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzkjqb201103007
Zhang Qi, Wang Yan, Li Chengdong, Wang Yuanlong, Jin Weijun, Jia Xiuqin. 2006. Granite classification on the basis of Sr and Yb contents and its implications[J]. Acta Petrologica Sinica, 22(9):2249-2269 (in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98200609001
Zhang Qi, Pan Guoqiang, Li Chengdong, Jin Weijun, Jia Xiuqin. 2007.Granite tectonic environment problems:Reflections on third granite research[J]. Acta Petrologica Sinica, 23(11):2683-2698(in Chinese with English abstract).
Zhang Yuqing, Xu Liquan, Kang Xiaolong, Bao Yinwuliji. 2009. Age dating of alkali granite in Jingesitai area of Dong Ujimqin Banner, Inner Mongolia, and its significance[J]. Geology in China, 36(5):988-995(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgdizhi200905004
Zhang Qi, Ran Hao, Li Chengdong. 2012. A-type granite:What is the essence?[J]. Acta Petrologica et Mineralogica, 31(4):621-626(in Chinese with English abstract). http://d.old.wanfangdata.com.cn/OAPaper/oai_doaj-articles_8c2890609571b9a5f39733c2b59b003c
Zhang Lei, Lü Xinbiao, Liu Ge, Chen Jun, Chen Chao, Gao Qi, Liu Hong. 2013. Characteristics and genesis of continental back-arc A-type granites in the eastern segment of the Inner Mongolia-Da Hinggan Mountains orogenic belt[J]. Geology in China, 40(3):869-884(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgdizhi201303018
Zhao Zhenhua. 2007. How to use the trace element diagrams to discriminate tectonic setting[J]. Geotectonica et Metallogenia, 31(1):92-103(in Chinese with English abstract).
程银行, 滕学建, 辛后田, 杨俊泉, 冀世平, 张永, 李艳锋. 2012.内蒙古东乌旗狠麦温都尔花岗岩SHRIMP锆石U-Pb年龄及其地质意义[J].岩石矿物学杂志, 31(3):323-334. doi: 10.3969/j.issn.1000-6524.2012.03.003
蒋少涌, 赵葵东, 姜耀辉, 戴宝章. 2008.十杭带湘南-桂北段中生代A型花岗岩带成岩成矿特征及成因探讨[J].高校地质学报, 14(4):496-509. doi: 10.3969/j.issn.1006-7493.2008.04.004
贾小辉, 王强, 唐功建. 2009. A型花岗岩的研究进展及意义[J].大地构造与成矿学, 33(3):465-480. doi: 10.3969/j.issn.1001-1552.2009.03.017
楼亚儿, 杜杨松. 2003.花岗质岩石成因分类研究述评[J].地学前缘, 10(3):269-275. doi: 10.3321/j.issn:1005-2321.2003.03.024
李小伟, 莫宣学, 赵志丹, 朱弟成. 2010.关于A型花岗岩判别过程中若干问题的讨论[J].地质通报, 29(2/3):278-285. http://d.old.wanfangdata.com.cn/Periodical/zgqydz201002012
李敏, 李敏, 程银行, 任邦方, 李艳锋, 张天福. 2015.内蒙古东乌旗巴彦都兰二长花岗岩年代学、地球化学特征及其地质意义[J].地质科技情报, 34(4):6-14. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dzkjqb201504002
李可, 张志诚, 冯志硕, 李建锋, 汤文豪, 罗志文, 陈彦. 2015.兴蒙造山带中段北部晚古生代的两期岩浆活动及其构造意义[J].地质学报, 89(2):272-288.
聂凤军, 曹毅, 丁成武, 刘翼飞. 2014.论兴蒙造山带叠生成矿作用——以锡林浩特和额尔古纳地块为例[J].岩石学报, 30(7):2063-2080. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=ysxb98201407019
邱检生, 肖娥, 胡建, 徐夕生, 蒋少涌, 李真. 2008.福建北东沿海高分异I型花岗岩的成因:锆石U-Pb年代学、地球化学和Nd-Hf同位素制约[J].岩石学报, 24(11):2468-2484.
史兴俊, 张磊, 王涛, 肖序常, 童英, 张建军, 耿建珍, 叶珂. 2014.内蒙古阿拉善盟北部宗乃山中酸性侵入岩年代学、地球化学及构造意义[J].岩石矿物学杂志, 33(6):989-1007. doi: 10.3969/j.issn.1000-6524.2014.06.001
唐克东. 1992.中朝板块北侧褶皱带构造演化及成矿规律[M].北京:北京大学出版社, 227.
童英, 洪大卫, 王涛, 史兴俊, 张建军, 曾涛. 2010.中蒙边境中段花岗岩时空分布特征及构造和找矿意义[J].地球学报, 31(3):395-412. http://d.old.wanfangdata.com.cn/Periodical/dqxb201003013
吴福元, 李献华, 杨进辉, 郑永飞. 2007.花岗岩成因研究的若干问题[J].岩石学报, 23(6):1217-1238. doi: 10.3969/j.issn.1000-0569.2007.06.001
吴锁平, 王梅英, 戚开静. 2007. A型花岗岩研究现状及其述评[J].岩石矿物学杂志, 26(1):57-66. doi: 10.3969/j.issn.1000-6524.2007.01.009
吴魏伟, 廖群安, 陈帅, 胡朝斌, 田健, 王富明, 樊光明. 2015.东准噶尔喀拉萨依高分异A型花岗岩岩石成因及其地质意义[J].地质通报, 34(2/3):385-399. http://d.old.wanfangdata.com.cn/Periodical/zgqydz201502016
肖娥, 邱检生, 徐夕生, 蒋少涌, 胡建, 李真. 2007.浙江瑶坑碱性花岗岩体的年代学、地球化学及其成因与构造指示意义[J].岩石学报, 23(6):1431-1440. doi: 10.3969/j.issn.1000-0569.2007.06.019
肖中军. 2015.内蒙阿尔善布拉格一带早二叠世碱性花岗岩地球化学特征、锆石U-Pb年龄及其地质意义[J].地质调查与研究, 38(3):171-181. doi: 10.3969/j.issn.1672-4135.2015.03.002
叶栩松, 廖群安, 葛梦春. 2011.内蒙古锡林浩特、林西地区三叠纪过铝质花岗岩的成因及构造意义[J].地质科技情报, 30(3):57-64. doi: 10.3969/j.issn.1000-7849.2011.03.007
张旗, 王焰, 李承东, 王元龙, 金惟俊, 贾秀勤. 2006.花岗岩的Sr-Yb分类及其地质意义[J].岩石学报, 22(9):2249-2269. http://d.old.wanfangdata.com.cn/Periodical/ysxb98200609001
张旗, 潘国强, 李承东, 金惟俊, 贾秀勤. 2007.花岗岩构造环境问题:关于花岗岩研究的思考之三[J].岩石学报, 23(11):2683-2698. doi: 10.3969/j.issn.1000-0569.2007.11.002
张玉清, 许立权, 康小龙, 宝音乌力吉. 2009.内蒙古东乌珠穆沁旗京格斯台碱性花岗岩年龄及意义[J].中国地质, 36(5):988-995. doi: 10.3969/j.issn.1000-3657.2009.05.004 http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20090504&flag=1
张旗, 冉皞, 李承东. 2012. A型花岗岩的实质是什么?[J].岩石矿物学杂志, 31(4):621-626. doi: 10.3969/j.issn.1000-6524.2012.04.014
张磊, 吕新彪, 刘阁, 陈俊, 陈超, 高奇, 刘洪. 2013.兴蒙造山带东段大陆弧后A型花岗岩特征与成因[J].中国地质, 40(3):869-884. doi: 10.3969/j.issn.1000-3657.2013.03.018 http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20130318&flag=1
赵振华. 2007.关于岩石微量元素构造环境判别图解使用的有关问题[J].大地构造与成矿学, 31(1):92-103. doi: 10.3969/j.issn.1001-1552.2007.01.011
-
