The Potential evaluation of marine sand resources in the northern sea areas of Hainan Island
-
摘要:
海南岛北部浅海海砂资源丰富，以砂砾质沉积为主，集中于琼州海峡东口潮流沙脊区、河口三角洲和沿岸水下岸坡等海域。本文通过对海南岛北部海域的地形地貌、地层、底质类型等方面的调查，分东、西两个区域研究了海砂资源的分布、范围、规模和类型等地质特征，并估算了海砂资源量，结合沉积环境，评价了各区域海砂的资源潜力。研究区海砂分布广泛，但东、西区特征和规模具有较大差异，西区海砂以砂质砾和泥质砂为主，厚度5~10 m；东区海砂以砂、砾质砂和砂质砾为主，厚度10~50 m，规模远超西区。研究区共圈定出9处资源潜力区，资源量为91.4亿m3，其余区域为远景区，其资源量为71.5亿m3。根据地形地貌、水动力和沉积环境等因素，研究区海砂可分为潮流沙脊堆积体系、河口水下三角洲堆积体系、岬湾海岸水下岸坡堆积体系和侵蚀残留体系几种类型。其中位于琼州海峡东口浅滩区的潮流沙脊堆积体系海砂连续分布面积达328 km2，平均厚度超过25 m，资源量83.9亿m3，最具潜力。
Abstract:The shallow sea in the north of Hainan Island is rich in marine sand resources, which are mainly composed of sand and gravel deposits. The marine sand resources are concentrated on the tidal ridge area of the east mouth of Qiongzhou Strait, estuary delta and submarine coastal slope. Through the investigation of the bedform, strata and sediments of the seafloor, the distribution and the scale of marine sand resources in two regions were discussed separately together with the marine sand geological features, and the marine sand resource volumes were also estimated. On the basis of the different sediment environments, marine sand resources potential has been discussed systematically. The marine sand in the study area is widely distributed, but the characteristics and scale of the east region and the west region are quite different. The marine sand in the west region is mainly sandy gravel and muddy sand with a thickness of 5 to 10 meters, whereas the marine sand in the east region is dominated by sand, gravel sand and gravel with a thickness of 10 to 50 meters, suggesting a larger scale than the west region. There are totally 9 resource potential areas with a resource volume of 9.14 billion m3, and the rest of the area is a prospective area with a resource volume of 7.15 billion m3. According to such factors as topography, hydrodynamic and sedimentary environment, the marine sand sediment system can be divided into tidal sand ridge accumulation system, estuary underwater Delta accumulation system, submarine coastal slope accumulation system and erosion residue system. Among them, the tidal sand ridge accumulation system located in the shallow water area of the eastern part of the Qiongzhou Strait has a continuous distribution area of 328 km2, an average thickness of more than 25 meters, and a resource volume of 8.39 billion m3, suggesting huge resource potential.
-
Key words:
- northern sea area /
- marine sand resources /
- potentiality /
- evaluation /
- Hainan Island
-
-

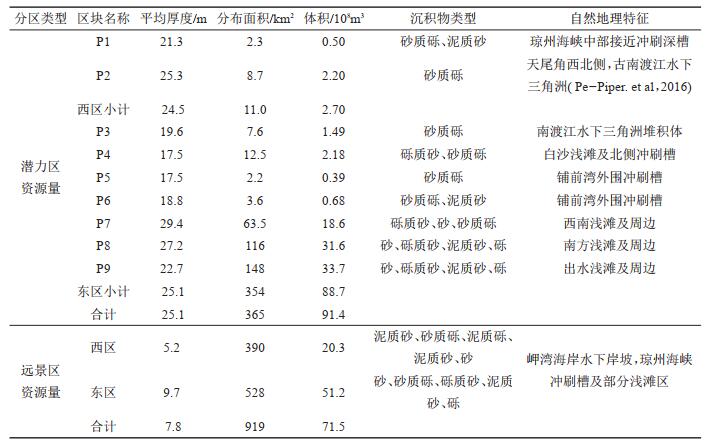

表 1 研究区海砂资源潜力估算
Table 1. The estimation of marine sand resource potential in the study area
下载: 导出CSV
-
Cao Xueqing, Tan Qixin, Zhang Yong, Jiang Yuchi, Yuan Xiaoju. 2007. Characteristics of construction marine sand deposits in offshore area of China[J]. Acta Petrologica et Mineralogica, 26(2):164-170(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=yskwxzz200702008
Chen Heqin, Hu Hongbin, Jiang Zhiyong, Wang Baocan. 2003. Equilibrium range spectra analysis of nearshore bedforms in the East Qiongzhou Strait[J]. The Ocean Engineering, 21(4):97-103(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hygc200304016
Chen Dasen, Chen Bo, Yan Jinhui, Xu Huifen. 2006. The seasonal variation characteristics of residual currents in the Qiongzhou Strait[J]. Transactions of Oceanology and Limnology, (2):12-17(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hyhztb200602003
Chen Liang, Zhang Yufen, Li Tuanjie, Yang Wenfeng, Chen Jing. 2014.Sedimentary environment and its evolution of Qiongzhou Strait and nearby seas since last ten thousand years[J]. Earth Science-Journal of China University of Geoscience, 39(6):696-704(in Chinese with English abstract). doi: 10.3799/dqkx.2014.065
Chen Shenliang. 1998. Coastal dynamic geomorphological researches on south coast of Qiongzhou Strait[J]. Tropic Oceanoloy, 17(3):35-42(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199800469541
Jin Bo, Bao Caiwang, Lin Jisheng. 1982. Geomorphic feature and origin of the deltas at the east and west mouths of Qiongzhou Strait[J]. Marine Geological Research, 2(4):94-101(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-HYDZ198204014.htm
Liang Guanghe. 2018. A study of the genesis of Hainan Island[J]. Geology in China, 45(4):693-705(in Chinese with English abstract). doi: 10.1029/JB093iB05p04933
Liu Hongshu. 1989. Enrichment laws of quaternary littoral placer deposits in China[J]. Marine Geology & Quaternary Geology, 9(2):41-49(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-HYDZ198902006.htm
Liu Zhenxia, Xia Dongxing, Wang Kuiyang. 1998. Tidal depositional systems and patterns of China's continental shelf[J]. Oceanologia et Limnologia Sinica, 29(2):141-147(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-HYFZ199802004.htm
Li Zhanhai, Ke Xiankun, Wang Qian, Gao Jianhua. 2003.Characteristics of water and sediment transport in the Qiongzhou Strait[J]. Geographical Research, 22(2):151-159(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dlyj200302003
Pe-Piper G, Piper D J W, Wang Ying, Zhang Yongzhan, Corwin Trottier, Ge Chendong, YinYong. 2016. Quaternary evolution of the rivers of northeast Hainan Island, China:Tracking the history of avulsion from mineralogy and geochemistry of river and delta sands[J]. Sedimentary Geology, 333:84-99. doi: 10.1016/j.sedgeo.2015.12.008
Peng Xuechao. 2000. Geological structure characteristics and cause of formation analyzing in Qiongzhou Strait, South China Sea[J]. Geological Research of South China Sea, (12):44-57. https://www.sciencedirect.com/science/article/pii/S1674984715300161
Shao Juenian, Tao Weipin. 2014. Handbook of Industrial Requirements for Mineral Resources[M]. Beijing:Geological Publishing House, 563-585(in Chinese).
Sun Yan, Han Changfu. 1999. Distribution and exploitation of placer deposit resources in China[J]. Marine Geology & Quaternary Geology, 19(1):117-121(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz199901015
Tan Qixin. 1998. The marine sand deposits of China[J]. Geology in China, 25(4):23-26(in Chinese with English abstract). doi: 10.1016/S0377-8398(97)00011-X
Tan Qixin, Sun Yan. 1988. The Placer Deposits of China's Sea Coast[M]. Beijing:Science Press, 83-142(in Chinese)
Tong Changliang, Li Gang, Chen Fei, Zhang Kuanghua. 2018. The geological characteristics of marine sand resources in the northeast sea of Hainan Island and the formation study[J]. Marine Geology Frontiers, 34(1):12-19(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-ZGKA201901011.htm
Wang Shengjie, Liu Xiqing, Dai Qinfen, Li Xuejie, Chen Hong. 2003.Distribution characteristics of marine aggregate resources and potential prospect in China[J]. Marine Geology & Quaternary Geology, 23(3):83-89(in Chinese with English abstract). http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz200303013
Wang Wenjie. 1995. The development of the wave control coast in the northeast Hainan Island[J]. Acta Oceanologica Sinica, 17(3):65-71(in Chinese with English abstract). https://www.sciencedirect.com/science/article/abs/pii/S0278434316300899
Ye Chunchi. 1986. Distribution of sediments and submarine topography of Qiongzhou Strait[J]. Tropical Geography, 6(4):346-353(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-RDDD198604007.htm
Yin Ping, Lin Liangjun, Chen Bin, Xiao Guoqiang, Cao Ke, Yang Jilong, Li Meina, Duan Xiaoyong, Qiu Jiandong, Hu Yunzhuang, Wang Lei, Sun Xiaoming. 2017. Coastal zone geo-resources and geo-environment in China[J]. Geology in China, 44(5):842-856(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DIZI201705003.htm
Zhang Hunan, Chen Weiguang. 1987. Preliminary study on formation of Qiongzhou Strait[J]. Acta Oceanologica Sinica, 9(5):594-602(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-HYDZ200702006.htm
曹雪晴, 谭启新, 张勇, 姜玉池, 原晓军. 2007.中国近海建筑砂矿床特征[J].岩石矿物学杂志, 26(2):164-170. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=yskwxzz200702008
程和琴, 胡红兵, 蒋智勇, 王宝灿. 2003.琼州海峡东口底形平衡域谱分析[J].海洋工程, 21(4):97-103. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hygc200304016
陈达森, 陈波, 严金辉, 徐辉奋. 2006.琼州海峡余流场季节性变化特征[J].海洋湖沼通报, (2):12-17. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hyhztb200602003
陈亮, 张玉芬, 李团结, 杨文丰, 陈静. 2014.琼州海峡及周边海域沉积环境及近万年以来沉积演化[J].地球科学——中国地质大学学报, 39(6):696-704. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqkx201406005
陈沈良. 1998.琼州海峡南岸海岸动力地貌研究[J]热带海洋, 17(3):35-42. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199800469541
金波, 鲍才旺, 林吉胜. 1982.琼州海峡东、西口地貌特征及其成因初探[J].海洋地质研究, 2(4):94-101.
梁光河. 2018.海南岛的成因机制研究[J].中国地质, 45(4):693-705. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgdizhi201804005
刘洪树. 1989.我国滨海砂矿在第四系中的富集规律[J].海洋地质与第四纪地质, 9(2):41-49. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=252841
刘振夏, 夏东兴, 望揆洋. 1998.中国陆架潮流沉积体系和模式[J].海洋湖沼通报, 29(2):141-147.
李占海, 柯贤坤, 王倩, 高建华. 2003.琼州海峡水沙输运特征研究[J].地理研究, 22(2):151-159. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dlyj200302003
彭学超. 2000.琼州海峡地质构造特征及成因分析[J].南海地质研究, (12):44-57. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK200000876087
邵厥年, 陶维屏. 2014.矿产资源工业要求手册[M].北京:地质出版社, 563-585.
孙岩, 韩昌甫. 1999.我国滨海砂矿资源分布及开发[J].海洋地质与第四纪地质, 19(1):117-121. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz199901015
谭启新. 1998.中国的海洋砂矿[J].中国地质, 25(4):23-26. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199800041951
谭启新, 孙岩. 1988.中国滨海砂矿[M]..北京:科学出版社, 83-142.
仝长亮, 黎刚, 陈飞, 张匡华. 2018.海南岛东北部海域海砂资源特征及成因[J].海洋地质前沿, 34(1):12-19. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzdt201801003
王圣洁, 刘锡清, 戴勤奋, 李学杰, 陈弘. 2003.中国海砂资源分布特征及找矿方向[J].海洋地质与第四纪地质, 23(3):83-89. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=hydzydsjdz200303013
王文介. 1995.琼东北浪控海岸的发育[J].海洋科学, 17(3):65-71. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=QK199500431030
叶春池. 1986.琼州海峡沉积与地形发育[J].热带地理, 6(4):346-353. http://www.cnki.com.cn/Article/CJFDTotal-RDDD198604007.htm
印萍, 林良俊, 陈斌, 肖国强, 曹珂, 杨吉龙, 李梅娜, 段晓勇, 仇建东, 胡云壮, 王磊, 孙晓明. 2017.中国海岸带地质资源与环境评价研究[J].中国地质, 44(5):842-856. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=zgdizhi201705003
张虎男, 陈伟光. 1987.琼州海峡成因初探[J].海洋学报, 9(5):594-602.
-
