斜坡单元支持下基于土体含水率的陕西省清涧县城区黄土滑坡危险性评价

,  ,

文章导航 > 中国地质 > 2020 > 47(6): 1904-1914

上一篇

下一篇

薛强, 张茂省, 高波. 2020. 斜坡单元支持下基于土体含水率的陕西省清涧县城区黄土滑坡危险性评价[J]. 中国地质, 47(6): 1904-1914. doi: 10.12029/gc20200624
引用本文: 薛强, 张茂省, 高波. 2020. 斜坡单元支持下基于土体含水率的陕西省清涧县城区黄土滑坡危险性评价[J]. 中国地质, 47(6): 1904-1914. doi: 10.12029/gc20200624
shu
XUE Qiang, ZHANG Maosheng, GAO Bo. 2020. Hazard assessment of loess landslide based on soil moisture content and supported by slope unit in Qingjian City, Shaanxi Province[J]. Geology in China, 47(6): 1904-1914. doi: 10.12029/gc20200624
Citation: XUE Qiang, ZHANG Maosheng, GAO Bo. 2020. Hazard assessment of loess landslide based on soil moisture content and supported by slope unit in Qingjian City, Shaanxi Province[J]. Geology in China, 47(6): 1904-1914. doi: 10.12029/gc20200624
shu

斜坡单元支持下基于土体含水率的陕西省清涧县城区黄土滑坡危险性评价

  • 1.

    中国地质调查局西安地质调查中心, 陕西 西安 710054

  • 2.

    自然资源部黄土地质灾害重点实验室, 陕西 西安 710054

  • 3.

    自然资源部黄土高原地质灾害野外科学观测研究站, 陕西 西安 710054

  • 基金项目:
    国家自然科学基金重点项目(41731289、41530640)、国家重点研发计划项目(2018YFC1504700)及中国地质调查局项目(12120113008900、DD20189270)联合资助
详细信息
    作者简介: 薛强, 男, 1979年生, 高级工程师, 主要从事地质灾害调查与研究工作; E-mail:xqiang@mail.cgs.gov.cn

  • 中图分类号: P694

Hazard assessment of loess landslide based on soil moisture content and supported by slope unit in Qingjian City, Shaanxi Province

  • 1.

    Xi'an Center of China Geological Survey, Xi'an 710054, Shaanxi, China

  • 2.

    Key Laboratory for Geo-hazards in Loess Area, MNR, Xi'an 710054, Shaanxi, China

  • 3.

    Observation and Research Station of Geo-hazards in Loess Plateau, MNR, Xi'an 710054, Shaanxi, China

  • Fund Project: Supported by National Natural Science Foundation of China Key Program (No. 41731289, 41530640), National Key Research and Development Plan (No. 2018YFC1504700), China Geological Survey Project (No. 12120113008900, DD20189270)
More Information
    Author Bio: XUE Qiang, male, born in 1979, senior engineer, mainly engages in geo- hazards investigation and research; E-mail:xqiang@mail.cgs.gov.cn .

    摘要

  • 滑坡危险性评价是减灾防灾的重要措施之一。通过野外调查，陕西省清涧县城区周边斜坡地带共发育滑坡138处，严重威胁县城安全。为了准确评价清涧县城区滑坡危险性，按照河流沟谷的发育情况和地形地貌的完整性，将清涧县城区及周边区域的斜坡地带共划分为925个斜坡单元，将斜坡单元按照不同的坡度、坡高和坡型分别进行不同土体含水率工况下的斜坡稳定性计算。计算结果表明，随着斜坡土体含水率的逐渐增加，城区内稳定斜坡的面积逐渐减少，不稳定斜坡的面积逐渐增大。依据陕北地区黄土斜坡土体含水率监测数据，分析计算土体含水率（w）的出现概率，w≤0.15出现的概率为0.622（概率很高），0.15 < w≤0.2出现的概率为0.2963（概率高），0.2 < w≤0.25出现的概率为0.0816（概率中），w>0.25出现的概率为0（概率低）。结合斜坡稳定性计算结果和含水率出现概率，评价斜坡单元危险性。评价结果表明，清涧县城区危险性很高区面积3.27 km2，包含斜坡单元112个，已发生滑坡点92个；危险性高区面积4.19 km2，包含斜坡单元128个，已发生滑坡点36个；危险性中区面积8.75 km2，包含斜坡单元251个，已发生滑坡点6个；危险性低区面积15.20 km2，包含斜坡单元434个，已发生滑坡点4个。

    Landslide hazard assessment is one of the important measures for disaster reduction and prevention. Field investigations show that 138 landslides are developed along the slopes around the city area in Qingjian, which seriously threaten the safety of the city. In order to accurately evaluate the hazard of landslides in Qingjian City, the authors divided the slope zone of Qingjian City and surrounding areas into 925 slope units according to the development of river valleys and the integrity of topography. The slope units were calculated according to different slope gradients, slope heights and slope patterns under different soil moisture values. The calculation results show that, with the gradual increase of the soil moisture content of slope, the area of the stable slope gradually decreases, and the area of the unstable slope gradually increases. According to the monitoring data of soil moisture content of loess slope in northern Shaanxi, the probabilities of occurrence of soil moisture content (w) were analyzed and calculated. The probability of occurrence of w ≤ 0.15 is 0.622 (very high probability), that of 0.15 < w ≤ 0.2 is 0.2963 (high probability), that of 0.2 < w ≤ 0.25 is 0.0816 (medium probability), and that of w>0.25 is 0 (low probability). The hazards of slope units were assessed in combination with the slope stability calculation results and the soil moisture content occurrence probability. The assessment results show that the very high hazard area is 3.27 km2, which includes 112 slope units and 92 landslides; the high hazard area is 4.19km2, which includes 128 slope units and 36 landslides; the medium hazard area is 8.75 km2, which includes 251 slope units and 6 landslides; the low hazard area is 15.20km2, which includes 434 slope units and 4 landslides.

    • HTML全文
  • 加载中

  • 图 1  清涧县城区及周边滑坡分布图（左：整体图；右：A、B区域局部放大）

    Figure 1.

    下载: 全尺寸图片 幻灯片

    图 2  清涧县城及周边区域斜坡单元划分图

    Figure 2.

    下载: 全尺寸图片 幻灯片

    图 3  清涧县城及周边区域滑坡密度图

    Figure 3.

    下载: 全尺寸图片 幻灯片

    图 4  清涧县城及周边区域斜坡单元坡度图

    Figure 4.

    下载: 全尺寸图片 幻灯片

    图 5  清涧县城及周边区域斜坡单元坡高图

    Figure 5.

    下载: 全尺寸图片 幻灯片

    图 6  清涧县城及周边区域斜坡单元坡型图

    Figure 6.

    下载: 全尺寸图片 幻灯片

    图 7  坡高50 m、坡度35°的黄土斜坡在不同坡型、不同含水率工况下的稳定性计算示意图

    Figure 7.

    下载: 全尺寸图片 幻灯片

    图 8  不同含水率工况下清涧县城区斜坡单元稳定性计算结果分布图

    Figure 8.

    下载: 全尺寸图片 幻灯片

    图 9  不同含水率条件下稳定和不稳定斜坡面积变化

    Figure 9.

    下载: 全尺寸图片 幻灯片

    图 10  不同含水率条件下稳定和不稳定斜坡单元内已发生滑坡数量变化

    Figure 10.

    下载: 全尺寸图片 幻灯片

    图 11  陕北地区黄土斜坡土体含水率监测曲线

    Figure 11.

    下载: 全尺寸图片 幻灯片

    图 12  黄土斜坡土体含水率出现概率

    Figure 12.

    下载: 全尺寸图片 幻灯片

    图 13  清涧县城区及周边斜坡失稳危险性评价图

    Figure 13.

    下载: 全尺寸图片 幻灯片

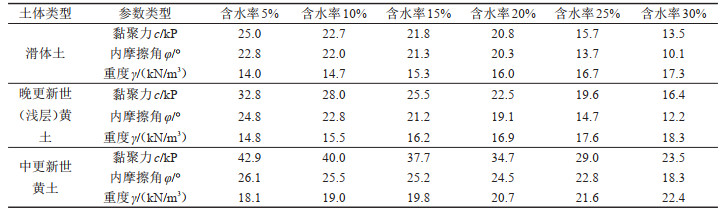

    表 1  清涧县城区不同含水率工况下的土体物理力学参数

    Table 1.  Physical and mechanical parameters of soil under different water values in Qingjian City

    下载: 导出CSV

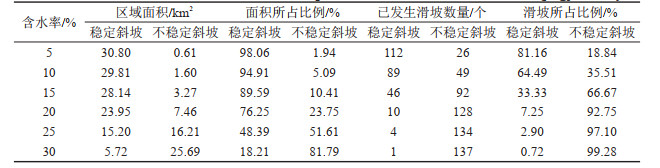

    表 2  清涧县城区不同含水率工况下斜坡单元稳定性计算结果统计

    Table 2.  Statistics of calculation results of slope under different water values in Qingjian City

    下载: 导出CSV

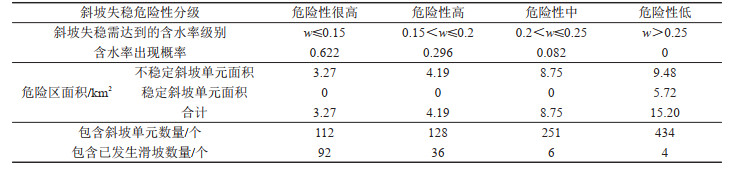

    表 3  斜坡失稳危险性分级

    Table 3.  Classification table of slope instability hazard

    下载: 导出CSV
    • 参考文献(46)

  • Chang Jinyuan, Bao Han, Wu Faquan, Chang Zhonghua, Luo Hao. 2015. Discussion on stability of shallow landslide under rainfall[J]. Rock and Soil Mechanics, 36(4):995-1001(in Chinese with English abstract).

    Grant A, Wartman J, Abou-Jaoude G. 2016. Multimodal method for coseismic landslide hazard assessment[J]. Engineering Geology, 212:146-160. doi: 10.1016/j.enggeo.2016.08.005

    Gu Tianfeng, Wang Jiading, Fu xinping. 2013. Regional slope stability analysis method based on the slope unit[J]. Scientia Geographica Sinica, 33(11):1400-1405(in Chinese with English abstract).

    Guzzetti F, Galli M, Reichenbach P, Ardizzone F, Cardinali M. 2006.Landslide hazard assessment in the Collazzone area, Umbria, Central Italy[J]. Natural Hazards and Earth System Sciences, 6:115-131. doi: 10.5194/nhess-6-115-2006

    Hu Ruilin, Fan Linfeng, Wang Shanshan, Wang Lichao, Wang Xueliang. 2013. Theory and method for landslide risk assessmentcurrent status and future development[J]. Journal of Engineering Geology, 21(1):76-84(in Chinese with English abstract).

    Huang Runqiu. 2007. Large-scale landslides and their sliding mechanisms in China since the 20th century[J]. Chinese Journal of Rock Mechanics and Engineering, 26(3):433-454(in Chinese with English abstract).

    Jia N, Mitani Y, Xie M, Djamaluddin I. 2012. Shallow landslide hazard assessment using a three-dimensional deterministic model in a mountainous area[J]. Computers and Geotechnics, 45:1-10. doi: 10.1016/j.compgeo.2012.04.007

    Martha T R, Westen C J, Kerle N, Jetten V, Kumar K V. 2013.Landslide hazard and risk assessment using semi-automatically created landslide inventories[J]. Geomorphology, 184:139-150. doi: 10.1016/j.geomorph.2012.12.001

    Park H J, Lee J H, Woo I. 2013. Assessment of rainfall-induced shallow landslide susceptibility using a GIS-based probabilistic approach[J]. Engineering Geology, 161:1-15. doi: 10.1016/j.enggeo.2013.04.011

    Peng Ling, Niu Ruiqing, Zhao Yannan, Deng Qinglu. 2013. Risk assessment of a regional landslide:A case of Zigui County territory in Three Gorges Reservoir[J]. Journal of Jilin University(Earth Science Edition), 43(3):891-901(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-CCDZ201303027.htm

    Pradhan B, Lee S. 2010. Delineation of landslide hazard areas on Penang Island, Malaysia, by using frequency ratio, logistic regression, and artificial neural network models[J]. Environmental Earth Sciences, 60:1037-1054. doi: 10.1007/s12665-009-0245-8

    Shi Jusong, Shi Ling, Wu Shuren, Wang Tao. 2009. Difficulties and countermeasures in the practice of landslide risk assessment[J]. Geological Bulletin of China, 28(8):1020-1030(in Chinese with English abstract).

    Wang Yunlong, Wen Baoping. 2011. Risk study of landslide geohazards in Lanzhou City[J]. Geology in China, 38(6):1593-1598(in Chinese with English abstract).

    Xue Qiang, Tang Yaming, Sun Pingping, Bi Junbo. 2014. Temporalspatial distribution of soil water content in loess slope subjected to rainfall infiltration[J]. Bulletin of Soil and Water Conservation, 34(2):53-56(in Chinese with English abstract).

    Xue Qiang, Zhang Maosheng, Bi Junbo, Wang Xiaofei, Lin Longchao. 2019. Exfoliation erosion and deformation failure of excavated loess slope[J]. Northwestern Geology, 52(2):158-166(in Chinese with English abstract). http://www.cnki.com.cn/Article/CJFDTotal-XBDI201902020.htm

    Xue Qiang, Zhang Maosheng, Gao Bo, Zhang Jianlong. 2018. Risk assessment of geological hazards in Suide City, Shaanxi Province[J]. Journal of Engineering Geology, 26(3):711-719(in Chinese with English abstract).

    Xue Qiang, Zhang Maosheng, Li Lin. 2015. Loess landslide susceptibility evaluation based on slope unit and information value method in Baota District[J]. Geological Bulletin of China, 34(11):2108-2115(in Chinese with English abstract). http://www.researchgate.net/publication/292463659_Loess_landslide_susceptibility_evaluation_based_on_slope_unit_and_information_value_method_in_Baota_District_Yan'an

    Xue Qiang, Zhang Maosheng. 2018. Monitoring, early warning and deformation characteristics of Yantu' an landslide in Yan' an[J]. Northwestern Geology, 51(2):220-226(in Chinese with English abstract).

    Yan Ge, Liang Shouyun, Zhao Hongliang. 2017. An approach to improving slope unit division using GIS technique[J]. Scientia Geographica Sinica, 37(11):1764-1770(in Chinese with English abstract).

    Yin Yueping, WangWenpei, Zhang Nan, Yan Jingkai, Wei Yunjie, Yang Longwei. 2017. Long runout geological disaster initiated by the ridge-top rockslide in a strong earthquake area:A case study of the Xinmo landslide in Maoxian County, Sichuan Province[J]. Geology in China, 44(5):827-841(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DIZI201705002.htm

    Zhang Maosheng, Li Tonglu. 2011. Triggering factors and forming mechanism of loess landslides[J]. Journal of Engineering Geology, 19(4):530-540(in Chinese with English abstract).

    Zhang Maosheng, Xiao Peixi, Wei Xingli. 2006. A preliminary discussion of the occurrence of landslide in the Baota district of Yan'an City[J]. Hydrogeology & Engineering Geology, 33(6):72-74(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-SWDG200606017.htm

    Zhang Maosheng, Xue Qiang, Jia Jun, Xu Jiwei, Gao Bo, Wang Jiayun. 2019. Methods and practices for the investigation and risk assessment of geo-hazards in mountains towns[J]. Northwestern Geology, 52(2):125-135(in Chinese with English abstract).

    Zhang Shuxuan, Yang Weimin, Cheng Xiaojie, Tian You, Li Hao, Huang Xiao. 2017. Genetic mechanism and stability analysis of loess landslides group in Tianshui Hongqishan, Gansu Province[J]. Geology in China, 44(5):924-937(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DIZI201705008.htm

    Zhao Liangjun, Chen Donghua, Li Hu, Liu Yufeng. 2017. A method to assess landslide susceptibility by using logistic regression model for Guozigou Region, Xinjinag[J]. Mountain Research, 35(2):203-211(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-SDYA201702010.htm

    Zhuang Jianqi, Peng Jianbing, Zhang Liyong. 2013. Risk assessment and prediction of the shallow landslide at different precipitation in Loess Plateau[J]. Journal of Jilin University(Earth Science Edition), 43(3):867-876(in Chinese with English abstract).

    常金源, 包含, 伍法权, 常中华, 罗浩. 2015.降雨条件下浅层滑坡稳定性探讨[J].岩土力学, 36(4):995-1001.

    谷天峰, 王家鼎, 付新平. 2013.基于斜坡单元的区域斜坡稳定性评价方法[J].地理科学, 33(11):1400-1405.

    胡瑞林, 范林峰, 王珊珊, 王立朝, 王学良. 2013.滑坡风险评价的理论与方法研究[J].工程地质学报, 21(1):76-84.

    黄润秋. 2007.20世纪以来中国的大型滑坡及其发生机制[J].岩石力学与工程学报, 26(3):433-454.

    彭令, 牛瑞卿, 赵艳南, 邓清禄. 2013.区域滑坡灾害风险评估——以长江三峡库区秭归县为例[J].吉林大学学报(地球科学版), 43(3):891-901.

    石菊松, 石玲, 吴树仁, 王涛. 2009.滑坡风险评估实践中的难点与对策[J].地质通报, 28(8):1020-1030.

    王云龙, 文宝萍. 2011.兰州市滑坡地质灾害危险性研究[J].中国地质, 38(6):1593-1598. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20110619&flag=1

    薛强, 唐亚明, 孙萍萍, 毕俊擘. 2014.降雨入渗对黄土斜坡土体含水率时空分布特性的影响[J].水土保持通报, 34(2):53-56.

    薛强, 张茂省, 毕俊擘, 王晓飞, 林隆超. 2019.开挖型黄土边坡剥落侵蚀作用及变形破坏研究[J].西北地质, 52(2):158-166.

    薛强, 张茂省, 高波, 张建龙. 2018.陕西省绥德县城区地质灾害风险评估[J].工程地质学报, 26(3):711-719.

    薛强, 张茂省, 李林. 2015.基于斜坡单元与信息量法结合的宝塔区黄土滑坡易发性评价[J].地质通报, 34(11):2108-2115.

    薛强, 张茂省. 2018.延安淹土安滑坡监测预警及变形特征[J].西北地质, 51(2):220-226.

    颜阁, 梁收运, 赵红亮. 2017.基于GIS的斜坡单元划分方法改进与实现[J].地理科学, 37(11):1764-1770.

    殷跃平, 王文沛, 张楠, 闫金凯, 魏云杰, 杨龙伟. 2017.强震区高位滑坡远程灾害特征研究——以四川茂县新磨滑坡为例[J].中国地质, 44(5):827-841. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20170501&flag=1

    张茂省, 李同录. 2011.黄土滑坡诱发因素及其形成机理研究[J].工程地质学报, 19(4):530-540.

    张茂省, 校培喜, 魏兴丽. 2006.延安市宝塔区崩滑地质灾害发育特征与分布规律初探[J].水文地质工程地质, 33(6):72-74.

    张茂省, 薛强, 贾俊, 徐继维, 高波, 王佳运. 2019.山区城镇地质灾害调查与风险评价方法及实践[J].西北地质, 52(2):125-135.

    张树轩, 杨为民, 程小杰, 田尤, 李浩, 黄晓. 2017.甘肃天水红旗山黄土滑坡群成因及稳定性分析[J].中国地质, 44(5):924-937. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20170507&flag=1

    赵良军, 陈冬花, 李虎, 刘玉锋. 2017.基于二元逻辑回归模型的新疆果子沟滑坡风险区划[J].山地学报, 35(2):203-211.

    庄建琦, 彭建兵, 张利勇. 2013.不同降雨条件下黄土高原浅层滑坡危险性预测评价[J].吉林大学学报(地球科学版), 43(3):867-876.
