内蒙古月牙山幅1∶50 000地质图数据库

段霄龙; 辛后田; 田健; 程先钰; 张永; 任邦方; 李敏

doi:10.12029/gc2020Z106

内蒙古月牙山幅1∶50 000地质图数据库

中国地质调查局天津地质调查中心，天津 300170

基金项目: 中国地质调查局地质调查项目“阴山成矿带小狐狸山和雅布赖地区区域地质矿产调查”（项目编号: DD20160039）资助

详细信息

作者简介: 段霄龙，男，1990年生，硕士，工程师，主要从事构造地质学及地质调查工作；E–mail： 758808081@qq.com

通讯作者: 辛后田，男，1969年生，博士，教授级高工，主要从事岩浆岩岩石学及区域构造研究；E–mail： xinht@163.com

收稿日期: 2020-04-20

修回日期: 2020-04-28

刊出日期: 2020-06-25

1∶50 000 Geologic Map Database of Yueyashan Map Sheet, Inner Mongolia

Fund Project: A geological survey project titled Geological and Mineral Survey of Xiaohulishan and Yabulai Areas, Yinshan Metallogenic Belt initiated by China Geological Survey (No.: DD20160039)

More Information

Author Bio: DUAN Xiaolong, male, born in 1990, engineer, master degree, mainly engages in structural geology and geological survey; E-mail: 758808081@qq.com .

Corresponding author: XIN Houtian, male, born in 1969, senior engineer, doctor degree, mainly engages in research on petrology and regional tectonics of magmatic rocks; E-mail: xinht@163.com

Received Date: 20 April 2020

Revised Date: 28 April 2020

Publish Date: 25 June 2020

摘要

摘要:
内蒙古月牙山幅（K47E015010）1∶50 000地质图数据库是根据《区域地质调查技术要求（1∶50 000）》和《数字地质图空间数据库》技术标准，按照最新造山带填图思路，采用数字地质调查系统（DGSS），结合蛇绿构造混杂岩带1∶10 000大比例尺填图综合填绘而成。在充分利用1∶200 000区域地质、1∶50 000矿产调查成果的基础上，结合Spot、ETM、Aster等多种遥感影像对构造及岩性边界不断验证，最终以构造格架为纲而成图，是北山地区以造山带理论指导填图的首批探索性成果图件之一。图件详细填绘了白云山蛇绿岩的物质组成和构造组合特点，对中–新元古界、震旦系、寒武系、奥陶系、泥盆系沉积建造类型进行了重新划分，把图幅内侵入岩划分为中志留世、早泥盆世、晚泥盆世与早二叠世4个序列，并构建了相对完善的构造演化序列。本数据库是月牙山幅配套的数据文件，包含3个非正式填图单位、8个正式地层单位、4期岩浆事件和4期构造变形，数据量为26.7 MB。采集薄片分析样品358件，岩石全分析样品84 件，锆石U–Pb 年龄样品14 件，矿化点2处。这些数据反映了1∶50 000造山带地质调查示范性成果，对后续造山带填图具有参考和借鉴意义，同时细化了俯冲过程的构造、岩浆演化规律，对北山造山带早古生代演化具有重要的科学研究价值。
- 内蒙古 /
- 月牙山幅 /
- 1∶50 000 /
- 地质图 /
- 数据库 /
- 中亚造山带 /
- 地质调查工程
Abstract:
The 1∶50 000 geologic map database of Yueyashan map sheet (K47E015010), Inner Mongolia (also referred to as the Database) was comprehensively mapped and prepared according to the technical standards Technical Requirements for Regional Geological Survey (Scale: 1∶50 000) and Spatial Database Establishment Code of Digital Geologic Maps. In this case, the latest mapping ideas of orogenic belts were followed, a digital geological survey system (DGSS) was adopted, and the 1∶10 000 large-scale mapping of ophiolitic melange belts were combined. Furthermore, the structural and lithologic boundaries in Yueyashan map sheet were continually verified by making full use of the results of 1:200 000-scale regional geological surveys and 1∶50 000-scale mineral surveys as well as the remote sensing images of multiple types such as Spot, ETM, and Aster. As a result, the geologic maps in the Database were finally prepared according to the structural framework of the map sheet, and serve as part of the first-batch exploratory results mapped under the guidance of orogeny theory in Beishan area. In this Dataset, the material composition and structural association characteristics of the Baiyunshan ophiolites were plotted in the maps in detail, the sedimentary formations of the middle Neoproterozoic, Sinian, Cambrian, Ordovician, and Devonian were reclassified, the intrusions in the map sheet were divided into four sequences (i.e., the middle Silurian sequence, early Devonian sequence, late Devonian sequence, and early Permian sequence), and a comparatively complete tectonic evolution sequence was also established. This Database consists of the data and files of Yueyashan map sheet, including the data of three informal mapping units, eight formal stratigraphic units, four stages of magmatic events, and four stages of tectonic deformation, with a size of 26.7 MB. In addition, three hundred fifty-eight samples for thin slice petrographic observation, eighty-four samples for whole-rock geochemistry analysis and fourteen samples for zircon U–Pb dating were collected, and two mineralized sites were discovered in this work, all of which were also integrated into the database. These data reflect the demonstrative results of a 1∶50 000-scale geological survey of an orogenic belt, and can be used as a reference for subsequent mapping of orogenic belts. In addition, tectonic and magmatic evolutionary history of the subduction process was highlighted in the data, which is of scientific research value for the early Paleozoic evolution of Beishan orogenic belt.
- Inner Mongolia /
- Yueyashan map sheet /
- 1∶50 000 /
- geologic map /
- database /
- CAOB /
- geological survey engineering

HTML全文

图 1 内蒙古北山造山带大地构造位置图（a）及北山地区蛇绿构造混杂岩带时空分布略图（b）（据杨合群等, 2010；Xiao WJ et al., 2010；牛文超等, 2019改编）

下载: 全尺寸图片幻灯片

图 2 内蒙古月牙山幅1∶50 000地质图（公开版）示意图

下载: 全尺寸图片幻灯片

Figure 1.

下载: 全尺寸图片幻灯片

Figure 2.

下载: 全尺寸图片幻灯片

表 1 数据库（集）元数据简表

条目	描述
数据库（集）名称	内蒙古月牙山幅1∶50 000地质图数据库
数据库（集）作者	田　健，中国地质调查局天津地质调查中心辛后田，中国地质调查局天津地质调查中心段霄龙，中国地质调查局天津地质调查中心程先钰，中国地质调查局天津地质调查中心张永，中国地质调查局天津地质调查中心任邦方，中国地质调查局天津地质调查中心李敏，中国地质调查局天津地质调查中心
数据时间范围	2017–2018年
地理区域	地理坐标：东经 98°15′～98°30′，北纬 41°30′～41°40′
数据格式	.wp, .wl, *.wt
数据量	26.7 MB
数据服务系统网址	http://dcc.cgs.gov.cn
基金项目	中国地质调查局地质调查项目“阴山成矿带小狐狸山和雅布赖地区地质矿产调查”（项目编号：DD20160039）资助
语种	中文
数据库（集）组成	月牙山幅1∶50 000地质图数据库包括：1∶50 000地质图库和图饰。地质图库包括沉积岩、岩浆岩、变质岩、第四纪、脉岩、构造、地质界线、产状、矿化（点）、蚀变、岩性花纹、各类代号等。图饰包括：接图表、综合柱状图、图例、图切剖面、构造纲要图、地质演化史、大地构造位置图、责任表

下载: 导出CSV

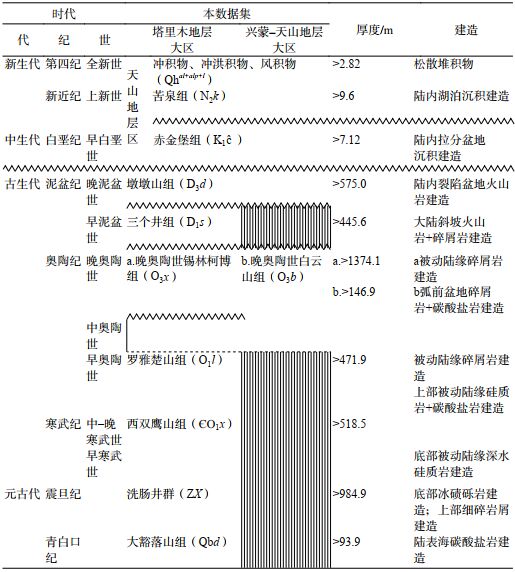

表 2 白云山蛇绿混杂岩带两侧地层沉积建造一览

下载: 导出CSV

表 3 白云山蛇绿构造混杂岩带两侧侵入岩演化序列一览

时代	区域分带	填图单位	岩石类型	同位素年龄/Ma	构造背景
晚二叠世	全区	xβμP₃	灰绿色细粒辉绿岩	255.2±2.9	板内伸展
晚泥盆世	北侧	zγδD₃	中粒花岗闪长岩	360.7±1.6	陆缘弧
	北侧	zxγδD₃	中细粒花岗闪长岩	366.2±1.8；366.2±2.1
	中部		白云山蛇绿构造混杂岩
	南侧	zxξγD₃	中细粒正长花岗岩	375.4±3.5	陆内局部裂陷
早泥盆世	北侧	xzξγD₁	细中粒正长花岗岩	407.4±2.2	造山后拉张
	中部		白云山蛇绿构造混杂岩
	南侧	zxγδD₁	中细粒花岗闪长岩	397.0±1.7	岛弧
		xγδoD₁	细粒英云闪长岩	404.6±2.6
		zxδoD₁	中细粒石英闪长岩
中志留世	全区	zxδοS₂	中细粒石英闪长岩	430.2±3.5	俯冲大陆边缘弧

下载: 导出CSV

表 4 内蒙古1∶50 000月牙山幅地质图空间数据库要素类和对象类一览

基本要素类		对象类		综合要素类		独立要素类
名称及标准编码	实体个数	名称及标准编码	说明	名称及标准编码	说明	名称及标准编码
地质体面实体（_GEOPOLYGON.wp）	738	沉积（火山）岩岩石地层单位（_STRATA）	包括平头山组等14个地层单位	标准图框（_MAP_FRAME.wl）	标准图框内图框4条线，属性相同	接图表（MAP_SHEET）
地质（界）线（_GEOLINE.wl）	2006					综合柱状图（COLUMN_SEC）
产状（_ATTITUDE.wt）	411	侵入岩岩石年代单位（_INTRU _LITHO_CHRONO）	志留纪、泥盆纪等8个填图单元	构造变形带（_TECTZONE.wp）	韧性断层	图切剖面（CUTTING_PROFILE）
样品（_SAMPLE.wt）	115	脉岩（_DIKE_OBJECT）	不同岩性脉岩共计4类	火山岩相带（_VOLCA_FACIES.wp）	三个井组墩墩山组火山岩	责任表（DUTY_TABLE）
照片（_PHOTOGRAPH.wt）	1400					图例（LEGEND）
素描（_SKETCH.wt）	6	断层（_FAULT）	本图幅共44条	变质岩相带（_METAMOR_FACIES.wp）	区域变质带	构造辅图（TECTONIC_MAP）
化石（_FOSSIL）	0
同位素测年（_ISOTOPE.wt）	14					垂向剖面图（VERTICAL_PROFILE）
火山口（_CRATER.wt）	1	图幅基本信息（_SHEET_MAPINFO）	从标准图框中提取

下载: 导出CSV

Table 1. Metadata Table of Database (Dataset)

Items	Description
Database (dataset) name	1∶50 000 Geologic Map Database of Yueyashan Map Sheet, Inner Mongolia
Database (dataset) authors	Tian Jian, Tianjin Center, China Geological Survey Xin Houtian, Tianjin Center, China Geological Survey Duan Xiaolong, Tianjin Center, China Geological Survey Cheng Xianyu Center, China Geological Survey Zhang Yong, Tianjin Center, China Geological Survey Ren Bangfang, Tianjin Center, China Geological Survey Li Min, Tianjin Center, China Geological Survey
Data acquisition time	2017–2018
Geographic area	Geographical coordinates: 98°15′–98°30′E, 41°30′–41°40′N
Data format	.wp, .wl, *.wt
Data size	26.7 MB
Data service system URL	http://dcc.cgs.gov.cn
Fund project	A geological survey project titled Geological and Mineral Survey of Xiaohulishan and Yabulai Areas, Yinshan Metallogenic Belt initiated by China Geological Survey (No.: DD20160039)
Language	Chinese
Database (dataset) composition	The Database consists of 1∶50 000-scale geologic map databases and map decorations. A geologic map database includes sedimentary rocks, magmatic rocks, metamorphic rocks, the Quaternary, dikes, structures, geologic boundaries, attitude, deposits (mineralized points), alteration, lithologic patterns, and various codes. The map decorations consist of index map, synthetic histograms, legends, transverse cutting profiles, a geological structure outline map, geological evolutionary history, geotectonic location maps, and duty tables

下载: 导出CSV

Table 2. List of sedimentaty formations on the two sides of Baiyunshan ophiolitic Melange belt

下载: 导出CSV

Table 3. List of evolution sequences of intrusions on the two sides of Baiyunshan ophiolitic melange belt

Age	Zone	Mapping unit	Rock type	Isotopic age/Ma	Tectonic setting
Late Permian	Whole map sheet	xβμP₃	Grayish-green fine-grained diabases	255.2±2.9	Intraplate extension
Late Devonian	Northern side	zγδD₃	Medium-grained granodiorites	360.7±1.6	Epicontinental arc
	Northern side	zxγδD₃	Medium-fine grained granodiorites	366.2±1.8; 366.2±2.1
	Middle part		Baiyunshan ophiolitic melanges
	Southern side	zxξγD₃	Medium-fine grained syenogranites	375.4±3.5	Intracontinental local rifting
Early Devonian	Northern side	xzξγD₁	Fine-medium grained syenogranites	407.4±2.2	Post-orogenic extension
	Middle part		Baiyunshan ophiolitic melanges
	Southern side	zxγδD₁	Medium-fine grained granodiorites	397.0±1.7	Island arc
		xγδoD₁	Fine-grained tonalites	404.6±2.6
		zxδoD₁	Medium-fine grained quartz diorites
Middle Silurian	Whole map sheet	zxδοS₂	Medium-fine grained quartz diorites	430.2±3.5	Epicontinental arc formed owing to subduction

下载: 导出CSV

Table 4. List of feature classes and object classes of the 1∶50 000 geological map spatial database of Yueyashan map sheet

Feature Class		Object Class		Complex Class		Independent feature class
Name and standard code	Number of entities	Name and standard code	Description	Name and standard code	Description	Name and standard code
Geological polygon entity(_GEOPOLYGON.wp)	738	Lithostratigraphic units of sedimentary (volcanic) rocks(_STRATA)	14 stratigraphic units including Pingtoushan Formation	Standard map frame(_MAP_FRAME.wl)	Four lines of inner map frame (standard frame), with same attributes	Index map(MAP_SHEET)
Geological line (boundary)(_GEOLINE.wl)	2006					Synthetic histogram(COLUMN_SEC)
Attitude(_ATTITUDE.wt)	411	Chronological units of intrusions(_INTRU _LITHO_CHRONO)	Eight mapping units including the Silurian and Devonian units	Tectonic deformation zone(_TECTZONE.wp)	Ductile fault	Transverse Cutting profile(CUTTING_PROFILE)
Sample(_SAMPLE.wt)	115	Dike(_DIKE_OBJECT)	Four types of dikes of different lithologies	Zone of volcanic rock facies (_VOLCA_FACIES.wp)	Volcanic rocks of Sangejing Formation and Dundunshan Formation	Duty table(DUTY_TABLE)
Photo(_PHOTOGRAPH.wt)	1400					Legend(LEGEND)
Sketch(_SKETCH.wt)	6	Fault(_FAULT)	44 faults in this map sheetExtracted from standard map frames	Belt of metamorphic rock facies(_METAMOR_FACIES.wp)	Regional metamorphic belt	Tectonic mosaic map(TECTONIC_MAP)
Fossil(_FOSSIL)	0			Belt of metamorphic rock facies(_METAMOR_FACIES.wp)	Regional metamorphic belt	Tectonic mosaic map(TECTONIC_MAP)
Isotopic dating(_ISOTOPE.wt)	14					Vertical profile(VERTICAL_PROFILE)
Crater(_CRATER.wt)	1	Basic information of map sheet(_SHEET_MAPINFO)
Mineral depositMineral land(_MINERAL_PNT.wt)	2

下载: 导出CSV
