不同耕作类型下土壤-农作物系统中汞、砷含量与生态健康风险评价

,  ,  ,  ,

文章导航 > 中国地质 > 2021 > 48(3): 708-720

上一篇

下一篇

朱丹尼, 邹胜章, 周长松, 卢海平, 谢浩. 2021. 不同耕作类型下土壤-农作物系统中汞、砷含量与生态健康风险评价[J]. 中国地质, 48(3): 708-720. doi: 10.12029/gc20210303
引用本文: 朱丹尼, 邹胜章, 周长松, 卢海平, 谢浩. 2021. 不同耕作类型下土壤-农作物系统中汞、砷含量与生态健康风险评价[J]. 中国地质, 48(3): 708-720. doi: 10.12029/gc20210303
shu
ZHU Danni, ZOU Shengzhang, ZHOU Changsong, LU Haiping, XIE Hao. 2021. Hg and As contents of soil-crop system in different tillage types and ecological health risk assessment[J]. Geology in China, 48(3): 708-720. doi: 10.12029/gc20210303
Citation: ZHU Danni, ZOU Shengzhang, ZHOU Changsong, LU Haiping, XIE Hao. 2021. Hg and As contents of soil-crop system in different tillage types and ecological health risk assessment[J]. Geology in China, 48(3): 708-720. doi: 10.12029/gc20210303
shu

不同耕作类型下土壤-农作物系统中汞、砷含量与生态健康风险评价

  • 中国地质科学院岩溶地质研究所, 自然资源部/广西壮族自治区岩溶动力学重点实验室, 广西 桂林 541004

  • 基金项目:
    国家重点研发计划项目(2017YFC0406104)、广西重点研发计划课题(2018AB37008)和中国地质调查局地质调查项目(DD20190825)联合资助
详细信息
    作者简介: 朱丹尼, 女, 1991年生, 硕士, 助理研究员, 主要从事岩溶水文地质、环境地质方面的研究; E-mail: zhudanni@mail.cgs.gov.cn
    通讯作者: 卢海平, 男, 1987年生, 硕士, 助理研究员, 主要研究方向为岩溶水文地质; E-mail: luhaiping@mail.cgs.gov.cn

  • 中图分类号: X53

Hg and As contents of soil-crop system in different tillage types and ecological health risk assessment

  • Institute of Karst Geology, Chinese Academy of Geological Sciences; Key Laboratory of Karst Dynamics, Ministry of National Resources, Guilin 541004, Guangxi, China

  • Fund Project: Funded by National Key R & D Program (No.2017YFC0406104), Guangxi Key R & D Program (No.2018AB37008) and Geological Survey Program of China Geological Survey (No.DD20190825)
More Information
    Author Bio: ZHU Danni, female, born in 1991, master, assistant researcher, engaged in the research of karst hydrogeology and environmental geology; E-mail: zhudanni@mail.cgs.gov.cn .
    Corresponding author: LU Haiping, male, born in 1987, master, assistant researcher, engaged in the karst hydrogeology research; E-mail: luhaiping@mail.cgs.gov.cn

    摘要

  • 针对废弃矿山遗留生态环境问题，选择贵州丹寨废弃金汞矿为研究区，基于野外系统样品采集，通过原子荧光法和电感耦合等离子体质谱法分析了区内土壤和农作物中的汞(Hg)、砷(As)浓度，采用单指标污染标准指数法、单因子污染指数法、潜在生态危害指数法和目标危险系数法评价了区内Hg、As污染程度及生态健康风险。结果显示：旱地土壤Hg、As平均浓度均超农用地土壤重金属风险筛选值，超标率分别为75.47%和67.92%；土壤Hg污染严重，总体呈极重污染级别，土壤As则以中—极重污染级别为主；玉米地上部分(以下简称玉米)Hg、As超标率分别为36.36%和4.55%，玉米Hg处于轻污染水平，玉米As总体未受污染。相比于旱地-玉米系统，水田土壤Hg的超标率和污染程度均更高，超标率高达89.19%，呈极重污染级别，而水田土壤As超标率仅为22.22%，As污染水平低于旱地土壤；水稻地上部分(以下简称水稻)Hg、As平均浓度均略超食品安全标准，超标率分别为54.55%和18.18%，水稻Hg、As污染均高于玉米，污染等级处于轻-中污染水平。生态健康风险评价表明，土壤Hg以极强生态风险为主、As以轻微生态风险为主；虽然土壤富集Hg，但其向农作物籽实的迁移量小，因此食用玉米和大米对人体健康尚不构成Hg非致癌风险。然而，水稻As富集导致食用大米对人群产生明显的As非致癌和致癌健康风险。该研究对保障矿区居民生活健康具有重要意义，研究结果可为矿区生态环境影响评估及生态恢复提供科学依据。

    Aiming at the problems of ecological environment left behind by abandoned mines, the abandoned gold-mercury mine in Danzhai, Guizhou Province was selected as the research area. Based on the field systematic sampling, the concentrations of mercury (Hg) and arsenic (As) in the soils and crops were analyzed by atomic fluorescence spectrometry and inductively coupled plasma mass spectrometry. The heavy metal pollution level and ecological health risk of soils and crops were evaluated by single factor standard index, single factor index method, potential ecological hazard index and target hazard quotient. The results show that the average concentrations of Hg and As in dryland soil exceed the screening value of heavy metals in agricultural soils, with the exceeding rates of 75.47% and 67.92% respectively. Dryland soil Hg is seriously polluted, showing extremely heavy pollution level, while soil As is mainly medium to extremely heavy pollution. The exceeding rates of Hg and As in aboveground parts of corn (hereinafter referred to as corn) are 36.36% and 4.55% respectively. Corn Hg is slightly polluted, and corn As is not polluted in general. Compared with the dryland-corn system, the Hg over-standard rate and pollution degree of paddy soil are higher, with the exceeding rate of 89.19%, showing an extreme pollution level. However, the over-standard rate of As in paddy soil is only 22.22%, and the As pollution level is lower than that of dryland soil. The average Hg and As concentrations of aboveground rice (hereinafter referred to as rice) are slightly higher than the food safety standards, and the exceeding rates are 54.55% and 18.18% respectively. The Hg and As pollution levels of rice keep higher than those of corn, and the pollution levels is in the light to medium range. The potential ecological hazard index shows that Hg ecological risk in soils is mainly extremely strong, and As ecological risk is mainly slight. It is difficult for Hg to migrate to crop seeds, so there is no obvious non-carcinogenic risks by eating corn and rice. However, the accumulation of As in rice can result in significant non-carcinogenic and carcinogenic health risks. This study is of great significance to ensure the health of mining residents, and the results can provide scientific basis for the ecological environment impact assessment and ecological restoration in mining areas.

    • HTML全文
  • 加载中

  • 图 1  丹寨金汞矿区土壤及农作物采样点分布图

    Figure 1.

    下载: 全尺寸图片 幻灯片

    图 2  旱地-玉米系统Hg、As频数分布图

    Figure 2.

    下载: 全尺寸图片 幻灯片

    图 3  水田-水稻系统Hg、As频数分布图

    Figure 3.

    下载: 全尺寸图片 幻灯片

    图 4  不同农田耕作类型土壤Hg、As含量对比

    Figure 4.

    下载: 全尺寸图片 幻灯片

    图 5  不同农作物类型Hg、As含量对比

    Figure 5.

    下载: 全尺寸图片 幻灯片

    图 6  旱地-玉米系统重金属污染分布图

    Figure 6.

    下载: 全尺寸图片 幻灯片

    图 7  水田-水稻系统重金属污染分布图

    Figure 7.

    下载: 全尺寸图片 幻灯片

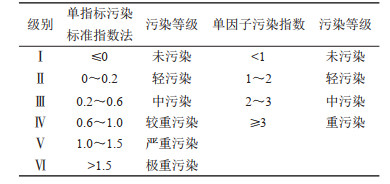

    表 1  单指标污染标准指数法和单因子污染指数法污染评价分级

    Table 1.  Index grades of single factor standard index and single factor index method

    下载: 导出CSV

    表 2  健康风险评价模型参数取值

    Table 2.  Exposure parameters of health risk assessment model

    下载: 导出CSV

    表 3  不同耕作类型下重金属含量特征统计(mg/kg)

    Table 3.  Statistics of heavy metal contents (mg/kg) in different tillage types

    下载: 导出CSV

    表 4  不同耕作类型下Hg、As污染评价结果统计

    Table 4.  Statistics of Hg and As pollution assessment results in different tillage types

    下载: 导出CSV

    表 5  土壤Hg、As潜在生态危害指数

    Table 5.  Potential ecological risk coefficients for Hg and As in soils

    下载: 导出CSV

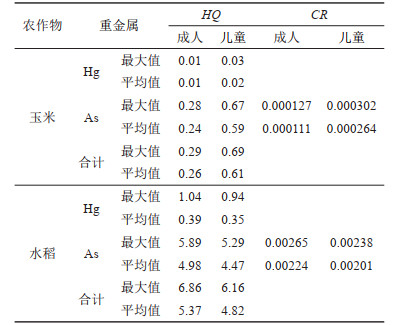

    表 6  农作物Hg、As健康风险指数

    Table 6.  Health risk index of Hg and As in crops

    下载: 导出CSV
    • 参考文献(55)

  • Abedin M J, Cresser M S, Meharg A A, Feldmann J, Cotter-Howells J. 2002. Arsenic accumulation and metabolism in rice (Oryza sativa L. )[J]. Environmental Science and Technology, 36(5): 962-968. doi: 10.1021/es0101678

    Ai Shiwei, Liu Bailin, Yang Ying, Ding Jian, Yang Wenzhi, Bai Xiaojuan, Naeen S, Zhang Yingmei. 2018. Temporal variations and spatial distributions of heavy metals in a wastewater-irrigated soil-eggplant system and associated influencing factors[J]. Ecotoxicology and Environmental Safety, 153: 204-214. doi: 10.1016/j.ecoenv.2018.02.026

    Bao Liran, Deng Hai, Jia Zhongmin, Li Yu, Dong Jinxiu, Yan Mingshu, Zhang Fenglei. 2020. Ecological and health risk assessment of heavy metals in farmland soil in northwest Xiushan, Chongqing[J]. Geology in China, 47(6): 1625-1636.

    Candeias C, Melo R, ávila P F, Silva E F, Salgueiro A R, Teixeira J P. 2014. Heavy metal pollution in mine-soil-plant system in S. Francisco de Assis-Panasqueira mine (Portμgal)[J]. Applied Geochemistry, 44: 12-26. doi: 10.1016/j.apgeochem.2013.07.009

    Cheng Jinping, Yuan Tao, Wang Wenhua, Jia Jinping, Lin Xueyu, Qu Liya, Ding Zhenhua. 2006. Mercury pollution in two typical areas in Guizhou Province, China and its neurotoxic effects in the brains of rats fed with local polluted rice[J]. Environmental geochemistry and health, 28(6): 499-507. doi: 10.1007/s10653-005-7570-y

    Feng Xinbin, Chen Jiubin, Fu Xuewu, Hu Haian, Li Ping, Qiu Guangle, Yan Haiyu, Yin Runsheng, Zhang Hua, Zhu Wei. 2013. Progresses on Environmental Geochemistry of Mercury[J]. Bulletin of Mineralogy, Petrology and Geochemistry, 32(5): 105-108(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-KYDH201305001.htm

    Geng Liping, Gao Ningda, Zhao Quanli, Xue Peiying, Liu Wenju. 2017. Assessment of Cd, Pb, Hg and As contamination in soils and plants in Isatis indigotica cultivated regions in Hebei Province[J]. Chinese Journal of Eco-Agriculture, 25(10): 1535-1544(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-ZGTN201710016.htm

    Gu Tao, Zhao Xinwen, Wang Jietao, Zeng Min, Yao Xiaofan, Qiu Zhuoming. 2017. Distribution feature of Cadmium, Mercury, Arsenic in water-soil-plant system in a rice paddy field[J]. Safety and Environmental Engineering, 24(6): 70-75(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-KTAQ201706011.htm

    Hakanson L. 1980. An ecological risk index for aquatic pollution control: A sediment logical approach[J]. Water Research, 14(8): 975-1001. doi: 10.1016/0043-1354(80)90143-8

    He Feng. 2004. Correlation and Assessment of Heavy Metal Contamination between Agricural Soils and Food Crops in Chongqing[D]. Chongqing: Southwest Agricultural University(in Chinese with English abstract).

    Hou Ming. 2006. Mercury Speciation Characteristics and Influencing Factors of Soil-crop System in Guilin[D]. Chengdu: Chengdu University of Technology(in Chinese with English abstract).

    Larios R, Fernández-Martínez R, álvarez R, Rucandio I. 2012. Arsenic pollution and fractionation in sediments and mine waste samples from different mine sites[J]. Science of the Total Environment, 431: 426-435. doi: 10.1016/j.scitotenv.2012.04.057

    Ji Xiaofeng, Zheng Na, Wang Yang, Liu Qiang, Zhang Jingjing. 2015. Accumulation of mercury in soil-maize system of non-ferrous metals smelting area and its related risk assessment[J]. Environmental Scince, 36(10): 3845-3851.

    Li Ping, Feng Xinbin, Qiu Guangle, Wang Shaofeng. 2006. Mercury emission from the indigenous method of mercury smelting in Wuchuan Mercury Mining Areas, Guizhou Province[J]. Environmental Science, 27(5): 837-840(in Chinese with English abstract). http://europepmc.org/abstract/med/16850818

    Li Ruiyang, Xu Xiaohang, Xu Zhidong, Ao Ming, Shang Lihai, Qiu Guangle, Tang Shunlin. 2016. Total mercury and methylmercury concentrations and risk assessments in rice plants collected from a river watershed in a typical mercury mining area of Guizhou[J]. Research of Environmental Sciences, 29(12): 1829-1839(in Chinese with English abstract).

    Lin Weiqi, Li Qingxin, Zhai Liya, Zhang Haiyan, He Jinlin, Tan Hong. 1998. Preliminary study on soil mercury pollution in Danzhai mercury mine smelting plant[J]. Guizhou Environmental Protection Technology, 4(2): 23-31(in Chinese with English abstract).

    Ministry of Environmental Protection of the People's Republic of China. 2014. Technical Guidelines for Risk Assessment of Contaminated: HJ 25.3-2014[S]. Beijing: China Environmental Science Press(in Chinese).

    Ministry of Ecology and Environment of the People's Republic of China. 2018. Soil Environmental Quality, Risk Control Standard for soil Contamination of Agricultural Land: GB 15618-2018[S]. Beijing: China Environmental Science Press(in Chinese).

    Mou Renxiang, Chen Mingxue, Zhu Zhiwei, Ying Xinghua. 2004. Advance in the researches on heavy metals in rice[J]. Ecology and Environment, 13(3): 417-419(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-TRYJ200403043.htm

    Qiu Guangle. 2005. Environmental Geochemistry of Mercury in Typical Hg-Mined Areas, Guizhou Province[D]. Beijing: Chinese Academy of Sciences(in Chinese with English abstract).

    Su Lianwen. 2010. Study on the Environmental Contaminants and its Biological Toxicity of Danzhai Mercury Mine in Guizhou Province[D]. Guiyang: Guizhou University(in Chinese with English abstract).

    Sun Xuecheng, Wang Jianxu, Feng Xinbin. 2014. Distribution and potential environmental risk of mercury and arsenic in slag, soil and water of Danzhai Mercury Mining Area, Guizhou Province, China[J]. Asian Journal of Ecotoxicology, 9(6): 1173-1180(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-STDL201406032.htm

    USEPA. 2013. Regional Screening Level (RSL) for Chemical Contaminants at Superfund Sites[R]. Washington, DC: U.S. Environmental Protection Agency.

    Wang Dengfeng. 2011. Distribution, Source Analysis and Ecological Risk Assessment of Toxic Trace Elements in Soils along the Yangtze River in Anhui Province[D]. Nanjing: Nanjing University(in Chinese with English abstract).

    Wang Xianwei. 2010. The Research about the Relationship between Heavy Metals Contamination and Crops on Farmland Soil in the Goldfield[D]. Xi'an: Chang'an University(in Chinese with English abstract).

    Xia Jicheng, Hu Ping, Wang Jianxu, Zhang Hua, Feng Xinbin. 2016. Mercury pollution characteristics in Tongren Mercury Mining Area, Guizhou Province, China[J]. Asian Journal of Ecotoxicology, 11(1): 231-238(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-STDL201601026.htm

    Yu Ziheng, Huang Guopei, Zhang Hua, Li Qiuhua, Zhong Shunqing, Zhang Yutao, Shang Lihai. 2017. Distribution and pollution assessment of heavy metals in paddy soil in Danzhai Au-Hg mining area, Guizhou, China[J]. Chinese Journal of Ecology, 36(8): 2296-2301(in Chinese with English abstract). http://d.wanfangdata.com.cn/periodical/stxzz201708027

    Zhang Wenxin, Chen Yong, Qi Yu, Wang Wei, Shi Lei, Hong Chenglin. 2017. Mercury pollution and ecology, human health risk in soil and vegetables of Manasi River Basin, Xinjiang[J]. Environmental Chemistry, 36(11): 2441-2450. http://en.cnki.com.cn/Article_en/CJFDTotal-HJHX201711018.htm

    Zhou Yanfeng. 2012. The Research of Pollution Survey and Morphological Analysis, Migration and Transform Rule of the Heavy Metal Around[D]. Chengdu: Chengdu University of Technology(in Chinese with English abstract).

    Zhu Y G, Williams P N, Meharg A A. 2008. Exposure to inorganic arsenic from rice: A global health issue?[J]. Environmental Pollution, 154: 169-171. doi: 10.1016/j.envpol.2008.03.015

    Zhang ZhaoJi, Fei Yuhong, Guo Chunyan, Qian Yong, Li Yasong. 2012. Regional groundwater contamination assessment in the North China Plain[J]. Journal of Jilin University (Earth Science Edition), 42(5): 1456-1461(in Chinese with English abstract). http://www.researchgate.net/publication/281604046_Regional_groundwater_contamination_assessment_in_the_North_China_Plain

    鲍丽然, 邓海, 贾中民, 李瑜, 董金秀, 严明书, 张风雷. 2020. 重庆秀山西北部农田土壤重金属生态健康风险评价[J]. 中国地质, 47(6): 1625-1636.

    冯新斌, 陈玖斌, 付学吾, 胡海燕, 李平, 仇广乐, 闫海鱼, 尹润生, 张华, 朱伟. 2013. 汞的环境地球化学研究进展[J]. 矿物岩石地球化学通报, 32(5): 105-108. https://www.cnki.com.cn/Article/CJFDTOTAL-KYDH201305001.htm

    耿丽平, 高宁大, 赵全利, 薛培英, 刘文菊. 2017. 河北板蓝根产地土壤-植物中镉铅汞砷含量特征及其污染评价[J]. 中国生态农业学报, 25(10): 1535-1544. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGTN201710016.htm

    顾涛, 赵信文, 王节涛, 曾敏, 姚晓帆, 邱卓明. 2017. 某水稻田水-土-植物系统中镉、汞、砷元素的分布特征研究[J]. 安全与环境工程, 24(6): 70-75. https://www.cnki.com.cn/Article/CJFDTOTAL-KTAQ201706011.htm

    何峰. 2004. 重庆市农田土壤-粮食作物重金属关联特征与污染评价[D]. 重庆: 西南农业大学.

    侯明. 2006. 桂林市土壤-农作物系统汞形态特征及影响因素研究[D]. 成都: 成都理工大学.

    纪小凤, 郑娜, 王洋, 刘强, 张静静. 2015. 有色冶金区土壤-玉米系统汞累积及健康风险[J]. 环境科学, 36(10): 3845-3851. https://www.cnki.com.cn/Article/CJFDTOTAL-HJKZ201510044.htm

    李平, 冯新斌, 仇广乐, 王少锋. 2006. 贵州省务川汞矿区土法炼汞过程中汞释放量的估算[J]. 环境科学, 27(5): 837-840. doi: 10.3321/j.issn:0250-3301.2006.05.003

    李平, 冯新斌, 仇广乐, 王少峰. 2006. 贵州省务川汞矿区土法炼汞过程中汞释放量的估算[J]. 环境科学, 27(5): 837-840. doi: 10.3321/j.issn:0250-3301.2006.05.003

    李瑞阳, 徐晓航, 许志东, 敖明, 商立海, 仇广乐, 汤顺林. 2016. 贵州某典型汞矿区流域水稻中总汞和甲基汞含量及暴露风险[J]. 环境科学研究, 29(12): 1829-1839. https://www.cnki.com.cn/Article/CJFDTOTAL-HJKX201612012.htm

    林维齐, 李庆新, 翟丽雅, 张海燕, 何锦林, 谭红. 1998. 丹寨汞矿冶炼厂土壤汞污染的初步研究[J]. 贵州环保科技, 4(2): 23-31. https://www.cnki.com.cn/Article/CJFDTOTAL-GZHB199802007.htm

    牟仁祥, 陈铭学, 朱智伟, 应兴华. 2004. 水稻重金属污染研究进展[J]. 生态环境, 13(3): 417-419. doi: 10.3969/j.issn.1674-5906.2004.03.033

    仇广乐. 2005. 贵州省典型汞矿地区汞的环境地球化学研究[D]. 北京: 中国科学院.

    苏连文. 2010. 贵州丹寨汞矿矿山环境污染物及其生物毒性研究[D]. 贵阳: 贵州大学.

    生态环境部. 2018. GB 15618-2018土壤环境质量农用地土壤污染风险管控标准(试行)[S]. 北京: 中国环境科学出版社.

    孙雪城, 王建旭, 冯新斌. 2014. 贵州丹寨金汞矿区尾渣和水土中汞砷分布特征及潜在风险[J]. 生态毒理学报, 9(6): 1173-1180. https://www.cnki.com.cn/Article/CJFDTOTAL-STDL201406032.htm

    王登峰. 2011. 安徽沿江地区土壤毒害微量元素分布特征成因及其生态风险[D]. 南京: 南京大学.

    王显炜. 2010. 金矿区农田土壤重金属污染与农作物关系探讨[D]. 西安: 长安大学.

    夏吉成, 胡平, 王建旭, 张华, 冯新斌. 2016. 贵州省铜仁汞矿区汞污染特征研究[J]. 生态毒理学报, 11(1): 231-238. https://www.cnki.com.cn/Article/CJFDTOTAL-STDL201601026.htm

    喻子恒, 黄国培, 张华, 李秋华, 钟顺清, 张玉涛, 商立海. 2017. 贵州丹寨金汞矿区稻田土壤重金属分布特征及其污染评估[J]. 生态学杂志, 36(8): 2296-2301. https://www.cnki.com.cn/Article/CJFDTOTAL-STXZ201708027.htm

    张文新, 陈勇, 齐誉, 王卫, 石磊, 洪成林. 2017. 新疆玛河流域土壤和蔬菜汞分布特征与生态、人体健康风险评价[J]. 环境化学, 36(11): 2441-2450. doi: 10.7524/j.issn.0254-6108.2017031302

    周言凤. 2012. 株冶周边重金属污染调查及其形态分析、迁移转化规律的研究[D]. 成都: 成都理工大学.

    环境保护部. 2014. HJ 25.3-2014污染场地风险评估技术导则[S]. 北京: 中国环境科学出版社.

    张兆吉, 费宇红, 郭春艳, 钱永, 李亚松. 2012. 华北平原区域地下水污染评价[J]. 吉林大学学报(地球科学版), 42(5): 1456-1461. https://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ201205019.htm
