Ecolcgical and health risk assessment of heavy metals in farmland soil around the gold mining area in Tongguan of Shaanxi Province
-
摘要:
为了解潼关金矿矿区早期粗放式的矿业活动对矿区周边农田土壤的重金属污染状况的影响以及对暴露人群的不良健康效应的评价,采用地质调查工程选取了矿区附近6块农田土壤为研究对象,通过X射线荧光光谱分析法测定了68个土壤样本中Cd、Hg、As、Pb、Cr、Cu、Ni、Zn等8种土壤重金属含量,采用地累积指数法、潜在生态危害指数法和健康风险评估模型分别评价该区土壤重金属污染程度、潜在生态风险和人体健康风险。结果表明,该区农田土壤中Cd、Hg、Pb、Cu、Ni、Zn 6种重金属平均值高于潼关县土壤背景值,呈现不同程度的积累;Pb、Hg、Cd的土壤积累含量不仅超出了土壤重金属污染对农产品质量存在安全风险的最低限值农用地土壤污染风险筛选值,还分别以41.2%、72.1%、14.7%的超标率超出了土壤重金属污染对农产品质量存在安全风险的最高限值农用地土壤污染风险管制值;研究区土壤重金属污染评价显示,土壤中Hg、Cd、Pb总体污染程度最重,Cu、Zn总体呈现轻—重污染,Ni、Cr、As总体呈现无污染状态。生态风险评价显示,Hg、Cd、Pb为主要生态危害元素,Hg为极强风险,Cd和Pb为强风险。人体健康风险表明,研究区重金属对儿童的非致癌风险显著,Pb、Hg为主要非致癌因子;致癌风险均在合理范围,Cd致癌风险最大,手-口摄入为最主要的暴露途经,儿童更易受到重金属污染威胁。
Abstract:In order to understand the impact of the early extensive mining activities in the Tongguan gold mine on the heavy metal pollution of the farmland soil and the evaluation of the adverse health effects of the exposed population, enginnering six farmland soils near the mine area were selected as the research object in the geological survey. Spectral analysis method was used to determine the contents of Cd, Hg, As, Pb, Cr, Cu, Ni, Zn and other 8 soil heavy metals of 68 soil samples. The soil accumulation index method, potential ecological hazard index method and health risk assessment model were used to evaluate the soil heavy metal pollution degree, potential ecological risk and human health risk in the area. The results show that the average values of Ni, Hg, Cd, Zn, Pb and Cu in the farmland soil in this area are higher than the soil background value of Tongguan County, indicating different levels of accumulation. The accumulated soil content of Pb, Hg, and Cd not only exceeds the minimum limit of the safety risk of heavy metal pollution, bu also exceeds the maximum limit of the safety risk of heavy metal pollution on the quality of agricultural products by 41.2%, 72.1%, and 14.7% of the exceedance rates respectively. The evaluation of soil heavy metal pollution in the study area shows that the total pollution degree of Hg, Cd and Pb in the soil is the heaviest, Cu and Zn are generally light to heavy pollution, and Ni, Cr and As are generally pollution-free. The ecological risk assessment shows that Hg, Cd, and Pb are the main ecological hazard elements, Hg is a very strong risk, and Cd and Pb are strong risks. Human health risks show that the non-carcinogenic risk of heavy metals to children is obvious, and Pb and Hg are the main non-carcinogenic factors. Carcinogenic risks are within a reasonable range. Cd is the most carcinogenic risk, and hand-mouth intake is the most important exposure route. Children are more vulnerable to heavy metal pollution.
-
Key words:
- Tongguan gold mine /
- soil /
- geological survey engineering /
- heavy metal /
- ecological risk /
- health risk
-
-
表 1 各元素测试曲线
Table 1. Assay curve of each element
表 2 地累积指数与污染程度分级
Table 2. The geo-accumulation index and classification of pollution degree

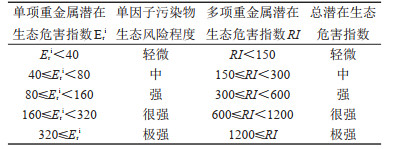

表 3 Hakanson潜在生态危害评价指标
Table 3. Indices used to assess the potential ecological risk status

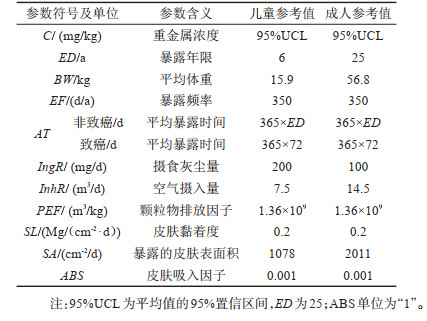

表 4 重金属健康风险暴露参数
Table 4. Exposure parameters for the heavy metals

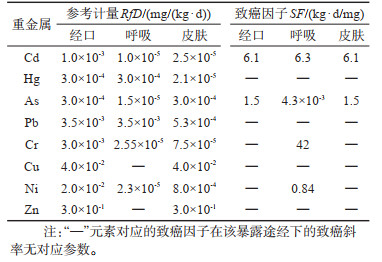

表 5 重金属不同暴露途径参考计量和致癌斜率因子
Table 5. Reference dose and slope factor of heavy metals to different exposed ways

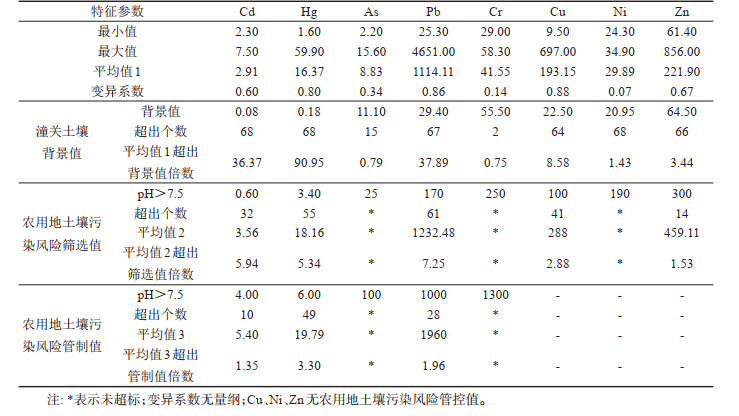

表 6 研究区表层土壤重金属含量特征(mg/kg)
Table 6. Concentrations distribution of heavy metals in the study area(mg/kg)

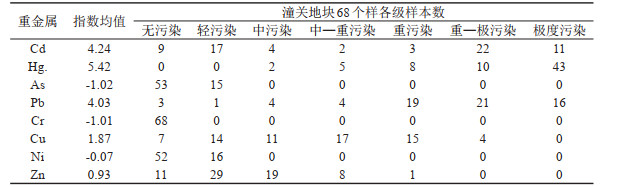

表 7 土壤重金属污染地累积指数分级
Table 7. Classification of heavy metals in soil based on the Igeo

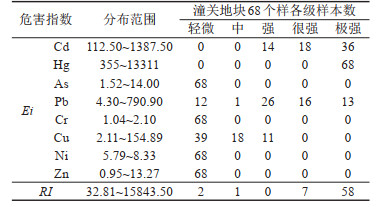

表 8 土壤重金属的潜在生态危害指数统计
Table 8. Potential ecological risk coefficient of every heavy metal in soil

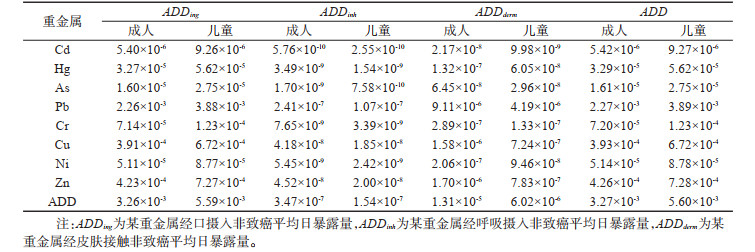

表 9 土壤重金属非致癌平均日暴露量(mg/(kg·d))
Table 9. Non-carcinogenic average daily exposure doses of heavy metals in soil(mg/(kg·d))

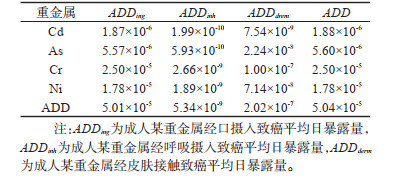

表 10 土壤Cd、As、Cr、Ni元素成人致癌平均日暴露量(mg/(kg·d))
Table 10. Carcinogenic average daily exposure doses of Cd, As, Cr and Ni in soil to adults(mg/(kg·d))

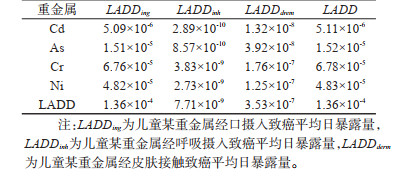

表 11 土壤Cd、As、Cr、Ni元素儿童致癌平均日暴露量(mg/(kg·d))
Table 11. Carcinogenic average daily exposure doses of children to Cd, As, Cr and Ni in soil (mg/(kg·d))

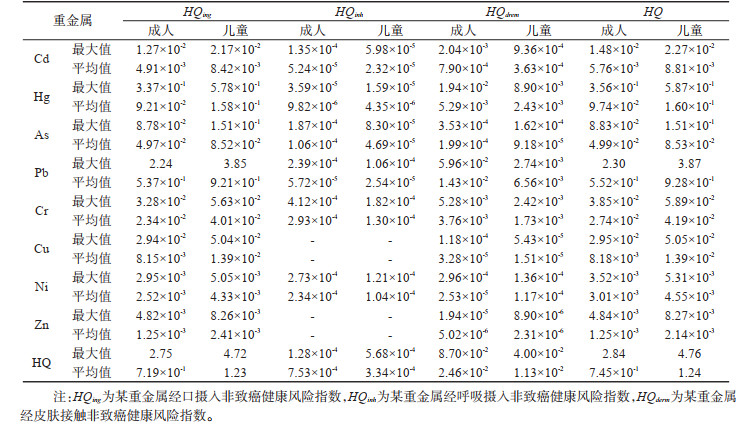

表 12 土壤重金属非致癌健康风险指数
Table 12. Non-carcinogenic health risk index of heavy metals in soil

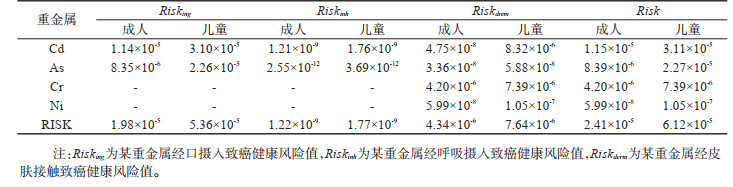

表 13 土壤重金属Cd、As、Cr、Ni致癌健康风险值
Table 13. Carcinogenic health risk of heavy metals (Cd, As, Cr, Ni) in soil

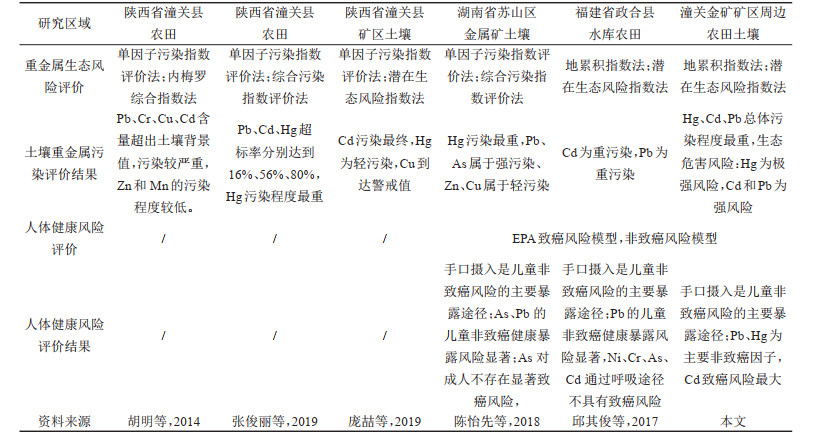

表 14 农田土壤重金属生态及健康风险评价对比
Table 14. Comparison of ecological and health risk assessment of heavy metals in farmland soil
-
Cao Xueying, Zhang Shana, Tan Changyin, Hu Pengjie, Cui Xu, Zhou Tong, Wu Longhua, Luo Yongming. 2015. Heavy metal contamination characteristics in soils around a nonferrous metal smelter in Central Southern China[J]. Soil, 47(1): 94-99(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-TURA201501015.htm
Chen Yixian, Jiang Xiaosan, Wang Yong, Zhuang Dafang. 2018. Assessment of ecological environment and human health of heavy metals in mining area based on GIS[J]. Acta Scientiae Circumstantiae, 38(4): 1642-1652(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-HJXX201804044.htm
Dai Jierui, Pang Xugui, Song Jianhua, Dong Jian, Hu Xueping, Li Xiaopeng. 2018. A study of geochemical characteristics and ecological risk of elements in soil of urban and suburban areas of Zibo City, Shandong Province[J]. Geology in China, 45(3): 617-627 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DIZI201803015.htm
Diami S M, Kusin F M, Madzin Z. 2016. Potential ecological and human health risks of heavy metals in surface soils associated with iron ore mining in Pahang, Malaysia[J]. Environmental Science and Pollution Research, 23: 21086-21097. doi: 10.1007/s11356-016-7314-9
Forstner U, Ahlf W, Calmano W. 1993. Sediment quality objectives and criteria development in Germany[J]. Water Science and Technology, 28(8): 307-314. http://wst.iwaponline.com/content/28/8-9/307
Hu Ming. 2014. Contamination evaluation for the farmland heavy metals in the soils of Tongguan County in Shannxi[J]. Guizhou Agricultural Sciences, 42(4): 141-143 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-GATE201404036.htm
Hakanson L. 1980. An ecological risk index for aquatic pollution control a sediment to logical approach[J]. Water Research, 14(8): 975-1001. doi: 10.1016/0043-1354(80)90143-8
Guan Houchun, Li Yunhuai, Peng Miaozhi, Liu Daobin. 2013. The evaluation of heavy metal pollution and its potential ecological risk of urban topsoil in Huangshan City[J]. Geology in China, 40(6): 1949-1958 (in Chinese with English abstract). http://d.wanfangdata.com.cn/periodical/zgdizhi201306024
Ke Hailing. 2005. Environmental Geochemical Characteristics and Pollution Evaluation of Soil Heavy Metals in Tongguan Gold Mine, Shaanxi[D]. Xi'an: Chang'an University(in Chinese with English abstract).
Li Gengfei. 2012. Heavy mental pollution assessment of soil along the drainage ditch of a gold field in Tongguan County[J]. Guizhou Agricultural Sciences, 40(10): 187-189 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-GATE201210055.htm
Liu Mengmei, Wang Lijun, Wang Li, Zhang Wenjuan, Shi Xingmin, Lu Xinwei, Li Xiaoping, Li Xiaoyun. 2018. Concentration and ecological health risk assessment of heavy metals of soil in different functional areas in Xi'an, China[J]. Chinese Journal of Soil Science, 49(1): 167-175(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-TRTB201801023.htm
Liu Qing, Wang Jing, Shi Yanxi, Zhang Yanyu, Wang Qinghua. 2008. Health risk assessment on heavy metals in soil based on GIS-a case study in Cixi city of Zhejiang Province[J]. Chinese Journal of Soil Science, 39(3): 634-639(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-TRTB200803035.htm
Liu Yunlong, Zhang Lijia, Zhuang Tengfei. 2015. Spatial veriability and distribution of soil Cu Zn and Pb in gradient urban-transect[J]. Resources and Environment in the Yangtze basin, 24(7): 1207-1213 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-CJLY201507018.htm
Li Z, Ma Z, van der Kuijp T J, Yuan Z, Huang L. 2014. A review of soil heavy metal pollution from mines in China: Pollution and health risk assessment[J]. Science of the Total Environment, 468: 843-853. http://europepmc.org/abstract/med/24076505
Muller G. 1969. Index of geoaccumulation in sediments of the Rhime River[J]. Geological Journals, 2: 109-118. http://ci.nii.ac.jp/naid/10030367619
Peng Jing, Li Zeqin, Hou Jiayu. 2007. Application of the index of geo-accumulation index and ecological risk index to assess heavy metal pollutionin soils[J]. Guangdong Trace Elements Science, 14(8): 13-17(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-GWYS200708005.htm
Pang Zhe, Wang Qilong. 2019. Potential ecological risk assessment of soil heavy metal pollution in Tongguan mining area[J]. Land Development and Engineering Research, 4(7): 145-51 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-XBTG201907010.htm
Qiu Qijun, Yu Ruilian, Hu Gongren, Cai Zhaoliang. 2017. Ecological and health risk assessment of heavy metals in soil around a new reservoir in Northern Fujian Province, China[J]. Earth and Envinment, 45(3): 348-355(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-DZDQ201703014.htm
Umme Aiman, Adeel Mahmood, Sidra Waheed, Riffat Naseem Malik. 2016. Enrichment, geo-accumulation and risk surveillance of toxic metals for different environmental compartments from Mehmood Booti dumping site, Lahore city, Pakistan[J]. Chemosphere, 144(2): 356-365.
USEPA. 2011. Exposure Factors Handbook[R]. Washington: National Center for Environmental Assessment.
USEPA. 2009. Highlights of the Child-specific Exposure Factors Handbook(Final Report)[R]. Washington, DC: U.S. Environmental Protection Agency.
USEPA. 2013. Regional Screening Level (RSL) for Chemical Contaminants at Superfund Sites[R]. Washington, DC: U.S. Environmental Protection Agency.
Wang Bin, Zhang Xia. 2012. The features and potential ecological risk assessment of soil heavy metals in Tianjin suburban farmland[J]. Environmental Monitoring in China, 28(3): 23-26(in Chinese with English abstract). http://www.cqvip.com/QK/97465X/201203/42599951.html
Wei C Y, Sun X, Wang C, Wang W Y. 2009. Factors influencing arsenic accumulation by Pteris vittata: A comarative field study at two sites[J]. Environmental Pollution, 144(3): 488-493.
Wang Zhe, Liu Shaoqing, Chen Xiaomin, Lin Chunye. 2008. Estimates of the exposed dermal surface area of Chinese in view of human health risk assessment[J]. Journal of Safety and Environment, 8(4): 152-155(in Chinese with English abstract). http://www.cnki.com.cn/Article/CJFDTotal-AQHJ200804038.htm
Wang Youqi, Bai Yiru, Wang Jianyu. 2016. Distrbution of urban soil heany metal and pollution in different functional zones of Yinchuan City[J]. Environmental Science, 37(2): 710-716 (in Chinese with English abstract). http://europepmc.org/abstract/MED/27363164
Wei Niyu, Zhang Xinying, Lin Shanchun, Chen Ping. 2016. Health risk assessment of heavy metals of street dust from northwest Guangxi Mining Area[J]. Environment and Sustaible Development, 16(5): 167-170(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-HJKD201605048.htm
Xu Dongyin. 2011. The Heavy Metal Pollution and Risk Assessment on Human Health of Farmland Soil in the Goldfield[D]. Xi'an: Chang'an University(in Chinese with English abstract).
Xia Weiyu. 2017. Study on the Characteristics of Heavy Metal Contamination and Safe Use of Soil around the Mining Area[D]. University of Science and Technology of China(in Chinese with English abstract).
Xu Yuxia, Wang Qinghua, Wang Huabin, Peng Youkai, Xue Lei. 2016 Research of dominant plants selection for treatment of heavy metal polluted soils surrounding mining areas[J]. Environmental Protection Science, 42(6): 61-67(in Chinese with English abstract). http://www.zhangqiaokeyan.com/academic-journal-cn_environmental-protection-science_thesis/0201217309034.html
Xu Zhengqi, Ni Shijun, Tuo Xianguo, Zhang Chengjiang. 2008. Calculation of heavy metals' toxicity coefficient in the evaluation of potential ecological risk index[J]. Environmental Science & Technology, 31(2): 112-115(in Chinese with English abstract).
Yin Yimeng, Yuan Zhaowei, Huang Ting, Cheng Shenggao, Zhao Zhenli. 2018. Distribution characteristics and health risk assessment of heavy metals in a soil-rice system in an E-waste dismantling area[J]. Environmental Science, 39(2): 916-925(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-HJKZ201802054.htm
Zhang Junli, Lei Jianxin, Zhao Xiaojin. 2019. Analysis of heany metal contamination in farmland soil of Tongguan County, Shaanxi Province[J]. Acta Agriculturane Boreali-occidentalis Sinica, 28(2): 247-252 (in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-XBNX201902013.htm
Zhang Jianghua, Xu Youning, Chen Huaqing, Ke Hailing, Qiao Gang. 2020. Comparative study of the accumulated effect of heavy metals on soil and wheat in Xiaoqinling gold mining area[J]. Northwestern Geology, 53(3): 284-294(in Chinese with English abstract).
Zhang Xiaomin, Zhang Xiuying, Zhong Taiyang, Jiang Hong. 2014. Spatial distribution and accumulation of heavy metal in arable land soil of China[J]. Environment Science, (2): 692-703(in Chinese with English abstract). http://www.ncbi.nlm.nih.gov/pubmed/24812966
Zhao Aning. 2006. The Assessment of Contamination and Correlation on Heavy Metal Between Farmland and Corps in Tongguan Gold Mining Area in ShaanXi[D]. XI'an: Chang'an University(in Chinese with English abstract).
曹雪荧, 张莎娜, 谭长银. 2015. 中南大型有色金属冶炼场周边农田土壤重金属污染特征研究[J]. 土壤, 47(1): 94-99. https://www.cnki.com.cn/Article/CJFDTOTAL-TURA201501015.htm
陈怡先, 姜小三, 王勇, 庄大方. 2018. 基于GIS矿区土壤重金属生态环境及人体健康评价[J]. 环境科学学报, 38(4): 1642-1652. https://www.cnki.com.cn/Article/CJFDTOTAL-HJXX201804044.htm
代杰瑞, 庞绪贵, 宋建华, 董建, 胡雪平, 李肖鹏. 2018. 山东淄博城市和近郊土壤元素地球化学特征及生态风险研究[J]. 中国地质, 45(3): 617-627. https://www.cnki.com.cn/Article/CJFDTOTAL-DIZI201803015.htm
胡明. 2014. 陕西潼关县农业土壤重金属污染评价[J]. 贵州农业科学, 42(4): 141-143. doi: 10.3969/j.issn.1001-3601.2014.04.036
管后春, 李运怀, 彭苗芝, 刘道彬. 2013. 黄山城市土壤重金属污染及其潜在生态风险评价[J]. 中国地质, 40(6): 1949-1958. https://www.cnki.com.cn/Article/CJFDTOTAL-DIZI201306025.htm
柯海玲. 2005. 陕西潼关金矿区土壤重金属环境地球化学特征及污染评价[D]. 长安大学.
李庚飞. 2012. 潼关县某金矿排水沟附近土壤的重金属污染评价[J]. 贵州农业科学, 40(10): 187-189. doi: 10.3969/j.issn.1001-3601.2012.10.056
刘梦梅, 王利军, 王丽, 张文娟, 史兴民. 2018. 西安市不同功能区土壤重金属含量及生态健康风险评价[J]. 土壤通报, 49(1): 167-175. https://www.cnki.com.cn/Article/CJFDTOTAL-TRTB201801023.htm
刘庆, 王静, 史衍玺, 张衍毓, 汪庆华. 2008. 基于GIS的县域土壤重金属健康风险评价——以浙江省慈溪市为例[J]. 土壤通报, 39(3): 634-639. doi: 10.3321/j.issn:0564-3945.2008.03.035
柳云龙, 章立佳, 庄腾飞. 2015. "城郊"梯度下土壤Cu、Zn、Pb含量的空间变异特征[J]. 长江流域资源与环境, 24(7): 1207-1213. doi: 10.11870/cjlyzyyhj201507018
彭景, 李泽琴, 候家渝. 2007. 地积累指数法及生态危害指数评价法在土壤重金属污染中的应用及探讨[J]. 广东微量元素科学, 14(8): 13-17. doi: 10.3969/j.issn.1006-446X.2007.08.003
庞喆, 王启龙. 2019. 潼关矿区土壤重金属污染潜在生态风险评价[J]. 土地开发工程研究, 4(7): 45-51. https://www.cnki.com.cn/Article/CJFDTOTAL-XBTG201907010.htm
邱其俊, 于瑞莲, 胡恭任, 蔡兆亮. 2017. 闽北某新建水库周边土壤重金属生态与健康风险评价[J]. 地球与环境, 45(3): 348-355. https://www.cnki.com.cn/Article/CJFDTOTAL-DZDQ201703014.htm
王斌, 张震. 2012. 天津近郊农田土壤重金属含量特征及潜在生态风险评价[J]. 中国环境监测, 28(3): 23-26. doi: 10.3969/j.issn.1002-6002.2012.03.006
王喆, 刘少卿, 陈晓民, 林春野. 2008. 健康风险评价中中国人皮肤暴露面积的估算[J]. 安全与环境学报, 8(4): 152-155. doi: 10.3969/j.issn.1009-6094.2008.04.038
王幼奇, 白一茹, 王建宇. 2016. 基于GIS的银川市不同功能区土壤重金属污染评价及分布特征[J]. 环境科学, 37(2): 710-716. https://www.cnki.com.cn/Article/CJFDTOTAL-HJKZ201602046.htm
韦妮玉, 张新英, 林善春, 陈平. 2016. 桂西北矿区道路灰尘重金属污染及健康风险评价[J]. 环境与可持续发展, 16(5): 167-170. doi: 10.3969/j.issn.1673-288X.2016.05.045
夏维玉. 2017. 矿区周边农田土壤的重金属污染特征与安全利用技术研究[D]. 中国科学技术大学.
徐东寅. 2011. 金矿区农田土壤污染与人体健康风险研究[D]. 西安: 长安大学.
徐玉霞, 汪庆华, 王华斌, 彭囿凯, 薛雷. 2016. 矿区周边土壤重金属污染治理的优势植物筛选——以关中西部某铅锌冶炼区为例[J]. 环境保护科学, 42(6): 61-67. https://www.cnki.com.cn/Article/CJFDTOTAL-HJBH201606013.htm
徐争启, 倪师军, 庹先国, 张成江. 2008. 潜在生态危害指数法评价中重金属毒性系数计算[J]. 环境科学与技术, 31(2): 112-115. doi: 10.3969/j.issn.1003-6504.2008.02.030
尹伊梦, 赵委托, 黄庭, 程胜高, 赵珍丽, 余葱葱. 2018. 电子垃圾拆解区土壤-水稻系统重金属分布特征及健康风险评价[J]. 环境科学, 39(2): 916-926. https://www.cnki.com.cn/Article/CJFDTOTAL-HJKZ201802054.htm
张俊丽, 雷建新, 赵晓进. 2019. 陕西省潼关县农田重金属污染分析与评价[J]. 西北农业学报, 28(2): 247-252. https://www.cnki.com.cn/Article/CJFDTOTAL-XBNX201902013.htm
张江华, 徐友宁, 陈华清, 柯海玲, 乔冈. 2020. 小秦岭金矿区土壤-小麦重金属累积效应对比研究[J]. 西北有色, 53(3): 284-294. https://www.cnki.com.cn/Article/CJFDTOTAL-XBDI202003029.htm
张小敏, 张秀英, 钟太洋. 2014. 中国农田土壤重金属富集状况及其空间分布研究[J]. 环境科学, 2: 692-703. https://www.cnki.com.cn/Article/CJFDTOTAL-HJKZ201402045.htm
赵阿宁. 2006. 陕西潼关金矿区农田土壤重金属污染评价与农作物相关性分析[D]. 西安: 长安大学.
中华人民共和国环境监测总站. 1994. 中华人民共和国土壤环境背景值图集[M], 北京: 中国环境科学出版社.
中华人民共和国环境保护部. 2014. HJ 25.3-2014污染场地风险评估技术导则[S]. 北京: 中国环境科学出版社.
中华人民共和国生态环境部. 2018. GB15618-2018农用地土壤污染风险管控标准(试行)[S].
-
