黑龙江林甸地热田热水微生物多样性与群落结构分析

,  ,  ,  ,  ,  ,  ,  ,  ,  ,

文章导航 > 中国地质 > 2023 > 50(6): 1667-1677

上一篇

下一篇

朱瑞杰, 周学军, 詹涛, 马永法, 王旭, 董俊领, 刘玲, 杨峰田, 李栋, 石宇佳, 苏玉娟. 2023. 黑龙江林甸地热田热水微生物多样性与群落结构分析[J]. 中国地质, 50(6): 1667-1677. doi: 10.12029/gc20210602003
引用本文: 朱瑞杰, 周学军, 詹涛, 马永法, 王旭, 董俊领, 刘玲, 杨峰田, 李栋, 石宇佳, 苏玉娟. 2023. 黑龙江林甸地热田热水微生物多样性与群落结构分析[J]. 中国地质, 50(6): 1667-1677. doi: 10.12029/gc20210602003
shu
ZHU Ruijie, ZHOU Xuejun, ZHAN Tao, MA Yongfa, WANG Xu, DONG Junling, LIU Ling, YANG Fengtian, LI Dong, SHI Yujia, SU Yujuan. 2023. Analysis of microbial diversity and community structure in thermal waters from Lindian geothermal field, Heilongjiang Province[J]. Geology in China, 50(6): 1667-1677. doi: 10.12029/gc20210602003
Citation: ZHU Ruijie, ZHOU Xuejun, ZHAN Tao, MA Yongfa, WANG Xu, DONG Junling, LIU Ling, YANG Fengtian, LI Dong, SHI Yujia, SU Yujuan. 2023. Analysis of microbial diversity and community structure in thermal waters from Lindian geothermal field, Heilongjiang Province[J]. Geology in China, 50(6): 1667-1677. doi: 10.12029/gc20210602003
shu

黑龙江林甸地热田热水微生物多样性与群落结构分析

  • 1.

    地下水资源与环境教育部重点实验室 (吉林大学), 吉林 长春 130021

  • 2.

    吉林省水资源与水环境重点实验室 (吉林大学), 吉林 长春 130021

  • 3.

    黑龙江省生态地质调查研究院, 黑龙江 哈尔滨 150030

  • 基金项目:
    本文由国家自然科学青年基金项目（41202167）资助
详细信息
    作者简介: 朱瑞杰, 男, 1998年生, 硕士生, 主要从事地质地热研究; E-mail: zhurj20@mails.jlu.edu.cn
    通讯作者: 苏玉娟, 女, 1980年生, 高级工程师, 主要从事地热资源评价和开发利用研究; E-mail: suyj15@mails.jlu.edu.cn

  • 中图分类号: Q938;P314

Analysis of microbial diversity and community structure in thermal waters from Lindian geothermal field, Heilongjiang Province

  • 1.

    Key Laboratory of Groundwater Resources and Environment(Jilin University), Ministry of Education, Changchun 130021, Jilin, China

  • 2.

    Jilin Provincial Key Laboratory of Water Resources and Environment, Jilin University, Changchun 130021, Jilin, China

  • 3.

    The Institute of Ecological Geology Survey and Research of Heilongjiang Province, Harbin 150030, Heilongjiang, China

  • Fund Project: Supported by the National Natural Science Foundation (Youth) (No.41202167)
More Information
    Author Bio: ZHU Ruijie, male, born in 1998, master candidate, mainly engaged in geology and geothermal research; E-mail: zhurj20@mails.jlu.edu.cn .
    Corresponding author: SU Yujuan, female, born in 1980, senior engineer, mainly engaged in genesis, development and utilization of geothermal resources; E-mail: suyj15@mails.jlu.edu.cn

    摘要
  • 研究目的

    研究地热系统微生物群落组成有助于揭示地热流体地球化学演化和指示热储地球化学环境。已有研究显示，林甸地热田热水还原性强且富含甲烷，但关于微生物在甲烷形成中的作用研究较少。本文旨在分析林甸地热田热水中微生物的群落结构和多样性特征，并揭示其甲烷生成途径。

     研究方法

    在地热供暖季和非供暖季采集并测试了9个热水微生物样品，并对热水中微生物多样性、群落结构及功能基因进行了分析。

     研究结果

    属水平上，林甸地热水中优势细菌主要为不动杆菌属（Acinetobacter，>80%），与已有报道的地热系统有一定差异，而同油田热水相似；供暖季和非供暖季热水中细菌多样性差异较大，非供暖季细菌多样性高于供暖季，但古菌多样性基本不受开采影响；优势古菌以广古菌门（Euryarchaeota）产甲烷菌为主，地热流体中的甲烷气体主要源于H2还原CO2产甲烷途径，而甲基歧化产甲烷作用和H2还原甲基化合物产甲烷途径次之。

     结论

    林甸地热田热水中微生物多样性和群落结构较为独特，与地层中有机质含量较高、地热开采扰动有关。

    This paper is the result of geothermal survey engineering.

     Objective

    Researches on microbial community in geothermal systems is key to indicate geochemical environment and evolution of thermal fluids. Previous researches have shown that the thermal water in Lindian geothermal field is highly reducing and is rich in methane. The objective of this paper is to characterize the microbial diversity and community structure of the thermal water.

     Methods

    A total of 9 thermal water samples were collected and tested during exploitation and non-exploitation periods, and the microbial diversity, community structure and functional genes of the samples were analyzed.

     Results

    The dominant bacterial genera in the thermal water is mainly Acinetobacter, which is different from most geothermal systems reported, but are similar to that of oil fields. The bacterial diversity of the thermal waters during the exploitation period and the non-exploitation period is significantly different, i.e., the bacterial diversity in the non-exploitation period is higher than that in the exploitation period, while the archaeal diversity is not affected significantly by exploitation. The dominant archaea are mainly Euryarchaeota methanogens. Functional gene prediction of archaea shows that methane production in Lindian geothermal field is dominated by hydrogenotrophic methanogenesis, and secondarily by disproportionation of methyl groups and reduction of methyl compounds with H2.

     Conclusions

    The microbial diversity and community structure of the thermal waters from Lindian geothermal field is relatively unique, which is related to the high content of organic matters and thermal water exploitation.
    • HTML全文
  • 加载中

  • 图 1  林甸地热田热水微生物采样点分布

    Figure 1.

    下载: 全尺寸图片 幻灯片

    图 2  细菌（a）和古菌（b）样品间Bray-Curtis距离热图

    Figure 2.

    下载: 全尺寸图片 幻灯片

    图 3  林甸地热田热水细菌（门水平）相对丰度

    Figure 3.

    下载: 全尺寸图片 幻灯片

    图 4  林甸地热田热水古菌（属水平）相对丰度

    Figure 4.

    下载: 全尺寸图片 幻灯片

    图 5  古菌群落功能预测相对丰度热图

    Figure 5.

    下载: 全尺寸图片 幻灯片

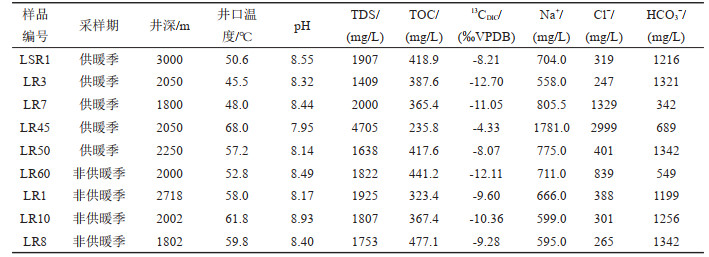

    表 1  采样井井深和热水水化学特征

    Table 1.  Depth of sampling wells and thermal water chemistry

    下载: 导出CSV

    表 2  样品中细菌群落多样性指标

    Table 2.  Diversity indices of bacterial communities in the investigated water samples

    下载: 导出CSV

    表 3  调查样品中古菌群落多样性指标

    Table 3.  Diversity indices of Archaeal communities in the investigated water samples

    下载: 导出CSV
    • 参考文献(76)

  • Aditiawati P, Yohandini H, Madayanti F, Akhmaloka. 2009. Microbial diversity of acidic hot spring (KawahHujan B) in geothermal field of KamojangArea, West Java-Indonesia[J]. The Open Microbiology Journal, 3: 58-66. doi: 10.2174/1874285800903010058

    Ai Mingqiang, Li Hui, Liu Xiaobo, Shi Rongjiu, Hang Siqin, Li Nana, Zhang Yin. 2010. Bacterial community structure in production water from oil reservoirs in Daqing Oilfield[J]. Chinese Journal of Applled Ecology, 21(4): 1014-1020(in Chinese with English abstract).

    Akinyemi T S, Shao N, Whitman W B. 2020. Methanothrix. Bergey's Manual of Systematics of Archaea and Bacteria[M]. American Cancer Society.

    Blank C E, Cady S L, Pace N R. 2002. Microbial composition of near-boiling silica-depositing thermal springs throughout Yellowstone National Park[J]. Applied and Environmental Microbiology, 68(10): 5123-5135. doi: 10.1128/AEM.68.10.5123-5135.2002

    Boone D R. 2016. Methanobacterium. Bergey's Manual of Systematics of Archaea and Bacteria[M]. American Cancer Society.

    Cheng Rihui, Zhu Defeng, Wang Hongyan, Wang Pujun. 2006. Primary geochemical characteristics and geochemical characteristics of the paleogeography in the Linglong Fault Sag, Songliao Basin[J]. Journal of Jilin University, 36(5): 793-798 (in Chinese with English abstract). doi: 10.3969/j.issn.1671-5497.2006.05.033

    Davidova I A, Gieg L M, Duncan K E, Suflita J M. 2007. Anaerobic phenanthrene mineralization by a carboxylating sulfate-reducing bacterial enrichment[J]. Isme Journal, 1(5): 436-442. doi: 10.1038/ismej.2007.48

    Ding Anna, Song Guixia, Hui Rongyao, Lu Shuangfang. 2004. Distribution and geochemical significance of acidic oxygen-containing compounds in biogas source rocks in Binbei area, Songliao Basin[J]. Natural Gas Geoscience, 15(1): 51-57 (in Chinese with English abstract). doi: 10.3969/j.issn.1672-1926.2004.01.010

    Dong Junlin. 2013. Evaluation on Geothermal Resource Potential in Changqinglinchang[D]. Changchun: Jilin University, 1-57(in Chinese with English abstract).

    Duan Changhai, Zhang Cuijing, Sun Yihua, Li Meng. 2019. Recent advances on the novel methanogens[J]. Acta Microbiologica Sinica, 51(6): 981-995 (in Chinese with English abstract).

    Fan Mengmeng. 2016. Comparative Metagenomic Analysis of Microbial Communities in Geothermal Environments with Different Temperatures and pH Values[D]. Beijing: University of Chinese Academy of Sciences, 1-123 (in Chinese with English abstract).

    Ferry J G, Kastead K A. 2007. Methanogenesis[M]. Archaea: Molecular and Cellular Biology, ed CavicchioliR (ASM Press, Washington, DC), 288-314.

    Jetten M S M, Stams A J M, Zehnder A J B. 1992. Methanogenesis from acetate: A comparison of the acetate metabolism in Methanothrixsoehngenii and Methanosarcina spp. [J]. FEMS Microbiology Letters, 8(3/4): 181-197.

    Jiang Na, Chen Zijuan, Cao Yi, Tian Jianqing, Wang Yanfen, Dong Xiuzhu, Dong Xiuzhu. 2013. Methanogen archaea and its mediated methane production pathway in cryogenic wetlands[J]. Microbiology Bulletin, 40(1): 137-145 (in Chinese with English abstract).

    Jiang Zhou. 2016. Environmental Biogeochemistry of Arsenic in Tengchong Geothermal Area[D]. Wuhan: China University of Geosciences, 1-109 (in Chinese with English abstract).

    Kristjánsson J K, Hreggvidsson G O. 1995. Ecology and habitats of extremophiles[J]. World Journal of Microbiology & Biotechnology, 11: 17-25.

    Lai M C. 2019. Methanoculleus. Bergey's Manual of Systematics of Archaea and Bacteria[M]. American Cancer Society.

    Lü Z, Shao N, Akinyemi T, Whitman, W B. 2018. Methanogenesis[J]. Current Biology, 28(13): 727-732. doi: 10.1016/j.cub.2018.05.021

    Leng Huan, Yang Qin, Huang Gangfeng, Bai Liping. 2020. Recent advances in hydrogenotrophic methanogenesis[J]. Acta Microbiologica Sinica, 60(10): 2136-2160 (in Chinese with English abstract).

    Li Xianqi, Zhang Shuichang, Zhu Guangyou, Liang Yinbo. 2005. Classification and research direction of biogenic gas in China[J]. Natural Gas Geology, 16(4): 478-483(in Chinese with English abstract).

    McBride B C, Wolfe R S. 1971. Biosynthesis of dimethylarsine by Methanobacterium[J]. Biochemistry, 10(23): 4312-4317. doi: 10.1021/bi00799a024

    Meng Yuchen. 2018. Diversity of Bacterial Community Structure and Taxonomy of New Species in Oil Reservoir[D]. Guiyang: Guizhou Medical University, 1-56 (in Chinese with English abstract).

    Miller T L. 2016. Methanobrevibacter. Bergey's Manual of Systematics of Archaea and Bacteria[M]. American Cancer Society.

    Nkamga V D, Drancourt M, Michel D. 2016. Methanomassiliicoccus. Bergey's Manual of Systematics of Archaea and Bacteria [M]. American Cancer Society.

    Parks D H, Tyson G W, Hugenholtz P, Beiko R G. 2014. STAMP: Statistical analysis of taxonomic and functional profiles[J]. Bioinformatics, 30(21): 3123-3124. doi: 10.1093/bioinformatics/btu494

    Russell M J, Martin W. 2004. The rocky roots of the acetyl-CoA pathway[J]. Trends in Biochemical Sciences, 29(7): 358-363. doi: 10.1016/j.tibs.2004.05.007

    Ren Mifang, Li Lingyan, Chen Lin, Xing Tingting, Liu Yongqin, Dong Xiuzhu. 2000. Analysis of methanogenic bacteria and methanogenic metabolic pathway in three saline-alkali lakes on Qinghai-Tibet Plateau[J]. Acta Microbiologica Sinica, 60(1): 161-171(in Chinese with English abstract).

    Reysenbach A L, Shock E. 2002. Merging genomes with geochemistry in hydrothermal ecosystems[J]. Science, 296(5570): 1077-1082. doi: 10.1126/science.1072483

    Rother M. 2010. Methanogenesis. Handbook of Hydrocarbon and Lipid Microbiology[M]. Springer Berlin Heidelberg.

    Shao N, Akinyemi T S, Whitman W B. 2020. Methanosphaer. Bergey's Manual of Systematics of Archaea and Bacteria[M]. American Cancer Society.

    She Yuehui, Zhang Xueli, Zhang Fan, Wnag Linghua, Zhao Liping. 2005. Molecular analysis of microbial community in water drive reservoir of Dagangkongdian oilfield[J]. Acta Microbiologica Sinica, 3: 329-334 (in Chinese with English abstract).

    She Yuehui. 2010. Study on the Mechanism of Enhancing Oil Recovery by Microbial Resources[D]. Wuhan: Wuhan University, 1-151 (in Chinese with English abstract).

    Shen Jihong, Song Weizhi, Lin Xuezheng, Wang Shuai, Dewi Seswita Zilda. 2012. Analysis of archaea diversity in Padang Cermin thermal spring, Indonesia[J]. Progress in Marine Science, 30(4): 534-540(in Chinese with English abstract).

    Song Zhaoqi, Chen Jingquan, Zhi Xiaoyang, Haung Zhiyong, Zhang Chuanlun, Li Wenjun. 2008. Crenarchaeal diversity and phylogenetic analysis of two hot springs in Tengchong[J]. Microbiology China, 35 (3): 372-377(in Chinese with English abstract).

    Song Zhaoqi, Wang Li, Liu Xiuhua, Liang Feng. 2015. Bacterial diversity of Proteobacteria from four acidic hot springs in Yunnan Province[J]. Journal of Henan Agricultural University, (3): 376-382(in Chinese with English abstract).

    Sun Xiaoxi, Jiang Hongchen. 2020. Research progress in the nitrification process of lake microorganisms[J]. Journal of Microbiology, 60(6): 1148-1161(in Chinese with English abstract).

    Wagner D. 2020. Methanosarcina. Bergey's Manual of Systematics of Archaea and Bacteria[M]. American Cancer Society.

    Wang Jie. 2017. Enrichment Conditions and Resource Potential of Water-Soluble Gas in Northern Songliao Basin[D]. Daqing: Northeast Petroleum University, 1-61 (in Chinese with English abstract).

    Wang Wanchun, Tao Mingxin. 2005. Geomicrobial interaction and petroleum resources[J]. Geological Bulletin of China, 24(10/11): 1022-1026 (in Chinese with English abstract).

    Zeikus J G, Wolee R S. 1972. Methanobacterium thermoautotrophicus sp. n., an anaerobic, autotrophic, extreme thermophile[J]. Journal of Bacteriology, 109(2): 707-713. doi: 10.1128/jb.109.2.707-713.1972

    Zhang Daokuo. 2009. Accumulation Conditions and Potential of Water-soluble Gas Resources in Lindian Area of Songliao Basin[D]. Changchun: Jilin University, 1-52 (in Chinese with English abstract).

    Zhang Gongcheng, Qu Hongjun, Zhang Fenglian, Chen Shuo, Yang Haichang, Zhao Chuan, Zhao Chong. 2019. New discoveries and implications of global deepwater oil and gas[J]. Acta PetroleiSinica, 40(1): 1-34, 55 (in Chinese with English abstract).

    Zhang Jianchao, Xu Yiqin, Lu Yahai. 2015. Microbial mechanism of methane production and oxidation in terrestrial ecosystem[J]. Acta Ecologica Sinica, 35(20): 6592-6603 (in Chinese with English abstract).

    Zhang Linye, Liu Qing, Zhang Chunrong. 2005. Study on the Relationship between Hydrocarbon Generation and Hydrocarbon Accumulation in Dongying Sag[M]. Beijing: Geological Publishing House(in Chinese with English abstract).

    Zhang L, Sun Z, Geng W, Cao H, Qin Y, Xu C, Zhang X, Li X, Zhang X, Song H. 2019. Advances in the microbial mineralization of seafloor hydrothermal systems[J]. China Geology, 2(2): 227-237. doi: 10.31035/cg2018087

    Zhang Miao. 2020. Metagenomic Study on the Structure and Function of Microbial Communities in Sediments and Deep Groundwater of the High Arsenic Aquifer in Yinchuan[D]. Harbin: Harbin Institute of Technology, 1-75(in Chinese with English abstract).

    Zhang Wei, Hu Xiaoli, Qiu Xuan, Liu Deng, Feng Liang, Ma Liyuan, Hu Jing, Wang Hongmei. 2019. Microbiome characteristics of Zhan 3 reservoir in Shengli Oilfield, Shandong Province[J]. Science China (Earth Sciences), 64(18): 1930-1942(in Chinese with English abstract).

    Zhao Jiayi. 2020. Study on Spatial Structure and Hydrothermal Differentiation Process of Deep Heat Storage in Xiongan New Area[D]. Beijing: Chinese Academy of Geological Sciences, 1-151 (in Chinese with English abstract).

    Zinder S H, Cardwell S C, Anguish T, Lee M, Koch M. 1984. Methanogenesis in a Thermophilic (58℃) Anaerobic Digestor: Methanothrix sp. as an Important Aceticlastic Methanogen[J]. Appllied Environmental Microbiology, 47(4): 796-807. doi: 10.1128/aem.47.4.796-807.1984

    艾明强, 李慧, 刘晓波, 史荣久, 韩斯琴, 李娜娜, 张颖. 2010. 大庆油田油藏采出水的细菌群落结构[J]. 应用生态学报, 21(4): 1014-1020.

    程日辉, 朱德丰, 王洪艳, 王璞珺. 2006. 松辽盆地林甸断陷白垩纪沙河子期盆地次级构造单元与沉积体系[J]. 吉林大学学报, 36(5): 793-798.

    董俊领. 2013. 长青林场地热资源潜力评价[D]. 长春: 吉林大学, 1-57.

    段昌海, 张翠景, 孙艺华, 李猛. 2019. 新型产甲烷古菌研究进展[J]. 微生物学报, 51(6): 981-995.

    丁安娜, 宋桂侠, 惠荣耀, 卢双舫. 2004. 松辽盆地滨北地区生物气源岩酸性含氧化合物的分布及其地球化学意义[J]. 天然气地球科学, 15(1): 51-57.

    樊萌萌. 2016. 不同温度和pH值地热环境下微生物群落的比较宏基因组学分析[D]. 北京: 中国科学院大学, 1-123.

    姜舟. 2016. 腾冲地热区砷的环境生物地球化学研究[D]. 武汉: 中国地质大学, 1-109.

    蒋娜, 陈紫娟, 曹轶, 田建卿, 王艳芬, 东秀珠. 2013. 低温湿地甲烷古菌及其介导的甲烷产生途径[J]. 微生物学通报, 40(1): 137-145.

    冷欢, 杨清, 黄钢锋, 白丽萍. 2020. 氢营养型产甲烷代谢途径研究进展[J]. 微生物学报, 60(10): 2136-2160.

    李先奇, 张水昌, 朱光有, 梁英波. 2005. 中国生物成因气的类型划分与研究方向[J]. 天然气地质学, 16(4): 478-483.

    孟俞辰. 2018. 油藏细菌群落结构多样性及新种系统分类学研究[D]. 贵阳: 贵州医科大学, 1-56.

    任秘坊, 李凌燕, 陈琳, 邢婷婷, 刘勇勤, 东秀珠. 2020. 青藏高原三个盐碱湖的产甲烷菌群和产甲烷代谢途径分析[J]. 微生物学报, 60(1): 11.

    佘跃惠, 张学礼, 张凡, 王凌华, 赵立平. 2005. 大港孔店油田水驱油藏微生物群落的分子分析[J]. 微生物学报, 3: 329-334.

    佘跃惠. 2010. 油藏微生物资源提高原油采收率机理研究[D]. 武汉: 武汉大学, 1-151.

    沈继红, 宋维志, 林学政, 王帅, Dewi Seswita Zilda. 2012. 印度尼西亚Padang Cermin热泉古菌多样性分析[J]. 海洋科学进展, 30(4): 534-540.

    宋兆齐, 陈经全, 职晓阳, 黄志勇, 张传伦, 李文均. 2008. 腾冲两热泉泉古菌多样性及系统发育的初步分析[J]. 微生物学通报, 35(3): 372-377.

    宋兆齐, 王莉, 刘秀花, 梁峰. 2015. 云南4处酸性热泉中的变形菌门细菌多样性[J]. 河南农业大学学报, 50(3): 376-382.

    孙小溪, 蒋宏忱. 2020. 湖泊微生物硝化过程研究进展[J]. 微生物学报, 60(6): 1148-1161.

    王杰. 2017. 松辽盆地北部水溶气富集条件及其资源潜力[D]. 大庆: 东北石油大学, 1-61.

    王万春, 陶明信. 2005. 地质微生物作用与油气资源[J]. 地质通报, 24(10/11): 1022-1026.

    张道阔. 2009. 松辽盆地林甸地区水溶气资源聚集条件及其潜力[D]. 长春: 吉林大学, 1-52.

    张功成, 屈红军, 张凤廉, 陈硕, 杨海长, 赵钊, 赵冲. 2019. 全球深水油气重大新发现及启示[J]. 石油学报, 40(1): 1-34, 55. doi: 10.3969/j.issn.1001-8719.2019.01.001

    张坚超, 徐镱钦, 陆雅海. 2018. 陆地生态系统甲烷产生和氧化过程的微生物机理[J]. 生态学报, 35(20): 6592-6603.

    张林晔, 刘庆, 张春荣. 2005. 东营凹陷成烃与成藏关系研究[M]. 北京: 地质出版社.

    张淼. 2020. 银川高砷含水层沉积物和深层地下水中微生物群落结构和功能的宏基因组学研究[D]. 哈尔滨: 哈尔滨工业大学, 1-75.

    张蔚, 胡小丽, 邱轩, 刘邓, 冯亮, 马丽媛, 胡婧, 王红梅. 2019. 山东胜利油田沾3油藏微生物组特征[J]. 中国科学, 64(18): 1930-1942.

    赵佳怡. 2020. 雄安新区深部热储空间结构与水热分异过程研究[D]. 北京: 中国地质科学院, 1-151.
