Geological structural characteristics and tectonic period in Daguitun area, southern Heilongjiang
-
摘要:
研究目的 黑龙江南部大贵屯一带位于松嫩—张广才岭地块东部，为古亚洲洋构造域与太平洋构造域的叠加与转换部位，开展小型或微观构造形迹特征的研究，对进一步解析二大构造域的叠加与转换背景具有重要的理论意义。
研究方法 基于系统的野外调查和镜下矿物变形特征识别，结合前人研究成果，讨论研究区的构造演化历史以及两大构造体系叠加与转换的时限。

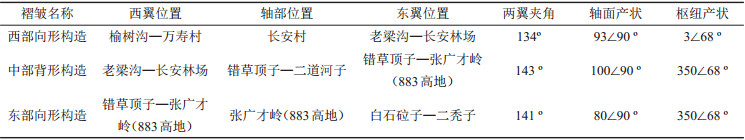

研究结果 提出大贵屯一带存在3期构造作用：一是早古生代古亚洲洋开裂扩张作用，二是晚二叠世—早三叠世古亚洲洋闭合挤压造山作用，三是晚三叠世—早侏罗世太平洋板块对欧亚板块俯冲挤压造山作用。太平洋板块对欧亚大陆的俯冲期形成褶皱与古亚洲洋闭合挤压期形成褶皱明显不同，不仅体现构造层次的显著差别，也体现了区域应力场转换过程。
结论 太平洋板块对欧亚大陆的俯冲期不仅形成褶皱，还形成了与此相匹配的脆性断裂，为研究古亚洲洋与环太平洋构造域的转换作用，特别是古太平洋板块向欧亚大陆的俯冲历史提供重要的科学依据。
Abstract:This paper is the result of geological survey engineering.
Object Daguitun area in the southern of Heilongjiang Province is located in the eastern part of the Songnen-Zhangguangcailing block, which is the superposition and transformation site of Paleo-Asian oceanic tectonic domain and Pacific tectonic domain, It is of great theoretical significance to further analyze the superposition and transformation background of the two tectonic domains by studying the features of small or micro structures.
Methods Based on systematic field investigation and microscopic identification of mineral deformation characteristics, combined with previous research results, this paper discusses the tectonic evolution history of the study area and the time limit for superposition and transformation of the two tectonic systems.
Results There are three stages of tectonics in the area of Guitun: First, the Early Paleozoic paleo-Asian ocean cracking and expansion, second, the Late Permian-Early Triassic paleo-Asian ocean closing and compression orogeny, third, the Late Triassic-Early Jurassic subduction and compression orogeny of the Pacific plate on the Eurasian plate. The folds formed during the subduction period of the Pacific plate to Eurasia are obviously different from those formed during the closing compression period of the ancient Asian ocean, which not only reflects the significant differences in structural levels, but also reflects the transformation process of regional stress field.
Conclusion During the subduction period of the Pacific plate to Eurasia, not only folds were formed, but also brittle fractures matched with them were formed, which provided an important scientific basis for studying the transformation between the paleo-Asian Ocean and the circum-Pacific tectonic domain, especially the subduction history of the paleo-Pacific plate to Eurasia.
-
-
Ao Guang. 2016. Zircon U-Pb LA-ICP-MS age of the intrusive rock in southern Zhangguangcailing area[J]. Geology and Resources, 25(6): 533-538(in Chinese with English abstract).
Bai Jin. 2003. Restoration of the tectonic style of the orogenic belt and its tectonic environment significance [J]. Geological Survey and Research, 26(1): 38-45(in Chinese with English abstract).
Deng Jinfu, Feng Yanfang, Di Yongjun, Liu Cui, Xiao Qinghui, Su Shangguo, Zhao Guochun, Meng Fei, Che Rufeng. 2015. The intrusive spatial-temporal evolutional framework in the Paleo-sian tectonic domain[J]. Geological Review, 61(6): 1212-1224(in Chinese with English abstract).
Dmitrienko L V, Wang Pengcheng, Li Sanzhong, Cao Xianzhi, Zhou Zaizheng, Hu Mengying, Suo Yanhui, Guo Lingli, Wang Yongming, Li Xiyao, Liu Xin, Yu Shengyao. 2017. Meso-Cenozoic evolution of Earth surface system under the east asian tectonic super convergence[J]. Marine Geology and Quaternary Geology, 37(4): 33-64.
Du Bingying, Pu Quansheng, Liu Yuweil, Zhao Mingshen, Xu Junlu, Zhao Yusheng, Liu Yuqi, Luo Jiaxin. 2018. Open, Evolution and extinction history of The Paleo-asian ocean: Records from the continuous sedimentation of Paleozoic strata (O1-C1) in northwestern Heilongjiang Province[J]. Geology and Resources, 27(1): 16-21(in Chinese with English abstract).
Geng Shufang, Liu Ping, Zheng Hongwei, Wang Zhengyang, Ju Yuanjing. 2012. A tentative discussion and new recognition of Mesozoic geodynamic mechanism in eastern China[J]. Geological Bulletin of China, 31(7): 1061-1068(in Chinese with English abstract).
Guan Qingbin, Li Shichao, Zhang Chao, Shi Yi, Li Pengchuan. 2016. Zircon U-Pb dating, geochemistry and geological significance of the I-type granites in Helong area, the eastern section of the southern margin of Xingmeng orogenic belt[J]. Acta Petrologica Sinica, 32 (9): 2690-2706(in Chinese with English abstract).
Huang Miwei, Guo Feng, Zhao Liang, Li Jingyan. 2015. Nd isotope constraint on crustal replacement induced by subduction of Paleo-Pacific Plate in the Yanbian Area, NE China[J]. Geotectonics and Mineralization, 39 (3): 3446-459(in Chinese with English abstract).
Li Pengwu, Gao Rui, Guan Ye, Li Qiusheng. 2009. The closure time of the Paleo-Asian Ocean and the Paleo-Tethys Ocean: Implication for the tectonic cause of the End-Permian mass extinction[J]. Journal of Jilin University (Earth Science Edition), 39(3): 521-527(in Chinese with English abstract).
Li Sanzhong, Yang Zhao, Zhao Shujuan, Li Xiyao, Suo Yanhui, Guo Lingli, Yu Shan, Dai Liming, Li Shaojun, Mu Dunling. 2016. Global Early Paleozoic Orogens(II): Subduction-accretionary-type orogeny[J]. Journal of Jilin University, 46(4): 968-1004(in Chinese with English abstract).
Liu Kai, Zhang Jinjiang, Ge Maohui, Li Yiyun. 2016. Mesozoic subduction of the paleo-acific Plate along the Eastern margin of the Xingmeng Orogenic Belt[J]. Bulletin of Mineralogy Petrology and Geochemistry, 35(6): 1098-1108(in Chinese with English abstract).
Liu Yongjiang, Zhang Xingzhou, Jin Wei, Chi Xiaoguo, Wang Chengwen, Ma Zhihong, Han Guoqing, Wen Quanbo, Zhao Yingli, Wang Wendi, Zhao Xifeng. 2010. Late Paleozoic tectonic evolution in Northeast China[J]. Geology in China, 37(4): 943-951(in Chinese with English abstract).
Meng Fanchao, Liu Jiaqi, Cui Yan, Gao Jinliang, Liu Xiang, Tong Ying. 2014. Mesozoic tectonic regimes transition in the northeast China: Constriants from temporal-spatial distribution and associations of volcanic rocks[J]. Acta Petrologica Sinica, 30(12): 3569-3586(in Chinese with English abstract).
Miao Laicheng, Fan Weiming, Liu Dunyi, Zhang Fuqin, Shi Yuruo, Guo Feng. 2008. Geochronology and geochemistry of the Hegenshan ophiofitic complex: Implications for late -stage tectonic evolution of the Inner Mongolia-Daxinganling orogenic belt, China[J]. Journal of Asian Earth Sciences, 32(5/6): 348-370.
Pei Fuping, Xu Wenliang, Meng En, Yu Yang. 2008. The Beginning of the Subduction of Paleo-Pacific Plate: Geochronological and Geochemical Evidence from Earl Middle Jurassic Volcanic Rocks in Eastern Jilin and Heilongjiang Provinces[J]. Bulletin of Mineralogy, Petrology and Geochemistry, 27(Supp. ): 268(in Chinese).
Shao Ji'an, Li Yongfei, Tang Kedong. 2013. Restoration of the orogenic processes of Zhangguangcai Range[J]. Acta Petrologica Sinica, 29(9): 2959-2970(in Chinese with English abstract).
Sun Deyou, Wu Fuyuan, Zhang Yanbin, Gao Shan. 2004. The Final Closing Time of the West Lamulun River-Changchun-Yanji Palte Suture Zone: Evidence from the Dayushan Granitic Pluton, Ji1in Province[D]. Journal of Jilin University (Earth Science Edition), 34: 174-181(in Chinese with English abstract).
Sun Deyou, Wu Fuyuan, Gao Shan, Lu Xiaoping. 2005. Confirmation of two episodes of A-type granite emplacement during Late Triassic and Early Jurassic in the Central Jilin Province, and their constraints on the structural pattern of Eastern Jilin-Heilongjiang Area[J]. Earth Science Frontiers, 12(2): 263-275(in Chinese with English abstract).
Tang Jie, Xu Wenliang, Wang Feng, Gao Fuhong, Cao Huahua. 2011. Petrogenesis of Bimodal volcanic rocks from Maoershan Formation in Zhangguangcai Range: Evidence from geochronology and geochemistry[J]. Global Geology, 30(4): 508-513.
Tang Jie, Xu Wenliang, Wang Feng, Ge Wenchun. 2018. Subduction history of the PaleoPacific slab beneath Eurasian continent: Mesozoic-Paleogene magmatic records in Northeast Asia[J]. Science China Earth Sciences, 61: 527-559(in Chinese with English abstract). doi: 10.1007/s11430-017-9174-1
Tang Jie, Xu Wenliang, Wang Feng. 2016. Rock associations and their spatial remporal variations of the Early Mesozoic igneous rocks in the NE Asia: Constraints on the initial subduction timing of the PaleoPacific Plate[J]. Bulletin of Mineralogy Petrology and Geochemistry, 35(6): 1181-1205(in Chinese with English abstract).
Wang Wuli, Li Yongfei, Guo Shenghe. 2014. The northeast china block group and its tectonic evolution[J]. Geology and resources, 23(1): 4-21.
Wang Zhongjiang, Ao Guang, Zhong Mishan, Wang Qi, Zhai Furong, He Zhenqing, Guo Hongfang. 2015. Heilongjiang 1: 50, 000 Daguantun (L52E023007), Three-Person Class (L52E023008), Yushugou (L52E024007), Baishilai (L52E024008) Regional Geological and Mineral Survey Report[R]. Dalian: Liaoning Provincial Institute of Geological Exploration.
Wilde S A., Wu Fuyuan, Zhang Xingzhou. 2003. Late Pan-African Magmatism in Northeastern China: SHRIMP U-Pb zircon evidence from granitoids in the Jiamusi Massif[J]. Precambrian Research, 122: 311-327. doi: 10.1016/S0301-9268(02)00217-6
Wu Fuyuan, Jahn Borming, Wilde S A, Sun Deyou. 2000. Phanerozoic crustal growth: U-Pb and Sr-Nd isotopic evidence from the granites in Northeastern China[J]. Termtonophysics, 328: 89-113. doi: 10.1016/S0040-1951(00)00179-7
Wu Fuyuan, Sun Deyou, Ge Wenchun, Zhang Yanbin, Matthew L. Grant, Wilde S A., Bor-Ming Jahn. 2011. Geochronology of the Phanerozoic Granitoids in Northeastern China[J]. Journal of Asian Earth Sciences, 41: 1-30. doi: 10.1016/j.jseaes.2010.11.014
Wu Fuyuan, Wilde S A, Sun Deyou. 2001. Zircon SHRIMP U-Pb Ages of gneissic granites in Jiamusi Massif, northeastern China[J]. Acta Petrologica Sinica, 17(3): 443-452(in Chinese with English abstract).
Wu Fuyuan, Zhao Guochun, Sun Deyou, Wilde S A, Yang Jinhui. 2007. The Hulan Group: Its role in the evolution of the Central Asian Orogenic Belt of NE China[J]. Journal of Asian Earth Sciences, 30: 542-556. doi: 10.1016/j.jseaes.2007.01.003
Xu Wenliang, Wang Feng, Meng En, Gao Fuhong, Pei Fuping, Yu Jiejiang, Tang Jie. 2012. Paleozoic-Early Mesozoic tectonic evolution in the Eastern HeilonJiang Province, NE China: Evidence from igneous rock association and U-Pb geochronology of detrital zircons[J]. Journal of Jilin University(Earth Science Edition), 42(5): 1378-1389(in Chinese with English abstract).
Xu Wenliang, WangFeng, Pei Fuping, Meng En, Tang Jie, Xu Meijun, Wang Wei. 2013. Mesozoic tectonic regimes and regional oreforming background in NE China: Constraints from spatial and temporal variations of Mesozoic volcanic rock associations[J]. Acta Petrologica Sinica, 29(2): 339-353(in Chinese with English abstract).
Zhong Mishan, Wang Zhongjang, Ao Guang, Zhai Furong, Wang Fenli, Wang Qi, Tan Chao, Yang Yunlai. 2017. Zircon U-Pb chronology and geochemical characteristics of the volcanic rocks from Erlanghe formation in Zhangguangcai range[J]. Geological Survey and Research, 40(3): 161-170(in Chinese with English abstract).
Zhou Jianbo, Han Jie, Wilde S A, Guo Xiaodan, Guo Weishun, Cai Jialin. 2013. A primary study of the Jilin-Heilongjang high-pressure metamorphic belt: Evidence and tectonic implications[J]. Acta Petrologica Sinica, 29 (2): 386-398(in Chinese with English abstract).
Zhou Jianbo, Pu Xiangang, Hou Hechen, Han Wei, Cao Jialin, Li Gongyu. 2018. The Mesozoic accretionary complex in NE China and its tectonic implications for the subduction of the Paleo-acific plate beneath the Eurasia[J]. Acta Petrologica Sinica, 34(10): 2845-2856.
Zhou Jianbo, Zhang Xingzhou, Wilde S A, Zheng Changqing, Jin Wei, Chen Hong, Han Jie. 2009. Detrital zircon U-Pb dating of Heilongjiang complex and its implications[J]. Acta Petrologica Sinica, 25(8): 1924-1936(in Chinese with English abstract).
Zhou Zhongbiao, Shi Aiguo, Jing Yan. 2016. The final closure time of the ancient Asian Ocean in the central and eastern Jilin Province: Constraints of the Upper Permian-Triassic detrital zircon chronology [J]. Journal of Jilin University (Earth Science Edition), 46(4): 1042-1055(in Chinese with English abstract).
Zhu Jingbin, Ren Yongjian, Yang Hongtu, Cao Guangyuan, Wang Bo. 2017. Zircon U-Pb chronology and geochemical characteristics of volcanic rocks from Erlanghe Formation in Nanhalahezi district of Heilongjiang Province[J]. Chemical Mineral Geology, 39 (3): 129-139(in Chinese with English abstract).
敖光. 2016. 张广才岭南部侵入岩锆石U-Pb LA-ICP-MS年代[J]. 地质与资源, 25(6): 533-538. doi: 10.3969/j.issn.1671-1947.2016.06.004
白瑾. 2003. 造山带构造样式的恢复及其构造环境意义[J]. 地质调查与研究, 26(1): 38-45. doi: 10.3969/j.issn.1672-4135.2003.01.007
邓晋福, 冯艳芳, 狄永军, 刘翠, 肖庆辉, 苏尚国, 赵国春, 孟斐, 车如风. 2015. 古亚洲构造域侵入岩时空演化框架[J]. 地质论评, 61(6): 1212-1224. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLP201506003.htm
Dmitrienko Liudmila Valerevna, 王鹏程, 李三忠, 曹现志, 周在征, 胡梦颖, 索艳慧, 郭玲莉, 王永明, 李玺瑶, 刘鑫, 于胜尧. 2017. 东亚大汇聚与中—新生代地球表层系统演变[J]. 海洋地质与第四纪地质, 37(4): 33-64.
杜兵盈, 浦全生, 刘宇威, 赵明胜, 许君禄, 赵雨生, 刘宇奇, 罗佳欣. 2018. 古亚洲洋的发生—发展—消亡的历史——来自黑龙江省西北部古生代(O1-C1)地层的连续沉积记录[J]. 地质与资源, 27(1): 16-21. https://www.cnki.com.cn/Article/CJFDTOTAL-GJSD201801002.htm
耿树方, 刘平, 郑洪伟, 王振洋, 剧远景. 2012. 对中国东部中生代动力学机制的新认识[J]. 地质通报, 31(7): 1061-1068. doi: 10.3969/j.issn.1671-2552.2012.07.005
关庆彬, 李世超, 张超, 时溢, 李鹏川. 2016. 兴蒙造山带南缘东段和龙地区I型花岗岩锆石U-Pb定年、地球化学特征及其地质意义[J]. 岩石学报, 32 (9): 2690-2706. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201609007.htm
黄秘伟, 郭锋, 赵亮, 李竞妍. 2015. 古太平洋板块俯冲对延边地区深部地壳的置换作用: 显生宙花岗岩的Nd同位素制约[J]. 大地构造与成矿学, 39(3): 3446-459. https://www.cnki.com.cn/Article/CJFDTOTAL-DGYK201503009.htm
李朋武, 高锐, 管烨, 李秋生. 2009. 古亚洲洋和古特提斯洋的闭合时代——论二叠纪末生物灭绝事件的构造起因[J]. 吉林大学学报(地球科学版), 39(3): 521-527. https://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ200903024.htm
李三忠, 杨朝, 赵淑娟, 李玺瑶, 索艳慧, 郭玲莉, 余珊, 戴黎明, 李少俊, 牟墩玲. 2016. 全球早古生代造山带(II): 俯冲-增生型造山[J]. 吉林大学学报(地球科学版), 46(4): 968-1004. https://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ201604002.htm
刘恺, 张进江, 葛茂卉, 凌逸云. 2016. 中生代兴蒙造山带东缘的古太平洋板块俯冲[J]. 矿物岩石地球化学通报, 35(6): 1098-1108. doi: 10.3969/j.issn.1007-2802.2016.06.004
刘永江, 张兴洲, 金巍, 迟效国, 王成文, 马志红, 韩国卿, 温泉波, 赵英利, 王文弟, 赵喜峰. 2010. 东北地区晚古生代区域构造演化[J]. 中国地质, 37(4): 943-952. doi: 10.3969/j.issn.1000-3657.2010.04.010 http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20100409&flag=1
孟凡超, 刘嘉麒, 崔岩, 高金亮, 刘祥, 童英. 2014. 中国东北地区中生代构造体制的转变: 来自火山岩时空分布与岩石组合的制约[J]. 岩石学报, 30(12): 3569-3586. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201412008.htm
裴福萍, 许文良, 孟恩, 于洋. 2008. 古太平洋俯冲作用的开始: 来自吉黑东部早—中侏罗世火山岩的年代学及地球化学证据[J]. 矿物岩石地球化学通报, 27(增刊): 268. https://cpfd.cnki.com.cn/Article/CPFDTOTAL-ZGKD201904001184.htm
任收麦, 黄宝春. 2002. 晚古生代以来古亚洲洋构造域主要块体运动学特征初探[J]. 地球物理学进展, 17(1): 113-120. https://www.cnki.com.cn/Article/CJFDTOTAL-DQWJ200201016.htm
邵济安, 李永飞, 唐克东. 2013. 张广才岭造山过程的重构及其大地构造意义[J]. 岩石学报, 29(9): 2959-2970. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201309001.htm
孙德有, 吴福元, 高山, 路孝平. 2005. 吉林中部晚三叠世和早侏罗世两期铝质A型花岗岩的厘定及对吉黑东部构造格局的制约[J]. 地学前缘, 12 (2): 263-275. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY20050200Z.htm
孙德有, 吴福元, 张艳斌, 高山. 2004. 西拉木伦河—长春—延吉板块缝合带的最后闭合时间: 来自吉林大玉山花岗岩体的证据[D]. 吉林大学学报(地球科学版), 34(2): 174-181.
唐杰, 许文良, 王枫, 葛文春. 2018. 古太平洋板块在欧亚大陆下的俯冲历史: 东北亚陆缘中生代—古近纪岩浆记录[J]. 中国科学: 地球科学, 48(5): 549 -583. https://www.cnki.com.cn/Article/CJFDTOTAL-JDXK201805004.htm
唐杰, 许文良, 王枫. 2016. 东北亚早中生代火成岩组合的时空变异: 对古太平洋板块俯冲开始时间的制约[J]. 矿物岩石地球化学通报, 35(6): 1181-1205. https://www.cnki.com.cn/Article/CJFDTOTAL-KYDH201606014.htm
王五力, 李永飞, 郭胜哲. 2014. 中国东北地块群及其构造演化[J]. 地质与资源, 23(1): 4-21. https://www.cnki.com.cn/Article/CJFDTOTAL-GJSD201401004.htm
王忠江, 敖光, 仲米山, 王岐, 翟富荣, 何振清, 郭洪芳. 2015. 黑龙江1: 5万大贯屯(L52E023007)、三人班(L52E023008)、榆树沟(L52E024007)、白石砬(L52E024008)幅区域地质矿产调查报告[R]. 大连: 辽宁省地质勘查院.
吴福元, Wilde S A, 孙德有. 2001. 佳木斯地块片麻状花岗岩的锆石离子探针U-Pb年龄[J]. 岩石学报, 17(3): 443-452. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200103012.htm
许文良, 王枫, 孟恩, 高福红, 裴福萍, 于介江, 唐杰. 2012. 黑龙江省东部古生代—早中生代的构造演化: 火成岩组合与碎屑锆石U-Pb年代学证据[J]. 吉林大学学报(地球科学版), 42(5): 1378-1389. https://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ201205012.htm
许文良, 王枫, 裴福萍, 孟恩, 唐杰, 徐美君, 王伟. 2013. 中国东北中生代构造体制与区域成矿背景: 来自中生代火山岩组合时空变化的制约[J]. 岩石学报, 29(2): 339-353. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201302002.htm
仲米山, 王忠江, 敖光, 翟富荣, 王粉丽, 王岐, 谭超, 杨运来. 2017. 张广才岭二浪河组火山岩的锆石U-Pb年代学及地球化学特征[J]. 地质调查与研究, 40(3): 161-170. https://www.cnki.com.cn/Article/CJFDTOTAL-QHWJ201703001.htm
周建波, 韩杰, Wilde S A., 郭晓丹, 曾维顺, 曹嘉麟. 2013. 吉林—黑龙江高压变质带的初步厘定: 证据和意义[J]. 岩石学报, 29 (2): 386-398. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201302005.htm
周建波, 蒲先刚, 侯贺晨, 韩伟, 曹嘉麟, 李功宇. 2018. 东北中生代增生杂岩及对古太平洋向欧亚大陆俯冲历史的制约[J]. 岩石学报, 34 (10): 2845-2856. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201810003.htm
周建波, 石爱国, 景妍. 2016. 东北地块群: 构造演化与古大陆重建[J]. 吉林大学学报(地球科学版), 46(4): 1042-1055. https://www.cnki.com.cn/Article/CJFDTOTAL-CCDZ201604005.htm
周建波, 张兴洲, Wilde S A, 郑常青, 金魏, 陈红, 韩杰. 2009. 黑龙江杂岩的碎屑锆石年代学及其大地构造意义[J]. 岩石学报, 25(8): 1924-1936. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB200908019.htm
朱敬宾, 任永健, 杨宏图, 曹光远, 王博. 2017. 黑龙江南蛤拉河子地区二浪河组火山岩的锆石U-Pb年代学及地球化学特征[J]. 化工矿产地质, 39(3): 129-139. https://www.cnki.com.cn/Article/CJFDTOTAL-HGKC201703001.htm
-
