Development of geothermal energy industry in Türkiye and its enlightenment to China
-
摘要:
研究目的 地热能作为一种清洁高效的可再生能源，在能源紧缺与气候变化的双重驱动下，正逐渐受到各国重视。开发地热资源，成为加快能源结构调整以及“双碳”目标实现的重要途径。近年来，土耳其地热能产业高速发展，截至2021年，地热发电总装机容量约为中国的30多倍，地热能直接利用则由2005年的1177 MW增加到2022年的4000 MW，取得了举世瞩目的成绩。土耳其与中国共处于地中海—喜马拉雅地热带上，地热资源丰富，土耳其地热能产业发展对于中国具有重要借鉴意义。
研究方法 本文采用文献综述的方法，分析土耳其地热资源条件，研究地热能产业发展现状，总结其快速发展的原因。结合中国地热资源条件与发展现状，借鉴土耳其经验，剖析影响中国地热发展的主要问题，提出对策与建议。
研究结果 研究表明，21世纪以来，土耳其政府大力支持地热能产业发展，其快速发展的原因和主要经验有：（1）政府承担前期勘探工作，有效降低企业开发风险；（2）政策引导、立法补贴，有效提高开发企业积极性，降低投资成本；（3）融资支持，为地热能发展提供资金保障；（4）国际合作、技术引领，有力促进地热能高效开发利用。
结论 借鉴土耳其地热能产业快速发展经验，结合中国实际，提出以下建议：（1）立法先行，完善管理机制，明确地热开发利用规程；（2）政策激励、补贴支持，充分调动企业积极性；（3）科学布局，实现地热产业高效发展；（4）加强国际交流，助力技术进步；（5）增强公众意识，提高地热能认知度。
Abstract:This paper is the result of geothermal geological survey engineering.
Objective Geothermal energy, as a kind of clean and efficient renewable energy, is gradually attracting the attention of all countries under the dual drive of energy shortage and climate change. The development of geothermal resources has become an important way to accelerate the adjustment of energy structure and achieve the goal of "double carbon". In recent years, Türkiye's geothermal energy industry has developed at a high speed. By 2021, the total installed capacity of geothermal power generation will be about 30 times that of China, and the direct utilization of geothermal energy will increase from 1177 MW in 2005 to 4000 MW in 2022, making these remarkable achievements. Türkiye and China are both located in the Mediterranean Himalayan geotropics, where geothermal resources are abundant. The development of Türkiye's geothermal energy industry is of great significance to China.
Method This paper uses the method of literature review to analyze the conditions of geothermal resources in Türkiye, study the development status of geothermal energy industry, and summarize the reasons for its rapid development. Combined with the conditions and development status of China's geothermal resources, and drawing on Türkiye's experience, this paper analyzes the main problems affecting China's geothermal development, and puts forward countermeasures and suggestions.
Results The research shows that Türkiye's government has vigorously supported the development of geothermal energy industry since the 21st century. The reasons and main experiences of its rapid development include: (1) The government undertakes the preliminary exploration work, effectively reducing the development risk of enterprises; (2) Policy guidance and legislative subsidies can effectively improve the enthusiasm of development enterprises and reduce investment costs; (3) Financing support to provide financial guarantee for geothermal energy development; (4) International cooperation and technology guidance will effectively promote the efficient development and utilization of geothermal energy.
Conclusion Drawing on the rapid development experience of Türkiye's geothermal energy industry and combining with China's actural conditions, the following suggestions are put forward: (1) Improve geothermal energy management mechanism and define the process of geothermal development and utilization; (2) Effectively improve the enthusiasm of enterprises development and reduce investment costs through policy guidance and subsidies; (3) Realize efficient development of geothermal industry through reasonable spatial planning; (4) Strengthen international exchanges and help technological progress; (5) Improve social awareness of geothermal energy.
-
-
图 3 土耳其断裂活动带以及地热资源分布（据Dagistan et al., 2010）
Figure 3.
图 4 土耳其国家地热发电装机容量（据Bertani, 2005, 2016; Richter, 2022）
Figure 4.
图 5 按工厂类型每年增加的地热发电装机容量（Serpen and DiPippo, 2022）
Figure 5.

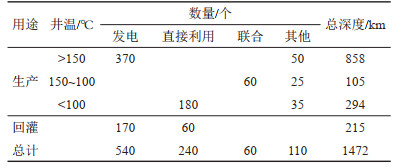

表 1 2010—2019年土耳其用于地热能利用的钻井（包含热泵井）（据 Mertoglu et al., 2015；Mertoglu et al., 2020）
Table 1. Drilling for geothermal energy utilization in Türkiye (including heat pump wells)(after Mertoglu et al., 2015; Mertoglu et al., 2020)
下载: 导出CSV

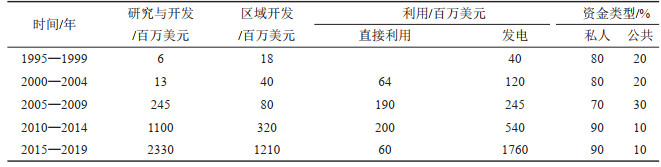

表 2 土耳其地热开发利用投资情况（据 Mertoglu et al., 2015）
Table 2. Investment in geothermal development and utilization in Türkiye (after Mertoglu et al., 2015)
下载: 导出CSV

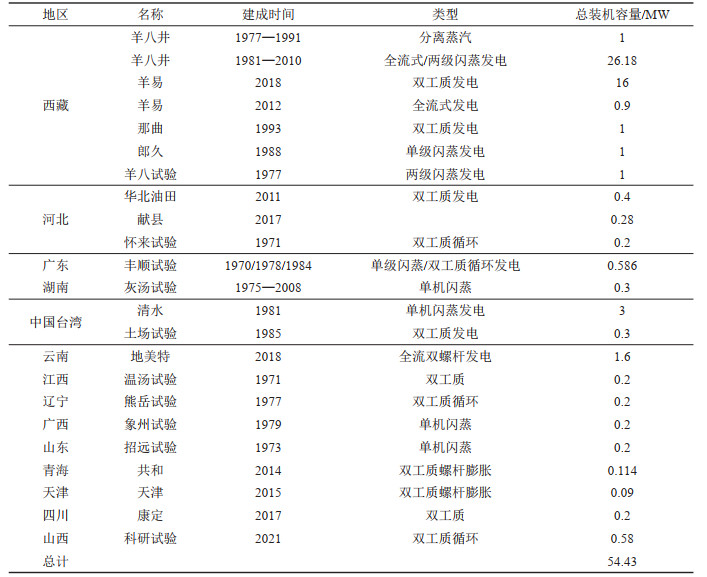

表 3 中国地热发电情况（据王贵玲和陆川，2022）
Table 3. Geothermal Power Generation in China (after Wang Guiling and Lu Chuan, 2022)
下载: 导出CSV

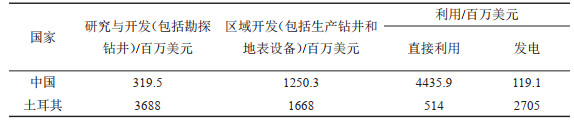

表 4 2010—2019年间中国与土耳其地热开发利用投资对比（据Mertoglu et al., 2020; Tian et al., 2020）
Table 4. Comparison of geothermal development and utilization investment between China and Türkiye from 2010 to 2019 (after Mertoglu et al., 2020; Tian et al., 2020)
下载: 导出CSV
-
AA. 2022. EBRD launches €500M financing facility to support green transition in Turkiye [EB/OL]. (2022-04-19) [2022-08-28].
https://www.aa.com.tr/en/economy/ebrd-launches-500m-financing-facility-to-support-green-transition-in-turkiye/2567173# .Bertani R. 2005. World geothermal power generation in the period 2001-2005[J]. Geothermics, 34: 651-690. doi: 10.1016/j.geothermics.2005.09.005
Bertani R. 2016. Geothermal power generation in the world 2010-2014 update report[J]. Geothermics, 60: 31-43. doi: 10.1016/j.geothermics.2015.11.003
Bilgin O. 2018. The importance of geothermal energy resources in Turkey[J]. Open Access Library Journal, 5(2): 1-8.
Chen Moxiang, Wang Jiyang, Deng Xiao. 1994. Geothermal Resources in China——Formation Characteristics and Potential Assessment[M]. Beijing: Science Press, 1-38 (in Chinese).
Chen Qinqiang. 2021. Domestic geothermal resource reserves, development and utilization and technical status[N]. China Petroleum News, 4(in Chinese).
Dagistan H, Dogu N, Karadaglar M. 2010. Geothermal explorations and investigations by MTA in Turkey[C]//Poceedings World Geothermal Congress 2010. Bali, Indonesia, 2.
Difiglio C, Güray B E, Merdan E, Aliabadi D E. 2020. Turkey Energy Outlook 2020. International Centre for Energy and Climate[M]. Sabanci: Sabanci University Publications, 452.
Government of Turkey. 2007. Law on Geothermal Resources and Mineral Waters[OL]. Ankara: Government of Turkey. (2007-06-14) [2022-07-18].
http://www.lawsturkey.com/law/law-on-geothermal-resources-and-mineral-waters-5686 .He Zhiliang, Feng Jianyun, Zhang Ying, Li Pengwei. 2017. A tentative discussion on an evalution on system of geothermal unit ranking and classification in China[J]. Earth Science Frontier, 24(3): 168-179 (in Chinese with English abstract).
Huttrer G W. 2020. Geothermal power generation in the world 2015-2020 update report[C]//Proceedings World Geothermal Congress, 1.
Jiang Guangzheng, Gao Peng, Rao Song, Zhang Linyou, Tang Xiaoyin, Huang Fang, Zhao Ping, Pang Zhonghe, He Lijuan, Hu Shengbiao, Wang Jiyang. 2016. Compilation of heat flow data in the continental area of China (4th edition) [J]. Chinese Journal of Geophysics, 59(8): 2892-2910 (in Chinese with English abstract).
Kaya T, Kindap A, Energy Z. 2009. Kizildere-new geothermal power plant in Turkey[C]//Presentation at International Geothermal Days Conference & Summer School. Slovakia, 1.
Lewis J, Schneegans S, Straza T. 2021. UNESCO Science Report: The race against time for smarter development(Vol. 2021) [M]. UNESCO Publishing, 17-29.
Liu H J, Wang H W, Gou Y, Li M T. 2018. Investigation on social acceptance of the geothermal energy utilization in China[J]. Transactions-Geothermal Resources Council, 42: 812-824.
Ma Bing, Jia Lingxiao, Yu Yang, Wang Huan. 2021. The development and utilization of geothermal energy in the world[J]. Geology in China, 48(6): 1734-1747(in Chinese with English abstract).
Melikoglu M. 2017. Geothermal energy in Turkey and around the World: A review of the literature and an analysis based on Turkey's Vision 2023 energy targets[J]. Renewable and Sustainable Energy Reviews, 76: 485-492. doi: 10.1016/j.rser.2017.03.082
MENR. 2021. Electricity[EB/OL]. (2021-09-19)[2022-09-23]
https://enerji.gov.tr/infobank-energy-electricity .Mertoglu O. 2005. Geothermal Applications in Turkey[C]//Proceedings world geothermal congress. Antalya, Turkey, 175-179.
Mertoglu O, Canlan A, Bakir N, Dokuz I, Kaya T. 2000. Geothermal direct use applications in Turkey: Technology and economics[C]//Proceedings of the World Geothermal Congress, Kyushu-Tohoku, Japan, 1-3.
Mertoglu O, Mertoglu M. 1993. Direct use of heating applications in Turkey[J]. Geothermal Resources Council Transactions, 17: 19-22.
Mertoglu O, Simsek S, Basarir N. 2015. Geothermal country update report of Turkey (2010-2015)[C]//Proceedings World Geothermal Congress. Melbourne, Australia. 19: 25.
Mertoglu O, Simsek S, Basarir N. 2020. Geothermal energy use: projections and country update for Turkey[C]//Proceedings World Geothermal Congress. Reykjavik, Iceland, 1.
Ministry of Natural Resources of the People's Republic of China, Department of New and Renewable Energy, National Energy Administration, Institute of Science and Development, Chinese Academy of Sciences, Institute of Resources and Environmental Policy, Development Research Center of the State Council. 2018. China geothermal energy development report 2018[R]. Sinopec Press, 14 (in Chinese).
Oliver P, Stadelmann M. 2015. Public Finance and Private Exploration in Geothermal: Gümüşköy Case Study Gumuskoy Turkey[R]. Turkey: [s. n], 3.
UNEP. 2022. Renewables 2022 Global Status Report[R]. 108-120.
Richter A. 2022. Think GeoEnergy's Top 10 Geothermal Countries 2021-installed power generation capacity(MWe)[OL]. (2022-01-10) [2022-8-15].
https://www.thinkgeoenergy.com/thinkgeoenergys-top-10-geothermal-countries-2021-installed-power-generation-capacity-mwe/ .Sahiller H A, Öner R N, Halac?oğlu U. 2021. How did Turkey succeed in raising rublic awareness and environmental protection along with geothermal developments?[C]//Proceedings world geothermal congress, 1.
Serpen U, DiPippo R. 2022. Turkey-A geothermal success story: A retrospective and prospective assessment[J]. Geothermics, 101: 102370. doi: 10.1016/j.geothermics.2022.102370
Simsek S. 1985. Present status and future developments of the DenizliKizildere geothermal field of Turkey[C]//1985 International Symposium on Geothermal Energy International Volume, Hawaii USA, 203-210.
Simsek S, Mertoglu O, Bakir N, Akkus I, Aydogdu O. 2005. Geothermal Energy Utilisation Development and Projections Country Update Report 2000-2004 of Turkey[M]. Turkey: Antalya, 371-381.
Tian T S, Dong Y, Zhang W, Wei J W, Jin H L, Liu Y M. 2020. Rapid development of China's geothermal industry-China national report of the 2020 World Geothermal Conference[C]//Proceedings of the 2020 World Geothermal Congress.
Tuik. 2022. The Results of Address Based Population Registration System, 2021. (2022-02-04)[2022-11-20].
https://www.tuik.gov.tr/ .Wang Guiling, Zhang Wei, Liang Jiyun, Lin Wenjing, Liu Zhiming, Wang Wanli. 2017. Evaluation of geothermal resource potential in China[J]. Acta Geologica Sinica, 38(4): 449-450 (in Chinese with English abstract).
Wang Guiling, Lu Chuan. 2022. Progress of geothermal resources exploitation and utilization technology driven by neutralization target[J]. Geology and Resources, 31(3): 412-425 (in Chinese with English abstract).
Wang Jiyang, Kong Yanlong, Cheng Yuanzhi. 2019. Distribution, Development and Utilization of Geothermal Resources in China[C]//International Clean Energy Forum (Macau). International Clean Energy Industry Development Report (2019). China Yanshi Publishing House, 9 (in Chinese with English abstract).
Wen Dongguang, Zhang Eryong, Wang Guiling, Zhang Linyou, Wang huang, Zhang Senqi, Ye Chengming, Wang Wenshi, Jin Xianpeng, Liu Donglin, Jia Xiaofeng, Li Shengtao, Wu Haidong, Lian Sheng, Feng Qingda. 2023. Progress and prospect of hot dry rock exploration and development[J]. Hydrogeology & Engineering Geology, 50(4): 1-13(in Chinese with English abstract).
Zhang E Y, Wen D G, Wang G L, Yan W D, Wang W S, Ye C M, Li X F, Wang H, Tang X C, Weng W, Li K, Zhang C Y, Liang M X, Luo H B, Hu H Y, Zhang W, Zhang S Q, Jin X P, Wu H D, Zhang L Y, Feng Q D, Xie J Y, Wang D, He Y C, Wang Y W, Chen Z B, Cheng Z P, Luo W F, Yang Y, Zhang H, Zha E L, Gong Y L, Zheng Y, Jiang C S, Zhang S S, Niu X, Zhang H, Hu L S, Zhu G L, Xu W H, Niu Z X, Li Y. 2022. The first power generation test of hot dry rock resources exploration and production demonstration project in the Gonghe Basin, Qinghai Province, China[J]. China Geology, 5(3): 372-382. doi: 10.31035/cg2022038
Zheng K Y. 2012. Geothermal power generation in China: Past and future[J]. GRC Trans, 36: 1133-1135.
Zheng Keyan, Zheng Fan. 2020. Discussion on the prospect of China's geothermal power generation industry[J]. Chinese and Foreign Energy, 25(11): 17-23(in Chinese with English abstract).
陈墨香, 汪集旸, 邓孝. 1994. 中国地热资源——形成特点和潜力评估[M]. 北京: 科学出版社, 1-38.
陈钦强. 2021. 国内地热资源储量、开发利用情况及技术现状[N]. 中国石油报. 4.
何治亮, 冯建赟, 张英, 李朋威. 2017. 试论中国地热单元分级分类评价体系[J]. 地学前缘, 24(3): 168-179. https://www.cnki.com.cn/Article/CJFDTOTAL-DXQY201703019.htm
姜光政, 高堋, 饶松, 张林友, 唐晓音, 黄方, 赵平, 庞忠和, 何丽娟, 胡圣标, 汪集旸. 2016. 中国大陆地区大地热流数据汇编(第四版)[J]. 地球物理学报, 59(8): 2892-2910. https://www.cnki.com.cn/Article/CJFDTOTAL-DQWX201608015.htm
马冰, 贾凌霄, 于洋, 王欢. 2021. 世界地热能开发利用现状与展望[J]. 中国地质, 48(6): 1734-1747. http://geochina.cgs.gov.cn/geochina/article/abstract/20210606?st=search
王贵玲, 张薇, 梁继运, 蔺文静, 刘志明, 王婉丽. 2017. 中国地热资源潜力评价[J]. 地球学报, 38(4): 449-450. https://www.cnki.com.cn/Article/CJFDTOTAL-DQXB201704002.htm
王贵玲, 陆川. 2022. 碳中和目标驱动下地热资源开采利用技术进展[J]. 地质与资源, 31(3): 412-425. https://www.cnki.com.cn/Article/CJFDTOTAL-GJSD202203011.htm
汪集暘, 孔彦龙, 程远志. 2019. 中国地热资源分布与开发利用[C]//国际清洁能源论坛(澳门). 国际清洁能源产业发展报告(2019). 中国言实出版社, 72.
文冬光, 张二勇, 王贵玲, 张林友, 王璜, 张森琦, 叶成明, 王稳石, 金显鹏, 刘东林, 贾小丰, 李胜涛, 吴海东, 连晟, 冯庆达. 2023. 干热岩勘查开发进展及展望[J]. 水文地质工程地质, 50(4): 1-13. https://www.cnki.com.cn/Article/CJFDTOTAL-SWDG202304001.htm
郑克棪, 郑帆. 2020. 中国地热发电产业前景探讨[J]. 中外能源, 25(11): 17-23. https://www.cnki.com.cn/Article/CJFDTOTAL-SYZW202011005.htm
自然资源部中国地质调查局, 国家能源局新能源和可再生能源司, 中国科学院科技战略咨询研究院, 国务院发展研究中心资源与环境政策研究所. 2018. 中国地热能发展报告2018[R]. 中国石化出版社, 14.
-
