Investigation of Color Causing Minerals in Yellow-Red Colored Quartzite Jade Using the Synchrotron Radiation Technique
-

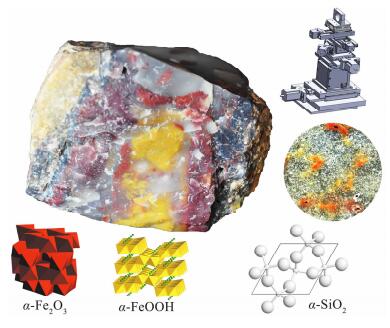

摘要: 质地细腻、颜色多彩的隐晶质-微粒脉石英在我国珠宝行业称为石英质玉石，颜色是石英质玉石价值判断的主要因素之一，揭示其致色矿物及致色机理对于研究石英质玉石的颜色评价指标和矿床成因具有重要意义，但前人并未直接获得致色矿物的准确信息。本文运用上海光源（SSRF）BL15U1线站的同步辐射硬X射线，使用μ-XRF和μ-XRD技术对黄色和红色隐晶质-微粒脉石英中的致色矿物进行了研究。结果表明，黄色石英质玉石由赋存于石英颗粒间或微裂纹中的针铁矿（特征衍射峰0.49574、0.41594、0.26887、0.25705、0.25189、0.24510、0.21806、0.17133 nm）或其集合体致色，红色石英质玉石由赋存于石英颗粒间或微裂纹中的赤铁矿（特征衍射峰0.36774、0.27091、0.25200 nm）或其集合体致色，黄色-红色石英质玉的颜色由针铁矿和赤铁矿共同致色，赤铁矿的显色能力要高于针铁矿。本文获得了石英质玉石中致色矿物的直接数据，为玉石结晶温度与致色机理的探讨、石英质玉石的品质评价提供了依据。Abstract: Jade-like cryptocrystalline-microcrystalline vein quartzite is called quartzite jade in the jewel business of China. Color is the main criteria for the value of quartzite jade, and therefore studying the coloration mechanism is very important for the color evaluation index and ore genesis. Previous studies have shown that the accurate information of color causing minerals cannot be acquired. The synchrotron radiation techniques, BL15U1 in SSRF equipped with μ-XRF and μ-XRD at SSRF were used for studying the color causing minerals in vein quartzite and are reported in this paper. It was found that yellow vein quartzite is colored by goethite (characteristic diffraction peaks at 0.49574, 0.41594, 0.26887, 0.25705, 0.25189, 0.24510, 0.21806, 0.17133 nm), whereas red quartzite is colored by hematite (characteristic diffraction peaks at 0.36774, 0.27091, 0.25200 nm). Yellow-red quartzite is colored by both goethite and hematite and hematite has a stronger coloration ability than goethite. This study provides direct data of the color causing minerals in quartzite jade, which is useful for discussing the crystallization conditions and the coloration mechanism, and also helpful for the quality evaluation of quartzite jade.
-
Key words:
- synchrotron radiation technique /
- vein quartzite /
- coloration /
- goethite /
- hematite
-
-
[1] 张勇, 刘伦贵, 罗光连, 等."霍山玉"的宝石学特征[C].中国珠宝玉石首饰学术交流会论文集, 2013:222-225.
Zhang Y, Liu L G, Luo G L, et al.The Gemological Properties of'Huoshan Jade'[C].Proceedings of China Gems & Jewelry Academic Conference, 2013:222-225.
[2] 张勇, 陆太进, 陈华.阿拉善戈壁玛瑙的显微特征[C].中国珠宝玉石首饰学术交流会论文集, 2015:182-184.
Zhang Y, Lu T J, Chen H.The Microstructures of Agate from Alxa League Gobi Desert, China[C]. Proceedings of China Gems & Jewelry Academic Conference, 2015:182-184.
[3] 陈华, 柯捷, 周丹怡, 等.从我国不同商品名称石英质玉石的宝石学特征探讨其定名[C].中国珠宝玉石首饰学术交流会论文集, 2015:161-171.
Chen H, Ke J, Zhou D Y, et al.Discussion on the Nomenclature of Quartzose Jade with Different Commodity Names in China Based on the Gemological Characteristics[C].Proceedings of China Gems & Jewelry Academic Conference, 2015:161-171.
[4] 周丹怡, 陈华, 陆太进, 等.基于拉曼光谱-红外光谱-X射线衍射技术研究斜硅石的相对含量与石英质玉石结晶度的关系[J].岩矿测试, 2015, 34(6):652-658. http://www.ykcs.ac.cn/ykcs/ch/reader/view_abstract.aspx?file_no=20150608&flag=1
Zhou D Y, Chen H, Lu T J, et al.Study on the Relationship between the Relative Content of Moganite and the Crystallinity of Quartzite Jade by Raman Scattering Spectroscopy, Infrared Absorption Spectroscopy and X-ray Diffraction Techniques[J].Rock and Mineral Analysis, 2015, 34(6):652-658. http://www.ykcs.ac.cn/ykcs/ch/reader/view_abstract.aspx?file_no=20150608&flag=1
[5] 田隆.五颜六色的黄龙玉及致色机理[J].岩矿测试, 2012, 31(2):306-311. http://www.ykcs.ac.cn/ykcs/ch/reader/view_abstract.aspx?file_no=20120221&flag=1
Tian L.Coloring Mechanism of Huanglong Jade[J].Rock and Mineral Analysis, 2012, 31(2):306-311. http://www.ykcs.ac.cn/ykcs/ch/reader/view_abstract.aspx?file_no=20120221&flag=1
[6] 杜杉杉, 殷科, 韩文, 等.一种商业名为"金丝玉"的矿物学特征[J].宝石和宝石学杂志, 2014, 16(4):49-53. http://www.cnki.com.cn/Article/CJFDTOTAL-BSHB201404006.htm
Du S S, Yin K, Han W, et al.Mineralogical Characteristics of'Jinsiyu'(Quartz)[J].Journal of Gems and Gemmology, 2014, 16(4):49-53. http://www.cnki.com.cn/Article/CJFDTOTAL-BSHB201404006.htm
[7] 张勇, 陆太进, 杨天畅, 等.石英质玉石的颜色分布及其微量元素分析[J].岩石矿物学杂志, 2014, 33(增刊):83-88. http://www.cnki.com.cn/Article/CJFDTOTAL-YSKW2014S1015.htm
Zhang Y, Lu T J, Yang T C, et al.A Study of Quartzite Jade's Color and Trace Elements[J].Acta Petrologica et Mineralogica, 2014, 33(Supplement):83-88. http://www.cnki.com.cn/Article/CJFDTOTAL-YSKW2014S1015.htm
[8] 张勇, 魏然, 柯捷, 等.黄色和红色石英质玉石的颜色成因研究[J].岩石矿物学杂志, 2016, 35(1):139-146. http://www.cnki.com.cn/Article/CJFDTOTAL-YSKW201601010.htm
Zhang Y, Wei R, Ke J, et al.Coloration of Yellow and Red Colored Quartzite Jade[J].Acta Petrologica et Mineralogica, 2016, 35(1):139-146. http://www.cnki.com.cn/Article/CJFDTOTAL-YSKW201601010.htm
[9] Balsam W, Ji J F, Renock D, et al.Determining Hematite Content from NUV/Vis/NIR Spectra:Limits of Detection[J].American Mineralogist, 2014, 99(11-12):2280-2291. doi: 10.2138/am-2014-4878
[10] 周玮, 季峻峰, Balsam W, 等.利用漫反射光谱鉴定红粘土中针铁矿和赤铁矿[J].高校地质学报, 2007, 13(4):730-736. http://www.cnki.com.cn/Article/CJFDTOTAL-GXDX200704018.htm
Zhou W, Ji J F, Balsam W, et al.Determination of Goethite and Hematite in Red Clay by Diffuse Reflectance Spectroscopy[J].Geological Journal of China Universities, 2007, 13(4):730-736. http://www.cnki.com.cn/Article/CJFDTOTAL-GXDX200704018.htm
[11] 王轶, 常娜, 刘亚非, 等.应用X射线衍射-激光拉曼光谱-电子探针等分析测试技术研究旬阳朱砂玉的矿物学特征[J].岩矿测试, 2014, 33(6):802-807. http://www.ykcs.ac.cn/ykcs/ch/reader/view_abstract.aspx?file_no=20140607&flag=1
Wang Y, Chang N, Liu Y F, et al.Study on the Mineralogical Characteristics of Cinnabar Jade by X-ray Powder Diffraction-Laser Raman Spectroscopy-Electron Probe from Xunyang, Shannxi Province[J].Rock and Mineral Analysis, 2014, 33(6):802-807. http://www.ykcs.ac.cn/ykcs/ch/reader/view_abstract.aspx?file_no=20140607&flag=1
[12] 肖体乔, 谢红兰, 邓彪, 等.上海光源X射线成像及其应用研究进展[J].光学学报, 2014, 34(1):1-15. http://www.cnki.com.cn/Article/CJFDTOTAL-GXXB201401002.htm
Xiao T Q, Xie H L, Deng B, et al.Progresses of X-ray Imaging Methodology and Its Applications at Shanghai Synchrotron Radiation Facility[J].Acta Optica Sinica, 2014, 34(1):1-15. http://www.cnki.com.cn/Article/CJFDTOTAL-GXXB201401002.htm
[13] 张延乐, 余笑寒.上海光源BL15U1束线的SRXRF定量分析[J].核技术, 2010, 33(5):334-337. http://www.cnki.com.cn/Article/CJFDTOTAL-HJSU201005005.htm
Zhang Y L, Yu X H. Quantitative SRXRF Analysis on the BL15U1 Beamline at SSRF[J].Nuclear Techniques, 2010, 33(5):334-337. http://www.cnki.com.cn/Article/CJFDTOTAL-HJSU201005005.htm
[14] 李国强, 梁东旭, 闫芬, 等.利用光强反馈提高上海光源BL15U线站光束位置的稳定性[J].核技术, 2013, 36(5):1-4. http://www.cnki.com.cn/Article/CJFDTOTAL-HJSU201305003.htm
Li G Q, Liang D X, Yan F, et al.Improve Beam Position Stability of SSRF BL15U Beamline by Using Beam Intensity Feedback[J].Nuclear Techniques, 2013, 36(5):1-4. http://www.cnki.com.cn/Article/CJFDTOTAL-HJSU201305003.htm
[15] Zhang L L, Yan S, Jiang S, et al.Hard X-ray Micro-focusing Beamline at SSRF[J].Nuclear Science and Techniques, 2015, 26(6):1-8. http://www.j.sinap.ac.cn/nst/EN/article/downloadArticleFile.do?attachType=PDF&id=640
[16] 张继超, 梁东旭, 何燕, 等.硬X射线微米探针高精度样品定位系统[J].光谱学与光谱分析, 2014, 34(2):557-561. http://www.cnki.com.cn/Article/CJFDTOTAL-GUAN201402060.htm
Zhang J C, Liang D X, He Y, et al.High Accuracy Sample Positioning System for Hard X-ray Microprobe[J].Spectroscopy and Spectral Analysis, 2014, 34(2):557-561. http://www.cnki.com.cn/Article/CJFDTOTAL-GUAN201402060.htm
[17] 路凤香, 桑隆康编著.岩石学[M].北京:地质出版社, 2002:28.
Lu F X, Sang L K.Petrology[M].Beijing:Geological Publishing House, 2002:28.
[18] Cornell R M, Schwertmann U.The Iron Oxides:Structure, Properties, Reactions, Occurrences and Use (2nd Edition)[M].WILEY-VCH, 2003:130-137, 173-175, 350-355.
[19] 赵珊茸编著.结晶学及矿物学[M].北京:高等教育出版社, 2004:199-200.
Zhao S R.Crystallography and Mineralogy[M].Beijing:Higher Education Press, 2004:199-200.
[20] 于吉顺, 雷新荣, 张锦化等.矿物X射线粉晶鉴定手册[M].武汉:华中科技大学出版社, 2011.
Yu J S, Lei X R, Zhang J H, et al.Manual of X-ray Powder Mineral Identification[M].Wuhan:Huazhong University of Science & Technology Press, 2011.
[21] 张勇, 柯捷, 陆太进, 等.黄色石英质玉石中"水草花"的物质组成研究[M].宝石和宝石学杂志, 2012, 14(3):1-5. http://www.cnki.com.cn/Article/CJFDTOTAL-BSHB201203002.htm
Zhang Y, Ke J, Lu T J, et al.Study on Ingredients of Dendrite Pattern in Yellow Quartzite Jade[M].Journal of Gems and Gemmology, 2012, 14(3):1-5. http://www.cnki.com.cn/Article/CJFDTOTAL-BSHB201203002.htm
[22] 韩文, 洪汉烈, 吴钰, 等.和田玉糖玉的致色机理研究[J].光谱学与光谱分析, 2013, 33(6):1446-1450. http://www.cnki.com.cn/Article/CJFDTOTAL-GUAN201306002.htm
Han W, Hong H L, Wu Y, et al.Color Genesis of Brown Jade from Hetian Nephrite[J].Spectroscopy and Spectral Analysis, 2013, 33(6):1446-1450. http://www.cnki.com.cn/Article/CJFDTOTAL-GUAN201306002.htm
[23] 李响, 蔡元峰.白垩纪大洋红层的致色机制及成因研究[J].矿物学报, 2014, 34(4):451-460. http://www.cnki.com.cn/Article/CJFDTOTAL-KWXB201404004.htm
Li X, Cai Y F.The Colouration Mechanism and Genetic Study of Cretaceous Oceanic Red Beds[J].Acta Mineralogica Sinica, 2014, 34(4):451-460. http://www.cnki.com.cn/Article/CJFDTOTAL-KWXB201404004.htm
[24] 王含, 周征宇, 钟倩, 等.电子微探针-X射线衍射-扫描电镜研究老挝石岩石矿物学特征[J].岩矿测试, 2016, 35(1):56-61. http://www.ykcs.ac.cn/ykcs/ch/reader/view_abstract.aspx?file_no=20160110&flag=1
Wang H, Zhou Z Y, Zhong Q, et al.Study on Petrological and Mineralogical Characteristics of Laos Stone by EPMA-XRD-SEM[J].Rock and Mineral Analysis, 2016, 35(1):56-61. http://www.ykcs.ac.cn/ykcs/ch/reader/view_abstract.aspx?file_no=20160110&flag=1
[25] Wang M K, Hsu P H.Effects of Temperature and Iron(Ⅲ) Concentration on the Hydrolytic Formation of Iron(Ⅲ) Oxyhydroxides and Oxides[J].Soil Science Society of America Journal, 1980, 44:1089-1095. doi: 10.2136/sssaj1980.03615995004400050043x
[26] Riveros P A, Dutrizac J E.The Precipitation of Hematite from Ferric Chloride Media[J].Hydrometallurgy, 1997, 46:85-104. doi: 10.1016/S0304-386X(97)00003-0
[27] Ruan H D, Frost R L, Klopvogge J T.The Behavior of Hydroxyl Units of Synthetic Goethite and Its Dehydroxylated Product Hematite[J].Spectrochimica Acta Part A:Molecular and Biomolecular Spectroscopy, 2001, 57:2575-2586. doi: 10.1016/S1386-1425(01)00445-0
-
