基于常规测井的变质岩裂缝识别方法研究

廖海博, 刘红岐, 崔云江, 汪瑞宏, 李枝林, 陈东, 刘伟. 基于常规测井的变质岩裂缝识别方法研究[J]. 海洋地质与第四纪地质, 2023, 43(4): 189-198. doi: 10.16562/j.cnki.0256-1492.2023021601
引用本文: 廖海博, 刘红岐, 崔云江, 汪瑞宏, 李枝林, 陈东, 刘伟. 基于常规测井的变质岩裂缝识别方法研究[J]. 海洋地质与第四纪地质, 2023, 43(4): 189-198. doi: 10.16562/j.cnki.0256-1492.2023021601
LIAO Haibo, LIU Hongqi, CUI Yunjiang, WANG Ruihong, LI Zhilin, CHEN Dong, LIU Wei. Research on fractures identification method of metamorphic rock based on conventional logging[J]. Marine Geology & Quaternary Geology, 2023, 43(4): 189-198. doi: 10.16562/j.cnki.0256-1492.2023021601
Citation: LIAO Haibo, LIU Hongqi, CUI Yunjiang, WANG Ruihong, LI Zhilin, CHEN Dong, LIU Wei. Research on fractures identification method of metamorphic rock based on conventional logging[J]. Marine Geology & Quaternary Geology, 2023, 43(4): 189-198. doi: 10.16562/j.cnki.0256-1492.2023021601

基于常规测井的变质岩裂缝识别方法研究

  • 基金项目: 中石油创新联合体项目“长水平段薄箱体页岩储层地质导向钻井技术”(2020CX040203)
详细信息
    作者简介: 廖海博(1998—),男,硕士研究生,主要从事测井资料处理解释与储层评价、油藏描述研究,E-mail:1075129119@qq.com
  • 中图分类号: P744

Research on fractures identification method of metamorphic rock based on conventional logging

  • BZ19-6气田变质岩潜山储层结构复杂、多样,裂缝发育且非均质性强。在储层评价中,识别有效的裂缝是一个紧迫的难题,而这对于该气田的勘探开发具有重要的意义。以岩性主要为花岗片麻岩、夹少量侵入岩的太古界为研究层位,通过对常规测井曲线进行重极标差(R/S)分析,以识别研究层位的裂缝发育程度,并通过计算Lg(R/S)的牛顿二阶差分值预测裂缝的发育位置。进一步将R/S分析结果与岩芯薄片裂缝观察统计和电成像图解释结果进行对比,建立了利用赫尔特指数识别花岗片麻岩储层裂缝发育程度分类标准。研究表明:① 将R/S分析和牛顿差分法相结合改进的裂缝识别方法,在变质岩储层裂缝评价中具有可行性,可识别宽度>0.005 mm的裂缝;② Lg(R/S)曲线二阶差分值能够准确地识别天然裂缝的发育位置,并且K-Rxo与裂缝线密度呈正相关,相关性高;③ 岩性各向异性和裂缝充填情况对常规测井曲线R/S分析方法识别裂缝精度有影响。

  • 加载中
  • 图 1  研究区位置图

    Figure 1.

    图 2  太古界潜山气藏构造剖面图

    Figure 2.

    图 3  太古界天然裂缝岩芯图片

    Figure 3.

    图 4  太古界岩石薄片

    Figure 4.

    图 5  Microscope电成像图裂缝特征

    Figure 5.

    图 6  R/S分析曲线

    Figure 6.

    图 7  赫尔特指数三维散点图

    Figure 7.

    图 8  Lg(R/S)曲线的K值和凹区间对比

    Figure 8.

    图 9  裂缝线密度与K-Rxo散点图

    Figure 9.

    图 10  BZ19-6气田裂缝发育预测

    Figure 10.

    图 11  非花岗片麻岩裂缝发育特征

    Figure 11.

    表 1  花岗片麻岩储层裂缝发育程度分类识别标准

    Table 1.  Classification and identification standard of fracture development degree of granite gneiss reservoir

    裂缝发育情况HCALHRxoHDT
    不发育>0.95>1.0>1.0
    较发育0.75<HCAL<0.950.7<HRxo<1.00.75<HDT<1.0
    发育<0.75<0.7<0.75
    下载: 导出CSV

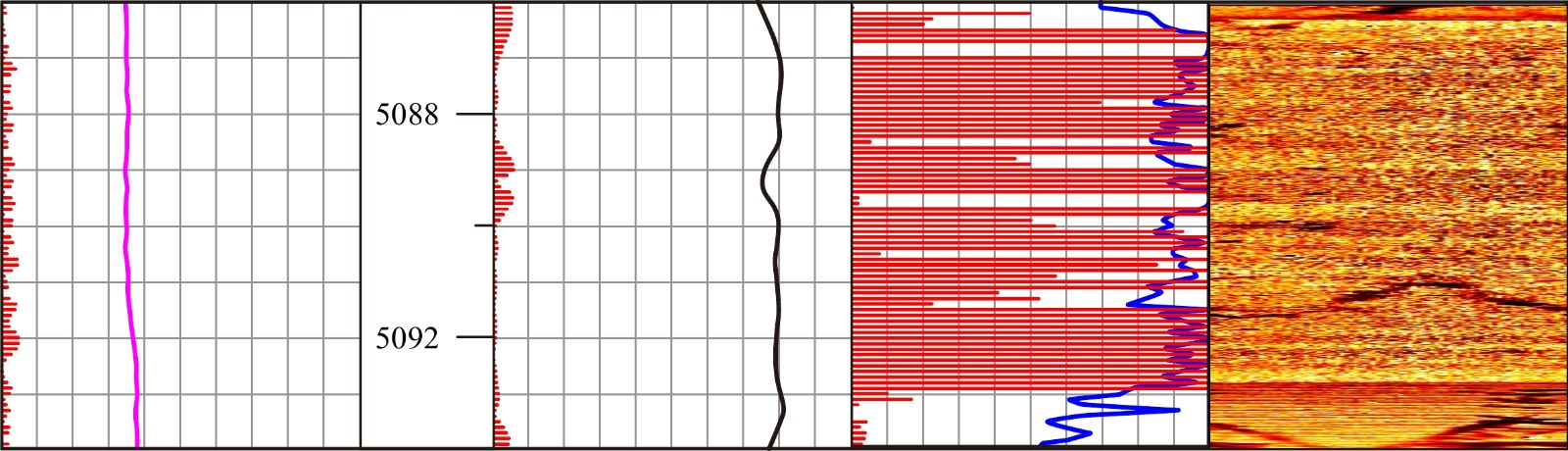

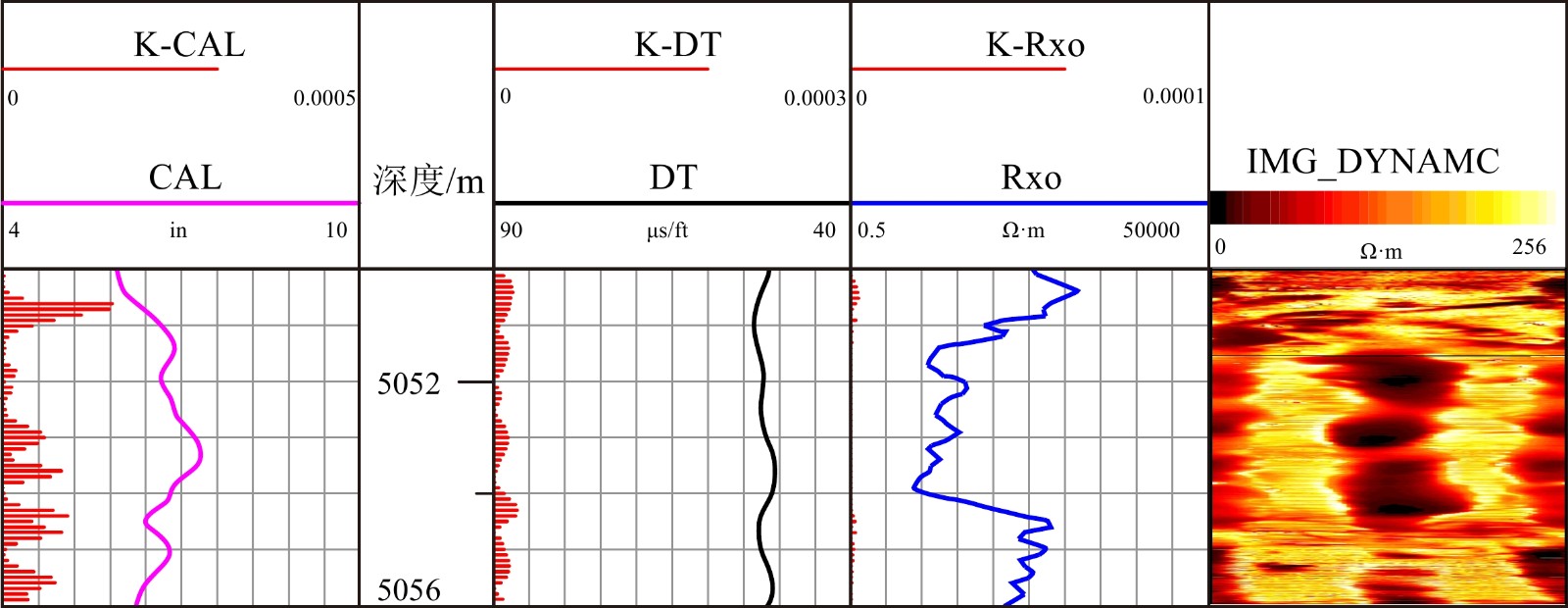

    表 2  牛顿二阶差分K值与Microscope-HD电成像图对比

    Table 2.  Comparison of Newton ' s second-order difference K value and Microscope-HD electrical imaging map

    类别测井曲线特征参数特征
    井壁崩落区K-CAL>0.00003
    K-DT<0.00001
    K-Rxo<0.00001
    裂缝发育区K-CAL<0.00003
    K-DT>0.00001
    K-Rxo<0.00001
    基岩区K-CAL<0.00003
    K-DT>0.00001
    K-Rxo>0.00001
    下载: 导出CSV
