Insoluble minerals of potash deposits in Haixiafeng mining area of Vientiane, Laos: Constraints on their sedimentary environment
-
摘要:
研究目的 老挝钾盐矿床是世界上重要的钾盐矿床之一,开展该矿床钾盐析出阶段沉积环境研究对于深入理解钾盐成矿作用具有重要意义。
研究方法 钾盐矿层中的水不溶矿物比可溶盐类矿物保存了更多的原始信息,是研究成矿卤水演化的重要载体。本文以老挝万象盆地海夏峰矿区ZK16钻孔为研究对象,利用镜下鉴定、XRD及SEM等方法对该钻孔钾盐矿层的水不溶矿物开展了系统研究。
研究结果 分析结果表明,水不溶物中的主要矿物为硬石膏、方硼石、水氯硼钙石、石英、白云石、菱镁矿、方解石、白云母等,其中以硬石膏、方硼石是主要的水不溶矿物。自生石英及碎屑白云母的存在及其分布特征指示了钾盐在沉积过程中不同程度地受到陆相水体的影响。
结论 综合研究揭示,研究区钾盐沉积可以分为波动沉积、浅水沉积、稳定沉积和改造作用等4个不同阶段。
Abstract:This paper is the result of mineral exploration engineering.
Objective The potash deposit in Laos is one of the most important potash deposits in the world. To carry out studies of the sedimentary environment during the precipitation of potassium minerals is very significant for a deep understanding of the mineralization of potash deposits here.
Methods The insoluble minerals in the potash seams, which can retain more original information than soluble salts, is an important carrier for studying the evolution of ore- forming brine. Systematic studies on insoluble minerals in borehole ZK16 from the Haixiafeng mining area of the Vientiane Basin of Laos were conducted through microscopic identification, XRD, and SEM.
Results Analysis results show that the insoluble materials mainly include anhydrite, boracite, hilgardite, quartz, dolomite, magnesite, calcite, and muscovite, in which anhydrite and boracite are dominant minerals. The existence and distribution characteristics of authigenic quartz and clastic muscovite reveal that continental waters have affected potash deposits to different degrees during deposition.
Conclusions Comprehensive studies show that the process of potassium salt deposition in the study area can be divided into four distinct stages: fluctuation deposition stage, shallow water deposition stage, stable deposition stage, and reworking stage.
-
图 1 研究区位置及其构造图(据郭远生等,2005)
Figure 1.

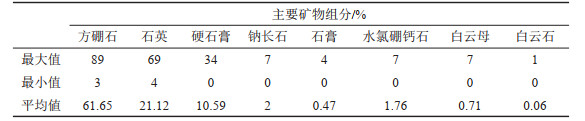

表 1 海夏峰矿区ZK16主要的矿物组分
Table 1. The main mineral components of ZK16 in Haixiafeng mining area

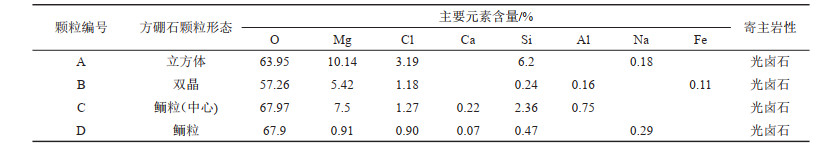

表 2 ZK16方硼石颗粒SEM-EDS元素分析结果
Table 2. SEM-EDS element analyzed results of ZK16 boron particles
-
Cendón D I, Ayora C, Pueyo J J, Taberner C. 2003. The geochemical evolution of the Catalan potash subbasin, South Pyrenean foreland basin (Spain)[J]. Chemical Geology, 200(3/4): 339-357.
Eastoe C J, Peryt T M, Petrychenko O Y, Geisler-Cussey. 2007. Stable chlorine isotopes in Phanerozoic evaporites[J]. Applied Geochemistry, 22(3): 575-588. doi: 10.1016/j.apgeochem.2006.12.012
Gao Xiang, Cai Keqin, Li Dairong, Peng Qiang, Fang Qinfang, Qin Hong. 2012. Mineralogical and geochemical characteristics and genesis of the potassium-magnesium salt deposit in Khammouan Province, Laos[J]. Acta Petrologica et Mineralogica, 31(4): 578-588 (in Chinese with English abstract). doi: 10.3969/j.issn.1000-6524.2012.04.010
García V J, Cendón D I, Rosell L, Ortetí F, Ruiz J T, Martín J M, Sanz E. 2013. Salt deposition and brine evolution in the Granada Basin (Late Tortonian, SE Spain)[J]. Palaeogeography, Palaeoclimatology, Palaeoecology, 369: 452-465. doi: 10.1016/j.palaeo.2012.11.010
Grice J D, Gault R A, Velthuizen J V. 2005. Borate minerals of the Penobsquis and Millstream Deposits, southern New Brunswick, Canada[J]. The Canadian Mineralogist, 43(5): 1496-1487.
Guo Yuansheng, Wu Jun, Zhu Yanzhe, Yan Chengwen, Zhao Jin, Chen Wen. 2005. Potash Geology in Vientiane of Laos[M]. Kunming: Yunnan Science and Technology Press, 1-219 (in Chinese with English abstract).
Hite R J. 1974. Evaporite deposits of the Khorat Plateau, northeastern Thailand[C]//Coogan A H (ed. ). Fourth Symposium on Salt. Cleveland: Northern Ohio Geological Society Inc: 135-146.
Hite R J, Japakasetr T. 1979. Potash deposits of the Khorat Plateau, Thailand and Laos[J]. Economic Geology, 74(2): 448-458. doi: 10.2113/gsecongeo.74.2.448
Jiang Zhibin, Wang Xingzhi, Zhang Fan, Zeng Deming, Zhang Jinyou, Lu Tiemei. 2008. Distribution and controlling factors of reefs and oolitic beaches for the Changxing to Feixianguan formations in the northern Sichuan basin[J]. Geology in China, 35(5): 940-950 (in Chinese with English abstract). doi: 10.3969/j.issn.1000-3657.2008.05.014
Li M H, Yan M D, Fang X M, Zhang Z J, Wang Z R, Sun S R, Li J, Liu X M. 2018. Origins of the Mid-Cretaceous evaporate deposits of the Sakhon Nakhon Basin in Laos: Evidence from the stable isotopes of halite[J]. Journal of Geochemical Exploration, 184: 209-222. doi: 10.1016/j.gexplo.2017.11.001
Li Yanqiang. 2018. Geological Characteristics and Genesis of Potash Deposits in Haixiafeng, Laos[D]. Beijing: China University of Geosciences (Beijing): 3-54 (in Chinese with English abstract).
Liang Guanghe. 2018. A study of the genesis of Hainan Island[J]. Geology in China, 45(4): 693-705 (in Chinese with English abstract).
Liu Chenglin, Wang Licheng, Yan Maodu, Zhao Yanjun, Cao Yangtong, Fang Xiaomin, Shen Lijian, Wu Chihua, Lü Fenglin, Ding Ting. 2018. The Mesozoic-Cenozoic tectonic settings, paleogeography and evaporitic sedimentation of Tethyan blocks within China: Implications for potash formation[J]. Ore Geology Reviews, 102: 406-425. doi: 10.1016/j.oregeorev.2018.09.002
Meesook A. 2000. Cretaceous environments of northeastern Thailand[J]. Developments in Palaeontology and Stratigraphy, 17: 207-223.
Metcalfe I. 1988. Origin and assembly of south-east Asian continental terranes[J]. Geological Society of London Special Publication, 37(1): 101-118. doi: 10.1144/GSL.SP.1988.037.01.08
Qian Ziqiang, Qu Yihua, Liu Qun. 1994. Potash Deposits[M]. Beijing: Geological Publishing House, 216-243 (in Chinese).
Sato K, Liu Y, Wang Y, Yokoyama M, Yoshioka S Y, Yang Z, Otofui Y I. 2007. Paleomagnetic study of Cretaceous rocks from Pu'er, western Yunnan, China: Evidence of internal deformation of the Indochina block[J]. Earth and Planetary Science Letters, 258(1): 1-15.
Tabakh M E, Utha-Aroon C, Schreiber B C. 1999. Sedimentology of the Cretaceous Maha Sarakham evaporites in the Khorat Plateau of northeastern Thailand[J]. Sedimentary Geology, 123(1): 31-62.
Tan H B, Ma H Z, Li B K, Zhang X Y, Xiao Y K. 2010. Strontium and boron isotopic constraint on the marine origin of the Khammuane potash deposits in southeastern Laos[J]. Chinese Science Bulletin, 55(27/28): 3181-3188.
Tang Qiliang, Zhang Xiying, Li Wenxia, Han Yuanhong. 2016. Boron isotope geochemical study of mudstone in Longhu mining area of Laos: A case study of ZK309[J]. Mineral Deposits, 35(1): 196-202 (in Chinese with English abstract).
Utha-Aroon C. 1993. Continental origin of the Maha Sarakham evaporites, northeastern Thailand[J]. Journal of Asian Earth Sciences, 8(1/4): 193-203.
Wang Chunlian, Liu Chenglin, WangLicheng, Zhang Linbing. 2013. Reviews on potash deposit metallogenic conditions[J]. Advances in Earth Science, 28(9): 976-987 (in Chinese with English abstract).
Wang J Y, Lowenstein T K. 2017. Anomalously high Cretaceous paleobrine temperatures: Hothouse, hydrothermal or solar heating?[J]. Minerals, 7(12): 245. doi: 10.3390/min7120245
Warren J K. 1999. Evaporites: Their Evolution and Economics[M]. Oxford: Blackwell Science, 249-250.
Yang Z, Besse J. 1993. Paleomagnetic study of Permian and Mesozoic sedimentary rocks from Northern Thailand supports the extrusion model for Indochina[J]. Earth and Planetary Science Letters, 117(3/4): 525-552.
Yang Z, Besse J, Sutheetorn V, Bassoullet J P, Fontaine H, Buffetaut E. 1995. Lower-Middle Jurassic paleomagnetic data from the Mae Sot area (Thailand): Paleogeographic evolution and deformation history of Southeastern Asia[J]. Earth and Planetary Science Letters, 136(3/4): 325-341.
Yechieli Y, Wood W W. 2002. Hydrogeologic processes in saline systems: Playas, sabkhas, and saline lakes[J]. Earth-Science Reviews, 58(3): 343-365.
Zhang Hua, Liu Chenglin, Wang Licheng, Fang Xiaomin. 2014. Characteristics of sulfur isotopes in evaporative rocks of potash deposit in Taqu basin, Laos and its indicative significance of potassium formation[J]. Geological Review, 60(4): 851-857 (in Chinese with English abstract).
Zhang Xiying. 2012. Constraints of the Insoluble Minerals on Formation of Tachyhydrite and Evolution of Brine in Potash Deposits of Vientiane Basin, Laos[D]. Xining: Qinghai Institute of Salt Lakes, Chinese Academy of Sciences, 59-173 (in Chinese with English abstract).
Zhang Xiying, Cheng Huaide, Tan Hongbing, Yuan Xiaolong, Li Yongshou, Miao Weiliang, Li Tingwei, Ma Haizhou. 2015. Late Cretaceous potash evaporites in Savannakhet Basin of middle Laos: Geochemical evidences of non-marine inputs[J]. Acta Petrologica Sinica, 31(9): 2783-2793 (in Chinese with English abstract).
Zhang X Y, Ma H Z, Ma Y Q, Tang Q L, Yuan X L. 2013. Origin of the late Cretaceous potash-bearing evaporites in the Vientiane Basin of Laos: δ11B evidence from borates[J]. Journal of Asian Earth Sciences, 62: 812-818. doi: 10.1016/j.jseaes.2012.11.036
高翔, 蔡克勤, 李代荣, 彭强, 方勤方, 秦红. 2012. 老挝甘蒙省钾镁盐矿床含矿段的矿物学和地球化学特征及成因[J]. 岩石矿物学杂志, 31(4): 578-588. doi: 10.3969/j.issn.1000-6524.2012.04.010
郭远生, 吴军, 朱延浙, 严城文, 赵劲, 陈文. 2005. 老挝万象钾盐地质[M]. 昆明: 云南科技出版社, 1-219.
蒋志斌, 王兴志, 张帆, 曾德铭, 张金友, 鲁铁梅. 2008. 四川盆地北部长兴组—飞仙关组礁、滩分布及其控制因素[J]. 中国地质, 35(5): 940-950. doi: 10.3969/j.issn.1000-3657.2008.05.014 http://geochina.cgs.gov.cn/geochina/article/abstract/20080514?st=search
李彦强. 2018. 老挝海夏峰钾盐矿床地质特征及成因[D]. 北京: 中国地质大学, 66.
梁光河. 2018. 海南岛的成因机制研究[J]. 中国地质, 45(4): 693-705. http://geochina.cgs.gov.cn/geochina/article/abstract/20180404?st=search
钱自强, 曲一华, 刘群. 1994. 钾盐矿床[M]. 北京: 地质出版社, 216-243.
唐启亮, 张西营, 李雯霞, 韩元红. 2016. 老挝龙湖矿区泥岩层B同位素地球化学初步研究——以ZK309为例[J]. 矿床地质, 35(1): 196-202. https://www.cnki.com.cn/Article/CJFDTOTAL-KCDZ201601013.htm
王春连, 刘成林, 王立成, 张林兵. 2013. 钾盐矿床成矿条件研究若干进展[J]. 地球科学进展, 28(9): 976-987. https://www.cnki.com.cn/Article/CJFDTOTAL-DXJZ201309003.htm
张华, 刘成林, 王立成, 方小敏. 2014. 老挝他曲盆地钾盐矿床蒸发岩硫同位素特征及成钾指示意义[J]. 地质论评, 60(4): 851-857. https://www.cnki.com.cn/Article/CJFDTOTAL-DZLP201404016.htm
张西营. 2012. 老挝万象盆地钾盐矿床水不溶物对溢晶石形成和卤水演化的制约[D]. 西宁: 中国科学院青海盐湖研究所, 59-173.
张西营, 程怀德, 谭红兵, 袁小龙, 李永寿, 苗卫良, 李廷伟, 马海州. 2015. 老挝中部沙湾拿吉盆地晚白垩世钾盐蒸发岩: 非海相输入的地球化学证据[J]. 岩石学报, 31(9): 2783-2793. https://www.cnki.com.cn/Article/CJFDTOTAL-YSXB201509025.htm
