Pollution level and risk assessment of heavy metals in a metal smelting area of Xiong'an New District
-
摘要:
为支撑雄安新区土地资源科学管理，完善中国土壤污染评价体系，文章以雄安新区某废旧金属冶炼区为研究区开展地质调查，采集541件表层土壤样品，测定了土壤中的Cd、Hg、Pb、As、Cu、Zn、Cr、Ni八种重金属元素的含量和pH，采用主成分分析法研究重金属元素的组合及分布特征，通过单因子指数法、内梅罗综合指数法、地质累积指数法、潜在生态风险评价法和人体健康风险评价法对土壤重金属的污染程度及风险进行评价。结果显示：研究区土壤中Cu、Zn、Cd、Pb元素超标主要受冶炼活动影响，As、Hg元素高值异常主要由受唐河污染的地下水灌溉引起；单因子污染指数超标比例大小顺序为Cd>As>Cu>Zn>Pb>Hg>Cr=Ni；内梅罗综合指数评价结果显示54%的样品达到了污染水平；地质累积指数超标比例大小为Cd>Cu>Pb>As>Zn>Hg>Ni>Cr，Cu、Cd、Zn、Pb、As极重污染比例分别为13.5%、10.2%、9.1%、10.9%、17.2%；Cd和Hg是主要的生态危害元素，Cd中等-强生态危害比例为65.2%，Hg中等-强生态危害比例为71.3%；非致癌风险因子主要为As、Cr、Pb，95.2%样品对儿童的非致癌风险超过了1，29件样品中As对儿童的致癌风险超过10-4，研究区土壤重金属对儿童具有较高的健康风险。
Abstract:In order to support the scientific management of land resource in Xiong'an New District and improve the assessment system of soil pollution in China, a metal smelting area in the District was selected to conduct geological survey. Total 541 surface soil samples collected from the smelting area were analysed for the concentrations of eight heavy metal elements of Cd, Hg, Pb, As, Cu, Zn, Cr, Ni and pH values. The principal component analysis method was used to study the combination and distribution characteristics of the heavy metals. The methods of the single pollution index, Nemerow synthesis pollution index, geological accumulation index and potential ecological hazard index and health risk assessment model were adopted to evaluate the degree and risk of heavy metals pollution in soil. The results show that the excessive concentrations of Cu, Zn, Cd, Pb in soil of the area are mainly influenced by smelting activity, the high value anomalies of As and Pb are principally caused by irrigation of the polluted groundwater from Tanghe River. The order of over-standard rate of the single pollution indices of the elements is Cd>As> Cu>Zn>Pb>Hg>Cr=Ni. The assessment results by the Nemerow synthetic pollution index method show that fifty-four percent of the samples reaches the pollution standard. The order of over-standard rate of the geological accumulation indices is Cd>Cu>Pb>As>Zn>Hg>Ni>Cr, of which the extremely heavy pollution ratios for the elements of Cu, Cd, Zn, Pb and As are 13.5%, 10.2%, 9.1%, 10.9% and 17.2%, respectively. Cd and Hg are the major ecological risk elements. The ratio of moderate-considerable potential ecological risk of Cd is 65.2%, and that of Hg is 71.3%. As, Cr and Pb are of major non-carcinogenic factors. There are 95.2% of the samples (As, Cr, Pb) with non-carcinogenic risk index over 1, and 29 samples with carcinogenic index of As over 10-4 to children, indicating that heavy metals in the soil of study area have a relatively high health risk to children.
-
Key words:
- Xiong'an New District /
- geological survey engineering /
- heavy metals /
- pollution level /
- risk assessment
-
-

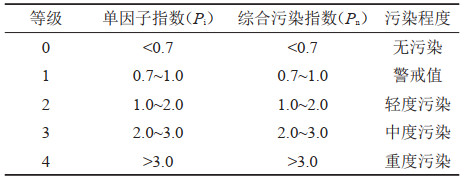

表 1 单因子及内梅罗综合污染指数的分级原则
Table 1. Principle of grading for single pollution index and Nemerow synthesis pollution index
下载: 导出CSV
表 2 地质累积指数污染程度划分标准
Table 2. Classification standard for geological accumulation index indicating degree of pollution
下载: 导出CSV

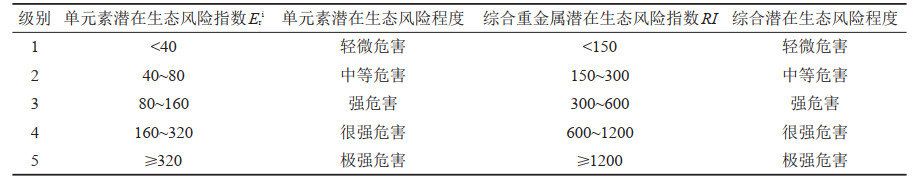

表 3 潜在生态风险评价和风险程度分级标准
Table 3. Classification standard for potential ecological risk index and degree of pollution of heavy metals
下载: 导出CSV

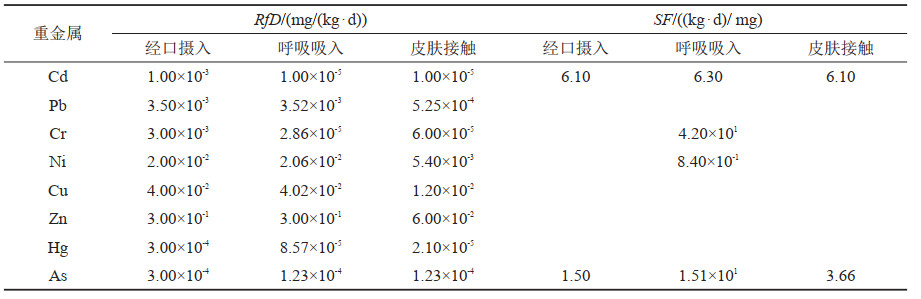

表 5 土壤重金属不同暴露途径的RfD和SF
Table 5. RfD and SF values for different types of exposure of heavy metals in soil
下载: 导出CSV
表 8 土壤重金属污染单因子指数及地质累积指数分级
Table 8. Grading of single pollution index and geological accumulation index of heavy metal pollution of soil
下载: 导出CSV
-
Bao Liran, Deng Hai, Jia Zhongmin, Li Yu, Dong Jinxiu, Yan Mingshu, Zhang Fenglei. 2020. Ecological and health risk assessment of heavy metals in farmland soil in northwest Xiushan, Chongqing[J]. Geology in China, 47(6): 1625-1636(in Chinese with English abstract).
Cai Kui, Duan Yamin, Luan Wenlou, Li Qian, Ma Yunchao. 2016. Geochemical behavior of heavy metals Pb and Hg in the farmland soil of Hebei plain[J]. Geology in China, 43(4): 1420-1428(in Chinese with English abstract). http://www.researchgate.net/publication/316543673_Geochemical_behavior_of_heavy_metals_Pb_and_Hg_in_the_farmland_soil_of_Hebei_plain
Chen Nengchang, Zheng Yuji, He Xiaofeng, Li Xiaofei, Zhang Xiaoxia. 2017. Analysis of the bulletin of national soil pollution survey[J]. Journal of Agro-environment Science, 36(9): 1689-1692(in Chinese with English abstract).
Chen Weiping, Xie Tian, Li Xiaonuo, Wang Ruodan. 2018. Generalizaion of technical systems for soil pollution prevention and control in developed countries[J]. Acta Pedologica Sinica, 55(3): 527-524(in Chinese with English abstract).
Ferreira-Baptista L, Miguel E D. 2005. Geochemistry and risk assessment of street dust in Luanda, Angola: A tropical urban environment[J]. Atmospheric Environment, 39(25): 4501-4512. doi: 10.1016/j.atmosenv.2005.03.026
Forstner U, Ahlf W, Calmano W. 1993. Sediment quality objectives and criteria development in Germany[J]. Water Science and Technology, 28(8): 307-314. http://wst.iwaponline.com/content/28/8-9/307
Gu Yangguang, Gao Fudai. 2017. Spatial distribution and health risk assessment of heavy metals in provincial capital cities, China[J]. Environmental Chemistry, 36(1): 62-71(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-HJHX201701006.htm
Hakanson L. 1980. An ecological risk index for aquatic pollution control. A sedimentological approach[J]. Water Research, 14(8): 975-1001. doi: 10.1016/0043-1354(80)90143-8
Han Chunmei, Wang Linshan, Gong Zongqiang, Xu Huaxia. 2005. Chemical forms of soil heavy metals and their environmental significance[J]. Chinese Journal of Ecology, 24(12): 1499-1502(in Chinese with English abstract). http://www.researchgate.net/publication/288543106_Chemical_forms_of_soil_heavy_metals_and_their_environmental_significance
Li Haitao, Feng Wei, Wang Kailin, Zhao Kai, Li Gang, Zhang Yuan, Li Muzi, Sun Lu, Chen Yichao, You Bing. 2021. Groundwater resources in Xiong'an New Area and its exploitation potential[J]. Geology in China, 48(4): 1112- 1126(in Chinese with English abstract).
Li G, Sun G, Williams P N, Nunes L, Zhu Y. 2011. Inorganic arsenic in Chinese food and its cancer risk[J]. Environment International, 37(7): 1219-1225. doi: 10.1016/j.envint.2011.05.007
Li Ruzhong, Pan Chengrong, Xu Jingjing, Chen Jing, Jiang Yanmin. 2005. Contamination and health risk for heavy metals via consumption of vegetables grown in fragmentary vegetable plots from a typical nonferrous metals mine city[J]. Environmental Science, 34(3): 1076-1085(in Chinese with English abstract).
Ma Xuemei, Tian Dazheng, Li Wei, He Jin. 2020. Geochemical evaluation of land quality in Quyang County[J]. Geological Survey and Research, 43(3): 230-239(in Chinese with English abstract).
Ma Zhen, Xia Yubo, Li Haitao, Han Bo, Yu Xuezhong, Zhou Yalong, Wang Yushan, Guo Xu, Li Hongqiang, Pei Yandong. 2021. Analysis of natural resources and environment eco- geological conditions in the Xiong'an New Area[J]. Geology in China, 48(3): 677- 696(in Chinese with English abstract).
Mehr M R, Keshavarzi B, Moore F, Moore F, Sharifi R, Lahijanzadeh A, Kermani M. 2017. Distribution, source identification and health risk assessment of soil heavy metals in urban areas of Isfahan Province, Iran[J]. Journal of African Earth Sciences, 132: 16-26. doi: 10.1016/j.jafrearsci.2017.04.026
Ministry of Environmental Protection of the People's Republic of China. 2014. Technical Guidelines for Risk Assessment of Contaminated[S]: HJ 25.3- 2014. Beijing: China Environmental Science Press(in Chinese).
Ministry of Environmental Protection of the People's Republic of China. 2018. Soil Environmental Quality-Risk Control Standard for Soil Contamination of Agricultural Land (GB15618-2018)[S]. Beijing: China Environmental Science Press (in Chinese).
Ministry of Environmental Protection of the People's Republic of China. 2018. Soil Environmental Quality-Risk Control Standard for Soil Contamination of Development Land (GB36600-2018)[S]. Beijing: China Environmental Science Press (in Chinese).
Muller G. 1969. Index of geoaccumulation in sediments of the Rhine River[J]. Geological Journals, 2: 109-118. http://www.researchgate.net/publication/308054537_Index_of_Geoaccumulation_in_Sediments_of_the_Rhine_River
National Health and Family Planning Commission of the People's Republic of China. 2017. National Food Safety Standard-Limits of Pollutants in Food (GB2762-2017)[S]. Beijing: China Standard Press (in Chinese).
Olawoyin R, Oyewole S A, Grayson R L. 2012. Potential risk effect from elevated levels of soil heavy metals on human health in the Niger delta[J]. Ecotoxicology and Environmental Safety, 85: 120-130. doi: 10.1016/j.ecoenv.2012.08.004
Praveena S M, Ismail S N S, Aris A Z. 2015. Health risk assessment of heavy metal exposure in urban soil from Seri Kembangan(Malaysia)[J]. Arabian Journal of Geosciences, 8(11): 9753-9761. doi: 10.1007/s12517-015-1895-3
Qing X, Yutong Z, Shenggao L. 2015. Assessment of heavy metal pollution and human health risk in urban soils of steel industrial city(Anshan), Liaoning, Northeast China[J]. Ecotoxicology & Environmental Safety, 120: 377-385. http://www.onacademic.com/detail/journal_1000038010006810_9bf3.html
US EPA. 1989. Risk Assessment Guidance for Superfund Volume I: Human Health Evaluation Manual[R]. Washington, DC: U.S. Environmental Protection Agency.
US EPA. 1996. Soil screening guidance: Technical background document[R]. Washington D. C. : U.S. Environmental Protection Agency.
US EPA. 2002. Supplemental Guidance for Developing Soil Screening Levels for Superfund Sites[R]. Washington D. C. : U.S. Environmental Protection Agency.
Wang Changyu, Zhang Surong, Liu Jihong, Xing Yi, Yang Junquan. 2019. Evaluation of the characteristic land resources with Zn, Se and their ecological effects in Raoyang county of Hebei province[J]. Geological Survey and Research, 42(1): 49-56(in Chinese with English abstract) http://www.zhangqiaokeyan.com/academic-journal-cn_geological-survey-research_thesis/0201270248696.html
Wang Liting, Liu Renzhi. 2020. Research progress on soil pollution risk assessment[J]. Chinese Journal of Environmental Management, 12(2): 62-68(in Chinese with English abstract)
Wang Ying, Zhang Xiaolan, Wang Ran. 2018. Soil pollution survey and management in Taiwan of China[J]. Soils, 50(1): 7-15(in Chinese with English abstract) http://en.cnki.com.cn/Article_en/CJFDTOTAL-TURA201801002.htm
Wu Jinnan, Long Jian, Liu Lingfei, Li Juan, Liao Hongkai, Peng Siqing, Wan Hongfu. 2018. Spatial distribution and risk assessment of heavy metal pollution in farmland soil of a lead-zinc mining area[J]. China Environmental Science, 38(3): 1054-1063(in Chinese with English abstract) http://en.cnki.com.cn/Article_en/CJFDTOTAL-ZGHJ201803034.htm
Wu S, Peng S, Zhang X, Wu D, Luo W, Zhang T, Zhou S, Yang G, Wan H, Wu L. 2015. Levels and health risk assessments of heavy metals in urban soils in Dongguan, China[J]. Journal of Geochemical Exploration, 148: 71-78. doi: 10.1016/j.gexplo.2014.08.009
Xia Jiaqi. 2019. Methods for derivation of site specific standard for management of contaminated agricultural Soil[J]. Journal of Ecology and Rural Environment, 35(3): 405-408(in Chinese with English abstract). http://www.researchgate.net/publication/332628156_Methods_for_derivation_of_site_specific_standard_for_management_of_contaminated_agricultural_soil
Xing Yi, Zhang Surong, Liu Jihong, Wang Changyu. 2019. Effect of crop root soil on agricultural product safety: Take the eastern part of Baoding Hebei province as an example[J]. Geological Survey and Research, 42(3): 219-224(in Chinese with English abstract).
Xu Xibo, Lü Jianshu, Xu Ruru. 2018. Source spatial distribution and risk assessment of heavy metals in Yiyuan county of Shandong province[J]. Transactions of the Chinese Society of Agricultural Engineering, 34(9): 216-223(in Chinese with English abstract) http://www.researchgate.net/publication/325903806_Source_spatial_distribution_and_risk_assessment_of_heavy_metals_in_Yiyuan_county_of_Shandong_province
Xu Zhengqi, Ni Shijun, Tuo Xianguo, Zhang Chengjiang. 2008. Calculation of heavy metals' toxicity coefficient in the evaluation of potential ecological risk index[J]. Environmental Science & Technology, 31(2): 112-115(in Chinese with English abstract). http://www.researchgate.net/publication/284490489_Calculation_of_heavy_metal's_toxicity_coefficient_in_the_evaluation_of_Potential_Ecological_Risk_Index
Yan Yijun, Xie Xianjun, Zheng Wenjun, Chi Zeyong, Liu Yaqing. 2017. Influence of irrigation practices on arsenic mobilization in near-surface soil of Datong basin, Northern China[J]. Geological Science and Technology Information, 36(3): 235-241(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-DZKQ201703033.htm
Yu Jiawen, Zhou Jinlong, Zeng Yanyan, Jia Ruiliang. 2017. Comparative analysis of farmland soil heavy metals and health risk assessment[J]. Xinjiang Agricultural Sciences, 54(12): 2293-2303(in Chinese with English abstract).
Yu Zhi, Chen Feng, Zhang Junfang, Huang Daikuan, Yu Enjiang, Liu Hongyan. 2019. Contamination and risk of heavy metals in soils and vegetables from zinc smelting area[J]. China Environmental Science, 39(5): 2086-2094(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTotal-ZGHJ201905043.htm
Zhang Jun, Wu Rong, Shen Lu, Luo Meng. 2019. Assessment and source analysis of heavy metal pollution in urban soil of Ma'anshan city[J]. Journal of Yichun University, 39(3): 88-92(in Chinese with English abstract). http://en.cnki.com.cn/Article_en/CJFDTOTAL-YCSB201703026.htm
Zhao Qingling, Li Qingcai, Xie Jiangkun, Li Yuanzhong, Ji Yonghong, Pang Chengbao, Wan Miao. 2015. Characteristics of soil heavy metal pollution and its ecological risk assessment in south Jining district using methods of enrichment factor and index of geoaccumulation[J]. Rock and Mineral Analysis, 34(1): 129-137(in Chinese with English abstract).
Zheng Shunan, Chen Chun, Zheng Xiangqun, Liu Shutian, Shi Rongguang, Liu Xiaowei, Shen Yue. 2013. Effect of simulated rain on leaching of cadmium from 22 typical soils and key factors identification[J]. Environmental Chemistry, (5): 867-873(in Chinese with English abstract). http://www.cnki.com.cn/Article/CJFDTotal-HJHX201305022.htm
Zheng Shunan, Zhou Wei, Xue Yinghao, Yin Jianfeng, Huang Hongkun, Zheng Xiangqun. 2017. Effect of simulated rain on leaching behavior of mercury from 22 typical soils and key influence factors identification[J]. China Environmental Science, 37(9): 3489-3496(in Chinese with English abstract).
Zhou Fang. 2014. Policy on prevention and cure of soil pollution in Japan[J]. World Agriculture, (11): 47-52 (in Chinese).
鲍丽然, 邓海, 贾中民, 李瑜, 董金秀, 严明书, 张风雷. 2020. 重庆秀山西北部农田土壤重金属生态健康风险评价[J]. 中国地质, 47(6): 1625-1636. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20200602&flag=1
蔡奎, 段亚敏, 栾文楼, 李倩, 马云超. 2016. 河北平原农田土壤重金属元素Pb、Hg地球化学行为的影响因素[J]. 中国地质, 43(4): 1420-1428. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20160425&flag=1
陈能场, 郑煜基, 何晓峰, 李小飞, 张晓霞. 2017. 《全国土壤污染状况调查公报》探析[J]. 农业环境科学学报, 36(9): 1689-1692. https://www.cnki.com.cn/Article/CJFDTOTAL-NHBH201709001.htm
陈卫平, 谢天, 李笑诺, 王若丹. 2018. 欧美发达国家场地土壤污染防治技术体系概述[J]. 土壤学报, 55(3): 527-542. https://www.cnki.com.cn/Article/CJFDTOTAL-TRXB201803001.htm
谷阳光, 高富代. 2017. 我国省会城市土壤重金属含量分布与健康风险评价[J]. 环境化学, 36(1): 62-71. https://www.cnki.com.cn/Article/CJFDTOTAL-HJHX201701006.htm
韩春梅, 王林山, 巩宗强, 许华夏. 2005. 土壤中重金属形态分析及其环境学意义[J]. 生态学杂志, 24(12): 1499-1502. doi: 10.3321/j.issn:1000-4890.2005.12.025
李海涛, 凤蔚, 王凯霖, 赵凯, 李刚, 张源, 李木子, 孙璐, 陈一超, 尤冰. 2021. 雄安新区地下水资源状况、特征及可开采潜力[J]. 中国地质, 48(4): 1112-1126. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20210409&flag=1
李如忠, 潘成荣, 徐晶晶, 陈婧, 姜艳敏. 2013. 典型有色金属矿业城市零星菜地蔬菜重金属污染及健康风险评估[J]. 环境科学, 34(3): 1076-1085. https://www.cnki.com.cn/Article/CJFDTOTAL-HJKZ201303040.htm
马雪梅, 田大争, 李伟, 何锦. 2020. 曲阳县土地质量地球化学评价[J]. 地质调查与研究, 43(3): 230-239. doi: 10.3969/j.issn.1672-4135.2020.03.006
马震, 夏雨波, 李海涛, 韩博, 余学中, 周亚龙, 王雨山, 郭旭, 李洪强, 裴艳东. 2021. 雄安新区自然资源与环境-生态地质条件分析[J]. 中国地质, 48(3): 677-696. http://geochina.cgs.gov.cn/geochina/ch/reader/view_abstract.aspx?file_no=20210301&flag=1
王昌宇, 张素荣, 刘继红, 邢怡, 杨俊泉. 2019. 河北省饶阳县富锌、硒特色土地及其生态效应评价[J]. 地质调查与研究, 42(1): 49-56. https://www.cnki.com.cn/Article/CJFDTOTAL-QHWJ201901007.htm
王立婷, 刘仁志. 2020. 土壤污染风险评价研究进展[J]. 中国环境管理, 12(2): 62-68.
王滢, 张晓岚, 王冉. 2018. 中国台湾地区土壤污染调查和管理情况综述[J]. 土壤, 50(1): 7-15. https://www.cnki.com.cn/Article/CJFDTOTAL-TURA201801002.htm
吴劲楠, 龙健, 刘灵飞, 李娟, 廖洪凯, 彭四清, 万洪富. 2018. 某铅锌矿区农田重金属分布特征及其风险评价[J]. 中国环境科学, 38(3): 1054-1063. doi: 10.3969/j.issn.1000-6923.2018.03.032
夏家淇. 2019. 农用地块土壤污染分类标准制订方法探讨[J]. 生态与农村环境学报, 35(3): 405-408. https://www.cnki.com.cn/Article/CJFDTOTAL-NCST201903019.htm
邢怡, 张素荣, 刘继红, 王昌宇. 2019. 农作物根系土对农产品安全的影响分析——以保定东部地区为例[J]. 地质调查与研究, 42(3): 219-224. doi: 10.3969/j.issn.1672-4135.2019.03.008
徐夕博, 吕建树, 徐汝汝. 2018. 山东省沂源县土壤重金属来源分布及风险评价[J]. 农业工程学报, 34(9): 216-223. https://www.cnki.com.cn/Article/CJFDTOTAL-NYGU201809027.htm
徐争启, 倪师军, 庹先国, 张成江. 2008. 潜在生态危害指数法评价中重金属毒性系数计算[J]. 环境科学与技术, 31(2): 112-115. doi: 10.3969/j.issn.1003-6504.2008.02.030
严怡君, 谢先军, 郑文君, 池泽涌, 柳亚清. 2017. 灌溉活动对大同盆地表层土壤中砷迁移的影响[J]. 地质科技情报, 36(3): 235-241. https://www.cnki.com.cn/Article/CJFDTOTAL-DZKQ201703033.htm
於嘉闻, 周金龙, 曾妍妍, 贾瑞亮. 2017. 农田土壤重金属健康风险评价对比分析[J]. 新疆农业科学, 54(12): 2293-2303. doi: 10.6048/j.issn.1001-4330.2017.12.017
余志, 陈凤, 张军方, 黄代宽, 于恩江, 刘鸿雁. 2019. 锌冶炼区菜地土壤和蔬菜重金属污染状况及风险评价[J]. 中国环境科学, 39(5): 2086-2094. doi: 10.3969/j.issn.1000-6923.2019.05.037
张俊, 吴蓉, 沈露, 罗梦. 2017. 马鞍山城区土壤重金属污染评价及源分析[J]. 宜春学院学报, 39(3): 88-92. doi: 10.3969/j.issn.1671-380X.2017.03.026
赵庆令, 李清彩, 谢江坤, 李元仲, 姬永红, 庞成宝, 万淼. 2015. 应用富集系数法和地累积指数法研究济宁南部区域土壤重金属污染特征及生态风险评价[J]. 岩矿测试, 34(1): 129-137. https://www.cnki.com.cn/Article/CJFDTOTAL-YKCS201501023.htm
郑顺安, 陈春, 郑向群, 刘书田, 师荣光, 刘潇威, 沈跃. 2013. 模拟降雨条件下22种典型土壤镉的淋溶特征及影响因子分析[J]. 环境化学, (5): 867-873. https://www.cnki.com.cn/Article/CJFDTOTAL-HJHX201305022.htm
郑顺安, 周玮, 薛颖昊, 尹建锋, 黄宏坤, 郑向群. 2017. 模拟降雨条件下典型土壤汞淋溶风险研究[J]. 中国环境科学, 37(9): 3489-3496. doi: 10.3969/j.issn.1000-6923.2017.09.036
周芳, 金书秦. 2014. 日本土壤污染防治政策研究[J]. 世界农业, (11): 47-52. https://www.cnki.com.cn/Article/CJFDTOTAL-SJNY201411013.htm
中华人民共和国环境保护部. 2014. HJ 25.3-2014污染场地风险评估技术导则[S]. 北京: 中国环境科学出版社.
中华人民共和国生态环境部. 2018. GB15618-2018土壤环境质量农用地土壤污染风险管控标准(试行)[S]. 北京: 中国环境科学出版社.
中华人民共和国生态环境部. 2018. GB36600-2018土壤环境质量建设用地土壤污染风险管控标准(试行)[S]. 北京: 中国环境科学出版社.
-
