Distribution characteristics and health risk assessment of vanadium and cobalt in surface soil of the Tongbai-Biyang Area, Henan Province
-
摘要:
研究目的 为了查明桐柏—泌阳地区表层土壤（0~20 cm）中2种重金属钒和钴的污染状况，采集表层土壤样品5521件，分析测定重金属V和Co的含量。
研究方法 运用单因子指数法、地累计指数法和人体健康风险评价方法，对土壤中V和Co的分布特征、生态风险、健康风险和影响因素进行研究。
研究结果 研究区内土壤V和Co空间分布呈片状分布，含量高值区主要分布在研究区南部。单因子污染指数和地累积指数评价中，Co元素总体污染样点比V元素多，且均存在复合污染的样点。人体健康风险评价结果显示成人的风险要大于儿童。成人中V非致癌风险指数均超过1；99.06%样品中V的儿童非致癌风险高于1；非致癌风险传播途径主要以呼吸吸入为主。存在32.95%样品Co对成人的非致癌风险为不可接受，存在19.74%样品Co对儿童的非致癌风险为不可接受。成人与儿童的致癌风险指数均在可接受的范围内。成人与儿童的非致癌风险和致癌风险指数高值区均分在研究区南部。
结论 土壤V和Co含量的高低不仅受土壤黏粒、pH值和铁、锰氧化物的影响，还受人类活动的影响。研究区矿产资源开采可能是该地区土壤V和Co污染和健康风险的主要原因。
Abstract:This paper is the result of ecological geological survey engineering.
Objective In order to find out the pollution status of two heavy metals vanadium and cobalt in the surface soil (0- 20 cm) in Tongbai- Biyang area, 5521 topsoil samples were collected to analyze and determine the content of heavy metals V and Co.
Methods The distribution characteristics, ecological risk, health risk and influencing factors of V and Co in soil were studied by using the single-factor index method, geoaccumulation index method and human health risk assessment method.
Results The results show that the V and Co in the study area were distributed in patches, and the area with high V and Co content was mainly in the south of the area. By assessing the single-factor pollution index and the geo-accumulation index, we found that there were more Co samples than V ones, and some samples had both elements. The human health risk assessment results show that adults are at a higher risk than children. The non-carcinogenic risk index of all V samples for adults was more than 1, while 99.06% of that for children was more than 1. The main route of non-carcinogenic risk transmission was through respiratory inhalation. 32.95% of Co samples for adults were deemed not acceptable regarding non- carcinogenic risk, while the figure for children was 19.74%. The carcinogenic risk indexes for both adults and children were within acceptable ranges. And the southern part of the area presented high non-carcinogenic and carcinogenic risk indexes for adults and children.
Conclusions The content of V and Co in soil was affected by not only soil clay, pH value as well as iron and manganese oxides, but also human activities. Mining in the study area may be the main cause of V and Co soil pollution and health risks.
-
-

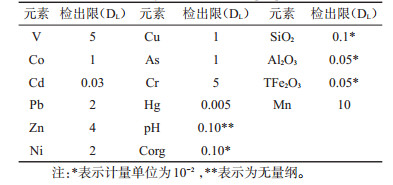

表 1 各项指标分析方法检出限要求（mg/kg）
Table 1. Detection limit requirements of each index analysis method (mg/kg)
下载: 导出CSV

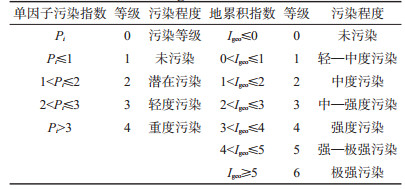

表 2 单因子污染指数与地累积指数污染程度分级表
Table 2. Pollution grading table of the single-factor pollution index and the geo-accumulation index
下载: 导出CSV
表 4 不同暴露途径下重金属元素的参考剂量
Table 4. Reference doses of heavy metal elements under different exposure routes
下载: 导出CSV
表 5 表层土壤V和Co元素描述性统计结果（n=1378，mg/kg）
Table 5. Descriptive statistical results of V and Co elements in surface soil (n=1378, mg/kg)
下载: 导出CSV

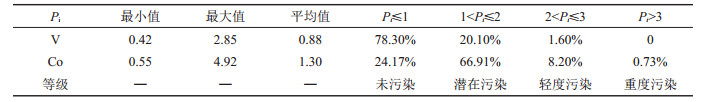

表 6 土壤V和Co单因子污染评价结果
Table 6. Evaluation results of single-factor pollution of soil V and Co
下载: 导出CSV

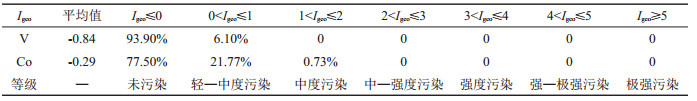

表 7 土壤V和Co地累积指数评价结果
Table 7. Evaluation results of the geo-accumulative indexes of V and Co
下载: 导出CSV
表 8 不同暴露途径下成人和儿童健康风险评价指数值
Table 8. Health risk assessment for adults and children under different exposure routes
下载: 导出CSV

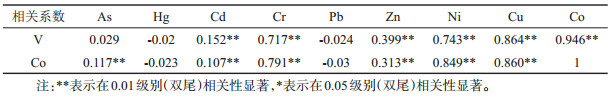

表 9 表层土壤V和Co与各重金属元素皮尔逊相关系数
Table 9. Correlation between V and Co and heavy metal elements in surface soil
下载: 导出CSV

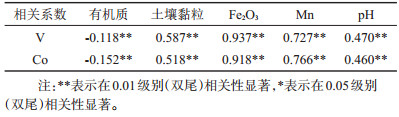

表 10 表层土壤V和Co与其影响因素皮尔逊相关系数
Table 10. Correlation between V and Co in surface soil and its factors
下载: 导出CSV
-
Abdussalam abdugapal, Wang Hongwei, Yang Shengtian, Liu Xiangyun. 2019. Pollution characteristics and source analysis of soil heavy metals in east Junggar region[J]. China Mining Magazine, 28(11): 168-174(in Chinese with English abstract).
Bao Liran, Deng Hai, Jia Zhongmin, Li Yu, Dong Jinxiu, Yan Mingshu, Zhang Fenglei. 2020. Ecological and health risk assessment of heavy metals in farmland soil of northwest Xiushan, Chongqing[J]. Geology in China, 47(6): 1625-1636(in Chinese with English abstract).
Cai Kui, Duan Yamin, Luan Wenlou, Li Qian, Ma Yunchao. 2019. Geochemical behavior of heavy metals Pb and Hg in the farmland soil of Hebei Plain[J]. Geology in China, 43(4): 1420-1428(in Chinese with English abstract).
Cai Ziyan, Li Junqi, Ma Teng, Liu Nian, Gong Xuezi, Yao Xiang, Ma Chuanming, Liao Yuan. 2022. Source analysis and ecological health risk assessment of soil heavy metal pollution in Tian' ezhou of the middle reaches of Yangtze River[J/OL]. Geology in China, 1-21(in Chinese with English abstract).
Cao Ning, Sun Binbin, Zeng Daoming, Wen Meilan, Wu Chao, He Ling, Cheng Xiaomeng. 2020. Study on the relationship between the contents of heavy metals in rice and root soils in typical townships in the Western Pearl River Delta[J]. Rock and Mineral Analysis, 39(5): 739-752(in Chinese with English abstract).
Chen Ben, Qiu Haiyuan, Guo Yanni, Wang Liyi, Wang Xian. 2012. Heavy metal contamination and health risk assessment in the zinc mine set area of Youxi, China[J]. Journal of Xiamen University(Natural Science), 51(2): 245-251(in Chinese with English abstract).
Chen H, Zheng C R, Tu C, Zhu Y G. 1999. Heavy metal pollution in soils in China: Status and countermeasures[J]. Ambio, 28(2): 130-134.
Chen Xiaomin, Zhu Baohu, Yang Wen, Ji Hongbing. 2015. Sources, spatial distribution and contamination assessments of heavy metals in gold mine area soils of Miyun Reservoir upstream, Beijing, China[J]. Environmental Chemistry, 34(12): 2248-2256(in Chinese with English abstract). doi: 10.7524/j.issn.0254-6108.2015.12.2015071601
China National Environmental Monitoring Centre. 1990. Background Values of Soil Elements in China[M]. Beijing: China Environmental Science Press(in Chinese).
Cui Xiaoyong, Cao Yiping, Zhang Fusuo. 1991. Effect of cobalt on root responses to iron deficiency in peas[J]. Scientia Agricultura Sinica, 32(2): 105-107(in Chinese with English abstract).
Dai Yanyan, Chao Jinlong, Cai Xin, Zhang Pengfei. 2020. Cobalt content characteristics and pollution assessment on river terrace in the middle of the Yellow River[J]. Journal of Taiyuan Normal University(Natural Science Edition), 19(2): 78-83(in Chinese with English abstract).
Fang Wenwen, Zhang Li, Ye Shengxia, Xu Ronghai, Wang Peng, Zhang Chengjun. 2015. Pollution evaluation and health risk assessment of heavy metals from atmospheric deposition in Anqing[J]. China Environmental Science, 35(12): 3795-3803(in Chinese with English abstract). doi: 10.3969/j.issn.1000-6923.2015.12.034
Feng Xionghan, Zhai Limei, Tan Wenfeng, Liu Fan, He Jizheng. 2005. The syntheses of several Mn oxide minerals and their adsorption and redox characteristics for heavy metals[J]. Acta Petrologica et Mineralogica, 24(6): 531-538(in Chinese with English abstract). doi: 10.3969/j.issn.1000-6524.2005.06.007
Förstner U, Ahlf W, Calmano W. 1993. Sediment quality objectives and criteria development in Germany[J]. Water Science and Technology, 28(8): 307-314.
Gu Lei, Tong Zhiqi, Song Bo, Ma Jianhua. 2012. Health assessment of heavy metals in roadside soils at different operation time: A case study of Zhengzhou-Shangqiu section along the Lianyungang-Horgas Highway[J]. Environmental Science, 33(10): 3577-3584(in Chinese with English abstract).
He Dianyuan. 1992. A rewiew about studys on liming of paddy soil[J]. Acta Pedologica Sinica, 29(1): 87-93(in Chinese with English abstract).
He Hongping, Guo Longgao, Xie Xiande, Peng Jinlian. 1999. Experimental study on the selectivity adsorption of Cu2+, Pb2+, Zn2+, Cd2+, Cr3+ ions on montmorillonite, illite and kaolinite and the influence of medium conditions[J]. Acta Mineralogica Sinica, 19(2): 231-235(in Chinese with English abstract). doi: 10.3321/j.issn:1000-4734.1999.02.016
He Zhijun, Chen Jierui, Xue Hua, Huang Liumei, Liu Qiong. 2020. The comorbid mechanism of Alzheimer's disease and type 2 diabetes mellitus and the role of selenium and vanadium in this process[J]. Chinese Bulletin of Life Sciences, 32(6): 597-605(in Chinese with English abstract).
Hou Ming, Yang Xinhan, Zhao Feifei, Huo Yan. 2019. Accumulation and chemical forms of vanadium in seedlings of different maize varieties[J]. Journal of Ecology and Rural Environment, 35(11): 1468-1474(in Chinese with English abstract).
Jagetiya B L, Aery N C. 2000. Effect of cobalt treatments on dry matter production of wheat and DTPA extractable cobalt content in soils[J]. Communications in Soil Science and Plant Analysis, 31(9/10): 1275-1286.
Jensen A A, Tuchsen F. 1990. Cobalt exposure and cancer risk[J]. Critical Reviews in Toxicology, 20(6): 427-437. doi: 10.3109/10408449009029330
Korbecki J, Baranowska B I, Gutowska I, Chlubek D. 2012. Biochemical and medical importance of vanadium compounds. [J]. Acta Biochimica Polonica, 59(2): 195-200.
Lai Shuya, Dong Qiuyao, Song Chao, Yang Zhenjing. 2021. Distribution characteristics and ecological risk assessment of soil heavy metals in the eastern mountainous area of Nanyang Basin[J]. Environmental Science, 42(11): 5500-5509(in Chinese with English abstract).
Li Bo, Qing Changle, Zhou Zhengbin, Yang Qingmin. 2000. Influence of N, P and organic matter of fertilizers on heavy metals in soil and its application[J]. Chongqing Environmental Science, 22(6): 37-40(in Chinese with English abstract). doi: 10.3969/j.issn.1674-2842.2000.06.013
Li Yumei, Li Haipeng, Zhang Lianke, Jiao Kunling, Sun Peng, Wang Weida. 2017. Contamination and health risk assessment of heavy metals in soil surrounding an aluminum factory in Baotou, China[J]. Environmental Monitoring in China, 33(1): 88-96(in Chinese with English abstract).
Li Zhenxiong. 2019. Distribution Characteristics and Environmental Quality Assessment of Soil Heavy Metals in Huoshan-Jinzhai Area of Dabie Mountains[D]. Beijing: China University of Geosciences(in Chinese).
Liu Dongsheng, Wang Xueqiu, Zhou Jian, Liu Hanliang, Zhang Binmin, Nie Lanshi, Wang Wei, Chi Qinghua, Xu Shanfa. 2020. Characteristics of China's cobalt geochemical baselines and their influence factors[J]. Acta Geoscientica Sinica, 41(6): 807-817(in Chinese with English abstract).
Lu Ying, Gong Zitong, Zhang Ganlin, Zhang Bo. 2004. Heavy metal concentration in Nanjing urban soils and their affecting factors[J]. Chinese Journal of Applied Ecology, 15(1): 123-126(in Chinese with English abstract). doi: 10.3321/j.issn:1001-9332.2004.01.028
Luo Dan. 2009. Study on the Transfer Rule and Health Risk of Cobalt and Nickel in Soil-plant System[D]. Fujian: Fujian Agriculture and Forestry University, 1-151(in Chinese).
Luo Zejiao, Xia Mengfan, Huang Weiyi. 2019. The migration and transformation of cobalt in soil-plant system and its toxicity[J]. Asian Journal of Ecotoxicology, 14(2): 81-90(in Chinese with English abstract).
Meisam R M, Behnam K, Farid M, Reza S, Ahmadreza L, Maryam K. 2017. Distribution, source identification and health risk assessment of soil heavy metals in urban areas of Isfahan province, Iran[J]. Journal of African Earth Sciences, 132: 16-26. doi: 10.1016/j.jafrearsci.2017.04.026
Miao J. 1997. Trace elements and related diseases[M]. Zhengzhou: Henan Medical University Press (in Chinese with English abstract).
Müller G. 1969. Index of geoaccumulation in sediments of the Rhine River[J]. GeoJournal, 2: 109-118.
Olawoyin R, Oyewole S A, Grayson R L. 2012. Potential risk effect from elevated levels of soil heavy metals on human health in the Niger Delta[J]. Ecotoxicology and Environmental Safety, 85: 120-130. doi: 10.1016/j.ecoenv.2012.08.004
Qing X, Yutong Z, Shenggao L. 2015. Assessment of heavy metal pollution and human health risk in urban soils of steel industrial city(Anshan), Liaoning, Northeast China[J]. Ecotoxicology and Environmental Safety, 120: 377-385. doi: 10.1016/j.ecoenv.2015.06.019
Rawal S B, Singh W V, Salhan A, Selvamurthy W, Tyagi A K, Sanjeeva K. 1997. Influence of vanadium on acclimatization of humans to high altitude[J]. International Journal of Biometeorology, 40(2): 95-98. doi: 10.1007/s004840050025
Sauni R, Linna A, Oksa P, Nordman H, Tuppurainen M, Uitti J. 2010. Cobalt asthma: A case series from a cobalt plant[J]. Occupational medicine (Oxford, England), 60(4): 301-306. doi: 10.1093/occmed/kqq023
Shan Wu, Siqing Peng, Xuexia Zhang, Duilin Wu, Wei Luo, Tianbin Zhang, Shungui Zhou, Guoyi Yang, Hongfu Wan, Leqin Wu. 2015. Levels and health risk assessments of heavy metals in urban soils in Dongguan, China[J]. Journal of Geochemical Exploration, 148: 71-78. doi: 10.1016/j.gexplo.2014.08.009
Sobhanardakani S. 2019. Ecological and human health risk assessment of heavy metal content of atmospheric dry deposition, a case study: Kermanshah, Iran[J]. Biol. Trace Elem. Res., 187(2): 602-610. doi: 10.1007/s12011-018-1383-1
Sun Binbin, Zhou Guohua, Liu Zhanyuan, Pang Xugui, Dai Jerry. 2008. Origin of heavy metal anomalies in soils along the Shandong reach of the lower Yellow River, China[J]. Geological Bulletin of China, 27(2): 265-270(in Chinese with English abstract). doi: 10.3969/j.issn.1671-2552.2008.02.015
Teng Yanguo, Zhang Qingqiang, Xiao Jie, Wang Jinsheng, Wang Lei, Jiao Xudong. 2008. Geochemical speciation and potential ecological risk of vanadium in the soil in the Panzhihua Park[J]. Mineralogy and Petrology, 28(2): 102-106 (in Chinese with English abstract). doi: 10.3969/j.issn.1001-6872.2008.02.017
USEPA. 2002. Supple mental guidance for developing soil screening levels for superfund Sites[R]. Washington D. C. : Office of Emergency and Remedial Response, 95-128.
Wang Changyu, Zhang Surong, Liu Jihong, Xing Yi, Li Mingze, Liu Qingxue. 2021. Pollution level and risk assessment of heavy metals in a metal smelting area of Xiong'an New Area[J]. Geology in China, 48(6): 1697-1709(in Chinese with English abstract).
Wang Cunlong, Zeng Xiandong, Liu Huafeng, Yang Liyuan, Wang Hongjin, Pang Xugui. 2015. The present situation of soil environmental quality and the distribution and migration regularity of heavy metals in soil of Yantai[J]. Geology in China, 42(1): 317-330(in Chinese with English abstract). doi: 10.3969/j.issn.1000-3657.2015.01.026
Wang Tengyun, Zhou Guohua, Sun Binbin, He Ling, Zeng Daoming, Chen Yadong, Ye Rong. 2016. The relationship between heavy metal contents of soils and rice in coastal areas, Fujian Province, including Influencing Factors[J]. Rock and Mineral Analysis, 35(3): 295-301(in Chinese with English abstract).
Wang Yun, Wei Fusheng. 1995. Chemistry of Soil Environmental Elements[M]. Beijing: China Environmental Science Press(in Chinese).
Xiong Chan, Jiang Xuehui, Tian Yaping, Ma Qingwei, Guo Guanghong. 2017. Concentrations of 19 trace elements in type II diabetes compared with healthy male controls[J]. Journal of Chinese Mass Spectrometry Society, 38(2): 195-202(in Chinese with English abstract).
Yao Chengbin, Zhou Mingzhong, Xiong Kangning, Zhang Di, Gu Bingqian, Yang Hua, Zhang Xianrong. 2020. Health risk assessment of chromium and cobalt in soils and crops around the Ni-Mo polymetallic mining area[J]. Journal of Anhui Agricultural University, 47(1): 109-117(in Chinese with English abstract).
Yuan Shuai, Zhang Siyuan, Zang Xuexiong, Yuan Guoli, Wang Yongliang, Bian Peng, . Tai Surigala. 2022. Ecological health risk assessment of farmland surface soil heavy metals in Dashetai, Ulat Front Banner, Inner Mongolia[J/OL]. Geology in China, 1-20(in Chinese with English abstract).
Zeng Zhaohua, Liao Suping, Zeng Xueping. 2002. The relation between the cancer in China and V element in the soil environment[J]. Jilin Geology, 21(3): 93-98(in Chinese with English abstract). doi: 10.3969/j.issn.1001-2427.2002.03.016
Zhang Di, Zhou Mingzhong, Xiong Kangning, Gu Bingqian, Yang Hua, Yao Chengbin. 2019. Heath risk assessment of V in the soils and crops around the Ni-Mo polymetallic mining area in Songlin, Zunyi, Guizhou[J]. Environmental Pollution & Control, 41(7): 824-830(in Chinese with English abstract).
Zhong Xin, Cui Wengang, Zhou Mingzhong, Liu Suihua. 2021. Evaluation of soil pollution caused by Vanadium in areas rich in polymetallic black shale in Zunyi City of Guizhou Province[J]. Journal of University of Jinan(Science and Technology), 35(3): 211-216(in Chinese with English abstract)
Zhu He, Sun Zhigao, Yi Huapeng, Ren Peng. 2016. Spatial distribution characteristics of soil vanadium and cobalt contents in different types of wetlands in the Yellow River Estuary[J]. Journal of Soil and Water Conservation, 30(1): 315-320(in Chinese with English abstract).
阿卜杜萨拉木·阿布都加帕尔, 王宏卫, 杨胜天, 刘香云. 2019. 准东地区土壤重金属污染特征及来源分析[J]. 中国矿业, 28(11): 168-174. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGKA201911033.htm
鲍丽然, 邓海, 贾中民, 李瑜, 董金秀, 严明书, 张风雷. 2020. 重庆秀山西北部农田土壤重金属生态健康风险评价[J]. 中国地质, 47(6): 1625-1636. http://geochina.cgs.gov.cn/geochina/article/abstract/20200602?st=article_issue
蔡奎, 段亚敏, 栾文楼, 李倩, 马云超. 2019. 河北平原农田土壤重金属元素Pb、Hg地球化学行为的影响因素[J]. 中国地质, 43(4): 1420-1428. https://www.cnki.com.cn/Article/CJFDTOTAL-DIZI201604026.htm
蔡子延, 李俊琦, 马腾, 刘念, 龚学梓, 姚湘, 马传明, 廖媛. 2022. 长江中游天鹅洲地区土壤重金属生态健康风险评价及其来源解析[J/OL]. 中国地质, 1-21.
曹宁, 孙彬彬, 曾道明, 文美兰, 吴超, 贺灵, 成晓梦. 2020. 珠江三角洲西部典型乡镇稻米与根系土重金属元素含量关系研究[J]. 岩矿测试, 39(5): 739-752. https://www.cnki.com.cn/Article/CJFDTOTAL-YKCS202005012.htm
陈奔, 邱海源, 郭彦妮, 汪立宜, 王宪. 2012. 尤溪铅锌矿集区重金属污染健康风险评价研究[J]. 厦门大学学报(自然科学版), 51(2): 245-251. https://www.cnki.com.cn/Article/CJFDTOTAL-XDZK201202021.htm
陈小敏, 朱保虎, 杨文, 季宏兵. 2015. 密云水库上游金矿区土壤重金属空间分布、来源及污染评价[J]. 环境化学, 34(12): 2248-2256. doi: 10.7524/j.issn.0254-6108.2015.12.2015071601
崔骁勇, 曹一平, 张福锁. 1991. Co2+在豌豆根系缺铁适应性反应中的作用[J]. 中国农业科学, 32(2): 105-107. https://www.cnki.com.cn/Article/CJFDTOTAL-ZNYK902.018.htm
戴燕燕, 钞锦龙, 蔡昕, 张鹏飞. 2020. 黄河中段河流阶地土壤钴元素分布及污染评价[J]. 太原师范学院学报(自然科学版), 19(2): 78-83. https://www.cnki.com.cn/Article/CJFDTOTAL-SJYX202002018.htm
方文稳, 张丽, 叶生霞, 徐荣海, 王鹏, 张成君. 2015. 安庆市降尘重金属的污染评价与健康风险评价[J]. 中国环境科学, 35(12): 3795-3803. doi: 10.3969/j.issn.1000-6923.2015.12.034
冯雄汉, 翟丽梅, 谭文峰, 刘凡, 贺纪正. 2005. 几种氧化锰矿物的合成及其对重金属的吸附和氧化特性[J]. 岩石矿物学杂志, 24(6): 531-538. doi: 10.3969/j.issn.1000-
谷蕾, 仝致琦, 宋博, 马建华. 2012. 基于不同通车时间的路旁土壤重金属健康风险: 以连霍高速郑州-商丘段为例[J]. 环境科学, 33(10): 3577-3584. https://www.cnki.com.cn/Article/CJFDTOTAL-HJKZ201210044.htm
何电源. 1992. 关于稻田施用石灰的研究[J]. 土壤学报, 29(1): 87-93.
何宏平, 郭龙皋, 谢先德, 彭金莲. 1999. 蒙脱石等粘土矿物对重金属离子吸附选择性的实验研究[J]. 矿物学报, 19(2): 231-235. doi: 10.3321/j.issn:1000-4734.1999.02.016
何志军, 陈杰瑞, 薛华, 黄柳梅, 刘琼. 2020. 阿尔茨海默症与2型糖尿病的共病机制及硒与钒的作用[J]. 生命科学, 32(6): 597-605.
侯明, 杨心瀚, 赵菲菲, 霍岩. 2019. 钒在不同品种玉米中的积累和化学形态特征[J]. 生态与农村环境学报, 35(11): 1468-1474. https://www.cnki.com.cn/Article/CJFDTOTAL-NCST201911016.htm
赖书雅, 董秋瑶, 宋超, 杨振京. 2021. 南阳盆地东部山区土壤重金属分布特征及生态风险评价[J]. 环境科学, 42(11): 5500-5509. https://www.cnki.com.cn/Article/CJFDTOTAL-HJKZ202111048.htm
李波, 青长乐, 周正宾, 杨青敏. 2000. 肥料中氮磷和有机质对土壤重金属的影响及治污中的应用[J]. 重庆环境科学, 22(6): 37-40. https://www.cnki.com.cn/Article/CJFDTOTAL-CQHJ200006012.htm
李玉梅, 李海鹏, 张连科, 焦坤灵, 孙鹏, 王维大. 2017. 包头某铝厂周边土壤重金属污染及健康风险评价[J]. 中国环境监测, 33(1): 88-96. https://www.cnki.com.cn/Article/CJFDTOTAL-IAOB201701019.htm
李振雄. 2019. 大别山霍山-金寨地区土壤重金属分布特征及环境质量评价[D]. 北京: 中国地质大学.
刘东盛, 王学求, 周建, 刘汉粮, 张必敏, 聂兰仕, 王玮, 迟清华, 徐善法. 2020. 中国钴地球化学基准值特征及影响因素[J]. 地球学报, 41(6): 807-817. https://www.cnki.com.cn/Article/CJFDTOTAL-DQXB202006007.htm
卢瑛, 龚子同, 张甘霖, 张波. 2004. 南京城市土壤重金属含量及其影响因素[J]. 应用生态学报, 15(1): 123-126. https://www.cnki.com.cn/Article/CJFDTOTAL-YYSB200401027.htm
罗丹. 2009. 钴、镍在土壤-植物系统中的转移规律及健康风险研究[D]. 福建: 福建农林大学, 1-151.
罗泽娇, 夏梦帆, 黄唯怡. 2019. 钴在土壤和植物系统中的迁移转化行为及其毒性[J]. 生态毒理学报, 14(2): 81-90. https://www.cnki.com.cn/Article/CJFDTOTAL-STDL201902009.htm
苗健. 1997. 微量元素与相关疾病[M]. 郑州: 河南医科大学出版社.
孙彬彬, 周国华, 刘占元, 庞绪贵, 代杰瑞. 2008. 黄河下游山东段沿岸土壤中重金属元素异常的成因[J]. 地质通报, 27(2): 265-270. https://www.cnki.com.cn/Article/CJFDTOTAL-ZQYD200802015.htm
滕彦国, 张庆强, 肖杰, 王金生, 王蕾, 矫旭东. 2008. 攀枝花公园土壤中钒的地球化学形态及潜在生态风险[J]. 矿物岩石, 28(2): 102-106. https://www.cnki.com.cn/Article/CJFDTOTAL-KWYS200802019.htm
王昌宇, 张素荣, 刘继红, 邢怡, 李名则, 刘庆学. 2021. 雄安新区某金属冶炼区土壤重金属污染程度及风险评价[J]. 中国地质, 48(6): 1697-1709. http://geochina.cgs.gov.cn/geochina/article/abstract/20210603?st=article_issue
王存龙, 曾宪东, 刘华峰, 杨丽原, 王红晋, 庞绪贵. 2015. 烟台市土壤环境质量现状及重金属元素分布迁移规律[J]. 中国地质, 42(1): 317-330. http://geochina.cgs.gov.cn/geochina/article/abstract/20150125?st=article_issue
王腾云, 周国华, 孙彬彬, 贺灵, 曾道明, 陈亚东, 叶荣. 2016. 福建沿海地区土壤-稻谷重金属含量关系与影响因素研究[J]. 岩矿测试, 35(3): 295-301. https://www.cnki.com.cn/Article/CJFDTOTAL-YKCS201603013.htm
王云, 魏复盛. 1995. 土壤环境元素化学[M]. 北京: 中国环境科学出版社.
熊婵, 蒋学慧, 田亚平, 马庆伟, 郭广宏. 2017. Ⅱ型糖尿病患者与健康男性血清中19种微量元素含量对比[J]. 质谱学报, 38(2): 195-202. https://www.cnki.com.cn/Article/CJFDTOTAL-ZPXB201702004.htm
姚成斌, 周明忠, 熊康宁, 张迪, 顾秉谦, 杨桦, 张先荣. 2020. Ni-Mo多金属矿区土壤和农作物铬、钴污染及健康风险评价[J]. 安徽农业大学学报, 47(1): 109-117. https://www.cnki.com.cn/Article/CJFDTOTAL-ANHU202001018.htm
袁帅, 张思源, 张雪琼, 袁国礼, 王永亮, 边鹏, 邰苏日嘎拉. 2022. 内蒙古乌拉特前旗大佘太地区农田表层土壤重金属生态安全风险评价[J/OL]. 中国地质, 1-20.
曾昭华, 廖苏平, 曾雪萍. 2002. 中国癌症与土壤环境中钒元素的关系[J]. 吉林地质, 21(3): 93-98. https://www.cnki.com.cn/Article/CJFDTOTAL-JLDZ200203016.htm
张迪, 周明忠, 熊康宁, 顾秉谦, 杨桦, 姚成斌. 2019. 贵州遵义松林镍-钼多金属矿区土壤及农作物钒健康风险评价[J]. 环境污染与防治, 41(7): 824-830. https://www.cnki.com.cn/Article/CJFDTOTAL-HJWR201907017.htm
中国环境监测总站. 1990. 中国土壤元素背景值[M]. 北京: 中国环境科学出版社.
钟昕, 崔文刚, 周明忠, 刘绥华. 2021. 贵州省遵义市富多金属黑色页岩区土壤钒污染评价[J]. 济南大学学报(自然科学版), 35(3): 211-216. https://www.cnki.com.cn/Article/CJFDTOTAL-SDJC202103002.htm
祝贺, 孙志高, 衣华鹏, 任鹏. 2016. 黄河口不同类型湿地土壤中钒和钴含量的空间分布特征[J]. 水土保持学报, 30(1): 315-320. https://www.cnki.com.cn/Article/CJFDTOTAL-TRQS201601056.htm
-
